Lathes are fundamental machines in the manufacturing industry, used to shape materials such as metal, wood, and plastic by rotating the workpiece against various cutting tools. While there are numerous types of lathes designed for different applications, a specific category known as heavy-duty lathes is developed to handle particularly large or heavy workpieces. These lathes are engineered to provide the necessary power, stability, and precision required for machining substantial components. This article delves into the types of heavy-duty lathes, their features, applications, and the advancements that have made them indispensable in modern manufacturing.

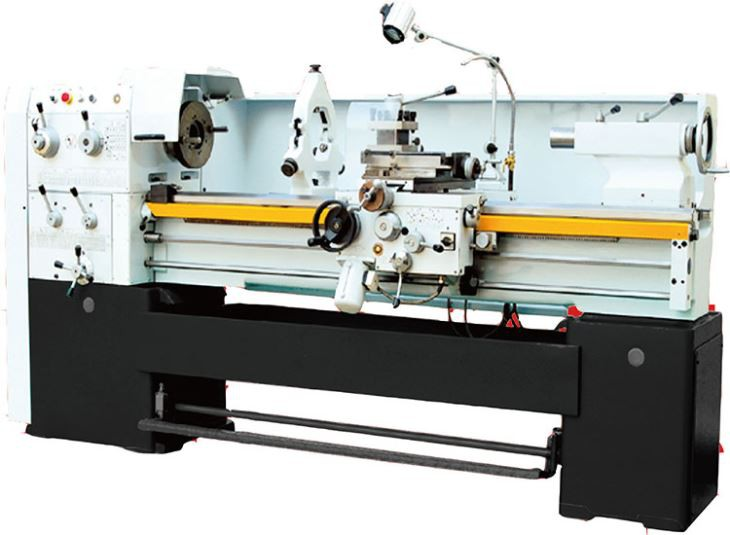

Horizontal lathes are the most common type of lathe used for heavy-duty applications. They are designed with a horizontal spindle and are capable of turning large-diameter components. These lathes are often used in industries such as aerospace, automotive, and energy, where large and heavy parts are common. For instance, the Harrison Alpha XS lathe series includes models like the 1660XS and 1760XS, which are specifically designed for accurate and efficient turning of large-diameter workpieces.

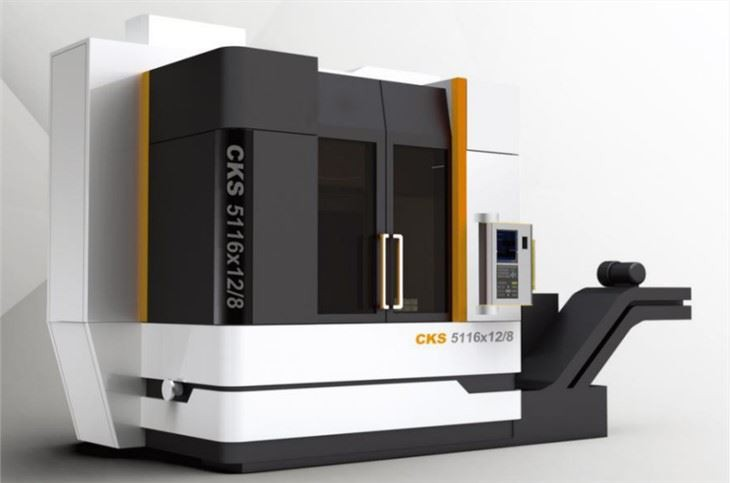

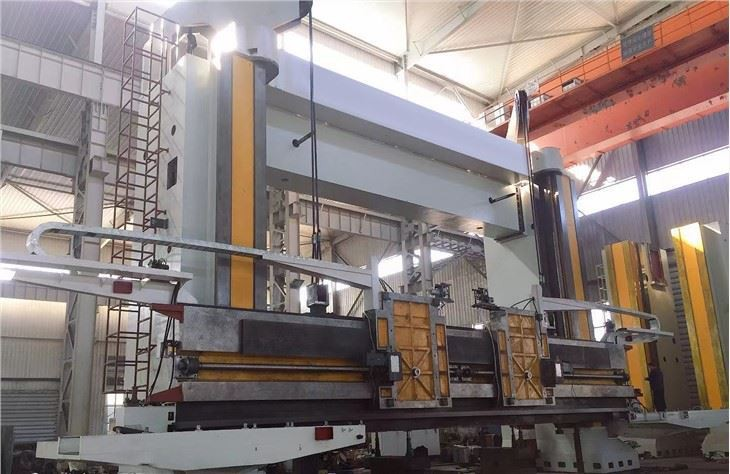

Vertical Turning Lathes, or VTLs, are another category of heavy-duty lathes. These machines have a vertical spindle orientation, which allows for easier handling of large and heavy parts. VTLs are particularly useful for machining large, heavy parts that are difficult to mount on horizontal lathes. An example is the Feeler FVT-600 vertical turning lathe, which is designed for machining large, heavy parts used in the aerospace and power-generation industries.
Slant-bed lathes feature a bed that is slanted at an angle, usually 45 degrees. This design provides better support for the workpiece and cutting tool, reducing vibrations and improving precision. Slant-bed lathes are ideal for rough and fine turning of large workpieces. Chevalier’s FBL-530 lathe, for example, features a 45-degree slant-bed design made of Meehanite cast iron with a wide-span, ribbed-box structure, making it suitable for large workpieces.
Computer Numerical Control (CNC) lathes have revolutionized the machining industry by automating the turning process. CNC lathes designed for heavy-duty applications are equipped with powerful motors and robust structures to handle large and heavy workpieces. The Femco HL-55/2000 CNC lathe, for instance, is designed for heavy cutting on large workpieces, featuring a wraparound, boxway construction and Turcite-lined mating surfaces to prevent wear.
Heavy-duty lathes are characterized by several key features that enable them to handle large and heavy workpieces effectively. These features include:
Heavy-duty lathes are built with robust and durable materials, such as cast iron and steel, to provide the necessary strength and stability. The bed, headstock, and tailstock are designed to withstand the stresses and forces generated during the machining of large workpieces.
These lathes are equipped with powerful motors that provide high torque and horsepower, enabling them to cut through tough materials and handle large workpieces with ease. The motors are designed to operate smoothly and efficiently, even under heavy loads.
Heavy-duty lathes are engineered to deliver high precision and accuracy, which is crucial for machining large components. Features such as precision ground ways, high-quality bearings, and advanced control systems ensure that the lathes can produce parts with tight tolerances and excellent surface finishes.
Modern heavy-duty lathes are equipped with advanced control systems, including CNC controls, that allow for precise and automated machining. These systems enable operators to program complex machining operations, monitor the machining process, and make adjustments as needed to ensure optimal performance.
Heavy-duty lathes are used in a wide range of industries where large and heavy components are common. Some of the key applications include:
In the aerospace industry, heavy-duty lathes are used to machine large components such as aircraft landing gear, engine parts, and structural components. The precision and accuracy of these lathes are critical for ensuring the safety and performance of aerospace components.
The automotive industry relies on heavy-duty lathes to produce large and complex parts such as crankshafts, camshafts, and transmission components. These lathes provide the necessary power and precision to machine these parts to exact specifications.
In the energy sector, heavy-duty lathes are used to machine components for power generation equipment, such as turbine shafts, generator rotors, and pipeline control valves. The ability to handle large and heavy workpieces is essential for producing these critical components.
The oil and gas industry uses heavy-duty lathes to machine parts such as drill pipes, casing, and valves. These components must withstand harsh operating conditions, and heavy-duty lathes provide the necessary strength and precision to produce them.
The development of heavy-duty lathes has been significantly influenced by advancements in technology. Some of the key technological advancements include:
The integration of CNC technology has transformed heavy-duty lathes by automating the machining process and enabling precise control over cutting operations. CNC lathes can perform complex machining tasks with high accuracy and repeatability, reducing the need for manual intervention and increasing productivity.
The use of advanced materials, such as high-strength alloys and composites, has improved the durability and performance of heavy-duty lathes. These materials provide better resistance to wear and deformation, ensuring that the lathes can handle the stresses of machining large and heavy workpieces.
Modern control systems, including digital readouts (DROs) and programmable logic controllers (PLCs), have enhanced the precision and ease of operation of heavy-duty lathes. These systems provide real-time feedback and allow operators to make precise adjustments to the machining process.
The integration of automation and robotics in heavy-duty lathes has further increased their efficiency and productivity. Automated tool changers, robotic loading and unloading systems, and advanced monitoring systems have reduced the need for manual labor and minimized downtime.
Heavy-duty lathes are essential machines in the manufacturing industry, designed to handle the challenges of machining large and heavy workpieces. With robust construction, powerful motors, and advanced control systems, these lathes provide the necessary power, precision, and efficiency for a wide range of applications. As technology continues to advance, heavy-duty lathes will continue to evolve, offering even greater capabilities and performance to meet the demands of modern manufacturing.
