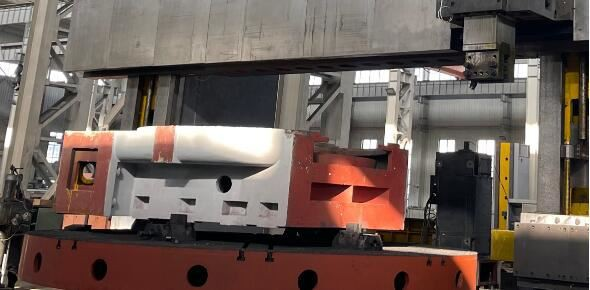

Large Vertical CNC Lathe

Max.turning diameter: 2500-16000mm

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction

1. This series of Large Vertical CNC Lathe is our company absorbing contemporary advanced design and manufacturing technologies. It adopts finite element analysis calculation and optimization design method to implement the latest national accuracy standards, configure advanced domestic and foreign functional components, and achieve strong cutting in structural performance. Machine tools have high static stiffness, high -tech mechanical and electrical machine tools with high static stiffness, safe and reliable sports, long service life, and high processing efficiency.

2. This machine has a main axis (the main axis of the driver), X, Z, 2 feeding axises, which is a high -efficiency CNC double column vertical lathe that links the two axis.

3. This machine is suitable for high -speed steel, hard alloy and ceramic tools. It is thick and precisely processed by various black metals, non -ferrous metals and some non -metal materials. Tanks, Gong Ying -made threads and rotary curved surfaces.

Products Specification of Large Vertical CNC Lathe

The vertical lathe can be equipped with C axis

Item	Unit	CK5225	CK5235	CK5240	CK5250	CK5263	CK5280	CK52100	CK52125
Max. turning diameter	mm	2500	3500	4000	5000	6300	8000	10000	12500
Max. Workpiece height	mm	1600/2000 /2200	1600/2000/ 2200	1600/2000/ 2200	4000	4000	4000	4000	5500
Worktable diameter	mm	2250	2850	3150	4500	5700	7100	7500	7500
Max. Worktable weight	t	10/16	10/16/20/32	10/16/32 /40/50/63	32/40/50 /63150	63/80 /100/150	100/125/150	150/250	250
Worktable rotation step		stepless	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Worktable rotation speed	r/min	2~63	2~63	2~63	0.32~32	0.32~32	0.32~32	0.2~20	0.16～16
Max. Worktable torque	KN·m	63	63	63	150	150	150	640	640
Max. Turning Torque of Tool post	KN	53	53	53	63	63	63	125
Right tool feeding range	mm/min	0.25~90	0.25~90	0.25~90	0.10~500	0.10~500	0.10~500	-	0.10~500
Right tool post rapid movement	mm/min	1550	1550	1550	4000	4000	4000	4000	4000
Left tool post rapid movement	mm/min	5000	5000	5000	4000	4000	4000	4000	4000
Left tool post feeding range	mm/min	1-2000	1-2000	1-2000	0.10~500	0.10~500	0.10~500	-	0.10~1000
Swing angle of tool post		±30º	±30º	±30º	-	-	-	-	-
Tool section	mm	40×50	40×50	40×50	280x280	280x280	280x280	80x80	100x100（Max）
Ram section	mm	-	-	-	-	-	-	320x320	400x400
Beam travel	mm	1250/1650/1850	1250/1650/1850/2150/2800	1250/1650/1850/2150/2800/3500	2150/2800/3000/4500	3000/3500/4500	3000/3500/4500/5000	3250/3750/4500/5000	4000/4500/5000
Beam lifting speed	mm/min	350	350	350	410	410	410	300	300
Main motor power	kW	55	55	55	75/90	90	90/132	132	132
Weight	t	41	45	47	200	215	-	-	465
