Feature of Double Column Vertical Lathe (1) The guideway is done by top imported machine Guideway Grinding Machine from Germany WALDRICH, when customer use machine for many years, machine precision still be nice. (2) Gear through carburization methods, and use gear grinding machine to finishing...
| Quantity: | |
|---|---|

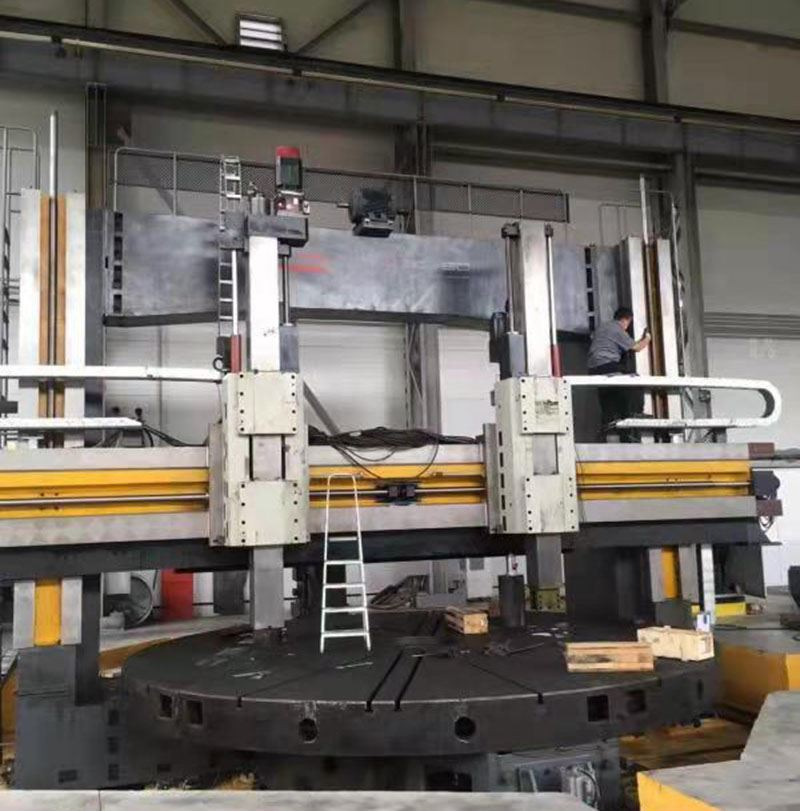

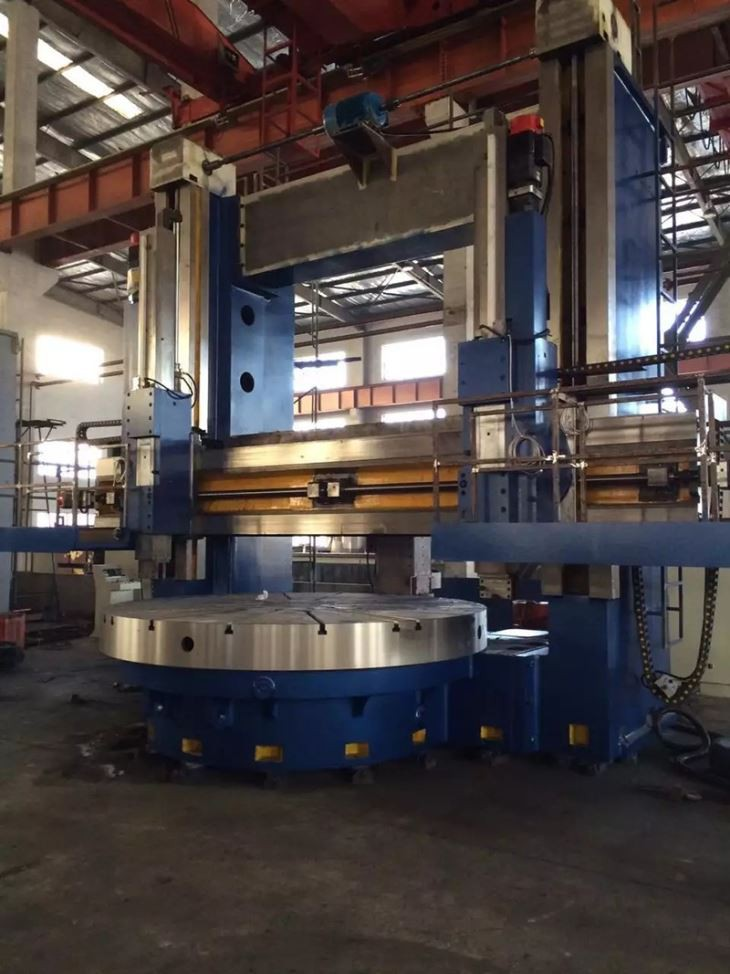

Feature of Manual Vertical Turret Lathe
(1) The guideway is done by top imported machine Guideway Grinding Machine from Germany WALDRICH, when customer use machine for many years, machine precision still be nice.
(2) Gear through carburization methods, and use gear grinding machine to finishing grind, Gear material is 40 Cr through high quenching treatment, hardness reaches HRC40-45, gear surface through gear grinding, precision can be up to Level 6, reducing vibration)
(3) All middle and small vertical lathe parts are done by tempering oven, to make parts hard and not to change shape. big castings are through shock time ageing.
(4) Our strong production capacity max machining diameter 8000mm vertical lathe in China.
(5) Working table adopts short spindle structure, NN3068K/W series of double row centripetal short cylindrical roller bearing, the inner ring with a taper hole, by adjusting the radial clearance, to ensure the accuracy of spindle.
(6) Gantry frame is composed of left and right column and the connecting beam. In the upper portion of gantry left-right lifting box, driven by a-c dynamo, make machine great strength and high stiffness, the aging treatment, eliminate stress, to ensure the accuracy of machine tools.
(7) Beam cast iron parts, high strength low stress has enough stiffness and strength, the aging treatment, ensure the accuracy of machine tools.
(8) The ram to within 15 ~ 30 + move Angle. Rest ram with hydraulic balance device to balance the slippery pillow part weight, make the ram smooth movement.
Products Specification of Manual Vertical Turret Lathe
The vertical lathe can be equipped with CNC controller and C axis for milling and boring function
Parameter | Unit | C5225 | C5235 | C5240 | C5245 | C5250 | C5263 | C5280 | C52100 | C52125 | C52160 | |
Worktable diameter | mm | 2250 | 2850 | 3600 | 3800 | 4200 | 5700 | 6300/7100 | 7100/ 7500 | 7500/8000 | 10000 | |
Max, Turning diameter | mm | 2500 | 3500 | 4000 | 4500 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | |
Max. Workpiece height(H) | mm | 1600 | 2000/2500/3150 | 2000/2500 /3150 | 2000/2500 /3150 | 2500/3150 /4000 | 3150/4000 /4500/5000 | 4000/4500 /5000/5500 | 4500/5000 /6000 | 4500/5000/5500/6500 | 5500/6000 /7000 | |
Max. Workpiece weight(W) | t | 10/16 | 10/16/20/32 | 25/32/20/32 | 25/32/50/63 | 25/32/40/50/63 | 25/40/63/80/150 | 100/125/150 | 100/150/200/250 | 100/150/200/250 | 400 | |
Max. Turning force | Right tool post | N | 35000 | 40000 | 40000 | 40000 | 50000 | 63000 | 80000 | 100000 | 100000 | 100000 |
Left Tool post | N | 30000 | 35000 | 35000 | 35000 | 35000 | 50000 | 63000 | 80000 | 80000 | 80000 | |
Max. Workpiece torque | N·m | 63000 | 80000 | 80000 | 80000 | 80000 | 200000 | 460000 | 640000 | 640000 | 1000000 | |
Workpiece step | step | stepless | step | step | step | step | step | step | step | step | step | |
Workpiece rotation | rpm | 2~63 | 0.63-63 | 0.63-63 | 0.5-50 | 0.5-50 | 0.32-32 | 0.2-20 | 0.2-20 | 0.16~16 | 0.1-10 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 0.25~90 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 3000/3500/3650/4250/4500 | 3750/4250/4500/5000 | 3750/4000/4250/4500/5000 | 4000/5000/5500 | |
Tool post travel | Horizontal | mm | 1400 | 1900 | 2200 | 2450 | 2700 | 3200 | 4400 | 5400 | 5400 | 5400 |
Vertical | mm | 1000 | 1250/1400 | 1000/1250/1400 | 1000/1250/1400 | 1400/1600/2000 | 1600/2000/2500 | 2000/2500/2750 | 2500/2750 | 2500/2750 | 2500/2750 | |
Beam travel speed | mm/min | 350 | 350 | 300 | 300 | 350 | 230 | 230 | 230 | 230 | 230 | |
Tool post rapid speed | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | ±30 | -15-+30 | -15-+30 | -15-+30 | -15-+30 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | |
Tool section | mm | 40×50 | 50×50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 55 | 55 | 55 | 55 | 75 | 90 | 110 | 132 | 132 | 160 | |
Weight | T | 38 | 45 | 50 | 55 | 70 | ||||||

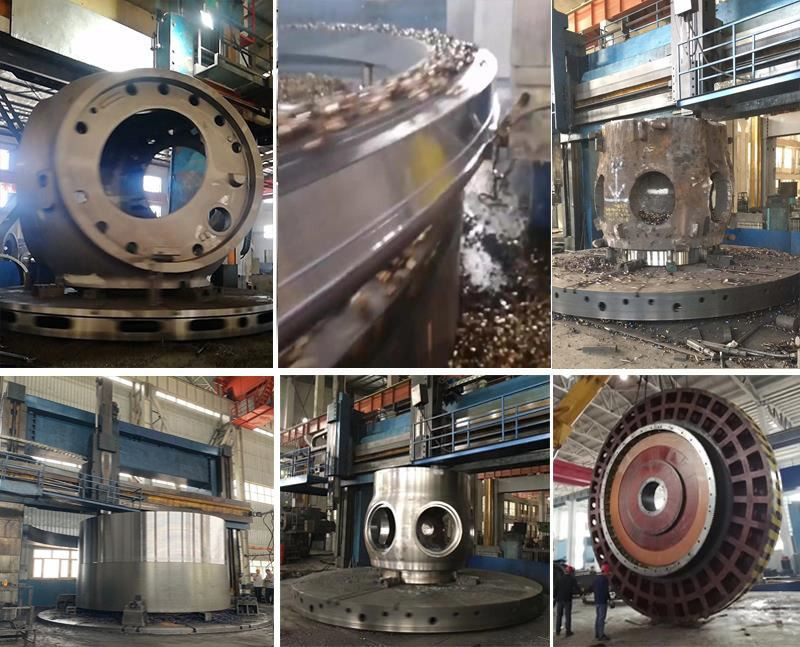

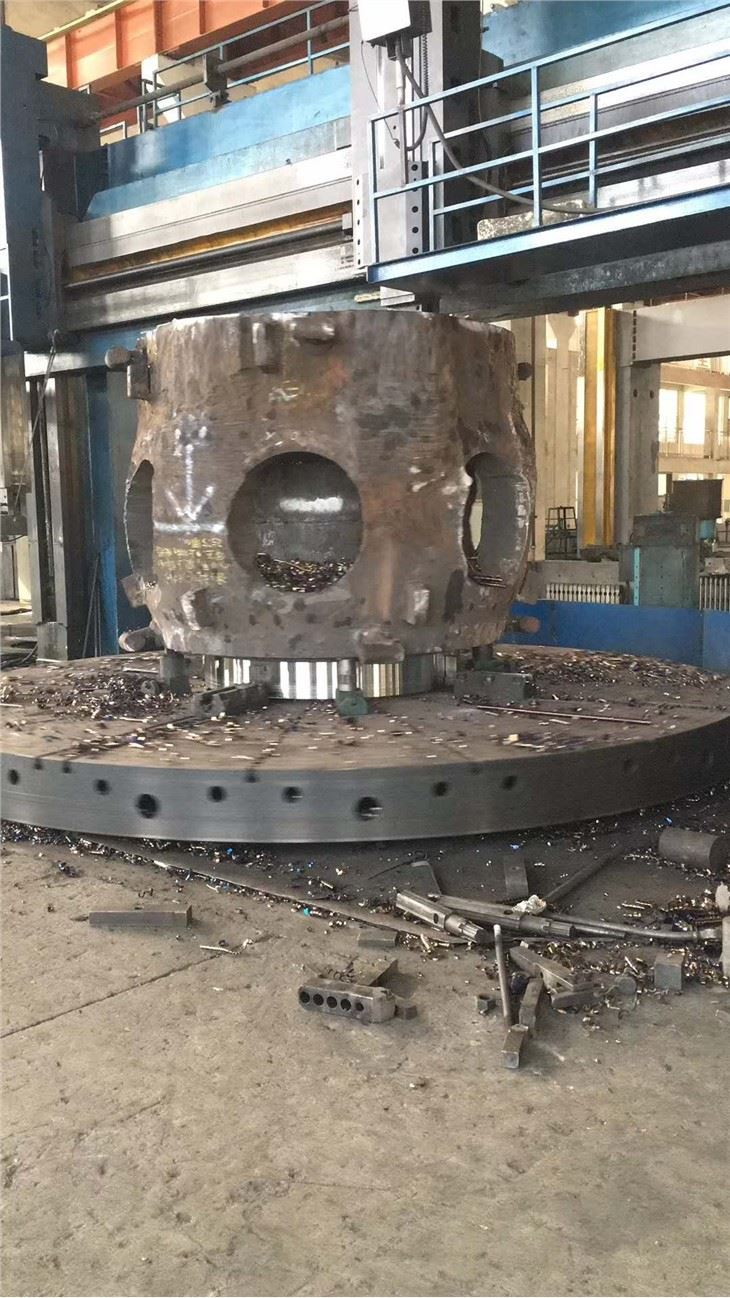

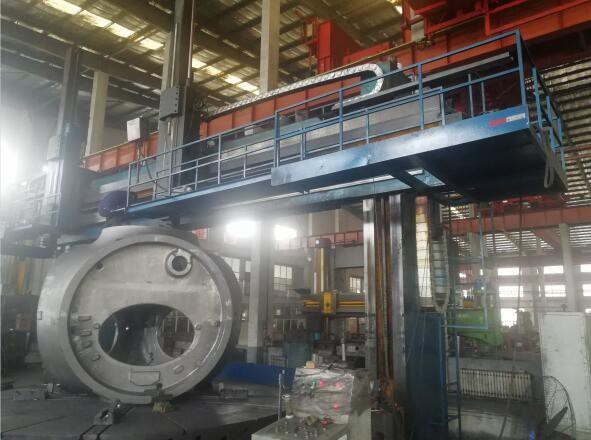

Work piece of Manual Vertical Turret Lathe
Serious and professional testing
Package and Shipping
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
