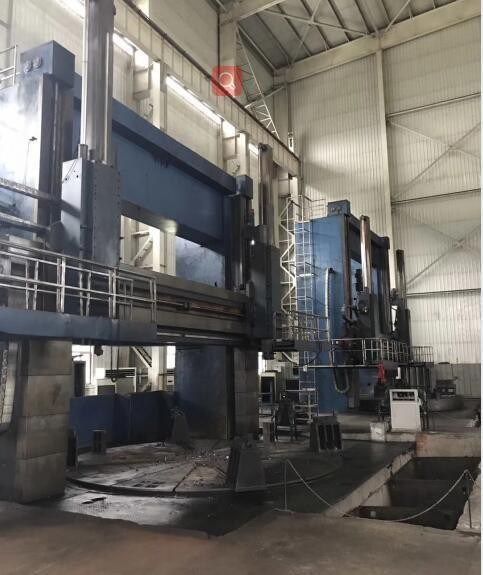

Double Column Vertical Lathe is meet all requirements of a low-cost flexible series production of chuck parts.
| Quantity: | |
|---|---|
Feature
1. Two Column CNC Vertical Lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.
2. Worktable using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
3. Two Column CNC Vertical Lathe is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
4. High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
5 .The Two Column CNC Vertical Lathe tool post can move horizontally on the beam and the ram for vertical movement. The X-axis and Z-axis are driven by SIEMENS/FANUC/GSK etc CNC AC servo motor. The motor and the ball screw are directly connected through the unidirectional precision diaphragm elastic coupling
6. The hydraulic system of this machine consists of the main drive speed change system, the vertical tool post hydraulic balance system, the beam clamping and loosening system, the main drive lubrication system and the worktable hydrostatic pressure guideway system.
7. The turning main drive and variable speed mechanism are driven by a set of vertical DC main motor, the main motor is directly connected to the main transmission box, and the two-stage (i=1 and i=4) vertical shaft mechanism variable speed drive is used to achieve the required speed range during turning . The DC speed control system adopts American Parker.
Parameter
The vertical lathe can be equipped with C axis
Model NO. | CK5225 | CK5240 | CK5250 | CK5263 | CK5280 |
Max. turning diameter of vertical tool post | 2500 | 4000 | 5000 | 6300 | 8000 |
Working table diameter(mm) | 2250 | 3200 | 4500 | 5700 | 7100 |
Max. weight of work-piece(T) | 10 | 32 | 50 | 120 | 150 |
Max. height of work-piece(mm) | 2000 | 2500 | 3150 | 3500 | 4000 |
Working table range of rotation speed(r/m) | 2-63 | 2-63 | 0.42-42 | 0.3-25 | 0.3-25 |
Working table step of rotation speed | stepless | stepless | stepless | stepless | stepless |
Horizontal travel of vertical tool post(mm) | 1400 | 2150 | 2765 | 3415 | 4400 |
Vertical travel of vertical tool post(mm) | 1000 | 1250 | 1600 | 1750 | 2000 |
Main power(kW) | 55 | 55 | 75 | 110 | 125 |
Weight(T) | 35 | 58 | 90 | 180 | 245 |
Overall size (LxWxH) CM | 5180*4560*5180 | 6780*6000*5750 | 9350*6400*5750 | 10650*6400*7500 | 17300*9000*12600 |
Details
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Customers
Various size can be provided to meet various size of workpiece
