Description:
This series Two turret Vertical Lathe Machine adapted for motors, water turbines, aviation, mining machinery, metallurgy and general machinery industries are suitable for roughly and finely machining int. and ext. cylinders, tapers, surfaces and grooves, Main drives of this series machines are D.C. and A.C., and table adopts hydrotatic guideway.
Feature of Two turret Vertical Lathe
1. The rough surface of the workpiece shall not be directly placed on the worktable, and shall be supported by pad iron or screw top; it is strictly prohibited to use the worktable for other operations, such as hammering to correct the workpiece, welding the workpiece, etc.
2. When the workpiece is aligned, the table can only be inched to rotate and align at low speed, not at high speed.
3. When starting and stopping the worktable, the handle of the worktable can only be pulled by hand, and it is strictly forbidden to use pedals.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
The Two turret Vertical Lathe can be equipped with C axis for milling and boring function.
Item | Unit | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. turning diameter | mm | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000/2200 | 1600/2000/2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50/63/150 | 63/80/100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque | KN | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 |
Beam lifting speed | mm/min | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Total power | kW | - | - | 190 | 190 | 190 | 226 | - |
Overall Sizes | mm | - | - | 12350x8350x7800 | 13950x8350x7800 | - | - | - |
Weight | t | 45 | 47 | 200 | 215 | - | - | 465 |

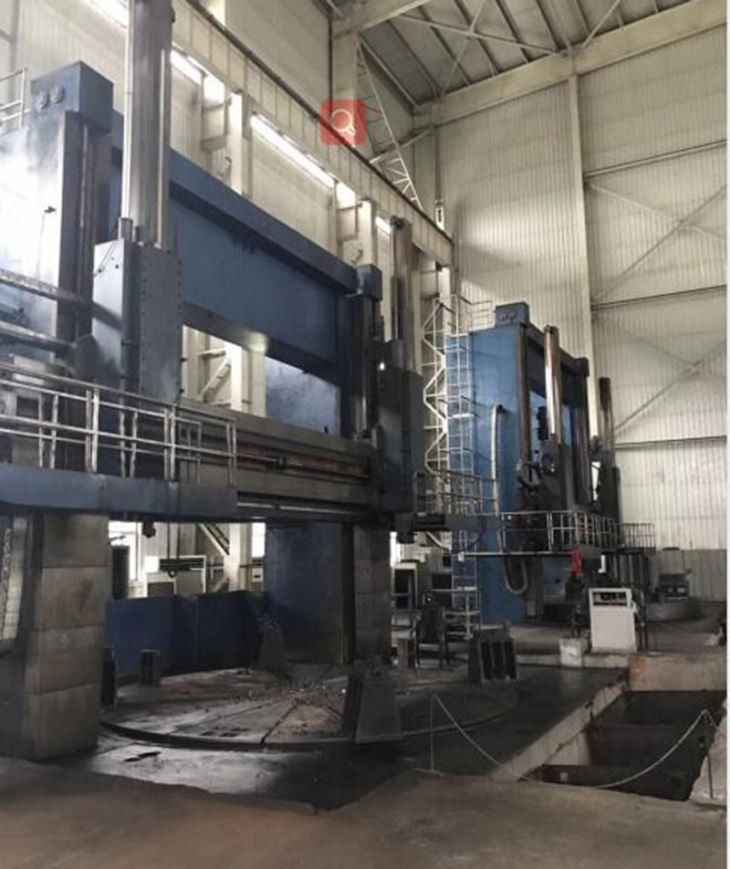

Production details of Two turret Vertical Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working
Work flow
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
Manufacturing facilities
Description:
This series Two turret Vertical Lathe Machine adapted for motors, water turbines, aviation, mining machinery, metallurgy and general machinery industries are suitable for roughly and finely machining int. and ext. cylinders, tapers, surfaces and grooves, Main drives of this series machines are D.C. and A.C., and table adopts hydrotatic guideway.
Feature of Two turret Vertical Lathe
1. The rough surface of the workpiece shall not be directly placed on the worktable, and shall be supported by pad iron or screw top; it is strictly prohibited to use the worktable for other operations, such as hammering to correct the workpiece, welding the workpiece, etc.
2. When the workpiece is aligned, the table can only be inched to rotate and align at low speed, not at high speed.
3. When starting and stopping the worktable, the handle of the worktable can only be pulled by hand, and it is strictly forbidden to use pedals.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
The Two turret Vertical Lathe can be equipped with C axis for milling and boring function.
Item | Unit | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. turning diameter | mm | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000/2200 | 1600/2000/2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50/63/150 | 63/80/100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque | KN | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 |
Beam lifting speed | mm/min | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Total power | kW | - | - | 190 | 190 | 190 | 226 | - |
Overall Sizes | mm | - | - | 12350x8350x7800 | 13950x8350x7800 | - | - | - |
Weight | t | 45 | 47 | 200 | 215 | - | - | 465 |
Production details of Two turret Vertical Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working

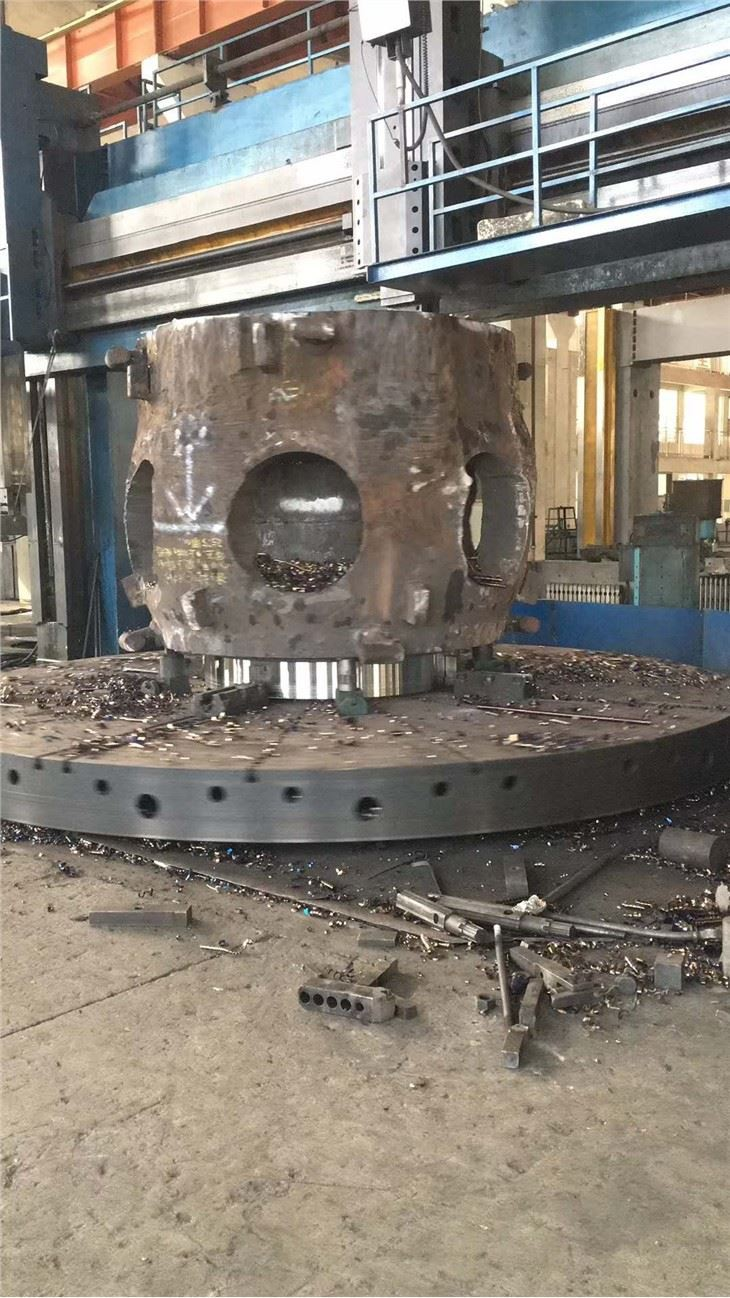

Work flow
