The double column vertical lathe, also named conventional double column vertical lathe machine, manual double column vertical turning lathe, double column vertical turret lathe, suitable for hard alloy and ceramic cutting tool.
| Quantity: | |
|---|---|
Main feature of CNC Double Column Vertical Lathes
(1) Gantry frame
The gantry frame is composed of left column, right column, connecting beam, worktable, etc. The gantry frame is connected with the foundation to form a closed symmetrical frame; it adopts high-strength and low-stress iron castings
(2) Cross beam
The beam is placed in front of the column, driven by a dual-axis AC motor, and driven by gears, worm gears, and screw pairs to make the beam move vertically on the column. The beam rails are protected by stainless steel metal shields.
(3) The worktable adopts a fixed-spindle short-spindle structure. A set of high-precision (P5 grade) double-row short cylindrical roller bearings is installed on the spindle.
(4) Eertical tool holder
The equipment is equipped with a tool holder, which is a CNC turning and milling tool holder. The horizontal and vertical movements are driven by AC servo motors, and the horizontal and vertical movements of the tool rest are realized by gears and screw pairs.
Parameter of CNC Double Column Vertical Lathes
The vertical lathe can add milling and boring function.
Item | Unit | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 |
Max. Turning diameter | mm | 4000 | 5000 | 6300 | 8000 | 10000 |
Max. Workpiece height | mm | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 |
Worktable diameter | mm | 3150 | 4500 | 5700 | 7100 | 7500 |
Max. Worktable weight | t | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 |
Max. Worktable torque | KN·m | 63 | 150 | 150 | 150 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 63 | 63 | 63 | 125 |
Right tool feeding range | mm/min | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - |
Right tool post rapid movement | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - |
Swing angle of tool post | ±30º | - | - | - | - | |
Tool section | mm | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 |
Ram section | mm | - | - | - | - | 320x320 |
Beam travel | mm | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 |
Beam lifting speed | mm/min | 350 | 410 | 410 | 410 | 300 |
Main motor power | kW | 55 | 75/90 | 90 | 90/132 | 132 |
Weight | t | 47 | 200 | 215 | - | - |

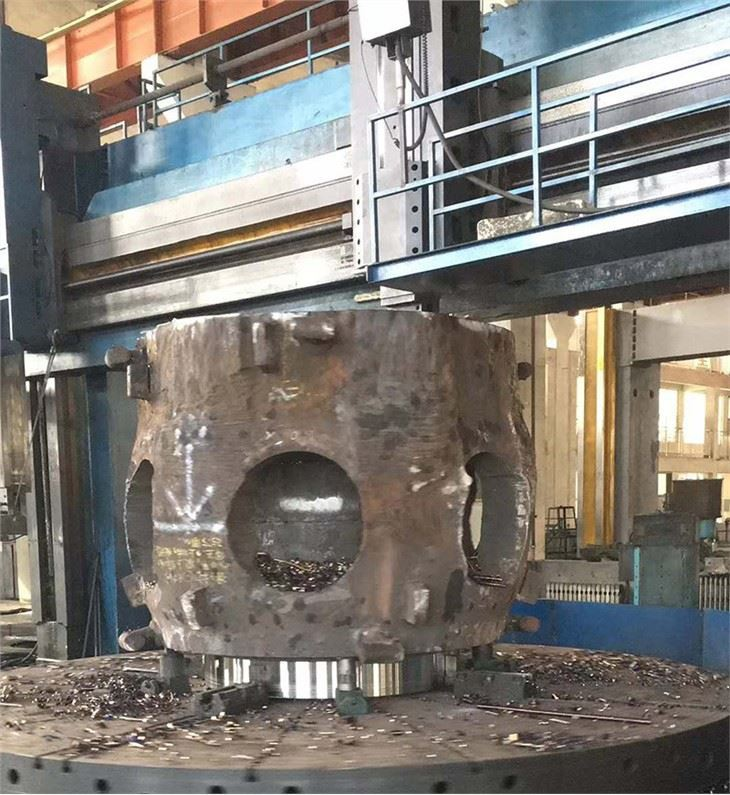

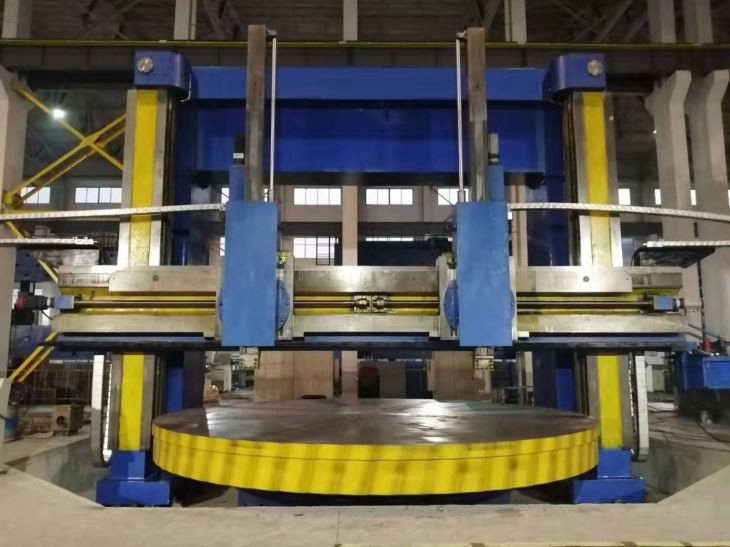

Details of Double Column Vertical Lathes

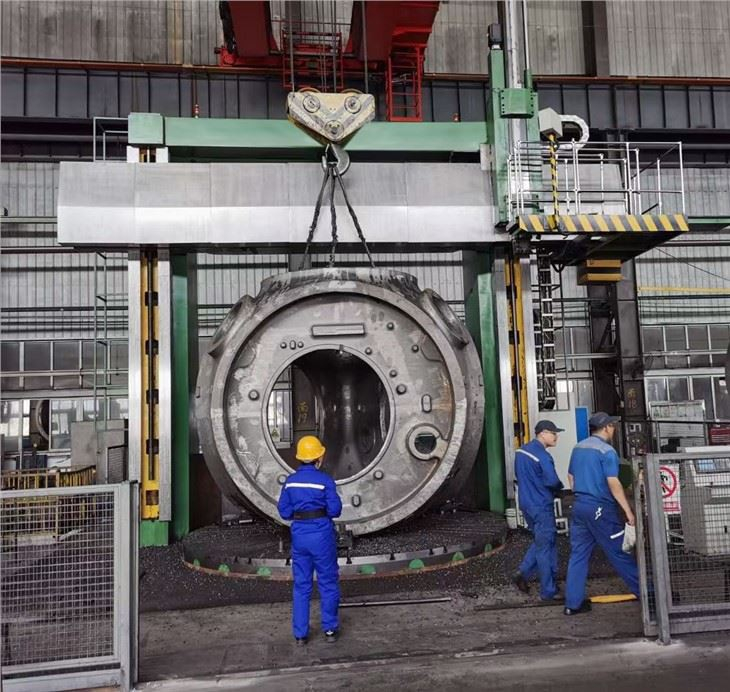

Working flow

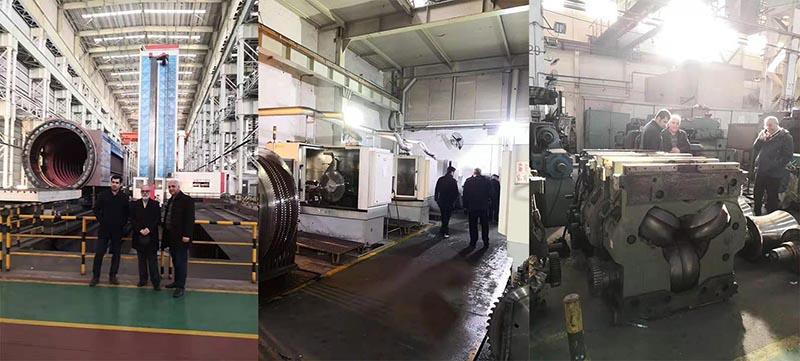

Glance of workshop of Vertical lathe with Drilling And Milling Function
