CNC Two column Vertical Lathe for heavy workpieces

This series of machine tools are suitable for machining in various industries, and can be used for rough and fine turning of outer cylindrical surface, conical surface, end surface, grooving, cutting, etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction:

1. CNC Two column Vertical Lathe are usually designed with horizontal structures and are the most common method for people to cut cylindrical work pieces. However, a vertical lathe is a machine tool that rotates a work piece on a rotating axis and performs various machining operations vertically. The working mode is basically the same as the horizontal lathe. This type of machining is performed by tools applied to the work piece to create objects symmetrical to the axis driven by the spindle.

2. The CNC Two column Vertical Lathe is suitable for high-speed steel, hard alloy and ceramic cutting tool, machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of ferrous metals, nonferrous metals and some non-metallic parts. It can meet different quantity production requirements with high efficiency, stable and reliable precision.

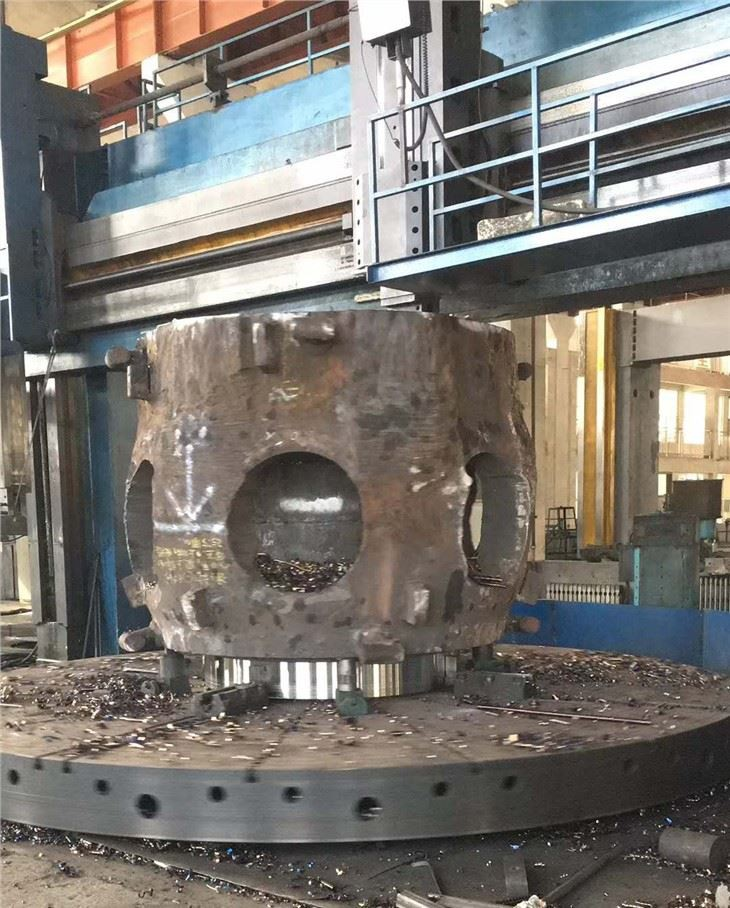

3. An important advantage of the VTL machine is the ease in which large heavy workpieces can be set and held in place for machining. An advantage for any shop using VTL is that gravity is an important factor in holding these parts. Generally only a minimum of hard clamping is required.

4. CNC Two column Vertical Lathe give foundries with machine shops as well as those that outsource machining the ability to cut bigger and heavier castings.

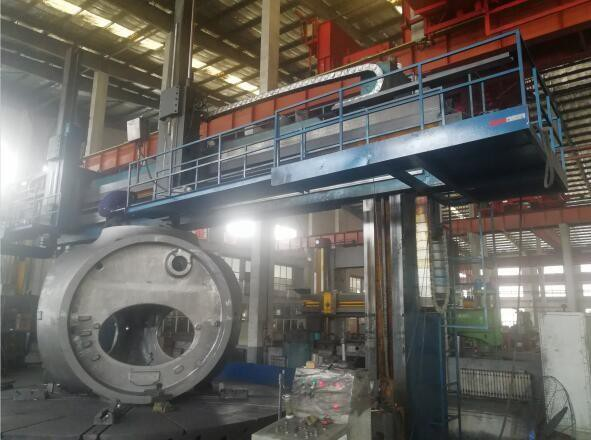

5. Aside from turret head or ram head, CNC Two column Vertical Lathe design uses a rotating table to support the workpiece and use a bridge-type construction that carries the X-axis. A ram traverses the X-axis guides and delivers the cutter.

6. The spindle of the worktable is of short spindle structure, and the spindle is equipped with high-precision double row short cylindric

The spindle of the worktable is of short spindle structure, and the spindle is equipped with high-precision double row short cylindrical roller bearings to ensure the radial runout of the worktable. all roller bearings to ensure the radial runout of the worktable.

Parameter

The vertical lathe can be equipped with C axis

Item	Unit	CK5225	CK5235	CK5240	CK5250	CK5263	CK5280	CK52100	CK52125
Max. turning diameter	mm	2500	3500	4000	5000	6300	8000	10000	12500
Max. Workpiece height	mm	1600/2000 /2200	1600/2000/ 2200	1600/2000/ 2200	4000	4000	4000	4000	5500
Worktable diameter	mm	2250	2850	3150	4500	5700	7100	7500	7500
Max. Worktable weight	t	10/16	10/16/20/32	10/16/32 /40/50/63	32/40/50 /63150	63/80 /100/150	100/125/150	150/250	250
Worktable rotation step		stepless	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Worktable rotation speed	r/min	2~63	2~63	2~63	0.32~32	0.32~32	0.32~32	0.2~20	0.16～16
Max. Worktable torque	KN·m	63	63	63	150	150	150	640	640
Max. Turning Torque of Tool post	KN	53	53	53	63	63	63	125
Right tool feeding range	mm/min	0.25~90	0.25~90	0.25~90	0.10~500	0.10~500	0.10~500	-	0.10~500
Right tool post rapid movement	mm/min	1550	1550	1550	4000	4000	4000	4000	4000
Left tool post rapid movement	mm/min	5000	5000	5000	4000	4000	4000	4000	4000
Left tool post feeding range	mm/min	1-2000	1-2000	1-2000	0.10~500	0.10~500	0.10~500	-	0.10~1000
Swing angle of tool post		±30º	±30º	±30º	-	-	-	-	-
Tool section	mm	40×50	40×50	40×50	280x280	280x280	280x280	80x80	100x100（Max）
Ram section	mm	-	-	-	-	-	-	320x320	400x400
Beam travel	mm	1250/1650/1850	1250/1650/1850/2150/2800	1250/1650/1850/2150/2800/3500	2150/2800/3000/4500	3000/3500/4500	3000/3500/4500/5000	3250/3750/4500/5000	4000/4500/5000
Beam lifting speed	mm/min	350	350	350	410	410	410	300	300
Main motor power	kW	55	55	55	75/90	90	90/132	132	132
Weight	t	41	45	47	200	215	-	-	465
