Max.turning diameter: 2500-16000mm
| Quantity: | |
|---|---|
Feature
1. Double Column CNC Vertical Turning Lathe is mainly used for the rough and fine processing and groove cutting of inside and outside cylindrical surface and circular conical surface and plane for ferrous metals, non-ferrous metals and some non-metallic parts by high speed steel and hard alloy tools.
2. Double Column CNC Vertical Turning Lathe left tool rest can be equipped with electric tool post, Tool rest feeding has AC asynchronous servo feeding system with PLC control, LCD displays feeding axis position and feeding speed. Manual pulse tool setting.
3. Double Column CNC Vertical Turning Lathe has large worktable load-bearing, high machine accuracy, high rigidity, long service life, good antiknock characteristic, strong reliability and is suitable for strong cutting.
4. Double column vertical lathe adopts the short spindle structure, and spindle centering bearing adopts high accuracy double row roller bearing; worktable guideway adopts constant flow hydrostatic guideway, through the equivalent oil distributor to supply the pressure oil to the static pressure oil cavity. So the radial and axial directions of the worktable have higher precision and strengthened load-bearing.
5. Main movement is driven by spindle AC servo motor with good dynamic characteristics. And the worktable has strong instantaneous overload capacity. Feeding axis movement is that the servo motor driving the ball screw structure by the reduction box with high accuracy and accurate position.
Products Specification
The vertical lathe can be equipped with C axis
| Item | Unit | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 |
| Max. turning diameter | mm | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 |
| Max. Workpiece height | mm | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 |
| Worktable diameter | mm | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 |
| Max. Worktable weight | t | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 |
| Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | |
| Worktable rotation speed | r/min | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 |
| Max. Worktable torque | KN·m | 63 | 63 | 150 | 150 | 150 | 640 |
| Max. Turning Torque of Tool post | KN | 53 | 53 | 63 | 63 | 63 | 125 |
| Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - |
| Right tool post rapid movement | mm/min | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 |
| Left tool post rapid movement | mm/min | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 |
| Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - |
| Swing angle of tool post | ±30º | ±30º | - | - | - | - | |
| Tool section | mm | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 |
| Ram section | mm | - | - | - | - | - | 320x320 |
| Beam travel | mm | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 |
| Beam lifting speed | mm/min | 350 | 350 | 410 | 410 | 410 | 300 |
| Main motor power | kW | 55 | 55 | 75/90 | 90 | 90/132 | 132 |
| Weight | t | 45 | 47 | 200 | 215 | - | - |
Production details

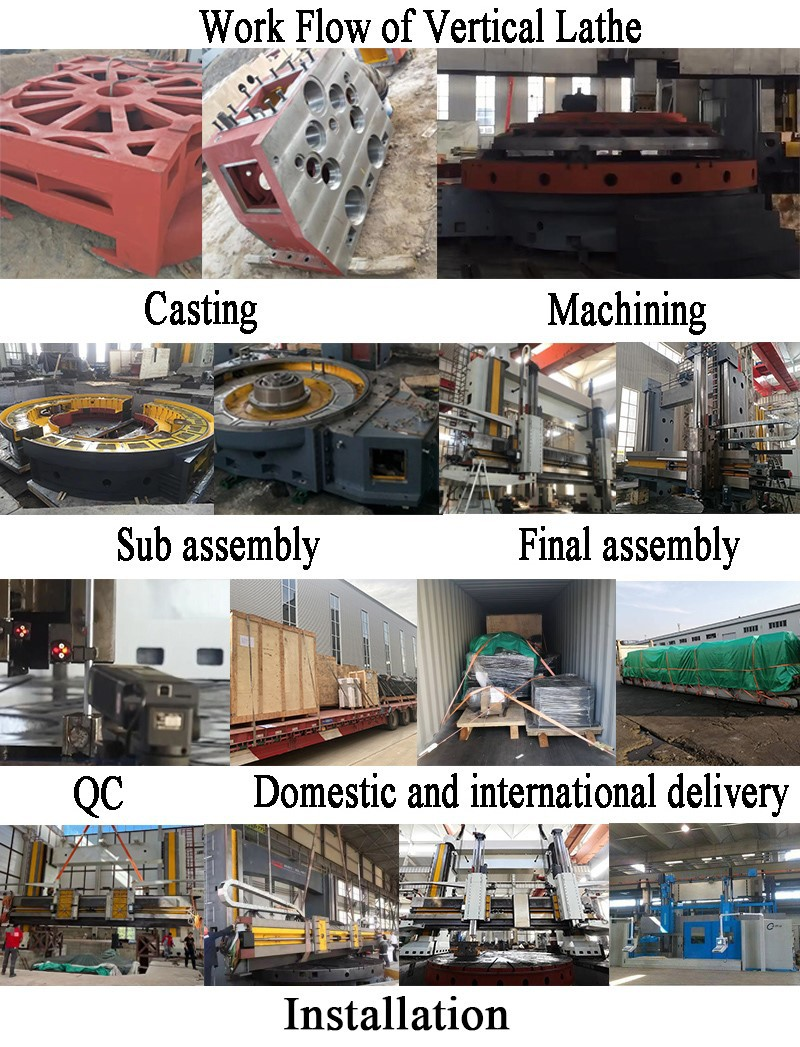

Work flow

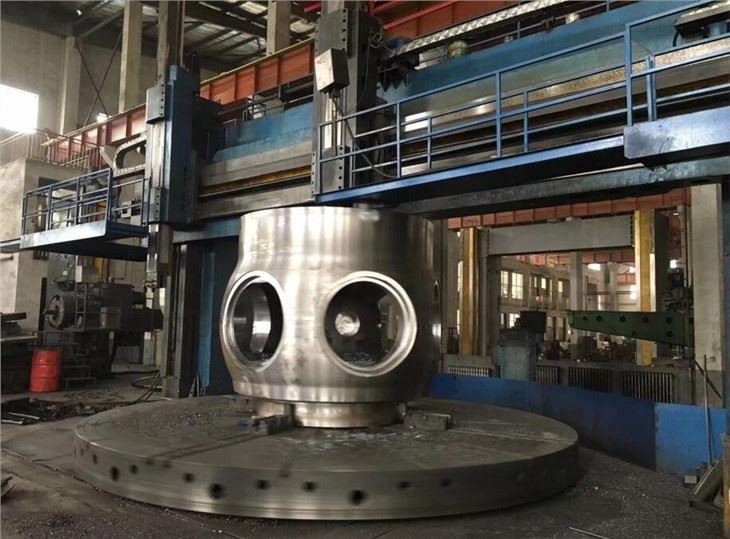

The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Customers
Various size can be provided to meet various size of workpiece
Perché scegliere noi
1.Miglior componente
Quasi tutti i componenti delle macchine utensili provengono da Germania, Giappone, America e noto produttore cinese.
2.Clienti
Abbiamo clienti di riferimento in oltre 40 nazioni in ogni continente ....
3. La tecnologia costante
Quello che possediamo è la tecnologia costante per la produzione di macchine utensili, che garantiscono stabilità e hanno una vita lavorativa più lunga.
4.Rilevamento rigorosamente di qualità
La qualità e la precisione delle nostre macchine utensili sono rigorosamente garantite da CMM, Comparatore ecc. e dai nostri lavoratori esperti.
5. La nostra gente
Le nostre persone sono professionali, gentili e laboriose con i nostri clienti.
