The spindle of the table adopts a short spindle structure. The spindle is equipped with a NN3068K/W series double-row radial short cylindrical roller bearing. The inner ring has a tapered hole. The radial clearance is adjusted to ensure the spindle precision.
| Quantity: | |
|---|---|
Feature of Double Column Vertical Turning Lathe
1. The spindle of the table adopts a short spindle structure. The spindle is equipped with a NN3068K/W series double-row radial short cylindrical roller bearing. The inner ring has a tapered hole. 2. The radial clearance is adjusted to ensure the spindle precision.
3. The table uses a constant-current hydrostatic guide to withstand vertical loads. To prevent thermal deformation, it has an oil temperature automatic control box that can cool the hydraulic oil.
4. The beam is made of high-strength and low-stress cast iron with sufficient rigidity and strength to ensure the accuracy of the machine. The contact surface of the beam and the column rail is adhered with a PTFE wear-resistant rail soft belt
Products Specification of Double Column Vertical Turning Lathe
The vertical lathe can be equipped with CNC controller and C axis for milling and drilling
Parameter | Unit | C5225 | C5235 | C5240 | C5245 | C5250 | C5263 | C5280 | C52100 | C52125 | C52160 | |
Worktable diameter | mm | 2250 | 2850 | 3600 | 3800 | 4200 | 5700 | 6300/7100 | 7100/ 7500 | 7500/8000 | 10000 | |
Max, Turning diameter | mm | 2500 | 3500 | 4000 | 4500 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | |
Max. Workpiece height(H) | mm | 1600 | 2000/2500/3150 | 2000/2500 /3150 | 2000/2500 /3150 | 2500/3150 /4000 | 3150/4000 /4500/5000 | 4000/4500 /5000/5500 | 4500/5000 /6000 | 4500/5000/5500/6500 | 5500/6000 /7000 | |
Max. Workpiece weight(W) | t | 10/16 | 10/16/20/32 | 25/32/20/32 | 25/32/50/63 | 25/32/40/50/63 | 25/40/63/80/150 | 100/125/150 | 100/150/200/250 | 100/150/200/250 | 400 | |
Max. Turning force | Right tool post | N | 35000 | 40000 | 40000 | 40000 | 50000 | 63000 | 80000 | 100000 | 100000 | 100000 |
Left Tool post | N | 30000 | 35000 | 35000 | 35000 | 35000 | 50000 | 63000 | 80000 | 80000 | 80000 | |
Max. Workpiece torque | N·m | 63000 | 80000 | 80000 | 80000 | 80000 | 200000 | 460000 | 640000 | 640000 | 1000000 | |
Workpiece step | step | stepless | step | step | step | step | step | step | step | step | step | |
Workpiece rotation | rpm | 2~63 | 0.63-63 | 0.63-63 | 0.5-50 | 0.5-50 | 0.32-32 | 0.2-20 | 0.2-20 | 0.16~16 | 0.1-10 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 0.25~90 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 3000/3500/3650/4250/4500 | 3750/4250/4500/5000 | 3750/4000/4250/4500/5000 | 4000/5000/5500 | |
Tool post travel | Horizontal | mm | 1400 | 1900 | 2200 | 2450 | 2700 | 3200 | 4400 | 5400 | 5400 | 5400 |
Vertical | mm | 1000 | 1250/1400 | 1000/1250/1400 | 1000/1250/1400 | 1400/1600/2000 | 1600/2000/2500 | 2000/2500/2750 | 2500/2750 | 2500/2750 | 2500/2750 | |
Beam travel speed | mm/min | 350 | 350 | 300 | 300 | 350 | 230 | 230 | 230 | 230 | 230 | |
Tool post rapid speed | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | ±30 | -15-+30 | -15-+30 | -15-+30 | -15-+30 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | |
Tool section | mm | 40×50 | 50×50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 55 | 55 | 55 | 55 | 75 | 90 | 110 | 132 | 132 | 160 | |
Weight | T | 38 | 45 | 50 | 55 | 70 | ||||||

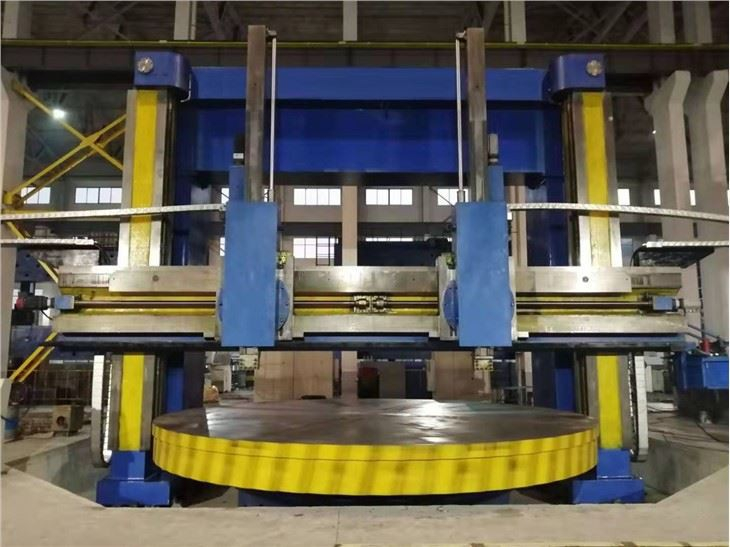

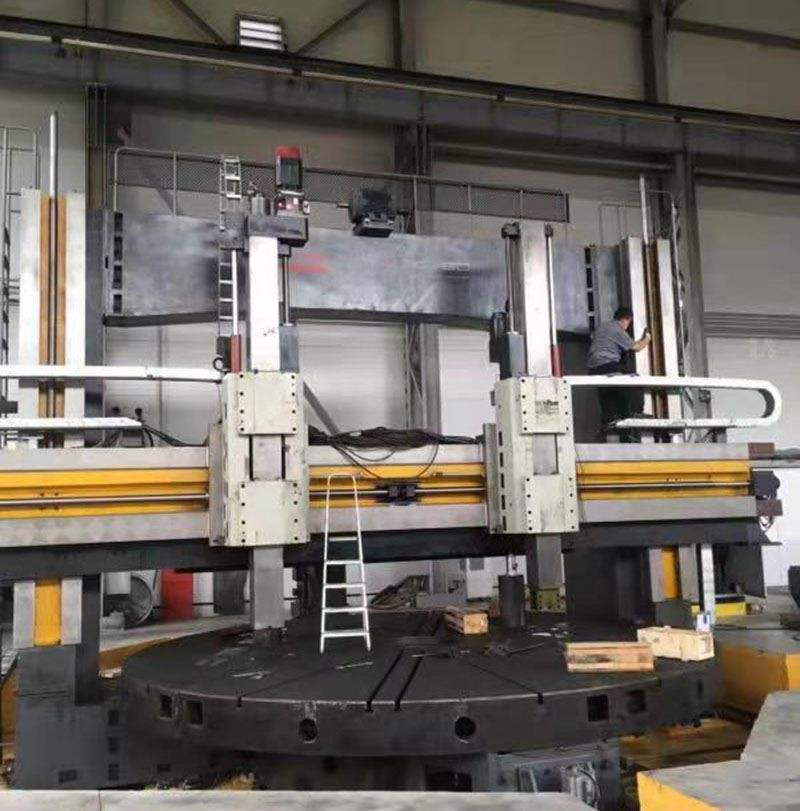

Production details of Double Column Vertical Turning Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.

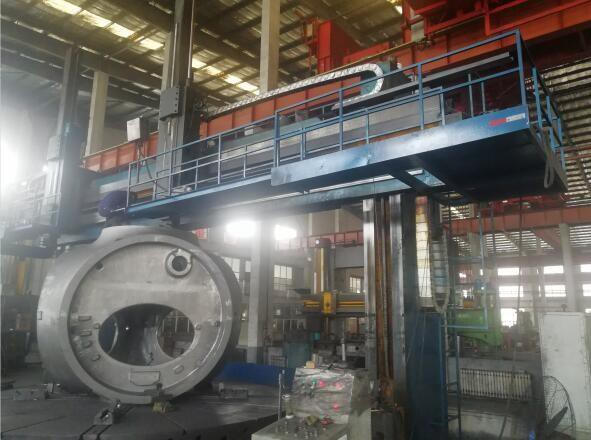

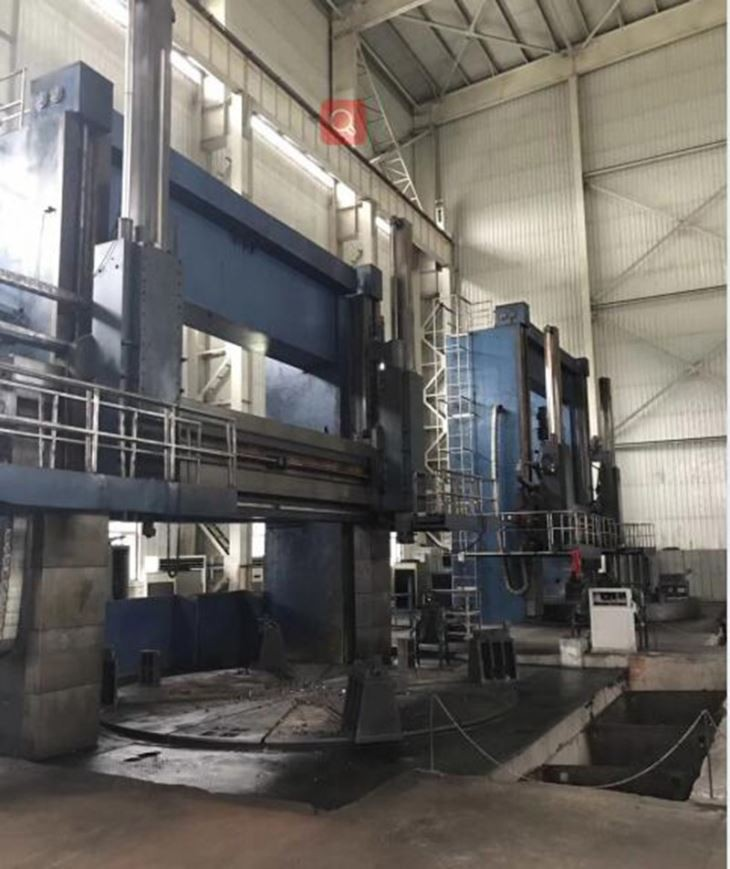

Customers

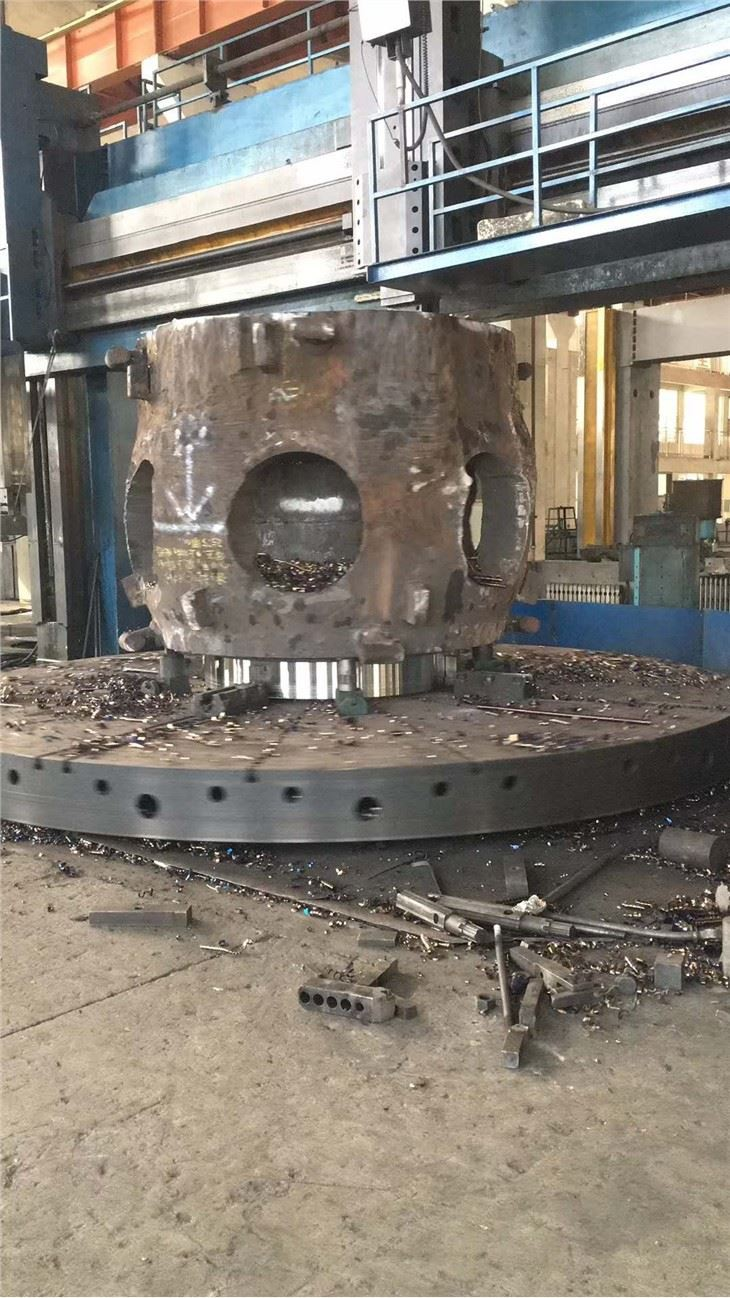

Serious and professional testing
