Working table adopts short spindle structure, NN3068K/W series of double row centripetal short cylindrical roller bearing, the inner ring with a taper hole, by adjusting the radial clearance, to ensure the accuracy of spindle.
| Quantity: | |
|---|---|
Feature

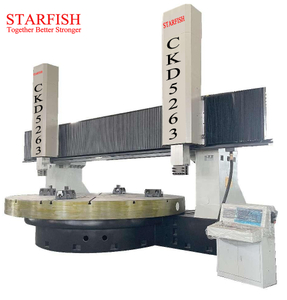

1.CK52- Double Column Vertical Lathe Machine is suitable for all sectors of the machining, it can be used for the outer cylinder, round-dimensional surface, end, grooving and cutting of rough and fine turning.
2. The vertical beam rail car and ram guideways super audio quenching treatment (HRC≥50), rail sliding surface laminating process (including the swash plate surface and the Iron Mask), precision products to maintain lasting, extending at least overhaul period more than 10 years.
3. Electrical Japanese Omron PLC control, electrical parts are made of ultra-high-quality components, specifications (CE standard) wiring technology, electrical machine with ultra-high reliability.
4. pentagonal knife sets high-precision positioning rat tooth plate, 120 aliquots average positioning, extremely rigid (not in the traditional five equal parts positioning plate comparable).
5. Electronic rotary valve, the main transmission 16 mechanical transmission, increase the maximum torque output, reducing the force of the main transmission gear, adapt overloaded heavy cutting.
6. rail sliding surface plastic coated treatment to improve wear resistance. Vertical lathe rail lubrication oil centralized, very convenient; standard with 2-axis digital display (export-oriented 4-axis digital display).
7. Precision grinding gears and spiral bevel gear grinding (6 precision), low noise, stable and reliable operation at high speed.
8. Optional: rolling workbench, Germany Mecano button station, raised bed, lengthen ram, square ram like.
Parameter
The Double Column Vertical Lathe Machine can be equipped with C axis for milling and drilling
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. Turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/ 1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/ 5000 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |

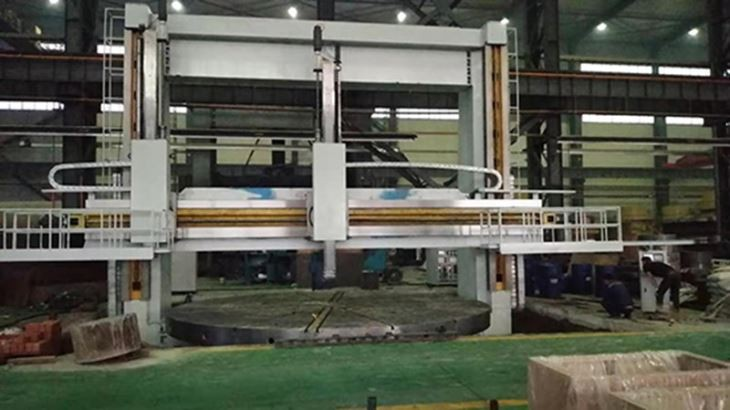

Details of Conventional Double Turret Vertical Lathe

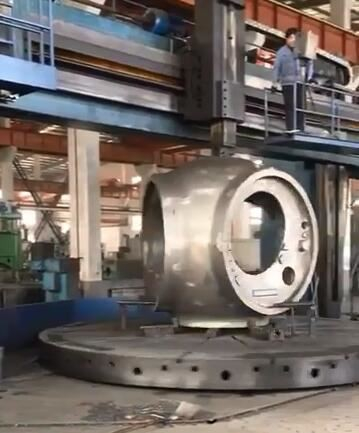

Serious and professional testing
Package and Shipping of Double Column Vertical Lathe Machine
Warranty period
The warranty period is 1 year
In the warranty period, Every parts of the vertical lathe is warranted. if some parts need to be replaced due to the quality of product, the company is responsible for free replacement. In the warranty period, if it is not due to product quality of the Vertical lathe, and need company send a technician to fix the Vertical lathes, the appropriate fees should be collected.
Preferential spare parts and technical Services will be provided
Over warranty :
we delivery the component to nearest departure port for free. Customer just pay for the cost price of the components.
Trouble shooting:
(1) For simple operation issue, through email/whatsapp/video/phone call deal with directly
(2) For difficult issue, invite engineer to help you repair or debugging onsite
(3) We also can provide 365 days 24 hours online technical support
Troubleshooting
1. Before delivery :Special QC department check carefully ensure all is qualified with high quality
2. Through see customer actual photos or short video, using discussed group or email or video meeting or phone call give solutions immediately
3. Dispatch engineer go to customer workshops onsite
