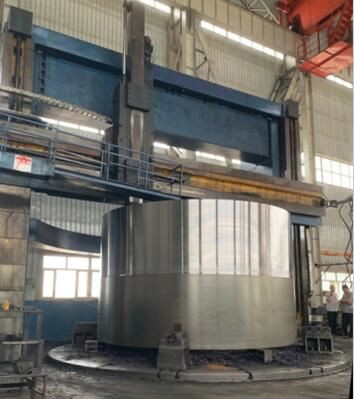

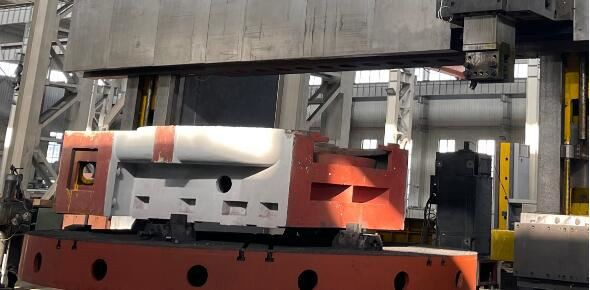

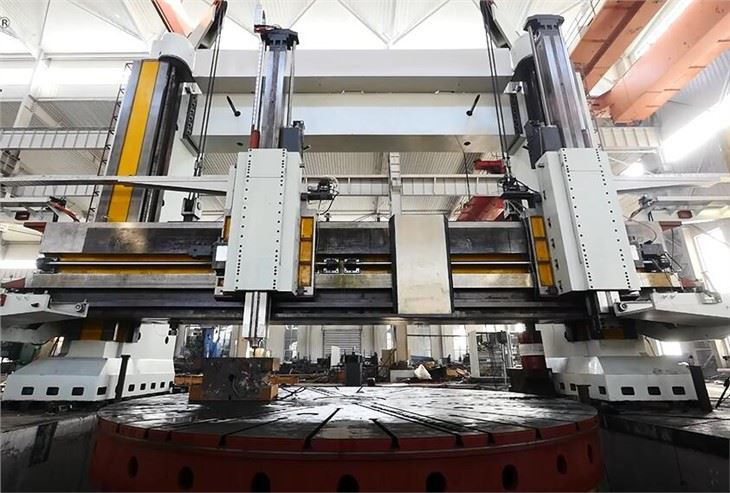

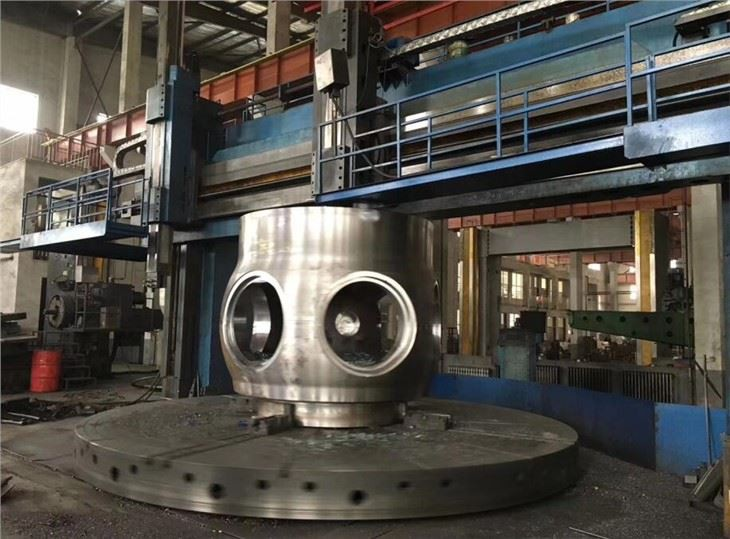

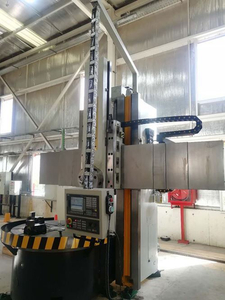

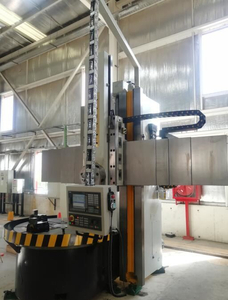

Large Vertical Turret Lathe

Turning Diameter range: 2500mm-16000mm Turning height is customized by needs

Quantity:
Availability:





Inquire Add to Basket

Product Description

Application of CK series Large Vertical Turret Lathe Machine

This Double Column large Vertical Turret Lathe Machineis suitable for high-speed steel, cemented carbide and ceramic tools. It can rough and finish parts made of various ferrous metals, non-ferrous metals and some non-metallic materials. It can complete turning inner and outer cylindrical surfaces, inner and outer conical surfaces, end faces, and cutting Processes such as grooves, metric and inch threads and revolving surfaces.

Feature of CK series Large Vertical Turret Lathe

(1) The large parts such as the base, the workbench, the cross beam, and the ram adopt high-strength, good-grinding gray cast iron, which is tempered and fired to eliminate internal stress without deformation.

Bed rails, beams, rams and other guide rail surfaces are manually scraped and grounded, with good contact surfaces and high accuracy. The beam is hydraulically locked at two points, which consumes a large amount of knife and does not tremble.

(2) The Large Vertical Turret Lathe feed adopts AC servo motor and ball screw drive, and the crosshead straight tool holder is equipped with a closed cover, which increases the safety and pleasantness of the machine tool.

The main drive of the vertical car is driven by an AC motor, and the speed range of the table is realized through a 16-stage spindle speed change mechanism.

(3) The girders and double screws are used to move the beams along the left and right column rails. The high-strength, low-stress cast iron materials of the left and right columns and coupling beams of the machine tool make the machine tool have greater strength and higher rigidity. After aging treatment, the stress is eliminated and the precision of the machine tool is ensured.

(4)The beam is made of high-strength and low-stress cast iron with sufficient rigidity and strength to ensure the accuracy of the machine. The contact surface of the beam and the column rail is adhered with a PTFE wear-resistant rail soft belt, which has a small friction coefficient and greatly prolongs the service life.

Products Specification

The vertical lathe can be equipped with C axis

Item	Unit	CK5225	CK5235	CK5240	CK5250	CK5263	CK5280	CK52100	CK52125
Max. Turning diameter	mm	2500	3500	4000	5000	6300	8000	10000	12500
Max. Workpiece height	mm	1600/2000 /2200	1600/2000/ 2200	1600/2000/ 2200	4000	4000	4000	4000	5500
Worktable diameter	mm	2250	2850	3150	4500	5700	7100	7500	7500
Max. Worktable weight	t	10/16	10/16/20/32	10/16/32 /40/50/63	32/40/50 /63150	63/80 /100/150	100/125/150	150/250	250
Worktable rotation step		stepless	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Worktable rotation speed	r/min	2~63	2~63	2~63	0.32~32	0.32~32	0.32~32	0.2~20	0.16～16
Max. Worktable torque	KN·m	63	63	63	150	150	150	640	640
Max. Turning Torque of Tool post	KN	53	53	53	63	63	63	125
Right tool feeding range	mm/min	0.25~90	0.25~90	0.25~90	0.10~500	0.10~500	0.10~500	-	0.10~500
Right tool post rapid movement	mm/min	1550	1550	1550	4000	4000	4000	4000	4000
Left tool post rapid movement	mm/min	5000	5000	5000	4000	4000	4000	4000	4000
Left tool post feeding range	mm/min	1-2000	1-2000	1-2000	0.10~500	0.10~500	0.10~500	-	0.10~1000
Swing angle of tool post		±30º	±30º	±30º	-	-	-	-	-
Tool section	mm	40×50	40×50	40×50	280x280	280x280	280x280	80x80	100x100（Max）
Ram section	mm	-	-	-	-	-	-	320x320	400x400
Beam travel	mm	1250/1650/ 1850	1250/1650/1850/ 2150/2800	1250/1650/1850/ 2150/2800/3500	2150/2800/ 3000/4500	3000/3500/ 4500	3000/3500/ 4500/5000	3250/3750/ 4500/5000	4000/4500/ 5000
Beam lifting speed	mm/min	350	350	350	410	410	410	300	300
Main motor power	kW	55	55	55	75/90	90	90/132	132	132
Weight	t	41	45	47	200	215	-	-	465
