Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Products Specification
Customer: SIEMENS, ITT
Machining diameter: 1250mm-3150mm
Mchining height:1000mm-1400mm
Parameter can be customized
The CNC Single Column Vertical Turret Lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Feature of CNC Single Column Vertical Turret Lathe
Table size ranging from 1250 to 3150mm
Possibility to machine high and heay workpieces
Highly stable machine frame from cast iron
Ran us designed for the most efficient machining
Extremely rigid for the most efficient machining
Extremely rigid table bearing using hydrostatic guiding principle
Control system Siemens or Fanuc
Possibility to use high pressure coolant
Great variability of tooling
Increased travel range in the X-axis in both senses from the table center
Protective guards against splashing coolant
Production details

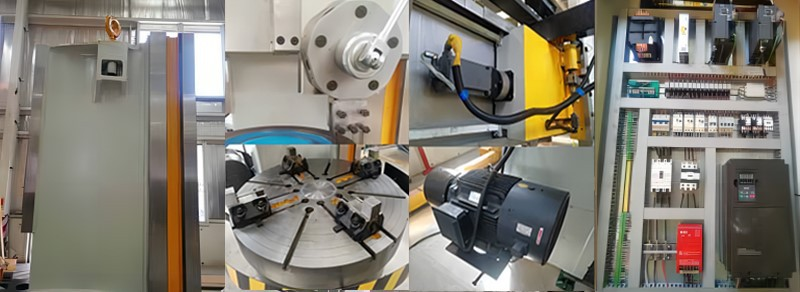

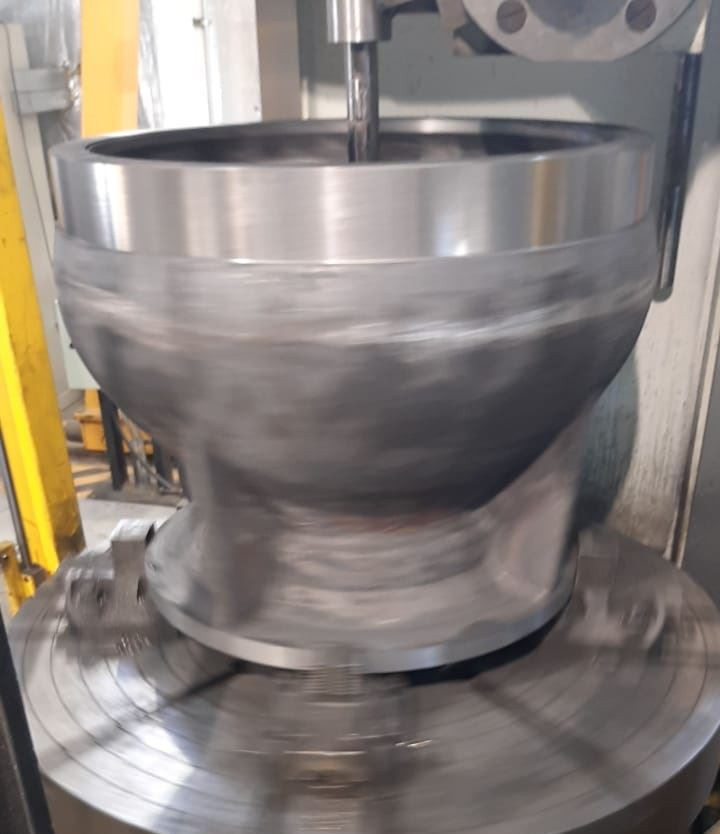

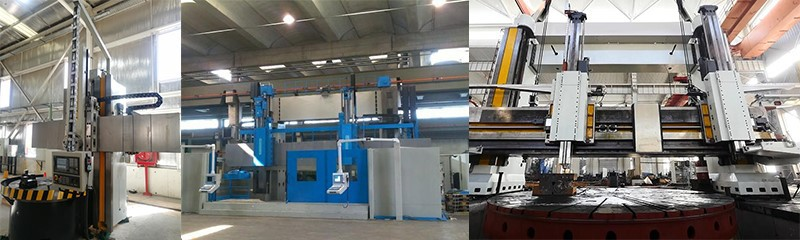

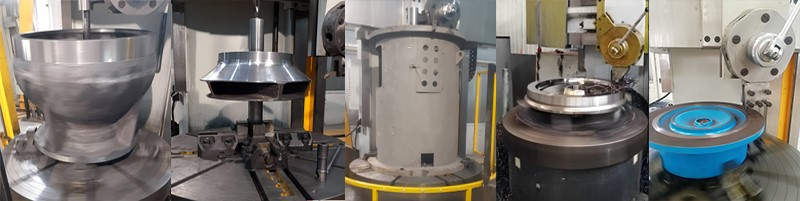

Workpiece
Customers: SIEMENS, ITT...
Package and Shipping
Products Specification
Customer: SIEMENS, ITT
Machining diameter: 1250mm-3150mm
Mchining height:1000mm-1400mm
Parameter can be customized
The CNC Single Column Vertical Turret Lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Feature of CNC Single Column Vertical Turret Lathe
Table size ranging from 1250 to 3150mm
Possibility to machine high and heay workpieces
Highly stable machine frame from cast iron
Ran us designed for the most efficient machining
Extremely rigid for the most efficient machining
Extremely rigid table bearing using hydrostatic guiding principle
Control system Siemens or Fanuc
Possibility to use high pressure coolant
Great variability of tooling
Increased travel range in the X-axis in both senses from the table center
Protective guards against splashing coolant
Production details
Workpiece
Customers: SIEMENS, ITT...
Package and Shipping
