Products Specification of C5125 Vertical Lathe Parameter can be customized The vertical lathe can be equipped with and side tool post Low noise while workingProduction details of C5125 Vertical Lathe Work piece The vertical lathe is good at machining tougher work and better. We use our vertical...
| Quantity: | |
|---|---|
Feature of C5125 Vertical Lathe
I, Worktable is mated with constant current and static pressure guide way which has high efficiency and long service life.
2.spindle adopt short spindle structure, the positioning bearing of the spindle adopt high accuracy double row roller bearings.
3. main motion is driven by A.C servo motor or DC motor, which has two mechnical stepless speed.
4.tool post adopt high rigidity rectangle slide ram mated with single tool holder.
5.worktable is mated with manual four jaw chuck.
6.the machine can be mated with coolant system, automatic chip conveyer and whole closed cover.
7.tool post is controled by PLC.
8. CNC type can mated with grating ruler.
9.the tool post can be mated with milling head or grinding head, so that realize multi-function.
10. cross girder and the guide way of vertical column are hardened and ground.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

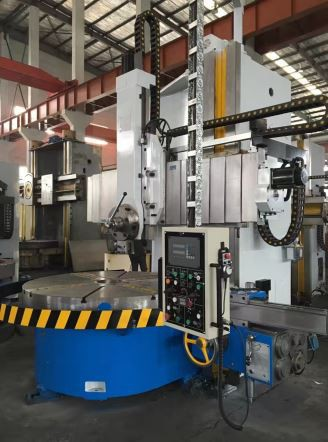

Products Specification of C5125 Vertical Lathe.
The vertical lathe can be equipped with C axis
Name | Unit | C5125 |
Max. turning diameter of vertical tool post | mm | 2500 |
Working table diameter | mm | 2200 |
Max. height of work-piece | mm | 1300 |
Max. weight of work-piece | t | 10 |
Working table range of rotation speed | r/min | 2～62 |
Working table step of rotation speed | step | 16 |
Max. cutting force of vertical tool post | KN | 25 |
Horizontal travel of vertical tool post | mm | 1310 |
Vertical travel of vertical tool post | mm | 800/1000 |
Tool bar section size | mm | 30×40 |
Power of main motor | KW | 37 |
Weight of machine(approx.) | t | 21.8 |
Dimensions of machine (LxWxH) | mm | 3380×3360×4000 |

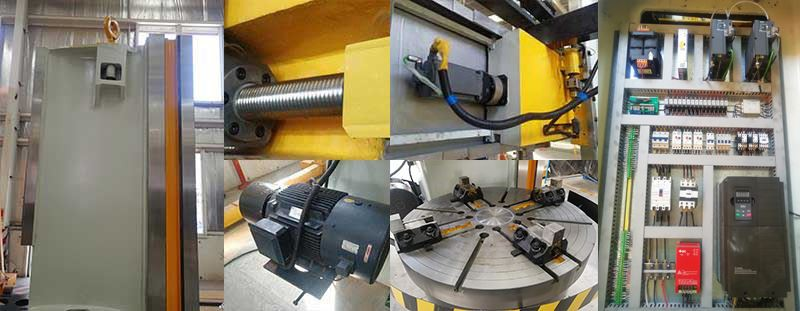

Low noise while workingProduction details of C5125 Vertical Lathe

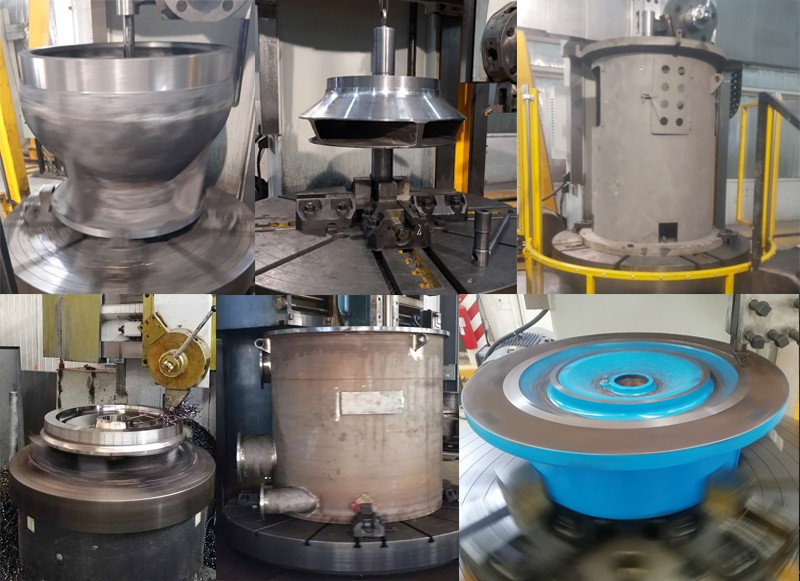

Work piece
Customers: SIEMENS, ITT

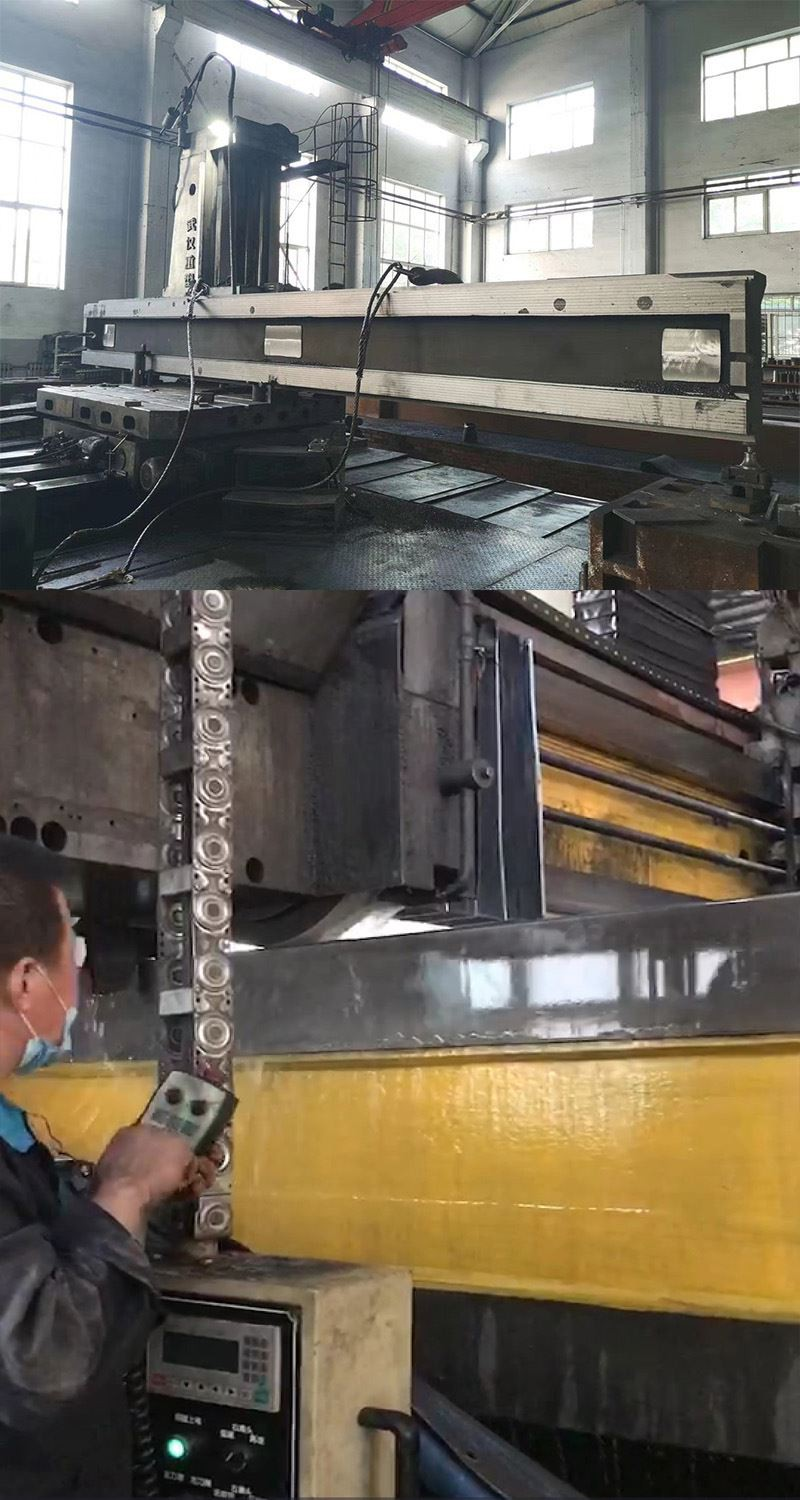

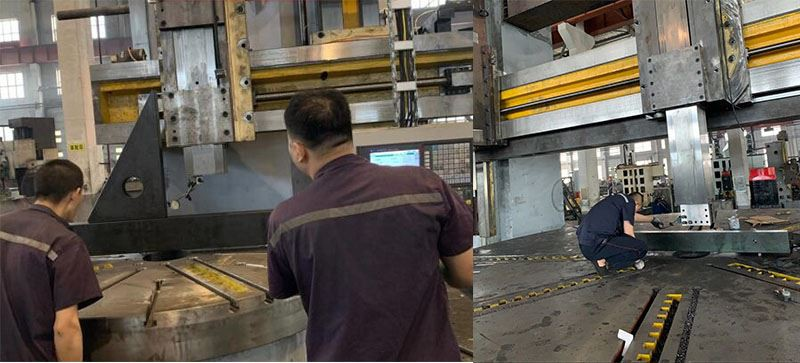

Serious and professional testing

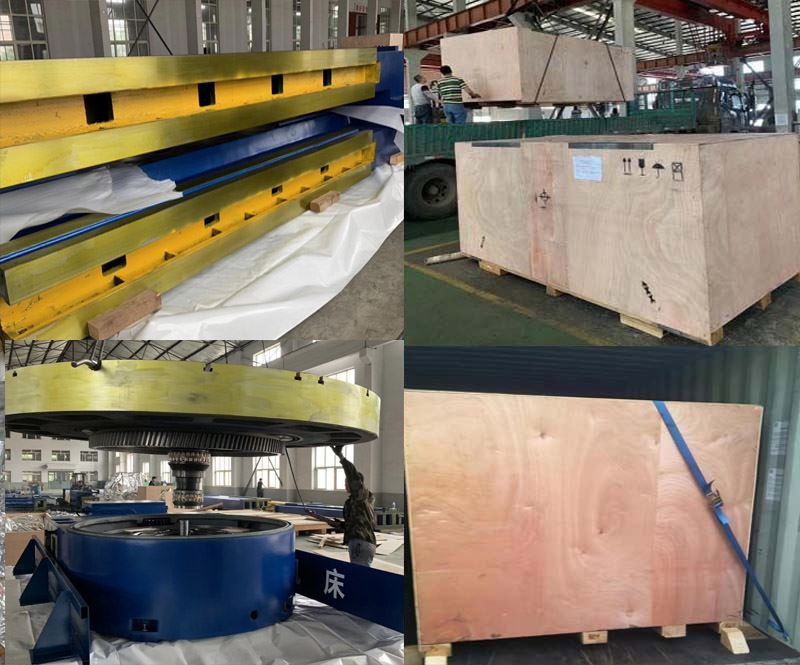

Package and Shipping
