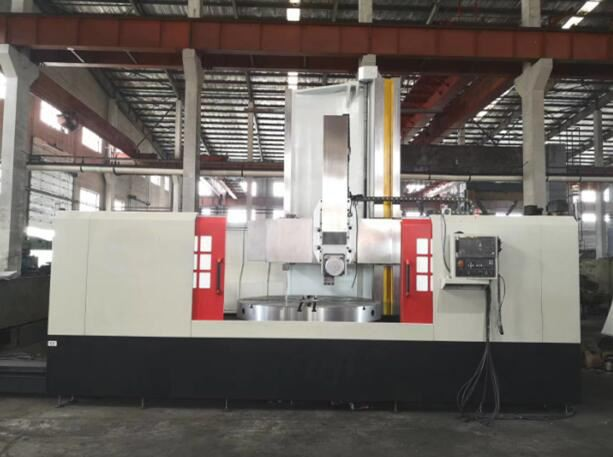

Introduction of High Precision CNC Single Column Turning Lathes
This series of CNC Single Column Turning Lathes is suitable for internal and external turning, internal and external tapering, facing, slotting, thread, contour surface turning (CNC machine), etc.
This CNC Single Column Turning lathe is Single Column Vertical lathe, it has a railhead and a side head, it is suitable of ferrous, nonferrous metal, and some kinds of non-metal materials with hard alloy, high capability and high-speed steel tools.
Products Specification
Machining diameter: 1250mm-3150mm
Machining height:1000mm-2000mm
The parameter can be customized
Spindle speed: stepless
The vertical lathe can be equipped with C axis for milling and boring functions.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 | |
Max. turning diameter | mm | 1250 | 1600 | 2300 | 2500 | 3150 | |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 | |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 | |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 | |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 | |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless | |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 | |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 | |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 | |
Toolbar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 | |
Power of the main motor | KW | 22 | 30 | 30 | 37 | 45 | |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 | |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 | |
Production details of High Precision CNC Single Column Turning Lathes
The key parts which is used for 20 years.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working

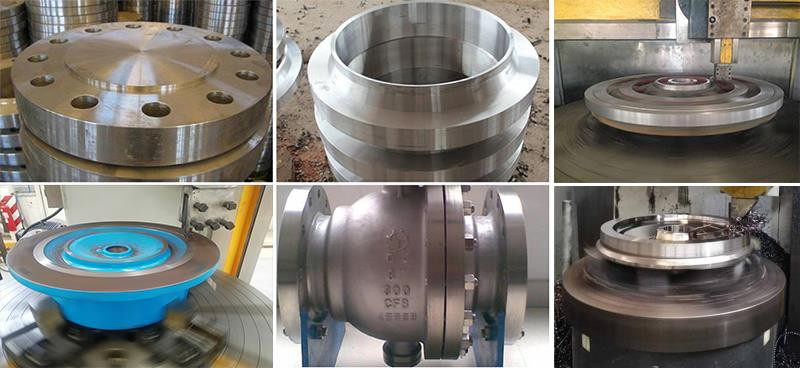

Work piece
The vertical lathe is good at machining tougher work and better.
We use our vertical lathe to machine train wheel, which require high roundness and smoothness.
Customers
Our customers include ITT, Siemens......
Various size meet your various needs.

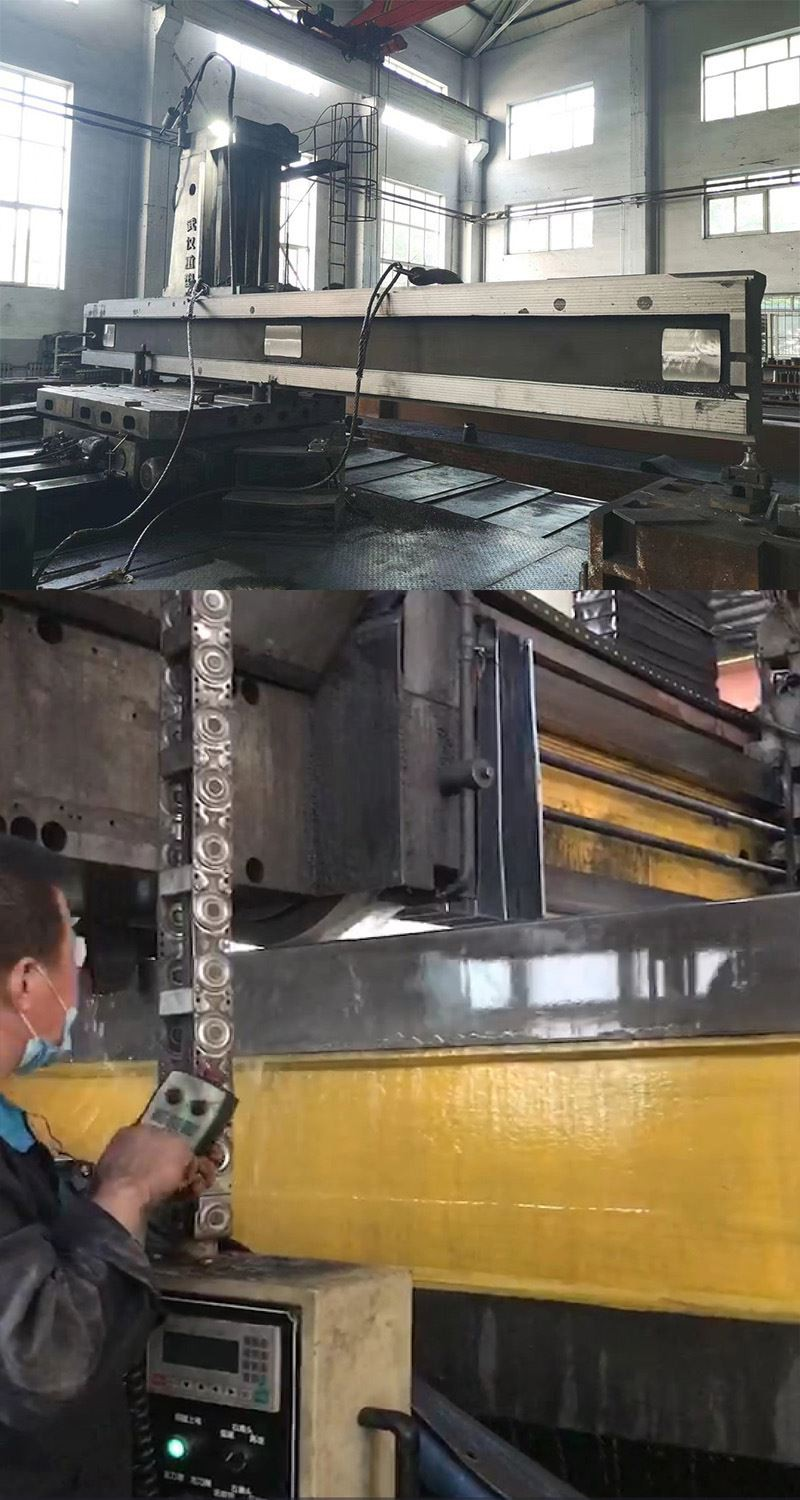

Serious and professional testing

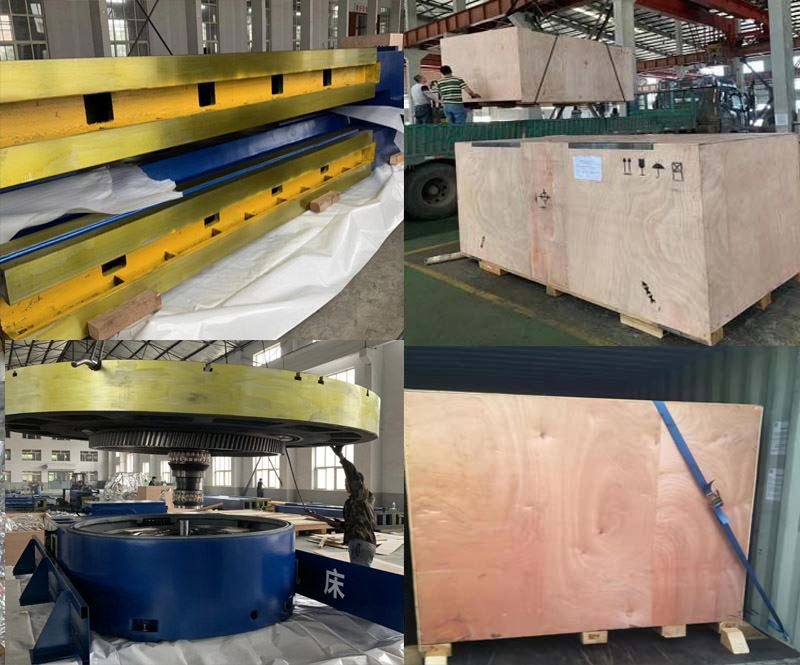

Package and Shipping
Aftersales: Every parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.

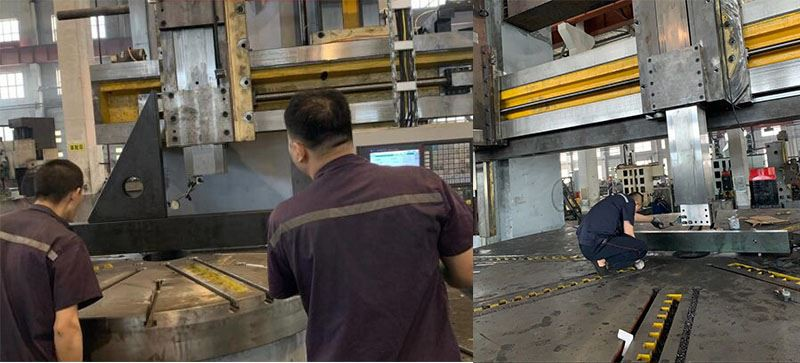

We will assign professional engineer to be your place for installation, English interpreter service is free

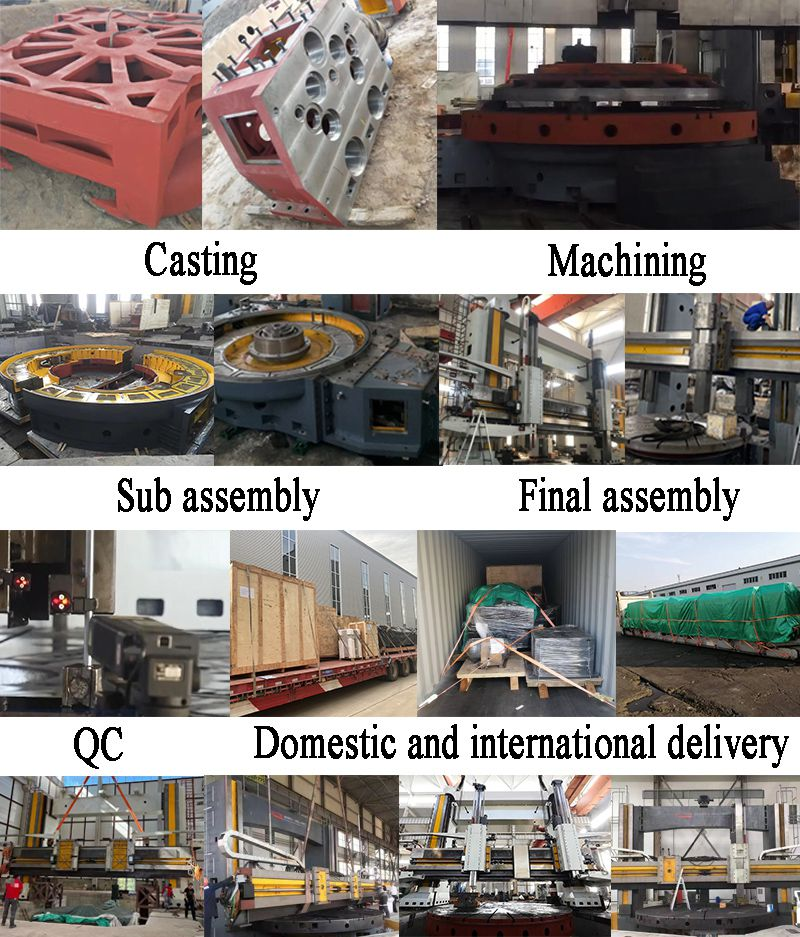

Manufacturing facilities...
