Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature

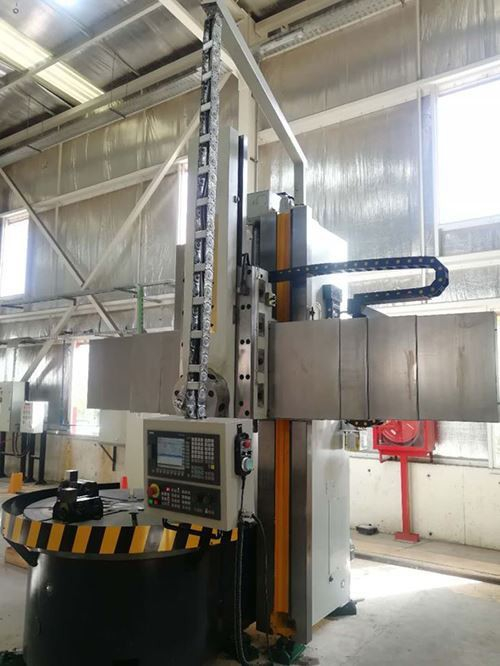

1. The CNC Vertical Turning Lathe with one tool post is one of my company's own developed vertical lathes,
The product uses advanced CAD computer-aided design techniques, in accordance with national, industry-related design and manufacture of acceptance standards.
2. The main movement of heavy duty vertical lathe adopts the advanced frequency control system driven by 22-45Kw variable-frequency motor, through the manual high-low gear shift
3. Table is inlaid with casting iron wearing rail plate to increase the carrying capacity of worktable.
4. Spindle of worktable is equipped with two high-precision biserial short cylindrical roller bearings; the inner ring has the taper for adjusting the radial clearance, in order to ensure spindle’s stable working under high-precision. The manipulation buttons of workbench’s startup, braking and jogging are set on the hanging button station.

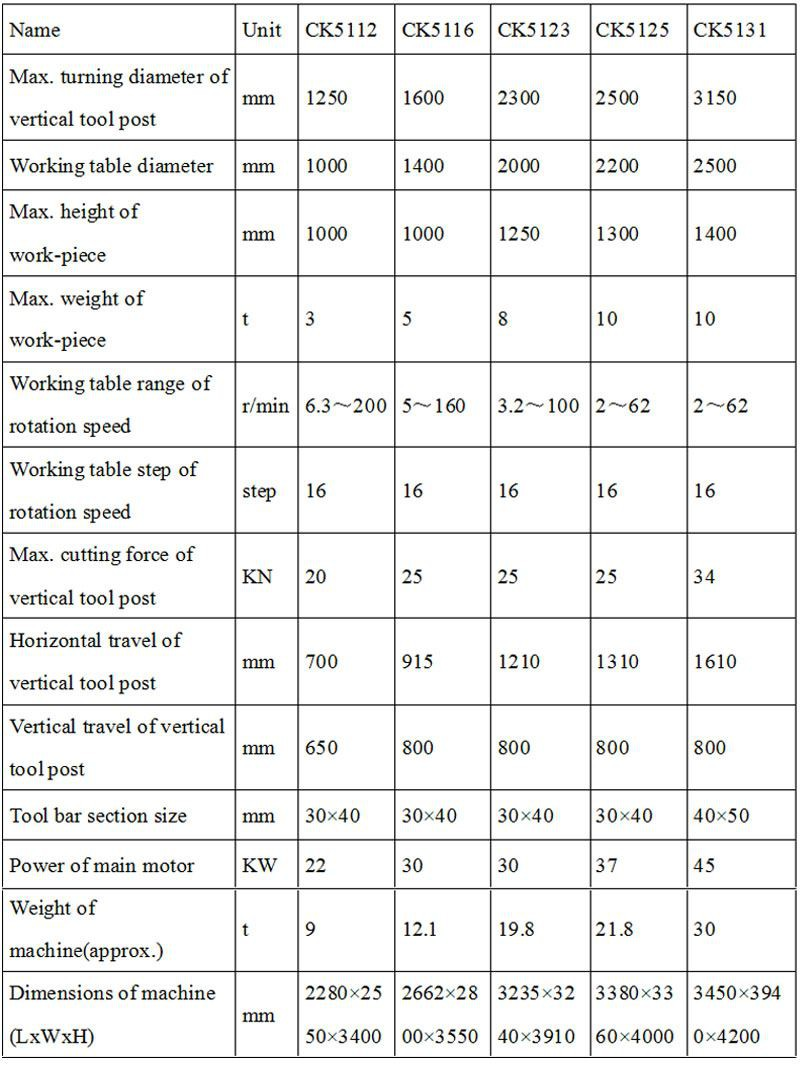

Products Specification
Customer: SIEMENS, ITT
Machining diameter: 1250mm-3150mm
Mchining height:1000mm-1400mm
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function.

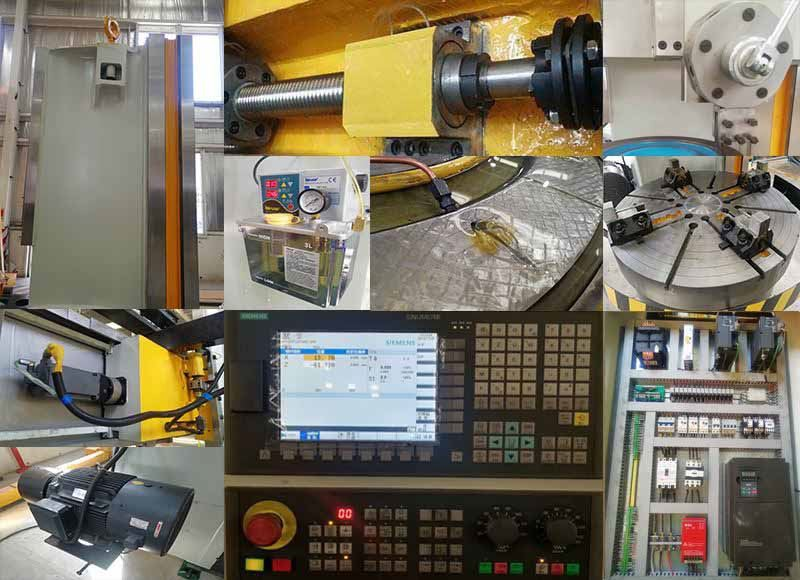

Production details

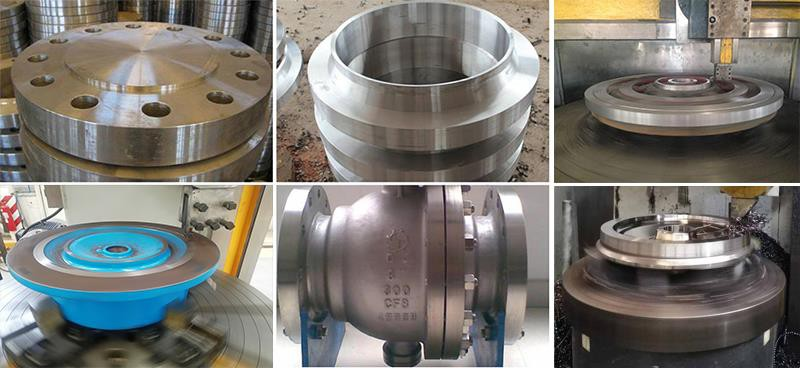

Work piece
The vertical lathe is good at machining tougher work and better.
We use our vertical lathe to machine train wheel, which require high roundness and smoothness.

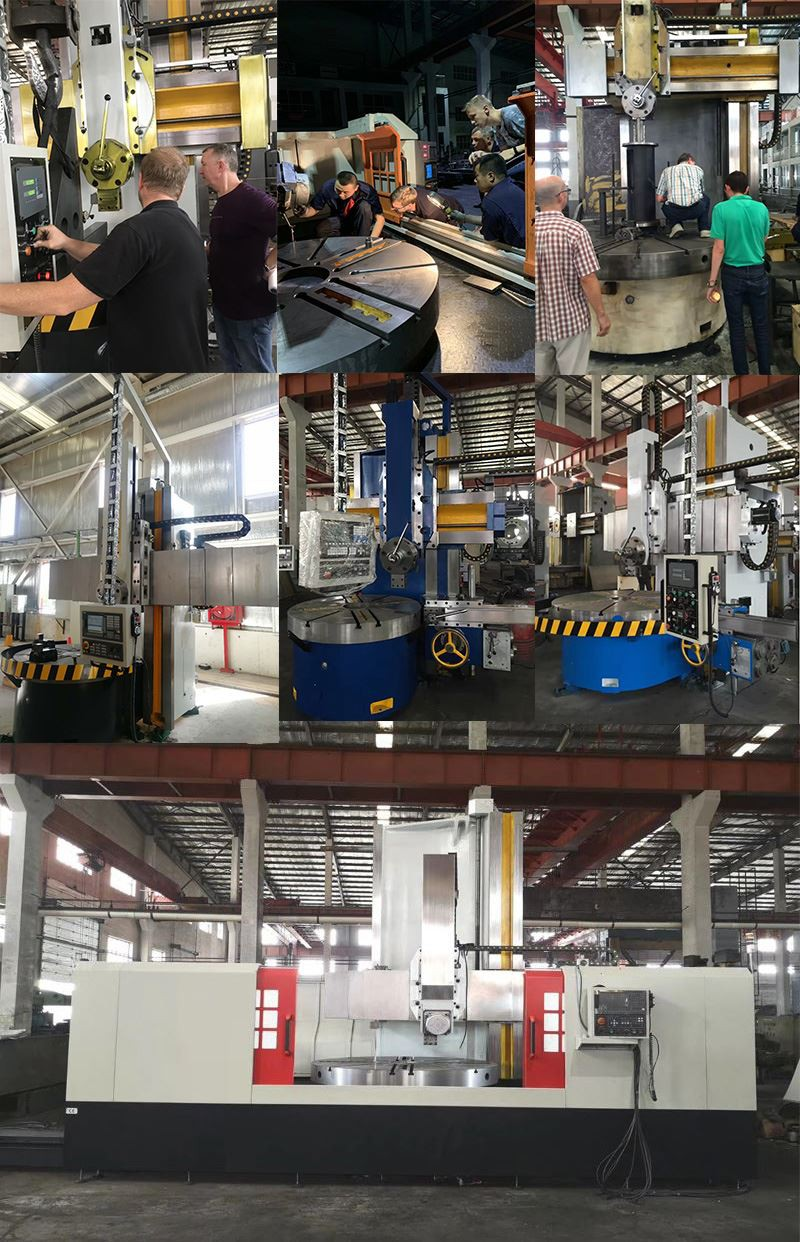

Customers
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.

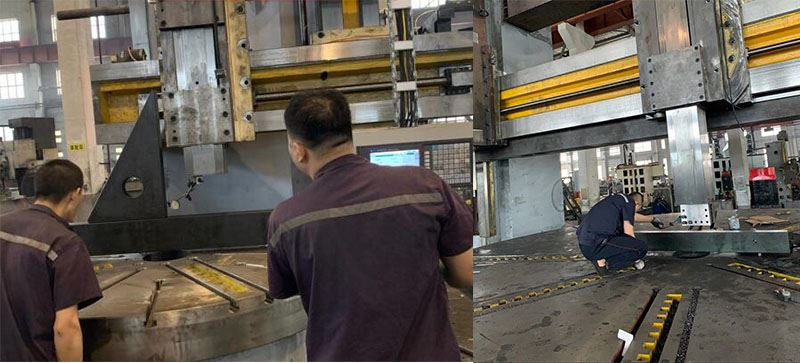

Serious and professional testing

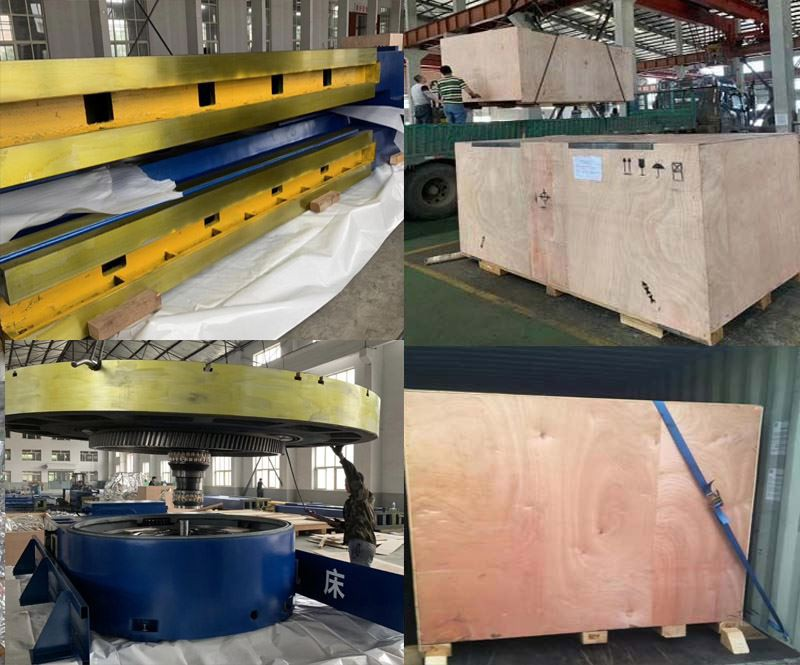

Package and Shipping
We own the professional lorry team, custom clearance team, shipping agent team.
Aftersales: very parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
