Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
This series of High Precision CNC Vertical Lathe is the digital vertical lathe, which is suitable for high-speed steel, hard alloy cutlery and ceramic cutlery, which can make rough and accurate turning for cylindrical surface, conical surface, circular arc surface and complex curved surface, head face, grooving, severance for black metal, colored metal and some nonmetal part.
1) Gearbox of High Precision CNC Vertical Lathe
Gear is made of 40 Cr through high-frequency quenching treatment, the hardness reaches
HRC40-45,gear grinder. Precision can reach level 6.Thereby reduce the vibration and noise of High Precision CNC Vertical Lathe, improved efficiency and reliability.
2) Lathe bed
Bed, as an overall structure, is made of high-strength, low-stress iron casting with thermal stress relief aging treatment, adopt effective anti-vibration measures. Combination of bed and table base can improve the reliability of overall rigidity of machine tool substantially.
3) Cross beam
PTFE guide rail wear-resistant soft strip with a small friction coefficient was pasted on the contact surface of beam and column, greatly extended the life of the machine. The cross beam can move along the Z axis on the column guide rail. To go up and down through leading screw with a smooth transmission, small friction, low noise and high reliability advantages. Beam grip adopt the leading screw clamping mechanism, safely and reliably.
4) Electric system
Electric component uses Schneider or Siemens, ensure high reliability of machine tool. Electric component has label, writing is clear and durable. Wiring of whole machine tool is trim, wire size is complete, and writing is clear and durable. Hydraulic system and automatic lubricating system components use superior-quality product with domestic permit or collaborative product, quality is reliable.
Products Specification
Machining diameter: 1250mm-3150mm
Parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring function
| Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
| Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
| Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
| Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
| Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
| Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
| Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
| Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
| Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
| Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
| Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
| Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
| Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product details
The key parts which is used for 20 years, they match very well.
Low noise while working
Work piece

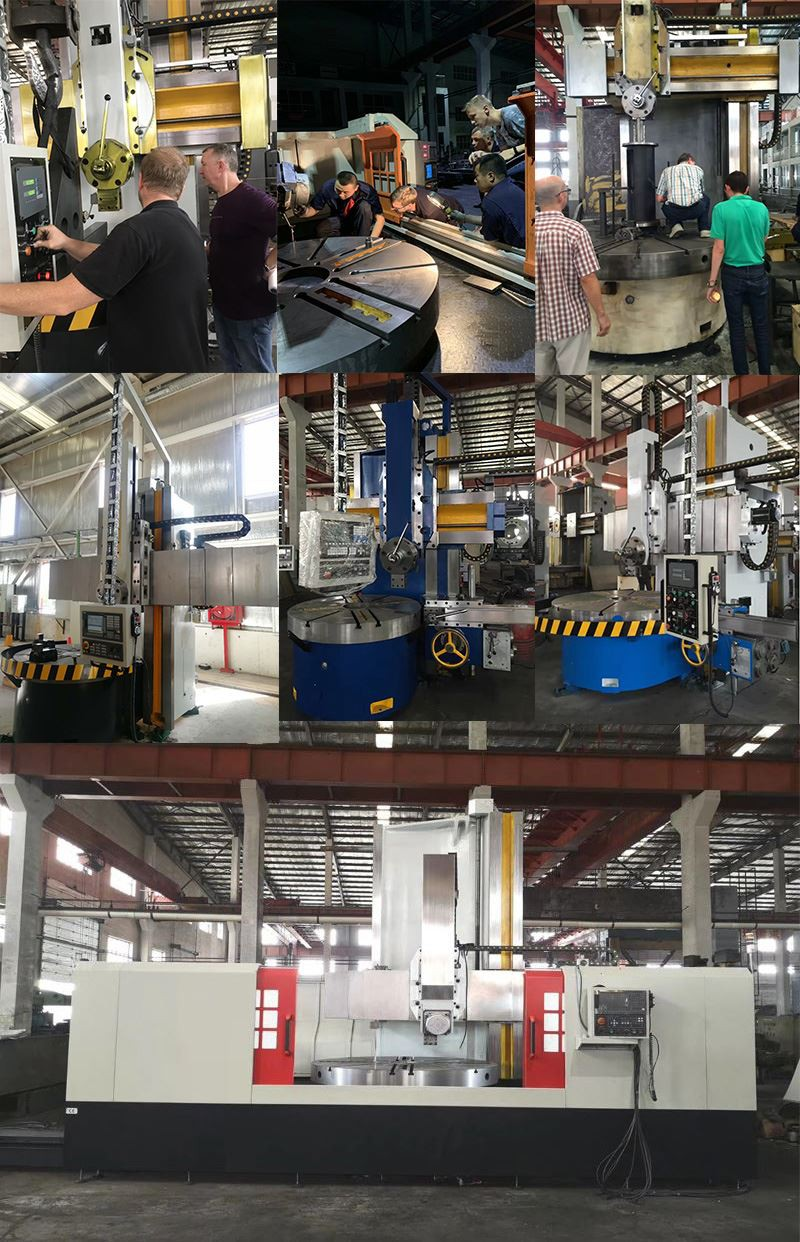

Customers: ITT, SIEMENS
Serious and professional testing
Package and Shipping
Aftersales: Every parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
The installation period of time is 10 days, testing more on your parts during stay in your factory.
Call me and email me anytime after we leaving from your factory, we will do our best to help you to solve problems.
Please prepare the whole set of tools, parts for installation, which help us to install it quickly and smoothly.
Manufacturing facilities...
