Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

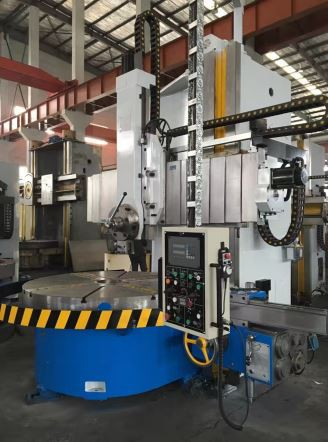

Products Specification of C5112 Vertical Lathe
Parameter can be customized
The vertical lathe can be equipped with C axis
Name | Unit | C5112 |
Max. turning diameter of vertical tool post | mm | 1250 |
Working table diameter | mm | 1000 |
Max. height of work-piece | mm | 1000 |
Max. weight of work-piece | t | 3.2 |
Working table range of rotation speed | r/min | 6.3～200 |
Working table step of rotation speed | step | 16 |
Max. cutting force of vertical tool post | KN | 20 |
Horizontal travel of vertical tool post | mm | 700 |
Vertical travel of vertical tool post | mm | 650 |
Tool bar section size | mm | 30×40 |
Power of main motor | KW | 22 |
Weight of machine(approx.) | t | 9 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 |

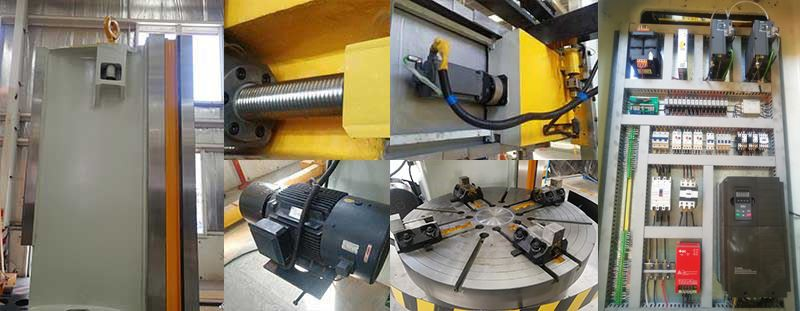

Production details of C5112 Vertical Lathe
Low noise while working
Customers: SIEMENS, ITT
Products Specification of C5112 Vertical Lathe
Parameter can be customized
The vertical lathe can be equipped with C axis
Name | Unit | C5112 |
Max. turning diameter of vertical tool post | mm | 1250 |
Working table diameter | mm | 1000 |
Max. height of work-piece | mm | 1000 |
Max. weight of work-piece | t | 3.2 |
Working table range of rotation speed | r/min | 6.3～200 |
Working table step of rotation speed | step | 16 |
Max. cutting force of vertical tool post | KN | 20 |
Horizontal travel of vertical tool post | mm | 700 |
Vertical travel of vertical tool post | mm | 650 |
Tool bar section size | mm | 30×40 |
Power of main motor | KW | 22 |
Weight of machine(approx.) | t | 9 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 |
Production details of C5112 Vertical Lathe
Low noise while working
Customers: SIEMENS, ITT
