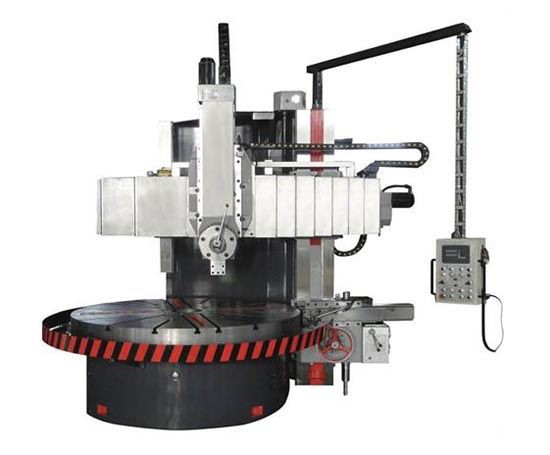

Conventional Single Column Turning Lathes

Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized

Quantity:




Inquire Add to Basket

Product Description

Feature

1. The conventional single column vertical lathe is a compact, high precision, heavy duty machine. The rigid vertical column and base are quality castings, heavily ribbed for reduced thermal distortion and vibration dampening. It is designed for turning of small or medium size workpieces. 2. The X and Z axis guideways are completely enclosed and a forced lubrication system assures high precision. The Ballscrew driving system enables rapid traverse rates and precision feeding traverse. The precision high class ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision. 3. The X & Z axis can be working with the DRO system, operator can easily set the tools and work more easier way to finish the machining. The Conventional Single Column Turning Lathes can be modified to be 2-axis CNC control if you need it in future. Automatic lubrication system is standard for this machine.

4. The Conventional Single Column Turning Lathes is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc. 5. The base and column use one-piece high quality castings. 6. X&Z are using brand linear guideway. Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency. 7. Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving. 8. Full cover is your optional together with chip conveyor and coolant system. Handheld Unit.

Advantage:

Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

Products Specification

Parameter can be customized

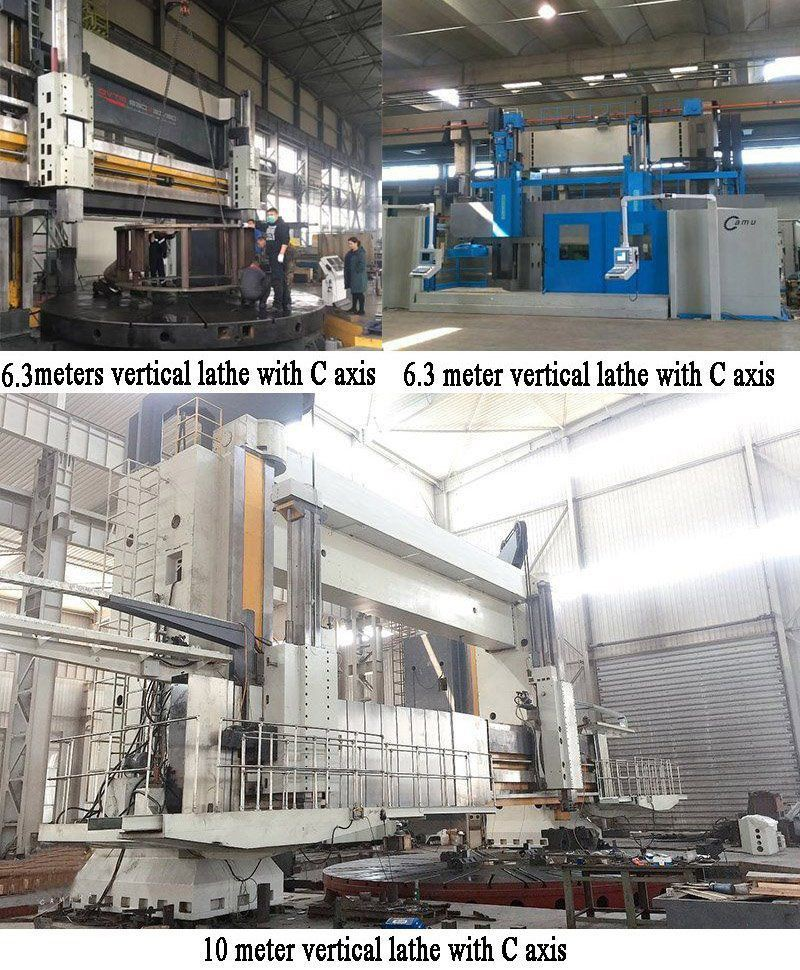

The vertical lathe can be equipped CNC Controller with C axis for milling and boring function

Parameter	Unit	C5112	C5116	C5120	C5123
Worktable diameter	mm	1250	1600	2000	2300
Max, Turning diameter	mm	1010	1400	1800	2000
Max. Workpiece height(H)	mm	1000/1250/1400	1000/1400/1600	1250/1600/1800	1250/1600/1800
Max. Workpiece weight(W)	t	5	8	10	10
Max. Turning force of vertical tool post	kn	20	25	25	25
Max. Turning force of vertical side post	kn	20	20	20	20
Max. Worktable torque	kn.m	17.5	25	32	32
Worktable rotary speed	r/min	6.3-200	5-160	2.5-125	2.5-125
Swing angle of tool post		±30。	±30。	±30。	±30。
Tool post feeding speed	mm/min	0.8-86	0.8-86	0.8-86	0.8-86
Beam travel	mm	650/830/1050	650/1050/1250	900/1250/1450	900/1250/1450
Beam travel speed	mm/min	440	440	440	440
Tool post horizontal travel	mm	650	800	1050	1200
Ram travel	mm	650	800/1000	800/1000	800/1000
Ram travel of tool post	mm	500	630	630	630
Vertical trave of side tool post	mm	970	980	1180	1180
Tool post rapid travel	mm/min	1800	1800	1800	1800
Tool section	mm	40	40	40	40
Main motor power	Kw	22	30	37	37
Overall size(LXWXH)	cm	236247358	283287387	321405420	341405420
Weight	t	8.3/8.6/8.9	12.6/13.8/14.1	17.5/18.6/19.5	18/19.1/20.6
