Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

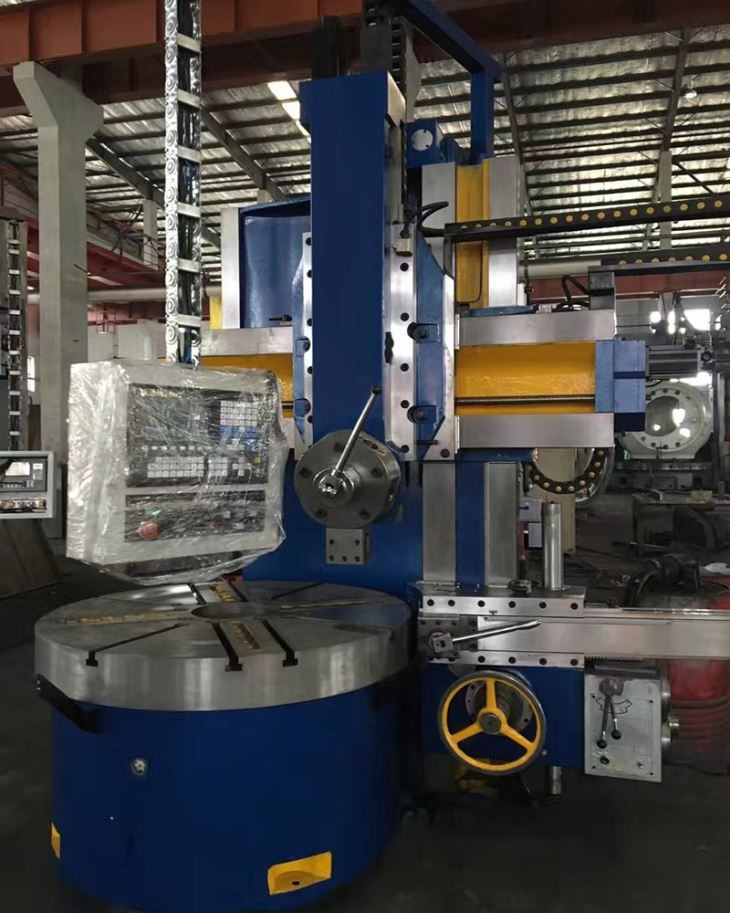

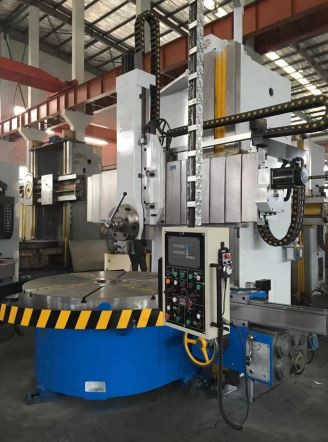

Feature of C series C5116 Vertical Lathe
1. C5116 Vertical Lathe a high-tech mechanics products with high Dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency, which has adopted the advanced design and manufacturing technology both at home and abroad, implement the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure Performance has been achieved.
Products Specification
Parameter can be customized

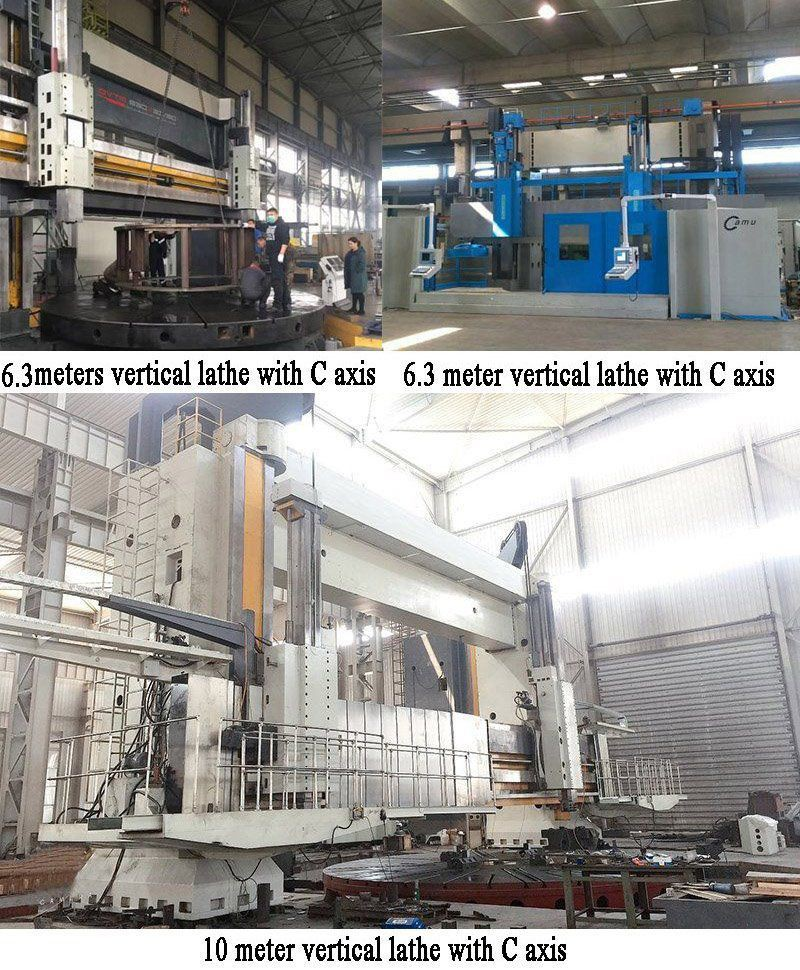

The vertical lathe can be equipped with C axis
Name | Unit | C5116 |
Max. turning diameter of vertical tool post | mm | 1600 |
Working table diameter | mm | 1400 |
Max. height of work-piece | mm | 1000 |
Max. weight of work-piece | t | 5 |
Working table range of rotation speed | r/min | 5～160 |
Working table step of rotation speed | step | 16 |
Max. cutting force of vertical tool post | KN | 25 |
Horizontal travel of vertical tool post | mm | 915 |
Vertical travel of vertical tool post | mm | 800/1000 |
Swing angle of vertical tool post | ° | ±30 |
Tool bar section size | mm | 30×40 |
Power of main motor | KW | 30 |
Weight of machine(approx.) | t | 12.1 |
Dimensions of machine (LxWxH) | mm | 2662×2800×3550 |

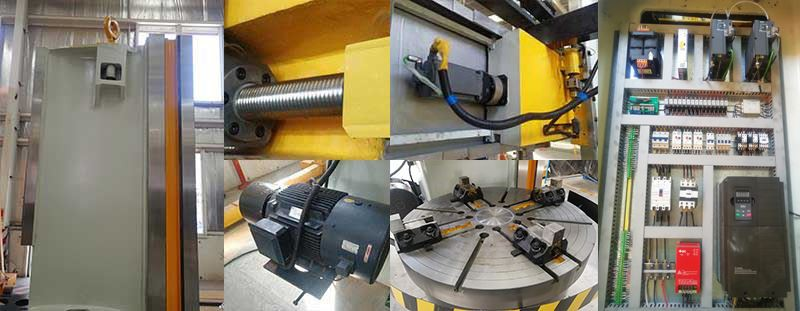

Details

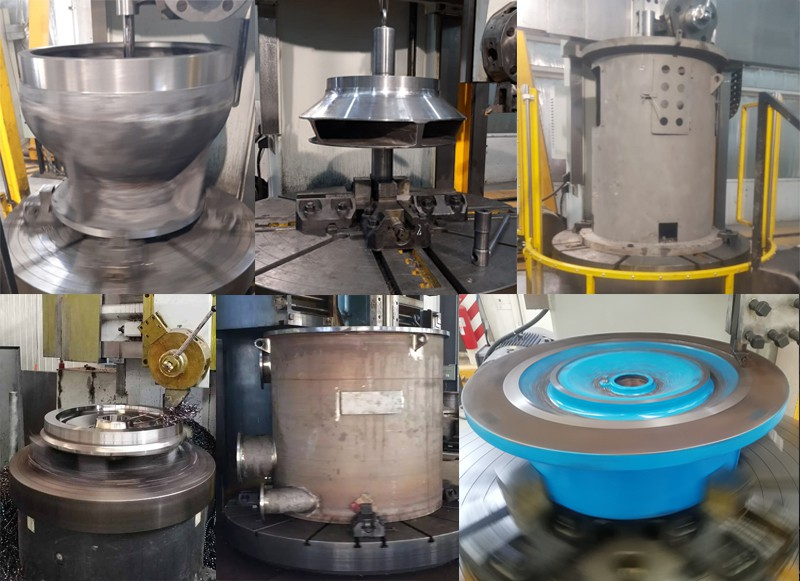

Work piece
