Feature of Vertical Turret Lathe for gear manufacturing
1. Vertical Motorized Turret Lathe is a high-tech mechatronics products with high dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency, which has adopted the advanced design and manufacturing technology both at home and abroad,implement the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure Performance has been achieved.
2. Vertical Motorized Turret Lathe is suitable for high-speed steel, hard alloy cutlery and ceramic cutlery, which can make rough and accurate turning for external cylindrical surface, internal and external conical surface, screw thread, circular arc surface and complex curved surface for black metal, colored metal and some nonmetal part.
Products Specification of Vertical Turret Lathe for gear manufacturing
Machining diameter: 1250mm-3150mm
Machining height:1000mm-1400mm
The parameter can be customized
The vertical lathe can be equipped with C axis for milling and boring functions.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details of Vertical Motorized Turret Lathe
The key parts which have been used for 20 years, match very well.
The ballscrew is strengthened and steady working.
The guideway is very strong and straight.
Low noise while working

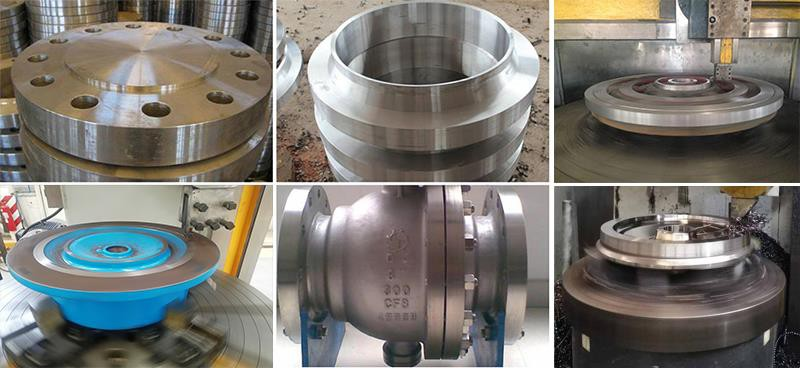

Work piece
The vertical lathe is good at machining tougher work and better.
We use our vertical lathe to machine train wheel, which require high roundness and smoothness.
Customers
Serious and professional testing
Package and Shipping
Manufacturing facilities...
