Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
| Quantity: | |
|---|---|

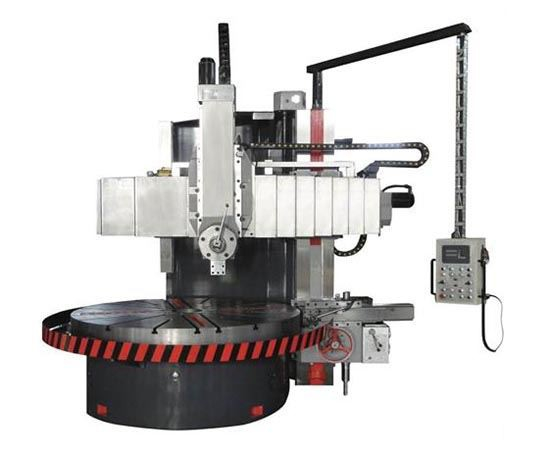

Feature
1. This kind Convntional Single Column Vertical Lathe is used for high speed steel tools working on ferrous metal, nonferrous metals and part of non-metallic materials, and turning inside and outside cylinder and plane, corn surface and grooving.
Structure:
2. The machine is based on motors, valves, pumps, bearings, automotive and other industries need and design of professional products.This machine is suitable for high speed steel and alloy cutting tools, hardware for ferrous metal, nonferrous metal and some non-metallic parts inside and outside the cylinder, end, grooving of rough finish machining, etc.
3. The Convntional Single Column Vertical Lathe is a super rigid machine with big machining capacities, stable and rigid structure and high machining efficiency.The machine is equipped with one vertical tool head and can be equipped with high precision digital readout system (DRO). AC inverter motor is used to achieve speed change.
4. The Convntional Single Column Vertical Lathe is suitable for high-speed steel,hard alloy and ceramic cutting tool,machining innerand outer cylindrical surface,inner and outer conicalsurface, groove and plane of ferrous metals,nonferrous metals and some non-metallic parts.It can meet different quantity production requirementswith high efficiency, stable and reliable precision.
5. Beam in front of columns, make the beams on the columns for vertical movement, have lifting box in the upper portion of the columns, driven by AC motor, by worm pair and screw making beams along the column guide rail for lifting. The big adopt high strength, low stress cast iron HT250 material, after aging treatment, eliminating stress to ensure the accuracy of machine tools, have enough resistance to stress and rigidity.
6. Vertical Tool Rest composed of beam slide, rotary seat, square RAM and hydraulic mechanism. Adopt T-Type RAM, material for HT250, after tempering treatment, guide rail surface hardening treatment, after rough machining and fine grinding with high precision guide rail grinding machine, with high accuracy, good stability, deformation characteristics, precision ram pressure plate adopts closed clamp, increase the stability of its structure, RAM are quick function, mobile head ram with hydraulic balance device, to balance the slippery pillow part weight, make the ram to the smooth movement.
Products Specification
Parameter can be customized

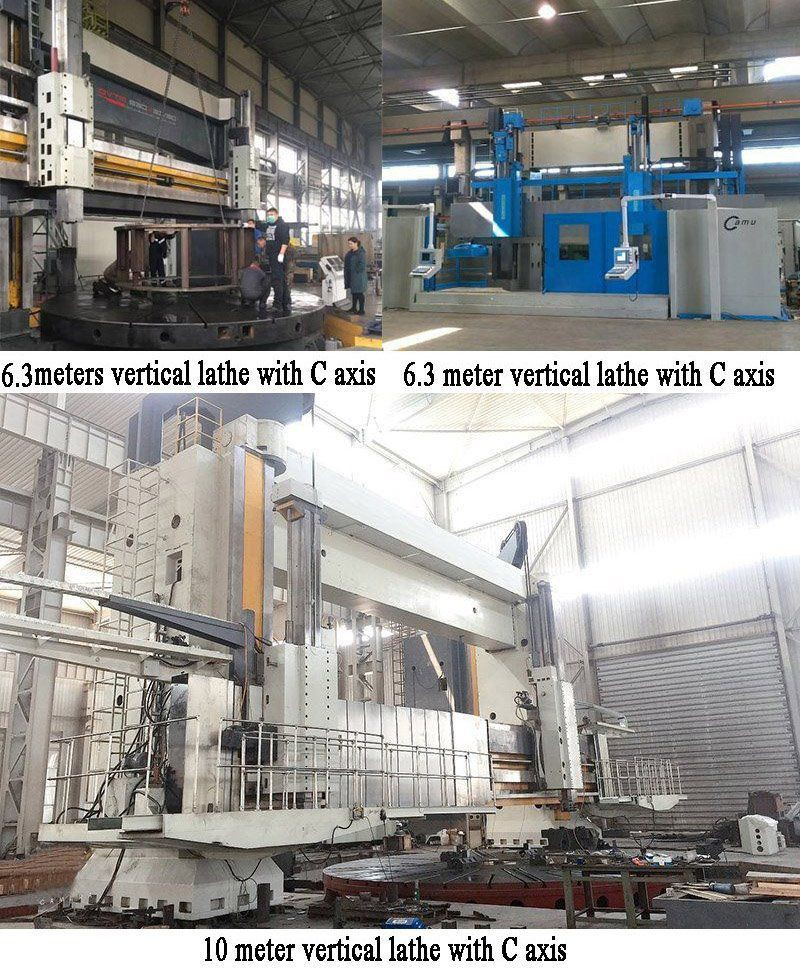

The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
The key parts which is used for 20 years, they match very well.
Guideway is very strenthen and straight.
Low noise while working
Work piece
Customers: SIEMENS, ITT
Serious and professional testing
Package and Shipping
Packaging for longer sea worthy shipping
We will assign professional engineer to be your place for installation, English interpreter service is free
