It is manufactured with rules of ISO and CE principle.
The size and parts can be customized.
| Quantity: | |
|---|---|
Products Specification of CNC Single Turret Vertical Lathe
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Introduction of CNC Single Turret Vertical Lathe
Machine Summary:

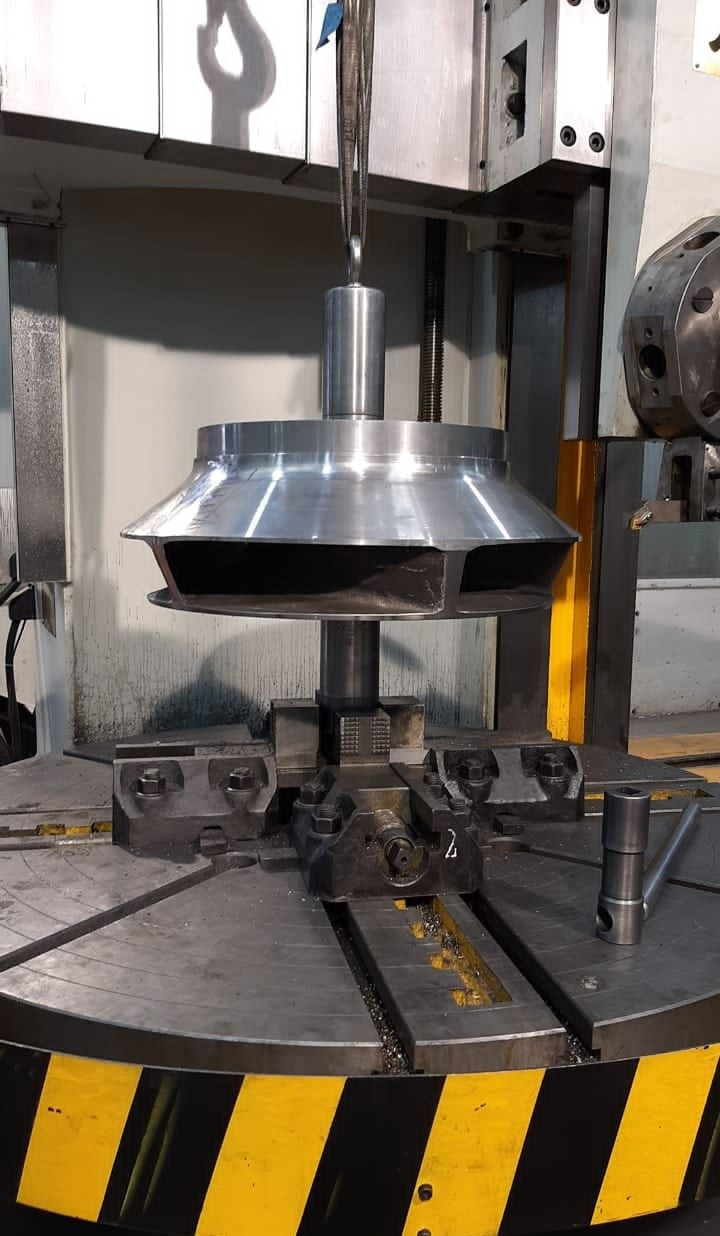

The Single Turret Vertical Lathe is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability; The column, beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.
Structure and Feature:
Column
1. The column adopts the optimization design of box-type structure and reasonable layout stiffener, so as to realize the good thermal stability, high strength and high rigidity.
2. The column guideway adopts grinding after quenching, to improve wear resistance and prolong service life. The guideways adopt stainless steel sealing cover for protection and reduce the corrosion rate.
Worktable
1. The worktable base adopts high strength and high rigid cast iron material, to improve stability and absorb vibration. Unique thermal symmetric structure, overcome the spindle temperature rise effect on machining accuracy.
2. The spindle is equipped with spindle encoder, to realize constant linear speed cutting
3. Worktable and worktable base and motor separation, relying on the V-type belt drive, max. limit reduces the vibration of the motor heat directly affect the machining accuracy.
Beam
1. The beam guideway has very high wear resistance after quenching and grinding, so as to guaratee long-term stability and high processing accuracy.
2. Horizontal guideway width large with wide guide structure, ball screw in the middle of the guide rail thoroughly solve the problem of drive torque, the guideway adopts the paster guide rail, good seismic performance, large loading capacity, decrease friction coefficient.
3. Beam lifting adopts two clamping points, to ensure the accuracy of the lifting beam.
Feed Unit
Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.
Main Drive
1. Main transmission adopts gear drive, gears adopt high strength material and quenching and grinding process, so it can realize high speed cutting force, high transmission accuracy and rate, and reduce the vibration and noise of the transmission.
2. Main transmission is controlled by horizontal spindle servo motor, can realize four shifts stepless speed, it is suitable for processing all material workpiece, to realize spindle wide speed changing and large torque heavy cutting, meet low-speed and heavy cutting for big diameter workpiece, and high-speed cutting for smaller diameter workpiece.
3. Large gear adopt high grade alloy steel, through quenching treatment and being grinded by high precision gear grinding machine, to reduce noise of spindle running.
Four Station Electrical Tool-Post
1. High Positioning accuracy, large clamping force, large loading capacity, stable and reliable.
2. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
Electrical Cabinet
1. Electrical cabinet placed directly within the column, so the structure is more compact, save space. Beautiful appearance, wire marking clear and complete, wiring and tidy; The connection of the electrical cabinet to bed adopt the special cable connection.
2. Electrical cabinet is equipped with air condition, safety and standard, to ensure controller constant temperature, the stability of the controller.
Precise Oil Cooler
Precise oil cooler can prevent the machine tool thermal deformation, stable oil pressure, prevent oil shock, improve the processing precision, reduce the error of the mechanical action, reduce maintenance costs of machine tool through cooling hydraulic oil of machine tool.
Automatic Lubrication
Guideway and screw adopt centralized lubrication, use a set automatic lubrication station, through the control of the electric system can all lubricating points for quantitative regularly, lubrication operation is more simple.
Adavantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
In the warranty period
In the warranty period, Every parts of the vertical lathe is warranted. if some parts need to be replaced due to the quality of product, the company is responsible for free replacement.
For simple operation issue, through email/whatsapp/video/phone call deal with directly
For difficult issue, invite engineer to help you repair or debugging onsite.
If it is not due to product quality of the vertical lathe, the appropriate fees should be collected.
Maufacturing facilities...
