In the realm of machining, the terms "vertical boring mill" (VBM) and "vertical turret lathe" (VTL) are often used interchangeably, leading to some confusion. Both machines are designed to handle large, heavy workpieces and perform similar operations, but they have distinct differences in their design, functionality, and applications. This article aims to clarify these differences and provide a comprehensive understanding of both types of machines.
A vertical boring mill is a machine tool that rotates a workpiece around a vertical axis while a single-point cutting tool is fed into the workpiece to remove material. The primary components of a VBM include a rotating table, a bridge or cross rail, and one or more ram-type heads. The table supports the workpiece and rotates it, while the ram-type heads move vertically and horizontally to perform the cutting operations.
VBMs are typically used for boring, turning, and facing operations on large, heavy workpieces such as engine blocks, large gears, and turbine casings. The machine's design allows for easy loading and unloading of heavy workpieces, as gravity helps to hold the workpiece in place on the rotating table. This minimizes the need for extensive clamping and reduces the risk of workpiece deformation.

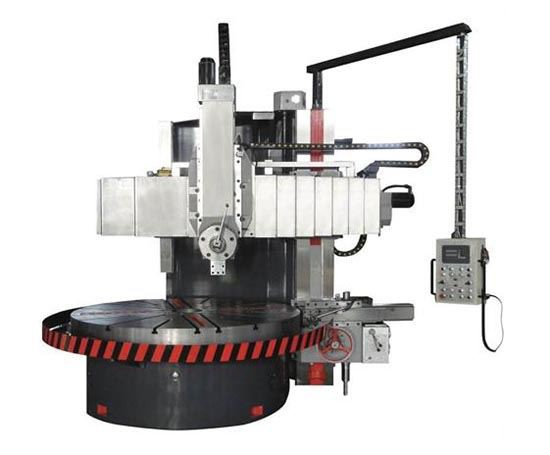

A vertical turret lathe, on the other hand, is a type of lathe that also rotates a workpiece around a vertical axis. However, it features a turret head that holds multiple cutting tools, allowing for quick tool changes and increased versatility. The turret head can be indexed to bring different tools into position, enabling the machine to perform a variety of operations such as turning, boring, facing, and threading without the need for manual tool changes.
VTLs are commonly used for machining large, heavy workpieces that require multiple operations. The turret head's ability to hold multiple tools reduces setup time and increases productivity, making VTLs suitable for high-volume production environments. Like VBMs, VTLs also benefit from gravity-assisted workpiece holding, which simplifies the clamping process and reduces the risk of workpiece deformation.
VBMs are primarily used for boring operations, which involve enlarging existing holes in a workpiece. The machine's ram-type heads can be equipped with various cutting tools, such as boring bars, to perform precise and accurate boring operations. In addition to boring, VBMs can also perform turning and facing operations, making them versatile machines for machining large, heavy workpieces.
Typical applications of VBMs include machining large engine blocks, turbine casings, and other heavy, cylindrical workpieces. The machine's ability to handle large workpieces with minimal clamping makes it ideal for these types of applications. Additionally, VBMs are often used in industries such as aerospace, automotive, and power generation, where large, precise components are required.
VTLs are designed for a wider range of operations compared to VBMs, thanks to their turret heads that can hold multiple cutting tools. This allows VTLs to perform turning, boring, facing, threading, and other operations without the need for manual tool changes. The ability to quickly switch between tools makes VTLs highly versatile and suitable for high-volume production environments.
Common applications of VTLs include machining large flanges, valve bodies, and other components that require multiple operations. The machine's versatility and efficiency make it a popular choice in industries such as oil and gas, heavy machinery, and shipbuilding. VTLs are also used in the production of large, complex components that require precise machining and multiple operations.
**Advantages:**
**High Precision:** VBMs are capable of performing precise and accurate boring operations, making them ideal for machining large, heavy workpieces that require tight tolerances.
**Gravity-Assisted Workpiece Holding:** The machine's design allows for easy loading and unloading of heavy workpieces, with gravity helping to hold the workpiece in place on the rotating table. This minimizes the need for extensive clamping and reduces the risk of workpiece deformation.
**Versatility:** In addition to boring, VBMs can also perform turning and facing operations, making them versatile machines for machining large, heavy workpieces.
**Disadvantages:**
**Limited Tool Capacity:** VBMs typically have one or two ram-type heads, which limits the number of cutting tools that can be used simultaneously. This can result in longer setup times and reduced productivity compared to machines with turret heads.
**Manual Tool Changes:** The need for manual tool changes can increase setup time and reduce efficiency, especially in high-volume production environments.
**Advantages:**
**Multiple Tool Capacity:** The turret head can hold multiple cutting tools, allowing for quick tool changes and increased versatility. This reduces setup time and increases productivity, making VTLs suitable for high-volume production environments.
**Versatility:** VTLs can perform a wide range of operations, including turning, boring, facing, threading, and more. This makes them highly versatile machines for machining large, complex components.
**Gravity-Assisted Workpiece Holding:** Like VBMs, VTLs benefit from gravity-assisted workpiece holding, which simplifies the clamping process and reduces the risk of workpiece deformation.
**Disadvantages:**
**Complexity:** The turret head's complexity can result in higher maintenance requirements and increased risk of mechanical issues compared to simpler ram-type heads.
**Cost:** VTLs are generally more expensive than VBMs due to their increased complexity and versatility. This can be a disadvantage for smaller shops with limited budgets.
In summary, while vertical boring mills (VBMs) and vertical turret lathes (VTLs) share some similarities, they have distinct differences in their design, functionality, and applications. VBMs are primarily used for precise boring operations on large, heavy workpieces, while VTLs offer increased versatility and efficiency with their multiple tool capacity and ability to perform a wide range of operations. Understanding these differences can help you choose the right machine for your specific machining needs and optimize your production processes.
