Max.turning diameter: 2500-16000mm
| Quantity: | |
|---|---|
Feature
1. Double Column Vertical CNC Turning Lathe is mainly used for the rough and fine processing and groove cutting of inside and outside cylindrical surface and circular conical surface and plane for ferrous metals, non-ferrous metals and some non-metallic parts by high speed steel and hard alloy tools.
2. Double Column Vertical CNC Turning Lathe left tool rest is the non-rotation tool rest, and right tool rest is the common tool rest, which could rotate. Tool rest feeding has AC asynchronous servo feeding system with SIEMENS, FANUC brand controller and servo motor
3. Closed symmetrical frame; using high-strength low-stress cast iron, with sufficient rigidity and strength, to ensure the accuracy of the machine tool with long-term retention and stability. Through finite element analysis and calculation, the gantry's size structure and stress state are optimized to ensure its sufficient strength and rigidity. A lifting box is installed on the upper part of the column, driven by a double-shaft AC motor, and driven by a helical gear, a worm gear, and a lead screw pair to make the beam move vertically on the column.
Specification
The vertical lathe can be equipped with C axis
Model NO. | CK5225 | CK5240 | CK5250 | CK5263 | CK5280 |
Max. turning diameter of vertical tool post | 2500 | 4000 | 5000 | 6300 | 8000 |
Working table diameter(mm) | 2250 | 3200 | 4500 | 5700 | 7100 |
Max. weight of work-piece(T) | 10 | 32 | 50 | 120 | 150 |
Max. height of work-piece(mm) | 2000 | 2500 | 3150 | 3500 | 4000 |
Working table range of rotation speed(r/m) | 2-63 | 2-63 | 0.42-42 | 0.3-25 | 0.3-25 |
Working table step of rotation speed | 16 | 16 | stepless | stepless | stepless |
Horizontal travel of vertical tool post(mm) | 1400 | 2150 | 2765 | 3415 | 4400 |
Vertical travel of vertical tool post(mm) | 1000 | 1250 | 1600 | 1750 | 2000 |
Main power(kW) | 55 | 55 | 75 | 110 | 125 |
Weight(T) | 35 | 58 | 90 | 180 | 245 |
Overall size (LxWxH) CM | 5180*4560*5180 | 6780*6000*5750 | 9350*6400*5750 | 10650*6400*7500 | 17300*9000*12600 |
Details
Work flow

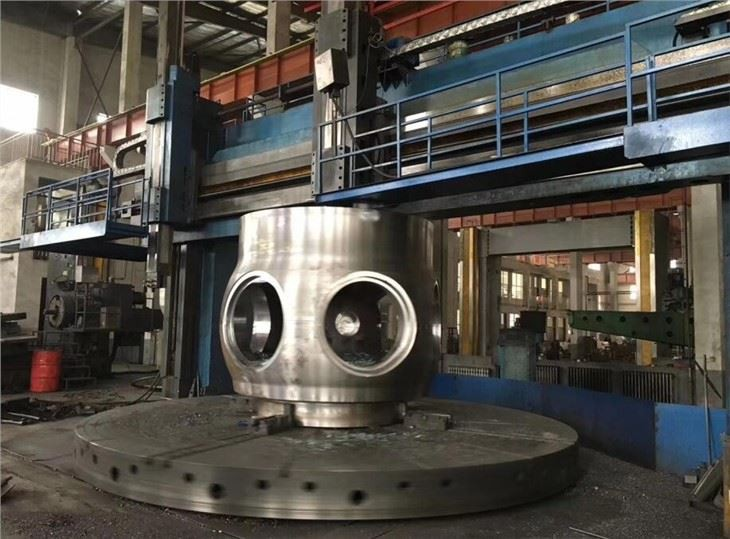

Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Customers
Various size can be provided to meet various size of workpiece
General Introduction:
We started with lathe machine casting and machine tool. Senior engineer and chief engineer with 35-45 years working experience in machine tool industry.
We have a clear vision of where key industries are headed and how we can help customers reach their goals by thinking our way around obstacles, creating solutions and finding answers to complex technical and engineering challenges.
