Feature of Double Column Vertical Lathe (1) The guideway is done by top imported machine Guideway Grinding Machine from Germany WALDRICH, when customer use machine for many years, machine precision still be nice. (2) Gear through carburization methods, and use gear grinding machine to finishing...
| Quantity: | |
|---|---|
Feature of Manual Vertical Turning Lathe
(1) The gantry consists of left and right columns and coupling beams. In the upper part of the gantry, there are left and right lifting boxes, which are driven by an AC motor. The girders and double screws are used to move the beams along the left and right column rails. The high-strength, low-stress cast iron materials of the left and right columns and coupling beams of the machine tool make the machine tool have greater strength and higher rigidity. After aging treatment, the stress is eliminated and the precision of the machine tool is ensured.
(2) Gear made of 40 Cr through High-frequency Quenching treatment, the Hardness reaches HRC40-45，gear grinder，Precision can reach level 6.Thereby reduce the vibration and noise of machine tools, improved efficiency and reliability.
Bed, as an overall structure, is made of high-strength, low-stress iron casting, adopt effective anti-vibration measures. Combination of bed and table base can improve the reliability of overall rigidity of machine tool substantially.
(3) Providing the stability and power required to deliver super-sized precision for detail-oriented industries like aerospace, electronics, and automotive, our double column machines deliver time and time again.
(4) The tool post is consist of left and right tool holders, which are respectively composed of a beam sliding seat, a ram, a reduction gear box and a balance cylinder assembly. Allow the ram to move in the range of -15 to +30. The knife holder ram has a hydraulic balance device to balance the weight of the ram and make the ram move smoothly.
The size and parts can be customized.
Products Specification of Manual Vertical Turning Lathe
The vertical lathe can be equipped with C axis for milling and boring function.
Parameter | Unit | C5225 | C5235 | C5240 | C5245 | C5250 | |
Worktable diameter | mm | 2250 | 2850 | 3600 | 3800 | 4200 | |
Max, Turning diameter | mm | 2500 | 3500 | 4000 | 4500 | 5000 | |
Max. Workpiece height(H) | mm | 1600 | 2000/2500/3150 | 2000/2500 /3150 | 2000/2500 /3150 | 2500/3150 /4000 | |
Max. Workpiece weight(W) | t | 10/16 | 10/16/20/32 | 25/32/20/32 | 25/32/50/63 | 25/32/40/50/63 | |
Max. Turning force | Right tool post | N | 35000 | 40000 | 40000 | 40000 | 50000 |
Left Tool post | N | 30000 | 35000 | 35000 | 35000 | 35000 | |
Max. Workpiece torque | N·m | 63000 | 80000 | 80000 | 80000 | 80000 | |
Workpiece step | step | stepless | step | step | step | step | |
Workpiece rotation | rpm | 2~63 | 0.63-63 | 0.63-63 | 0.5-50 | 0.5-50 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 0.25~90 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | |
Tool post travel | Horizontal | mm | 1400 | 1900 | 2200 | 2450 | 2700 |
Vertical | mm | 1000 | 1250/1400 | 1000/1250/1400 | 1000/1250/1400 | 1400/1600/2000 | |
Beam travel speed | mm/min | 350 | 350 | 300 | 300 | 350 | |
Tool post rapid speed | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | ±30 | -15-+30 | -15-+30 | -15-+30 | -15-+30 | |
Tool section | mm | 40×50 | 50×50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 55 | 55 | 55 | 55 | 75 | |
Weight | T | 38 | 45 | 50 | 55 | 70 | |
Parameter | Unit | C5263 | C5280 | C52100 | C52125 | C52160 | |
Worktable diameter | mm | 5700 | 6300/7100 | 7100/7500 | 7500/8000 | 10000 | |
Max, Turning diameter | mm | 6300 | 8000 | 10000 | 12500 | 16000 | |
Max. Workpiece height(H) | mm | 3150/4000 /4500/5000 | 4000/4500 /5000/5500 | 4500/5000 /6000 | 4500/5000/5500/6500 | 5500/6000 /7000 | |
Max. Workpiece weight(W) | t | 25/40/63/80/150 | 100/125/150 | 100/150/200/250 | 100/150/200/250 | 400 | |
Max. Turning force | Right tool post | N | 63000 | 80000 | 100000 | 100000 | 100000 |
Left Tool post | N | 50000 | 63000 | 80000 | 80000 | 80000 | |
Max. Workpiece torque | N·m | 200000 | 460000 | 640000 | 640000 | 1000000 | |
Workpiece step | step | step | step | step | step | step | |
Workpiece rotation | rpm | 0.32-32 | 0.2-20 | 0.2-20 | 0.16~16 | 0.1-10 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1750/2250/2850/3150 | 3000/3500/3650/4250/4500 | 3750/4250/4500/5000 | 3750/4000/4250/4500/5000 | 4000/5000/5500 | |
Tool post travel | Horizontal | mm | 3200 | 4400 | 5400 | 5400 | 5400 |
Vertical | mm | 1600/2000/2500 | 2000/2500/2750 | 2500/2750 | 2500/2750 | 2500/2750 | |
Beam travel speed | mm/min | 230 | 230 | 230 | 230 | 230 | |
Tool post rapid speed | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | |
Tool section | mm | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 90 | 110 | 132 | 132 | 160 | |
Weight | kg | 100 | 320 | 465 | 465 | 465 | |
Details of Manual Vertical Turning Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working

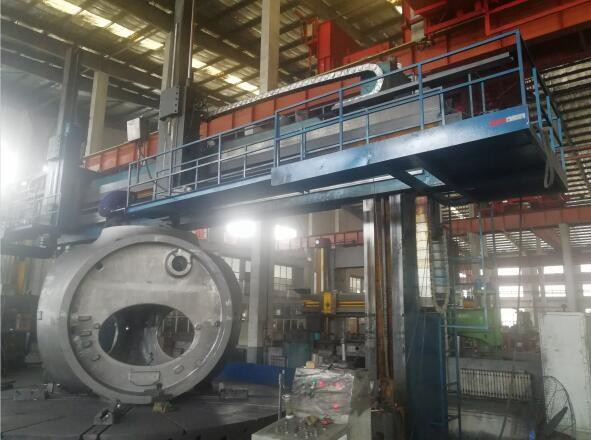

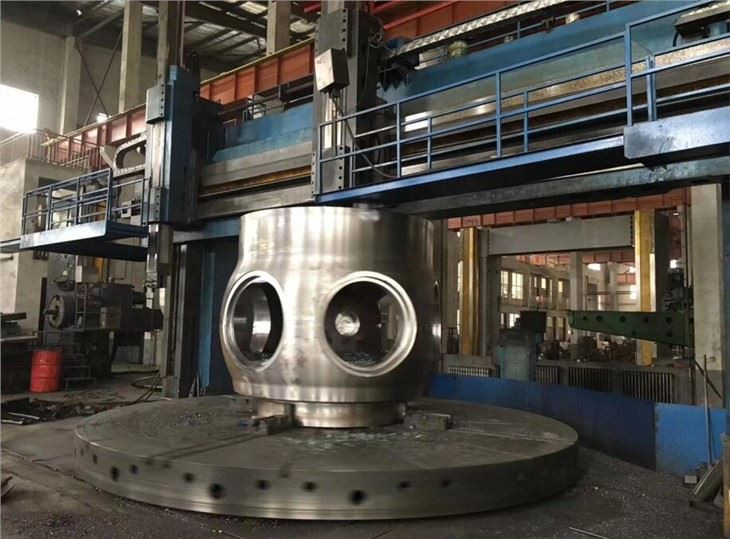

Work piece of Manual Vertical Turning Lathe
The Manual Vertical Turning Lathe is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe

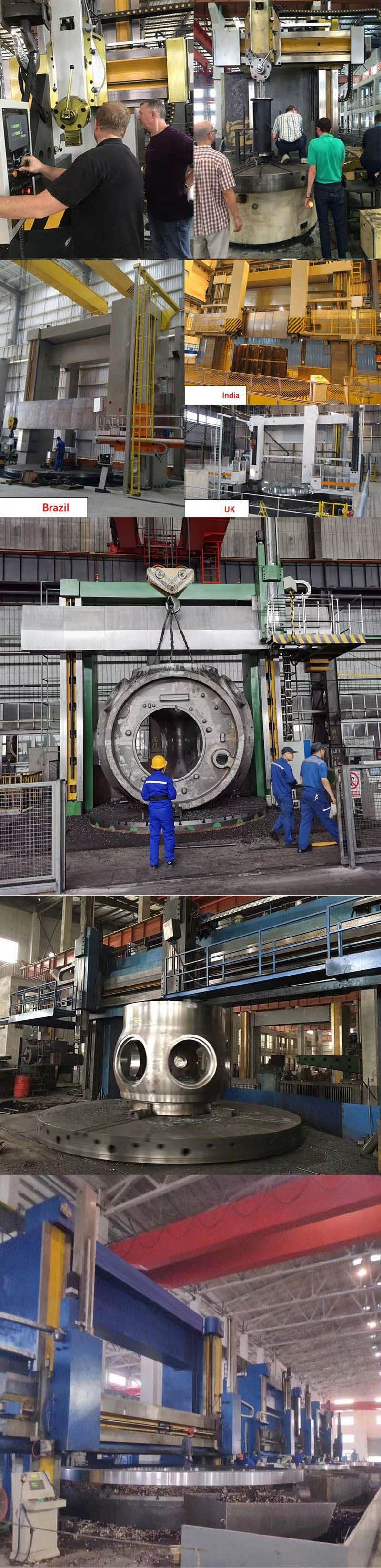

Customers
Serious and professional testing
Package and Shipping of Manual Vertical Turning Lathe
The machine will be tested N times before packaging to guarantee 100% no problem
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
