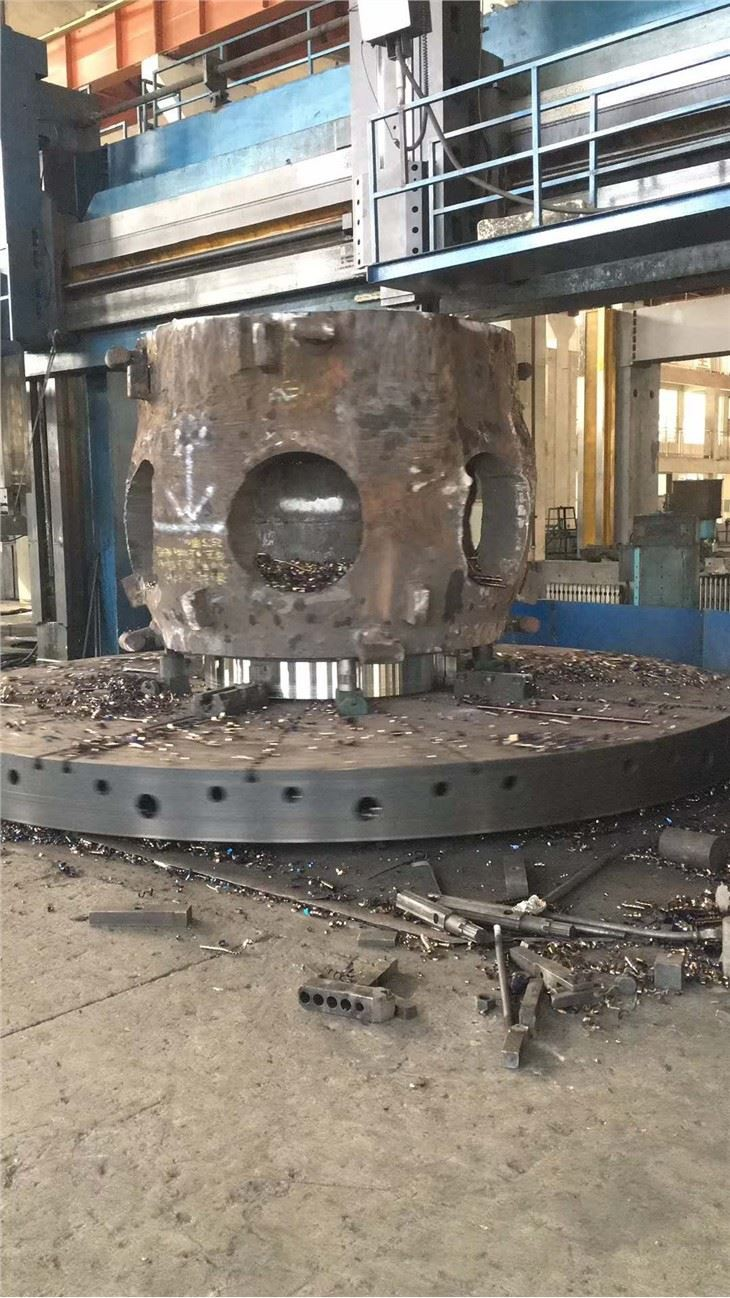

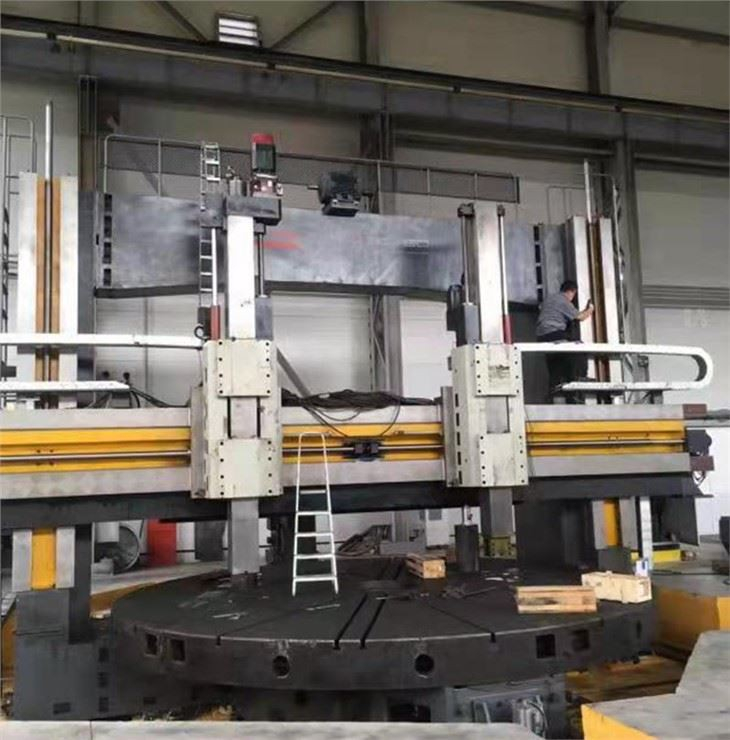

C series Vertical Column Lathe designed and built in a compact form, with an extremely rigid thermal symmetrical structure, having two columns mounted to the table base.
| Quantity: | |
|---|---|
Introduction of C series Vertical Column Lathe
1. C series Vertical Column Lathe is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.
2. The table adopts thrust ball bearing with high accuracy for hard guideway
guideway). Spindle radial is performed NN30 type double row cylindrical rolling bearing. so it can improve the rotary procision and load capacity of the table.
3. The rail head equipped with pentagonal turret, and the side heud is designed with square turret. The two heads are all adopted the hydraulic balance.
5. The machine is controlled by OMRON PLC. so it is high reliability.
6. Overall dimensions of machine is beautiful and it is delightful for people to use. It is easily for maintenaince and service.
7. The attachment of side head, digital control and turning taper can provided on special requirement.
Feature of C series Vertical Column Lathe
1. C series Vertical Column Lathe designed and built in a compact form, with an extremely rigid thermal symmetrical structure, having two columns mounted to the table base.
2. All these elements are assembled together in order to constitute a tough structure ensuring maximum stability and rigidity.
3. The movable crossrail is designed and sized to withstand severe cutting conditions
4. On the front part two horizontal sliding guides support the vertical ram saddle in its horizontal movement (through hydrostatic pockets).The distance between the superior and the inferior guide way is dimensional to ensure the maximum cutting performances.
5. The size and parts of Vertical Column Lathe can be customized.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of Vertical Column Lathe
The vertical lathe can be equipped with CNC controller and C axis for milling and drilling
Parameter | Unit | C5225 | C5245 | C5250 | C5263 | C5280 | C52100 | C52125 | C52160 | |
Worktable diameter | mm | 2250 | 3800 | 4200 | 5700 | 6300/7100 | 7100/ 7500 | 7500/8000 | 10000 | |
Max, Turning diameter | mm | 2500 | 4500 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | |
Max. Workpiece height(H) | mm | 1600 | 2000/2500 /3150 | 2500/3150 /4000 | 3150/4000 /4500/5000 | 4000/4500 /5000/5500 | 4500/5000 /6000 | 4500/5000/5500/6500 | 5500/6000 /7000 | |
Max. Workpiece weight(W) | t | 10/16 | 25/32/50/63 | 25/32/40/50/63 | 25/40/63/80/150 | 100/125/150 | 100/150/200/250 | 100/150/200/250 | 400 | |
Max. Turning force | Right tool post | N | 35000 | 40000 | 50000 | 63000 | 80000 | 100000 | 100000 | 100000 |
Left Tool post | N | 30000 | 35000 | 35000 | 50000 | 63000 | 80000 | 80000 | 80000 | |
Max. Workpiece torque | N·m | 63000 | 80000 | 80000 | 200000 | 460000 | 640000 | 640000 | 1000000 | |
Workpiece step | step | stepless | step | step | step | step | step | step | step | |
Workpiece rotation | rpm | 2~63 | 0.5-50 | 0.5-50 | 0.32-32 | 0.2-20 | 0.2-20 | 0.16~16 | 0.1-10 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 0.25~90 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1250/1650/1850 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 3000/3500/3650/4250/4500 | 3750/4250/4500/5000 | 3750/4000/4250/4500/5000 | 4000/5000/5500 | |
Tool post travel | Horizontal | mm | 1400 | 2450 | 2700 | 3200 | 4400 | 5400 | 5400 | 5400 |
Vertical | mm | 1000 | 1000/1250/1400 | 1400/1600/2000 | 1600/2000/2500 | 2000/2500/2750 | 2500/2750 | 2500/2750 | 2500/2750 | |
Beam travel speed | mm/min | 350 | 300 | 350 | 230 | 230 | 230 | 230 | 230 | |
Tool post rapid speed | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | ±30 | -15-+30 | -15-+30 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | |
Tool section | mm | 40×50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 55 | 55 | 75 | 90 | 110 | 132 | 132 | 160 | |
Weight | T | 38 | 55 | 70 | ||||||
Serious and professional testing
Package and Shipping
Manufacturing facilities...
