Boring Milling Machine

Feature of Boring Milling Machine

1. This machine is a universal horizontal milling and boring machine. It is suitable for processing large-size work-pieces such as cases, shells, bases, etc. with drilling, boring, expanding, reaming, countering, milling, grooving and threading etc. The machine is widely used as key equipment to machining cases in the field of engine, transportation, heavy type, petroleum machinery etc.

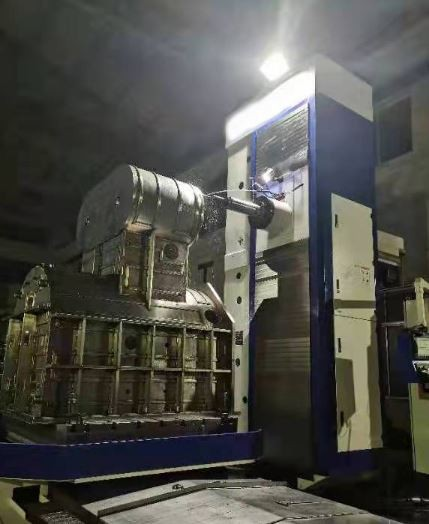

2. Horizontal Boring Milling Machine is a horizontal table-type boring machine with travelling work spindle 110 mm 130mm in diameter. The optimally dimensioned structure from grey cast-iron consists of a Fixed Column and a longitudinal bed with a cross moving Rotary Table.

3. Thanks to a rigid structure excellently absorbing vibrations, sufficiently dimensioned drives and accurate guides, the machine is designed for universal cutting operations of Prismatic parts, light workpieces from cast iron, cast steel and steel including technologically demanding operations. The machine can be extended by special equipment, peripheral devices and special technological equipment (e.g. guide supports, facing head, milling heads, chucking equipment, etc.).

4. The hand fine feed of each moving units (spindle, headstock,longitudinal & cross of table, radial facing slide in the facing head) can be obtained by shifting the turnstile to the innermost position and turning it.

5. The hydraulic system of this kind of machine is composed of two parts: one is in the tail bracket and upper and inner part of heasdstock which is used for spindle speed change and feed speed chagne and headstock internal lubrication, another is in the inner part of lower saddle of the machine, which is used for the transverse of headstock, longitudian & cross movement and rotation of table.

6. Humidity: When under the max. temperature of 40°C, the relative humidity shall not be over the range of 50%, high relative humidity is allowed under low temperature (90% under 20° C).

Height above sea level: Lower than 2000 m.

7，Boring Milling Machine Materials forbidden to cut: non-metal material, i.e. graphite, stone; material with low rigidity that cannot be clamped or fixed; metal with low igniting point, i.e. magnesium alloy, etc.; poisonous or flammable material. This machine is suitable for using in practical environment under certain running condition.

Products Parameter of Horizontal Boring Milling Machine
