The product can be widely used for drilling, boring, reaming, reaming, countersinking, milling plane, turning thread and other large parts such as box, housing, machine base; especially suitable for large and medium-sized parts and Processing of various processes such as rough boring, fine boring, milling of box-like parts; flat rotary disk slider can be fed in radial direction, which can boring larger sizes of inner holes, car outer circles and grooving; etc.
| Quantity: | |
|---|---|

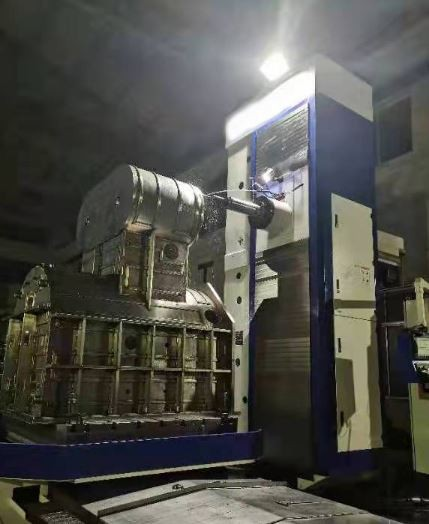

Feature of Boring And Milling Machine
1. The Boring and Milling Machine can be widely used for drilling, boring, reaming, reaming, countersinking, milling plane, turning thread and other large parts such as box, housing, machine base; especially suitable for large and medium-sized parts and Processing of various processes such as rough boring, fine boring, milling of box-like parts; flat rotary disk slider can be fed in radial direction, which can boring larger sizes of inner holes, car outer circles and grooving; etc. The rotary has a 4X90 ° optical sighting and positioning device, which can meet the precision requirements for turning of large box parts. The accurate digital display measuring device can meet the work requirements such as coordinate measurement and scribing of the workpiece. The machine tool uses PLC for electrical control.
2. This Boring and Milling Machine can be widely used in national defense industry, aerospace, shipbuilding, metallurgy, railway rolling stock, automobile manufacturing, engineering machinery, wind power generation, mining machinery, textile, printing, light industry, machine tool manufacturing and other industries. It is a processing box part Key equipment.
3. This series of Boring and Milling Machine is of genenal-purpose, suitable for such operation as drilling, counter-boring,boring,reaming,spot-facing,tapping and milling etc. The horizontal milling and boring Machine type is equipped with fixed facing plate on which radial facing slide can be radically feed consequently to enable the machine to undertake boring of large-diameter hole, external cutting, end face turning and recessing, etc.
4. The horizontal guideway surface of the machine is provided with all pull-board type dust-proof to avoid abrading the guideway surface and at teh same time, making the machine more beautiful.
Electric-hydraulic interlocking device will be fixed between the moving units and when a moving unit is moving, the other moving units will be clamped automatically (except spindle, radial facing slide). In the headstock and rapid transverse gearbox, safety clutches are installed to prevent the machine from overload.
5. The hydraulic system of this kind of machine is composed of two parts: one is in the tail bracket and upper and inner part of heasdstock which is used for spindle speed change and feed speed change and headstock internal lubrication, another is in the inner part of lower saddle of the machine, which is used for the transverse of headstock, longitudinal & cross movement and rotation of table, the principle diagram.
Products Specification of Boring and Milling Machine
Model | Unit | PB110 | PB130 | PB130H |
Spindle bore | mm | 110 | 130 | |
Spindle speed | rpm | 10-1200 ( 1500、2000、2500 ) | 10-1200(1500, 2000) | 7-1500 (2000) |
Motor power | kW | 18. 526 | 2230 | 25 |
Max. Spindle torqe | N.M | 16802000 | 20002700 | 2700 |
Worktable size | mm | 1250X1400(1400X1600) | 1400X1600 (1600X1800) | |
Max. Loading weight | T | 6(10、15) | 10、15 | |
X axis travel | mm | 2000 | ||
Y axis travel | mm | 1600 (2000) | 1600 (2000、 2500) | 1600 (2000、 2500、 3000) |
W axis travel | mm | 1250 (1500、 2000) | ||
W axis travel | 600 | 750 | 900 | |
Positioning precision XYZ W/B | mm | 0.025/10 | 0.025/10 | |
Re Positioning precision XYZ W/B | mm | 0. 020/7 | 0. 020/7 | |
Feeding speedXYZ /W/B | 4/2/1 | |||
Rapid travel XYZ /W/B | rpm | 8/4/2 | ||
Weight | T | 25 | 28 | 36 |
CNC system | Siemens, FANUC | |||
