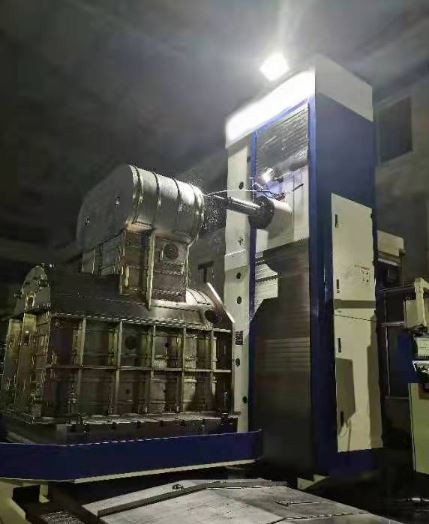

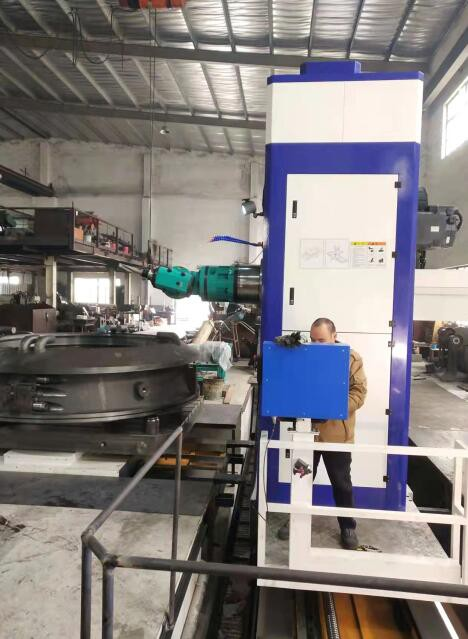

CNC Horizontal Boring Machine is premier machine tool is the machine tool that drills holes in a horizontal direction, and there are three types including floor, table, and planer. Boring mills allow for extremely large parts to be easily machined and allows end-users to reach small cavities.
| Quantity: | |
|---|---|
Feature of CNC Horizontal Boring Machine
1. The CNC Horizontal Boring Machine is of table-type layout, with column mounted on the bed and a side spindle head; guideway of the lower saddle is of cross structure.
2. A manual optical positioning device for at every 4x90° positioning of the table is provided for some models.
3. Some models positioned by a circular grating scale may make the table indexing continuously 360°;
4. Machine bed with larger specifications is added with integral auxiliary guideway;
5. Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle;
6. The boring spindle is of high quality nitride steel 38CrMoAIA; the hollow spindle is of high quality alloy steel; the spindle is of high structure rigidity and accuracy;
7. The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy;
8. Control system is provided with Mitsubishi PLC DRO unit and measuring elements are from SINO or NEWALL;
Model NO. | Unit | TB110A | TB110 | TB110AX1 | TB110M | TB110A2 | TB1102 | TB110A3 | TB1103 | |||||||
Spindle bore | mm | 110 | ||||||||||||||
Spindle rotation speed | rpm | 10-1200 （1500、2000、2500 可选） | ||||||||||||||
Motor power | kW | 18.526（SYNTEC 22MA） | ||||||||||||||
Max. Spindle torque | N. M | 16702000 | ||||||||||||||
Facing plate diameter | mm | 650 | / | 650 | / | 650 | / | 650 | / | |||||||
Facing plate rotation speed | rpm | 7-165 | / | 7-165 | / | 7-165 | / | 7-165 | / | |||||||
Facing plate torque | N. M | 2175 | / | 2175 | / | 2175 | / | 2175 | / | |||||||
Worktable size | mm | 900X1000 | 1250X1400（1400X1400 可选） | |||||||||||||
Max. Loading weight | T | 2.5 | 5 | |||||||||||||
X axis travel | mm | 1000 | 1600 | 1800 | 2000 | |||||||||||
Y axis travel | mm | 900 | 1400 | 1600 | 1800 | |||||||||||
Z axis travel | mm | 1100 | 1400 | 1400 | 1400 | |||||||||||
Spindle W travel | mm | 600 | ||||||||||||||
Facing plate block travel | mm | 200 | / | 200 | / | 200 | / | 200 | / | |||||||
Positioning precision XYZ/WU/B | mm | 0.018/0. 025/10 (Germany VDI3441、GB/T17421. 2. 2000 ) | ||||||||||||||
Re Positioning precision XYZ/WU/B | mm | 0.015/0. 020/7 | ||||||||||||||
Feeding speed XYZ/WU/B | rpm | 5/2/1 | ||||||||||||||
Rapid travel XYZ/WU/B | mm | 10/4/2 | ||||||||||||||
Weight | mm | 15.5 | 18.5 | 20.5 | 22 | |||||||||||
CNC system | Siemens, FANUC | |||||||||||||||
Model NO. | Unit | TB130A | TB130 | TB130AM | TB130l | TB130A2 | TB1302 | TB130A3 | TB130X3 | ||||||
Spindle bore | mm | 130 | |||||||||||||
Spindle rotation speed | rpm | 10-1200 | |||||||||||||
Motor power | kW | 18.526(SYNTEC 22MA) | |||||||||||||
Max. Spindle torque | N. M | 16702000 | |||||||||||||
Facing plate diameter | mm | 650 | / | 650 | / | 650 | / | 650 | / | ||||||
Facing plate rotation speed | rpm | 7-165 | / | 7-165 | / | 7-165 | / | 7-165 | / | ||||||
Facing plate torque | N. M | 2175 | / | 2175 | / | 2175 | / | 2175 | / | ||||||
Worktable size | mm | 900X1000 | 1250 X1400 (1400X1400 可选) | ||||||||||||
Max. Loading weight | T | 2.5 | 5 | ||||||||||||
X axis travel | mm | 1000 | 1600 | 1800 | 2000 | ||||||||||
Y axis travel | mm | 900 | 1400 | 1600 | 1800 | ||||||||||
Z axis travel | mm | 1100 | 1400 | 1400 | 1400 | ||||||||||
Spindle W travel | mm | 750 | |||||||||||||
Facing plate block travel | mm | 200 | / | 200 | / | 200 | / | 200 | / | ||||||
Positioning precision XYZ/WU/B | mm | 0.018/0. 025/10(GB/T17421. 2. 2000 ) | |||||||||||||
Re Positioning precision XYZ/WU/B | mm | 0.015/0. 020/7 | |||||||||||||
Feeding speed XYZ/WU/B | rpm | 5/2/1 | |||||||||||||
Rapid travel XYZ/WU/B | mm | 10/4/2 | |||||||||||||
Weight | mm | 15.5 | 18.5 | 20.5 | 22 | ||||||||||
CNC system | SIEMENS, FANUC | ||||||||||||||
