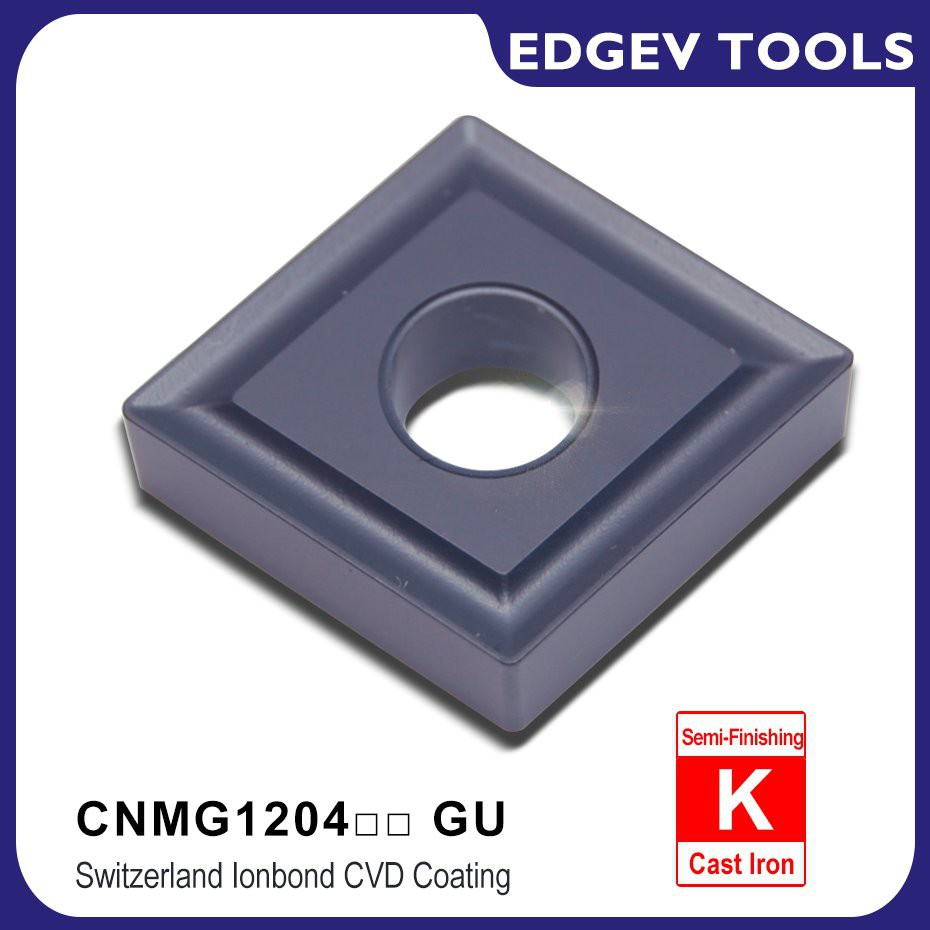

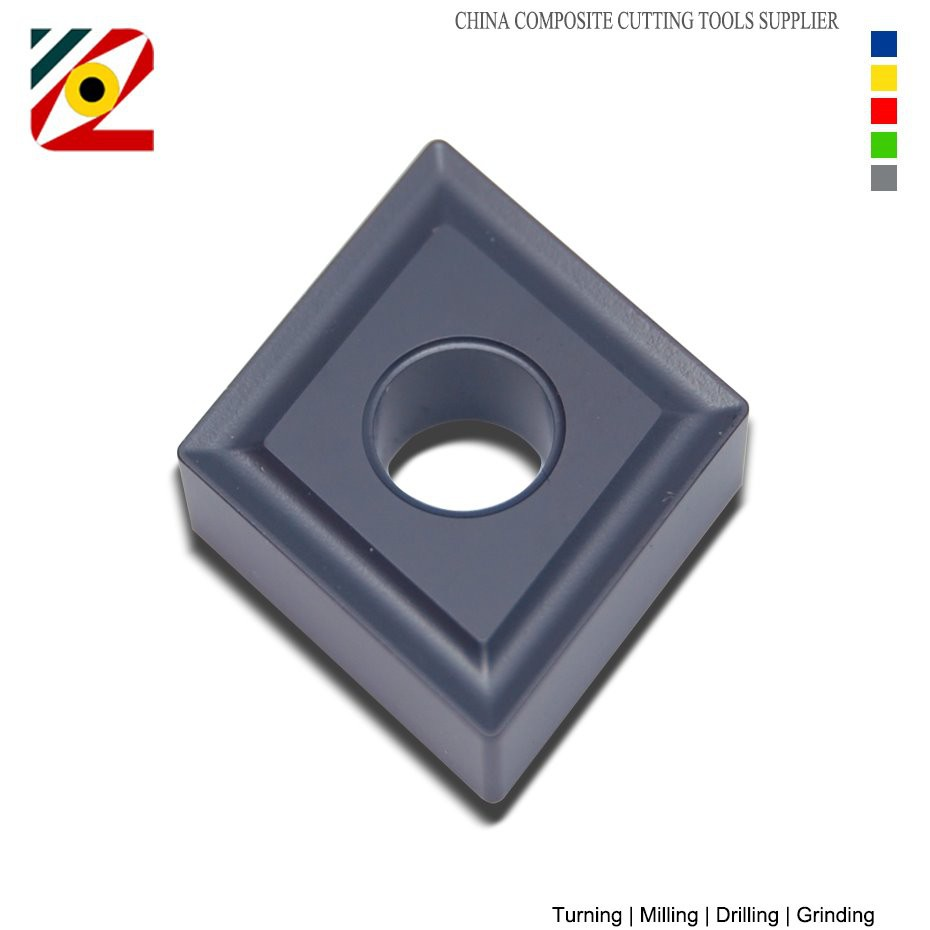

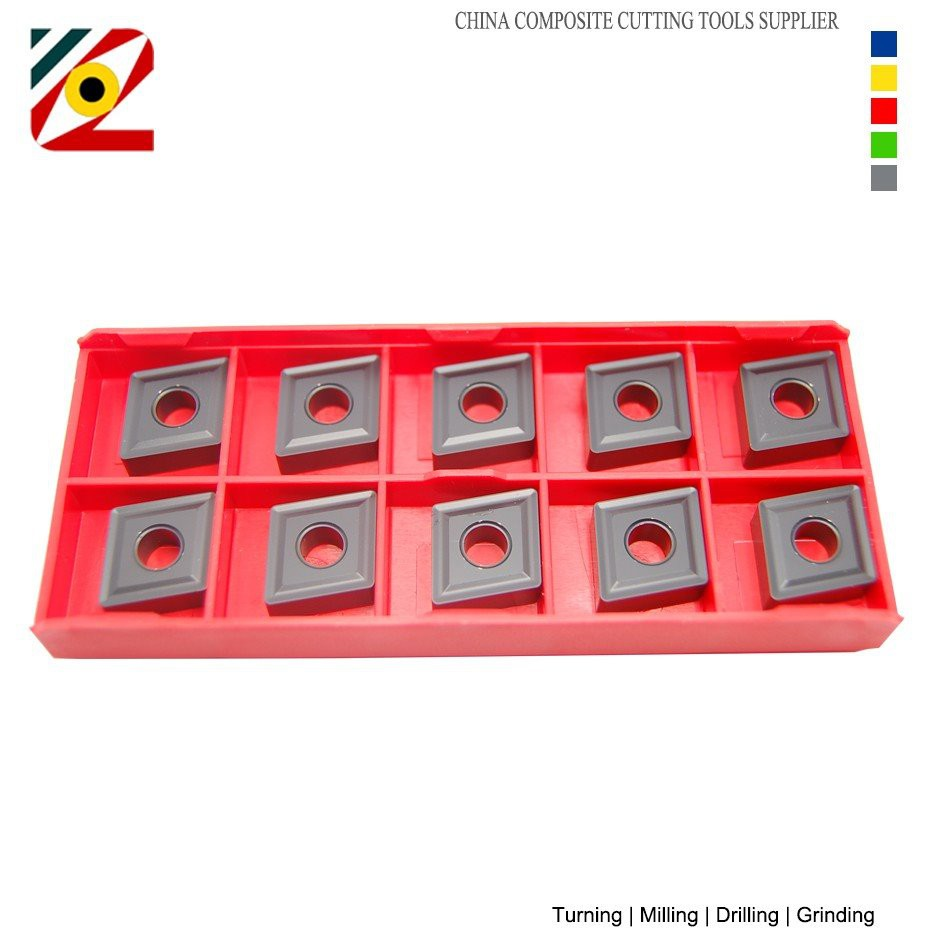

10Pcs CNMG120404 CNMG120408 CNMG431 CNMG432 External Turning Tools, CNB Plate, Tungsten Carbide Insert Machining Cast Iron
Products Details of CNB Plate
01.Brand Name: EDGEV
02.Description: Negative CNC External Turning Carbide Inserts with Coated
03.ISO Specification:
CNMG120404=CNMG431(I.C.:12.7mm, Thickness:4.76, Nose Radius:R0.4)
CNMG120408=CNMG432(I.C.:12.7mm, Thickness:4.76, Nose Radius:R0.8)
CNMG120412=CNMG433(I.C.:12.7mm, Thickness:4.76, Nose Radius:R1.2)
04.Chip Breaker: GU
05.Grade: EC9020
06.Model Number: Indexable carbide inserts
07.Coating Material: TiCN+Al2O3
08.Basic Material: Tungsten Alloy
09.Coating Brand:Switzerland Ionbond CVD Coating
10.Features: Improved toughness excellent wear resistance
11.Hardness:
12.Color: Black
13.Usage: External Turning Tools
14.Application Range: From Semi-finishing to Roughing
15.Work Piece: Cast Iron
16.Available Tool Holder: DCLNR/L MCLNR/L
17.Place of Origin: China
18.Unit Type: Lot (10 Pieces/Lot)
19.Net Weight: 110g/Box
20.Gross Weight: 130g/ Lot (10 Pieces)

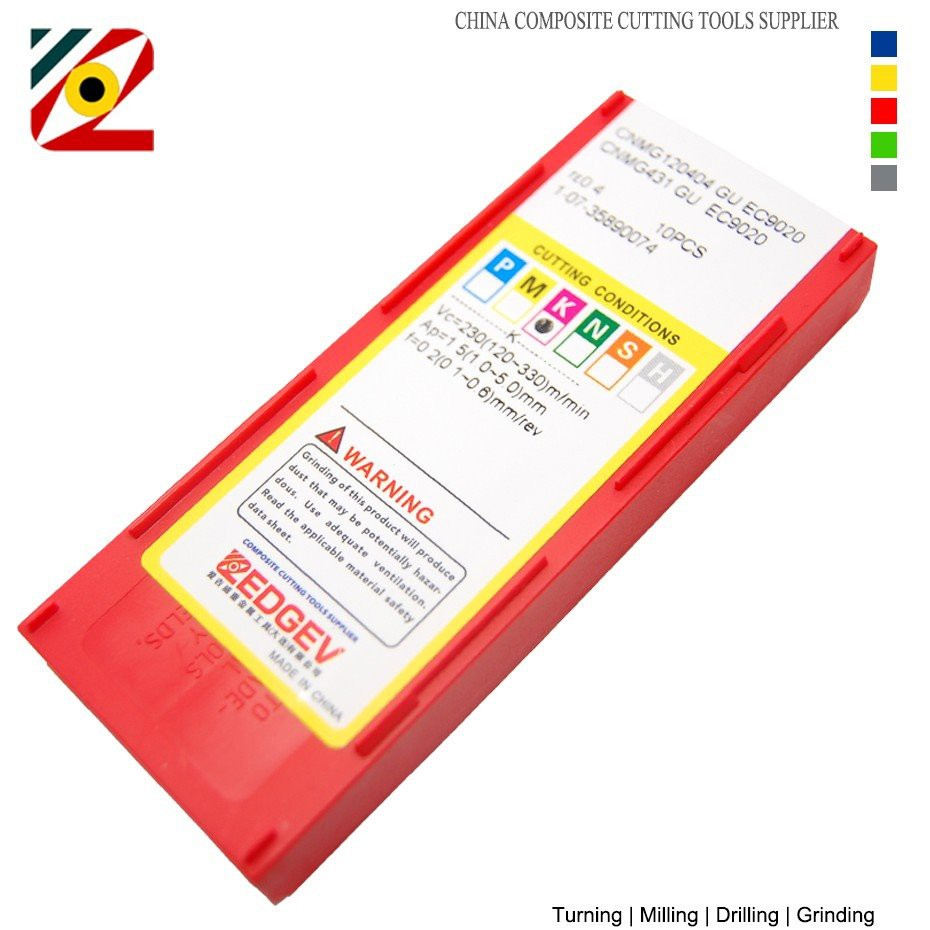

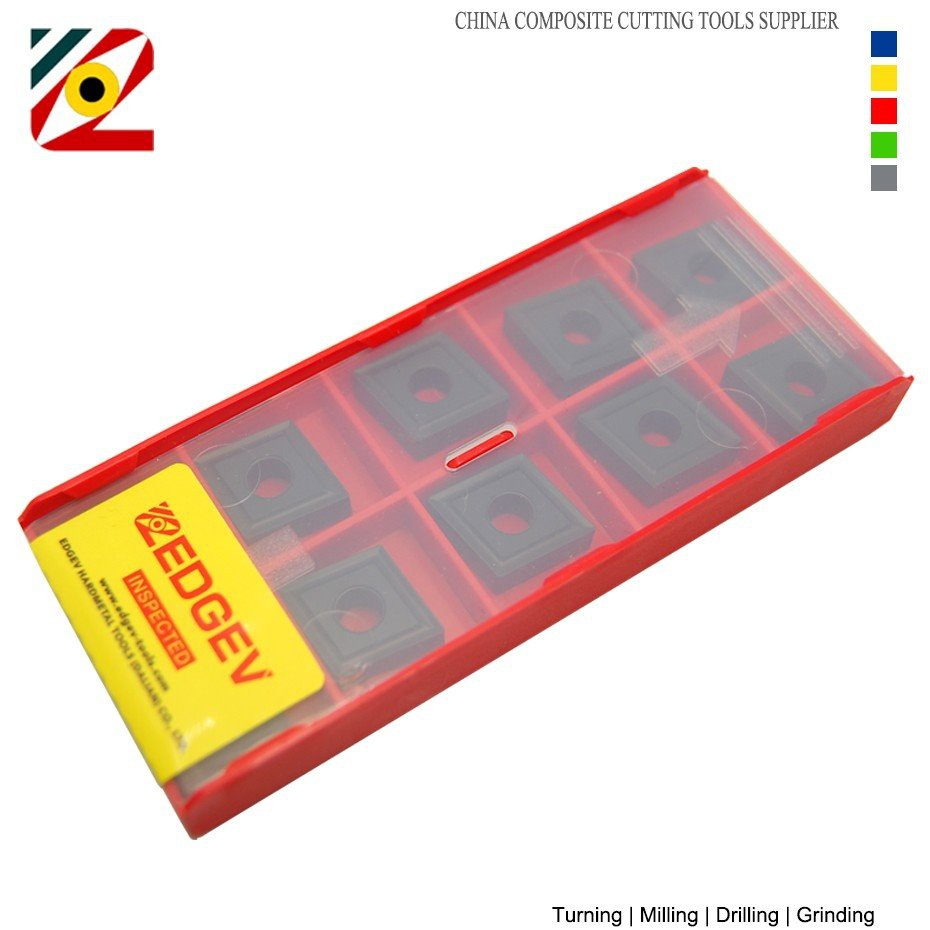

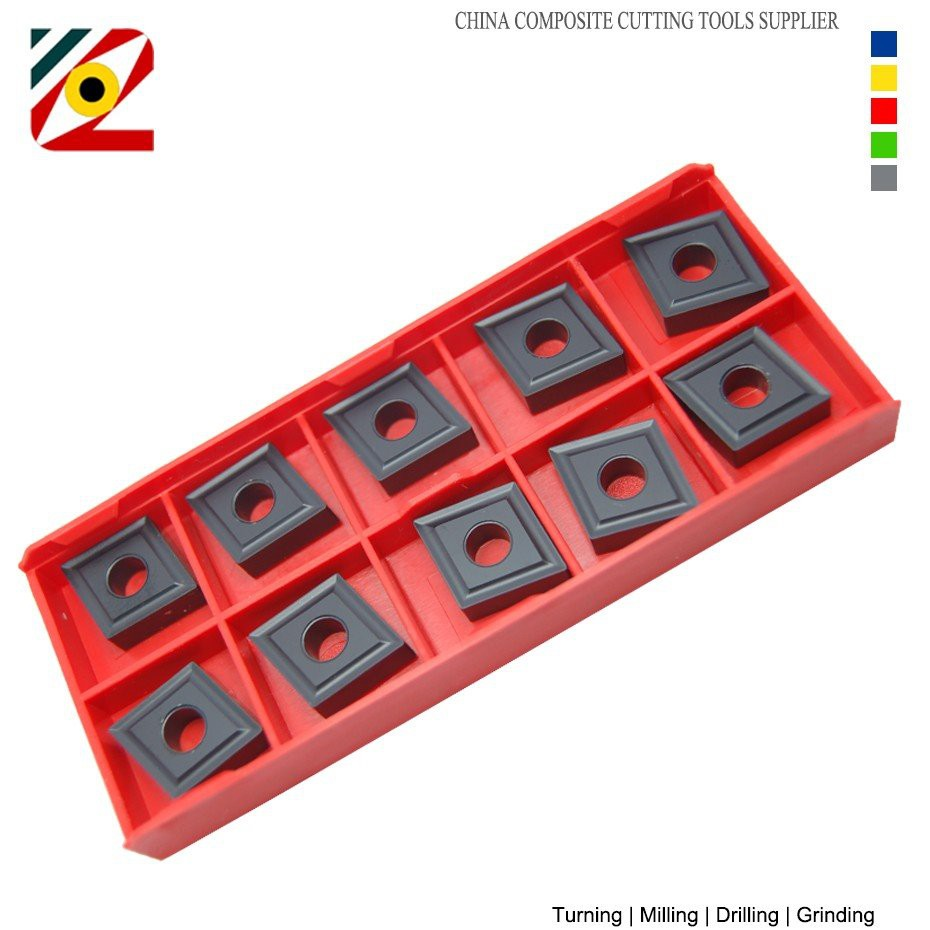

21.Packing: 10 Pieces Packed In One Plastic Box /lot
22.Min Order:10PCS/Box
PVD Coated Carbide Grade Introduction
EDGEV PVD (Physical Vapor Deposition) coatings are manu-factured through using an arc evaporation processing, high evapo-ration on the surface of cemented carbide, and to be combined with the reaction gas in the controllable state, and deposited into a variety of different wear resistance film,
all of coatings are used the composite single layer and multilayer nanostructures. Compared with the CVD film, the film is more uniform, to ensure a long life of cutting tools, stable machining is realized.
CVD Coated Carbide Grade Introduction
EDGEV CVD (chemical vapor deposition method) is mixed a vari-ety of gas into a high temperature reaction tank, so that the surface of the based material to be manufactured the super hard particulate matter. From the gaseous state, without passing through liquid, to direct transi-tion VS growth mode as a solid state, to form a film of several microns to several ten microns. Compared with the single-layer PVD coating, its hardness, wear resistance and red hardness even more remarkable be-cause the using of the multi-layer structure.
Company Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Everything we do follows the moral norms of goodness, responsibility and happiness. Morality, This is our banner. The relationship with customers is based on mutual respect and acknowledge their values and rights. The commitment to our challenges is the guarantee for the benefit of everyone. We believe that fairness and tolerance can promote the development of the entire organization, give full play to the greatest potential of individuals, and establish a happy life we are proud.
