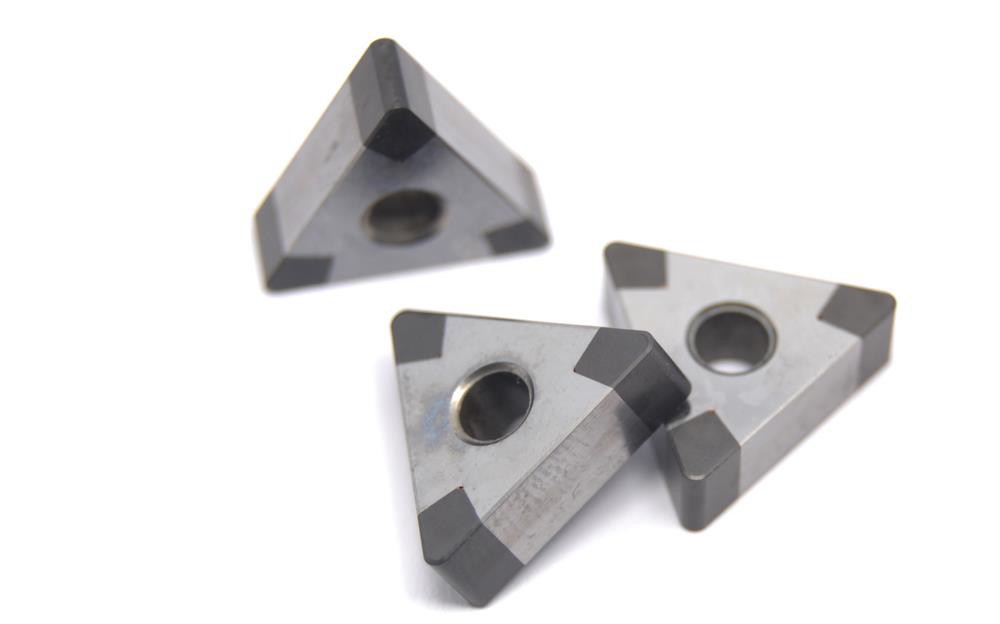

EDGEV 2 Pieces Boron Nitride CBN Insert TNGA160404 TNMG160408 or TNGA331 Blade for cutting Hardened Steel or Cast iron Factory
| Quantity: | |
|---|---|
EDGEV 2 Pieces Boron Nitride CBN Boron Nitride Tool TNGA160404 TNMG160408 or TNGA331 Blade for cutting Hardened Steel or Cast iron Factory
01. Brand Name: EDGEV

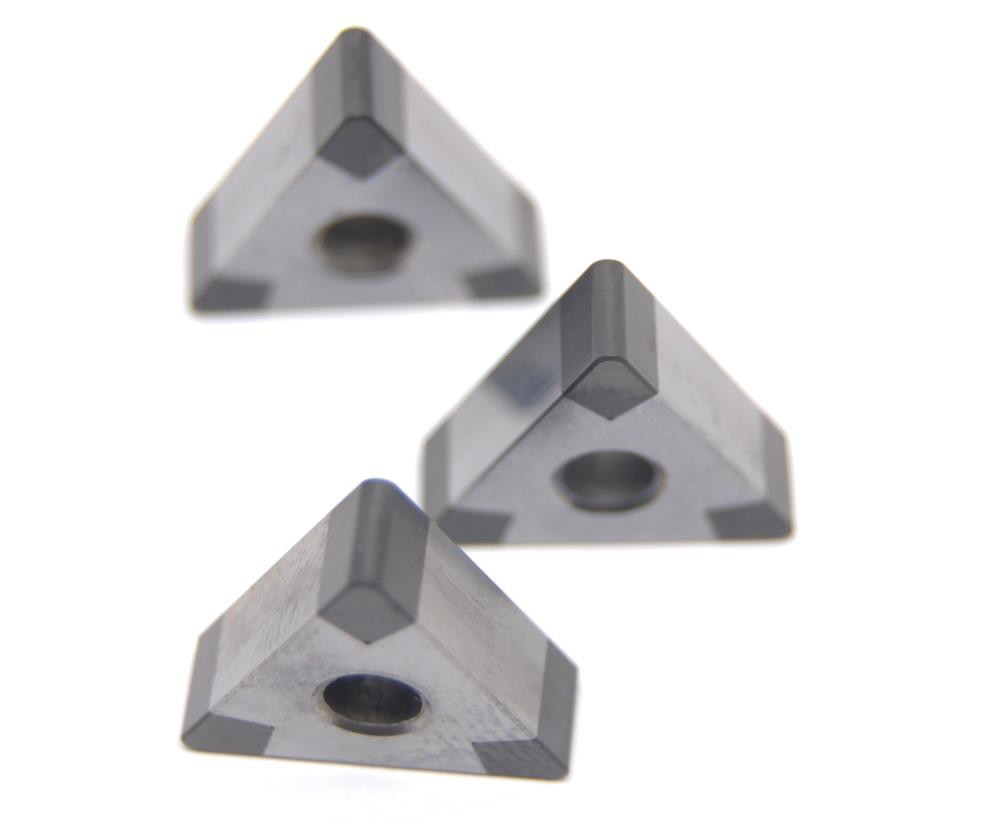

02. Description: 60 Degree Triangular Negative CNC Soldering CBN Boron Nitride Tool
03. ISO Specification:
TNGA160404 S01020 ESBN200 For Hardened Steel
TNGA160408 S02020 ESBN200 For Hardened Steel
TNGA160404 S01020 ESBN500 For Cast Iron
TNGA160408 S02020 ESBN500 For Cast Iron
04. ANSI Specification: TNGA331/TNGA332
05. Material: Cubic Boron Nitride
06. Grade: ESBN200 and ESBN500
07. Is customized: Yes
08. Features: Excellent wear resistance and excellent impact and shock resistance
09. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
10. Work Piece Hardness: HRC45~65

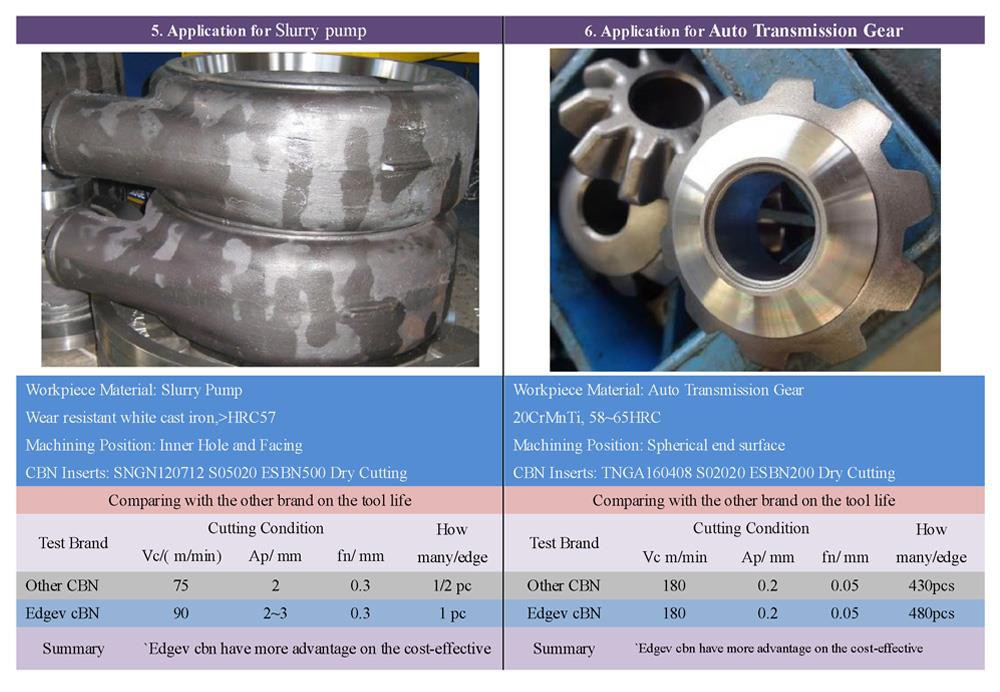

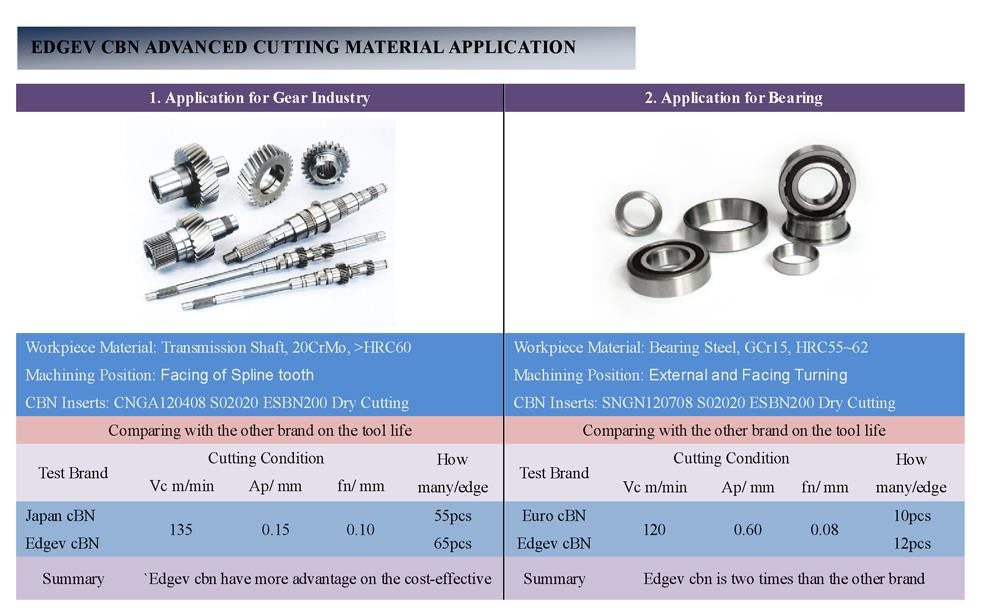

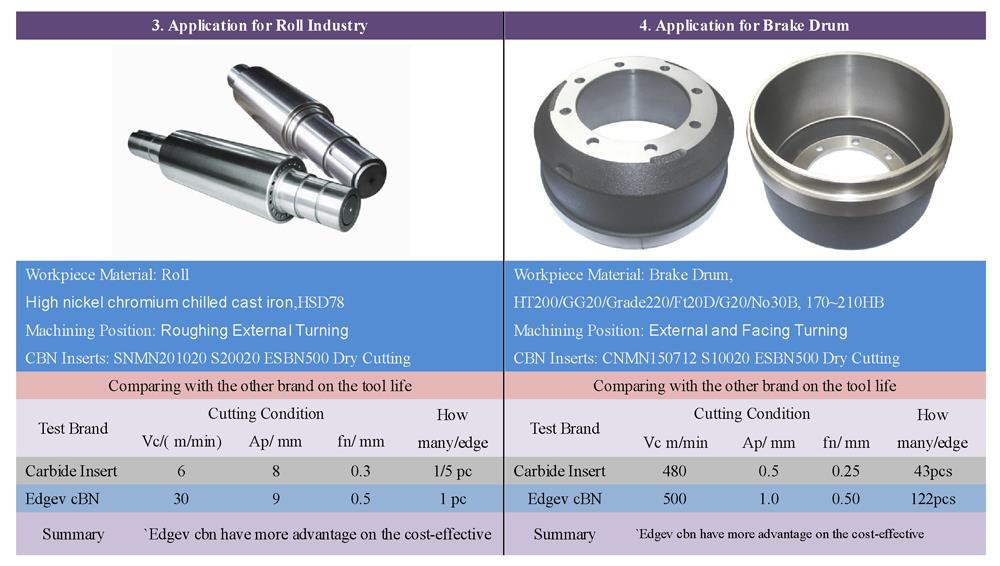

11. Suitable Work Piece: Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry
12. Color: Black
13. Usage: External Turning Tools
14. Application Range: From Finishing to Semi-finishing
15. Suitable Tool Holder: MTLNR/L PTLNR/L WTLNR/L DTLNR/L
16. Place of Origin: China
17. Mini Order: 2PCS/Box
18. Net Weight: 15g/Piece

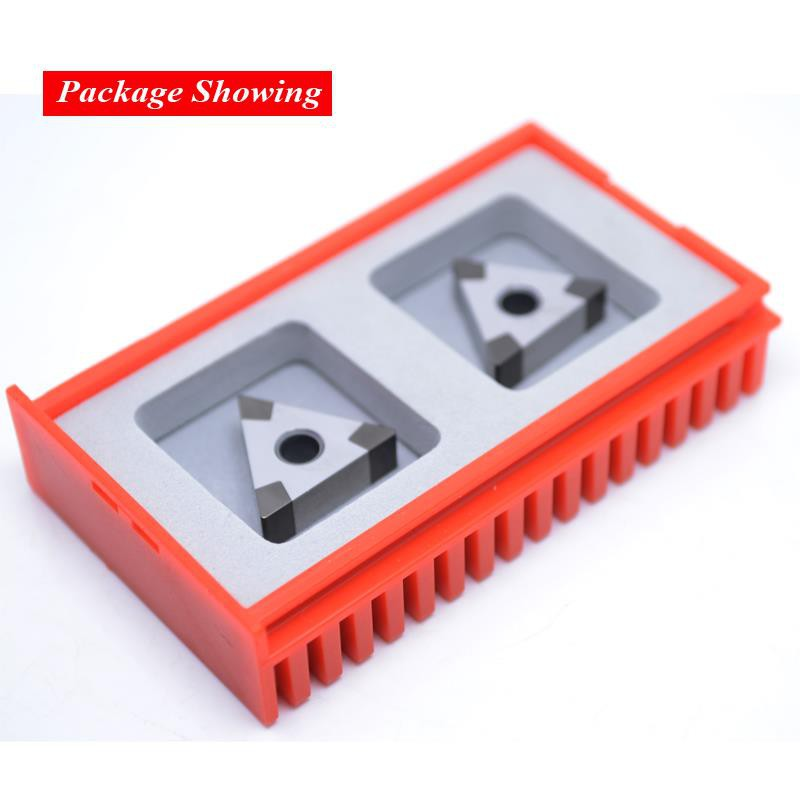

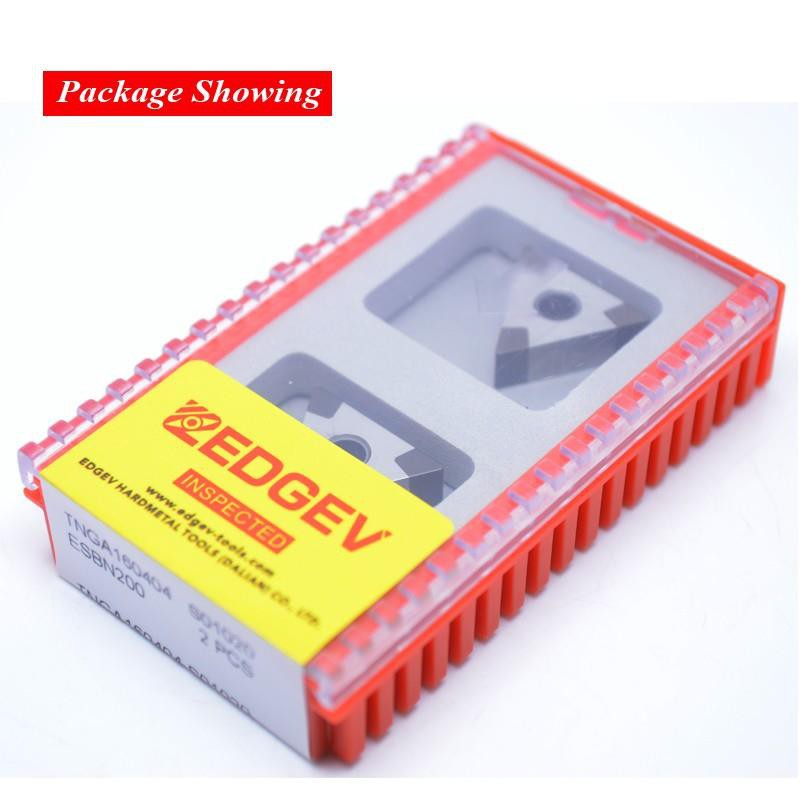

19. Packing: Plastic Box
EDGEV CBN Inserts:

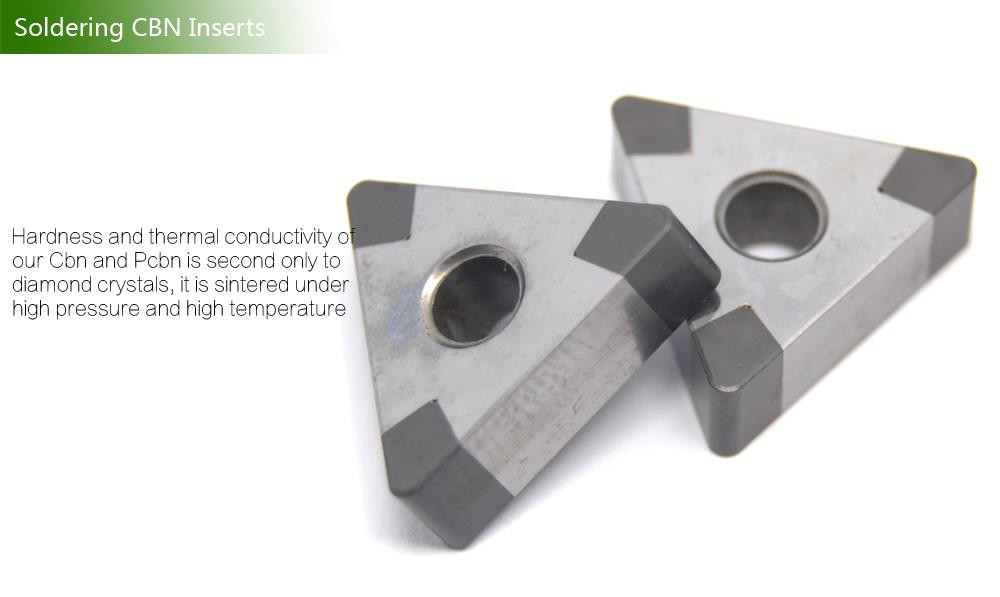

EDGEV Solid CBN is polycrystalline cubic boron nitride; Solid CBN is made from HBN sintered under the process of supper high temperature and supper high press, the hardness approach the PCD cutting tools. these are chemistry and hot stability and high wear resistant than others cutting tool.
Advantages
1. Good wear resistance for high speed cutting of Hardened steel and grey cast iron.
2. Achieves superior economic efficiency in the machining of hardened materials.
Application
1. Roughing and finishing of Cast Iron, Hardened steel(HRC45~ HRC 65),Used be for Mould, Rolls and Auto Industries
2. Longer Tool Life and High Speed Machining
Our CBN Grades:
ESBN200: 60% CBN Content, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings
ESBN350: 80% CBN Content, It’s the outstanding common material of balance wear resistance and shock resistance and economy. Low speed cutting of high hardness High-Ni-Cr, high-chromium steel, high-speed steel, harden steel. high speed cutting of gray cast iron, nodular cast iron, low-speed cutting of the carbide tungsten roll ring.
ESBN500: 90% CBN Content, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron, Nodular cast iron work pieces. Suitable for medium-high-speed cutting of the alloy steel.
