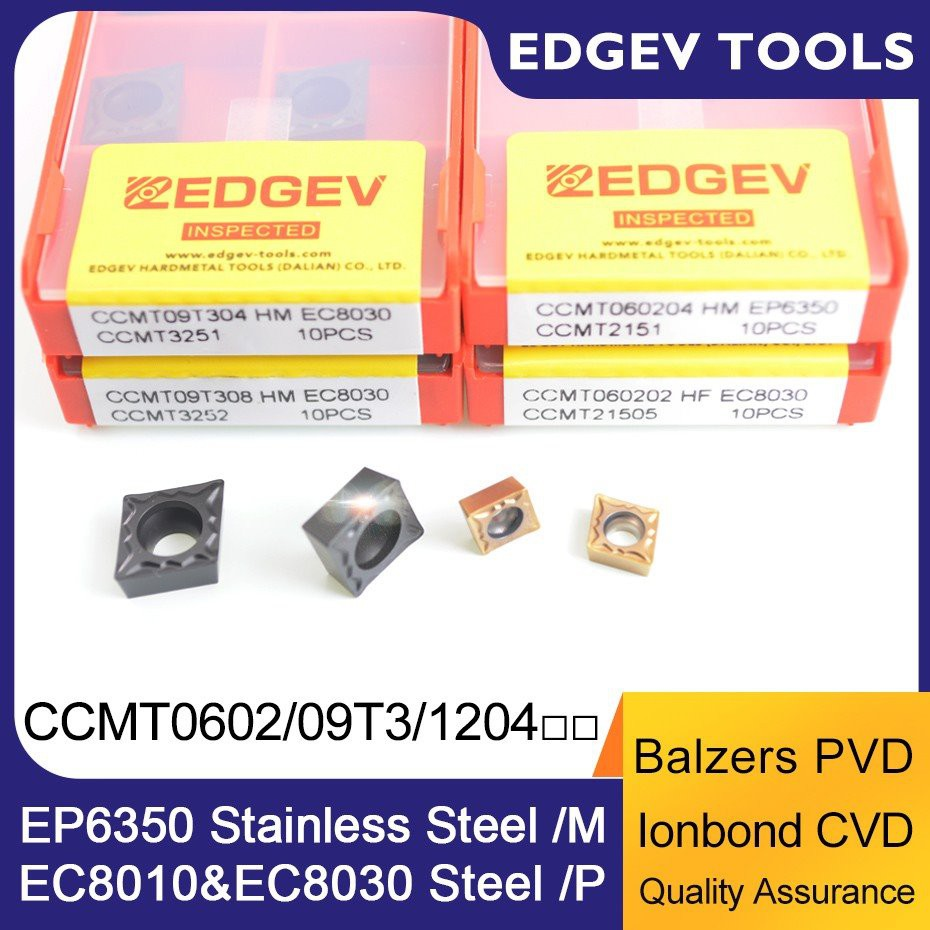

CCMT060202 CCMT060204 CCMT09T304 CCMT09T308 CCMT120404 CCMT120408 Carbide Internal Turning Tools

EDGEV CCMT060202 CCMT060204 CCMT09T304 CCMT09T308 CCMT120404 CCMT120408 Carbide Inserts Internal Turning Tools CNC Lathe Cutter

Products Details of Carbide Internal Turning Tools

01. Brand Name: EDGEV

02.Description: CNC Carbide Inserts

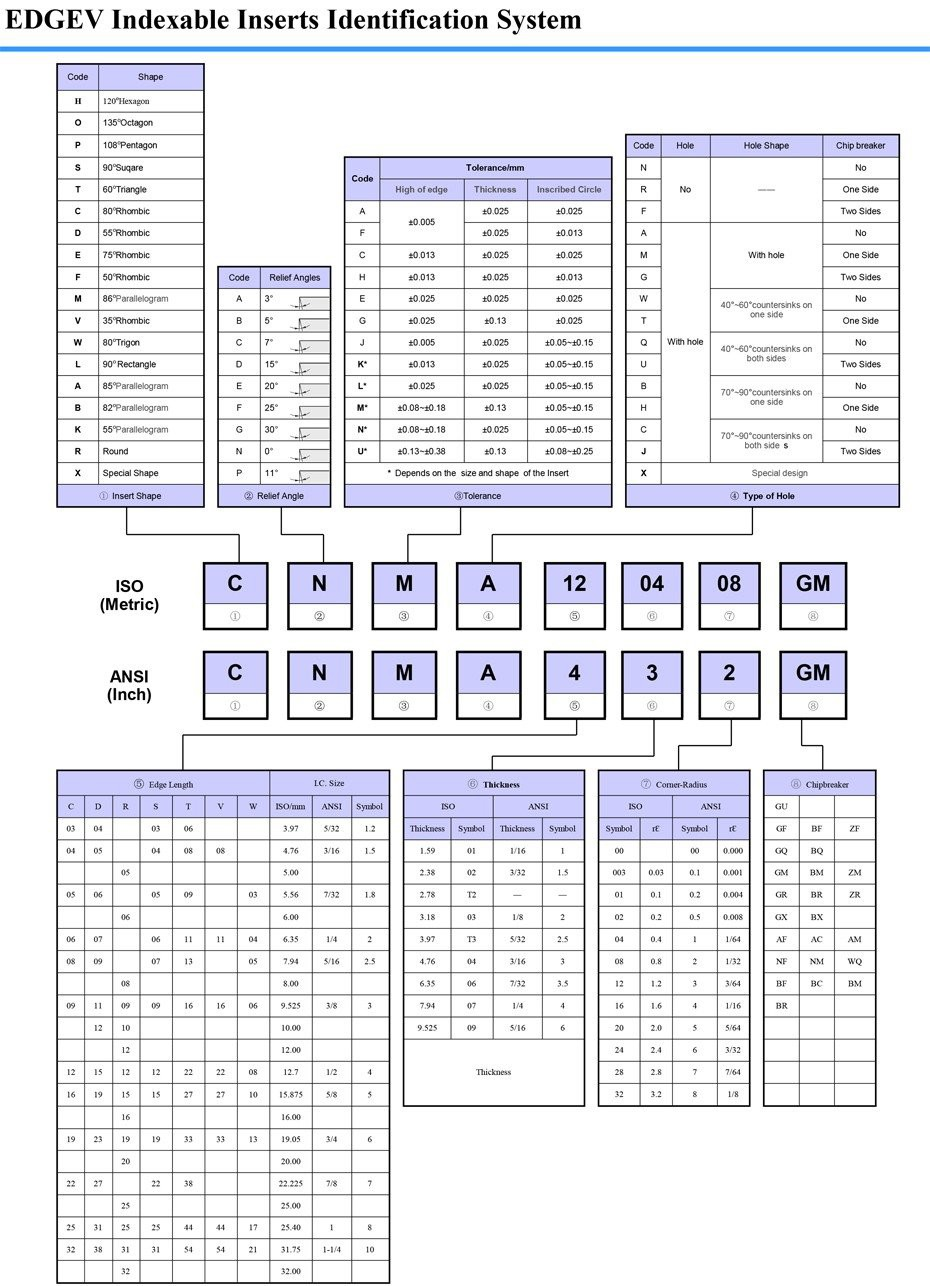

03.ISO Symbol:

CCMT060202/04 HF is used for Finishing

CCMT060204/08 HM is used for Semi-Finishing

CCMT09T302/04 HF is used for Finishing

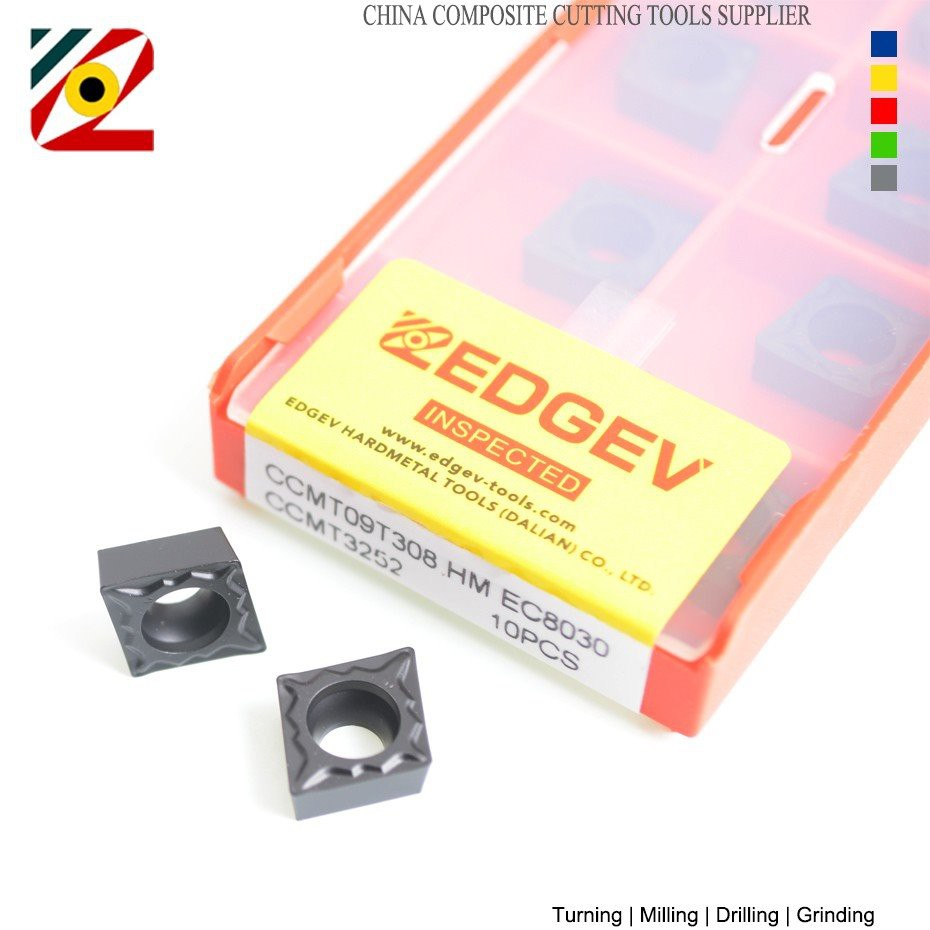

CCMT09T304/08 HM is used for Semi-Finishing

CCMT120404/08/12 HM is used for Semi-Finishing-roughing

04.ANSI Symbol:

CCMT060202/04/08=CCMT21.50.5/21.51/21.52

CCMT09T302/04/08=CCMT32.50.5/32.51/32.52

CCMT120404/08/12=CCMT431/432/433

05.Material: carbide inserts

06.Coating Type:Ionbond CVD/Balzers PVD Coating

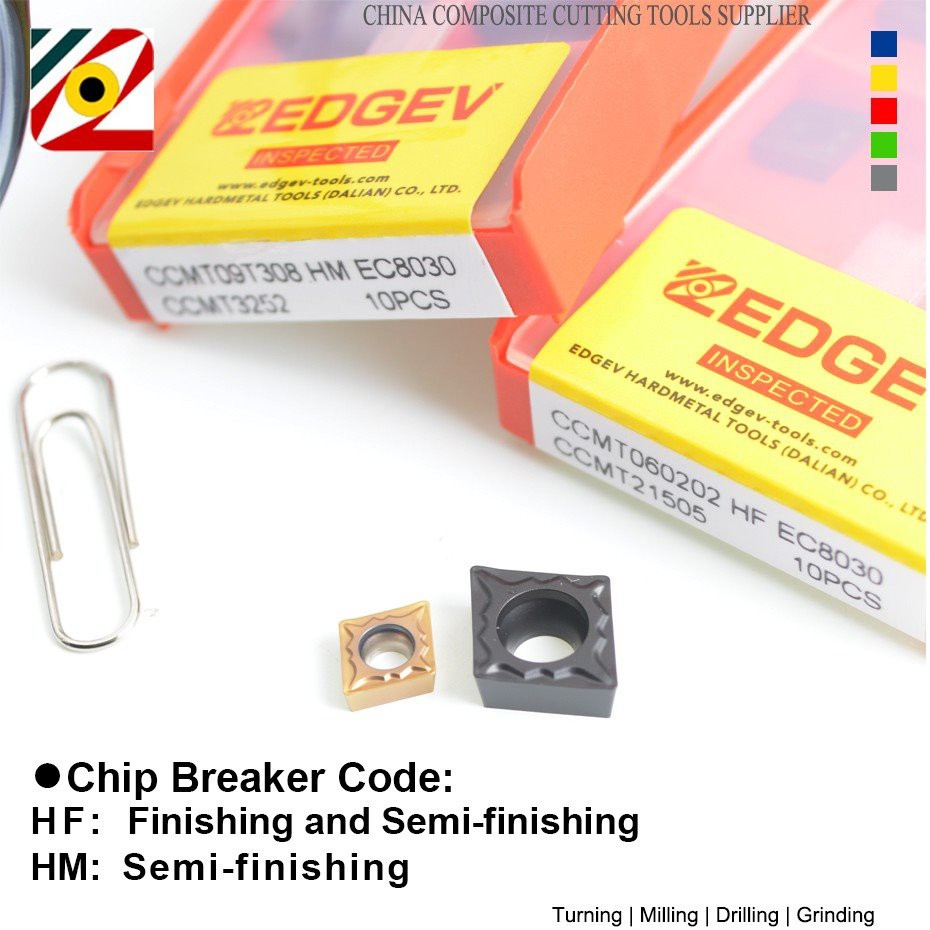

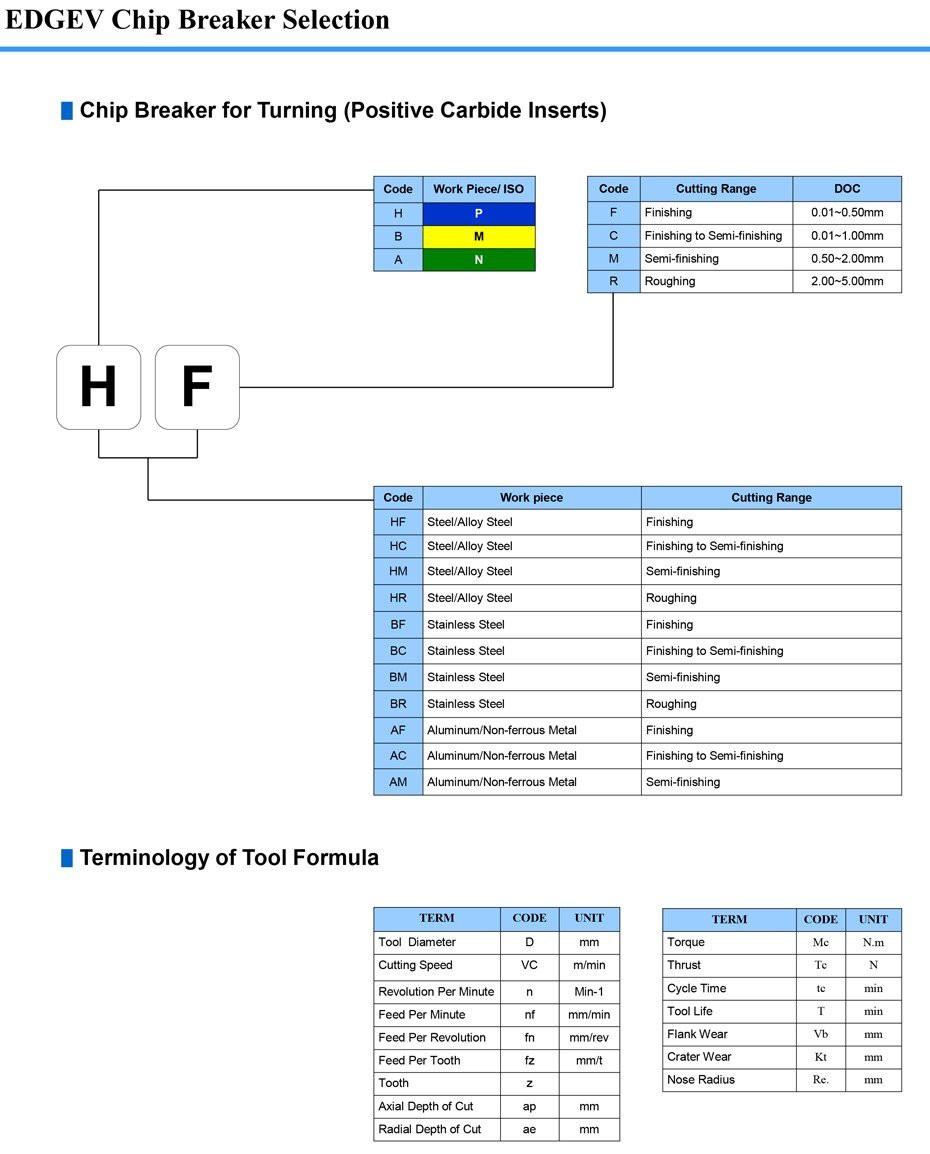

07. Chip Breaker:

-HF for Finishing

-HM for Semi-finishing

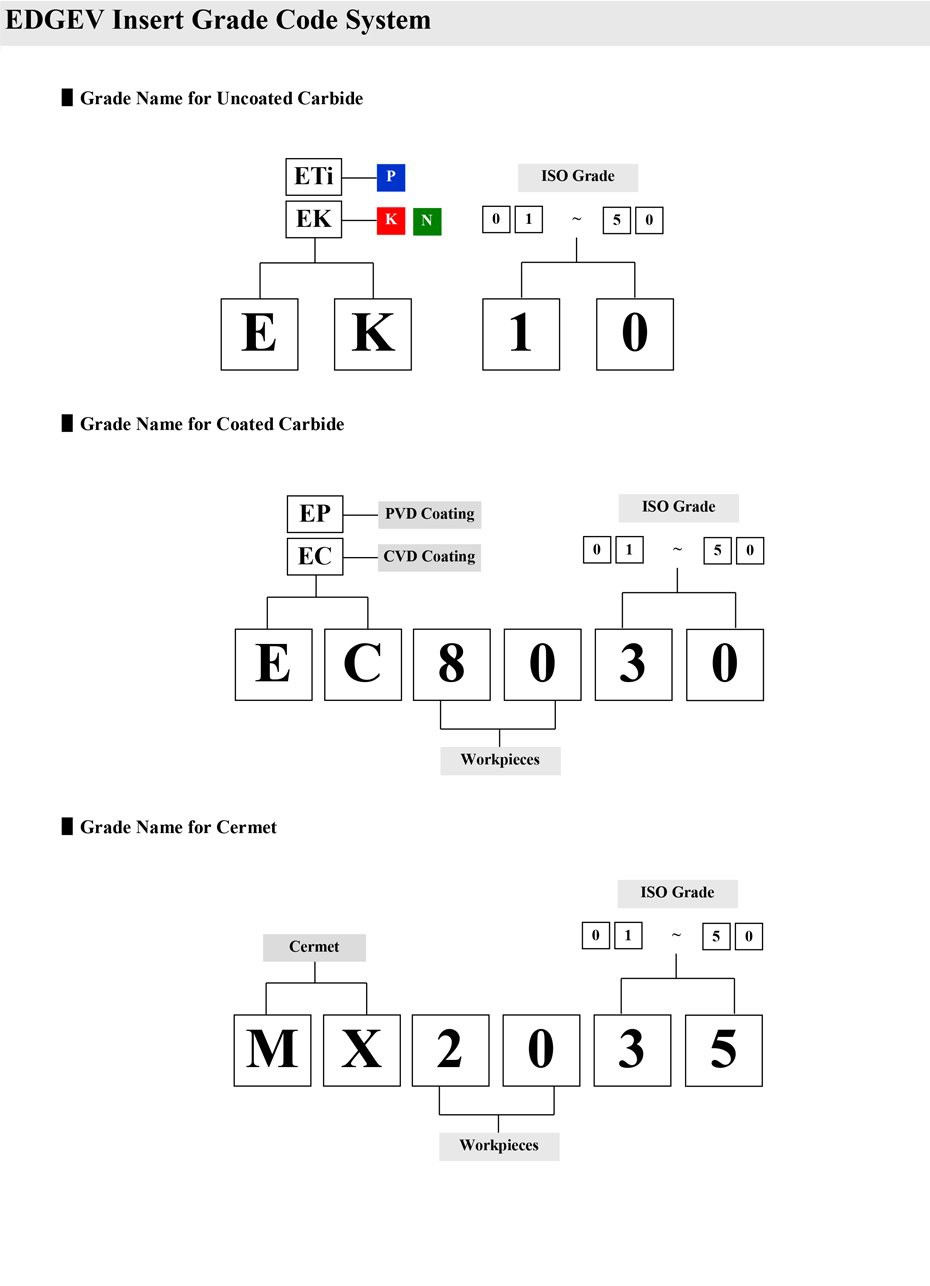

08. Grade:

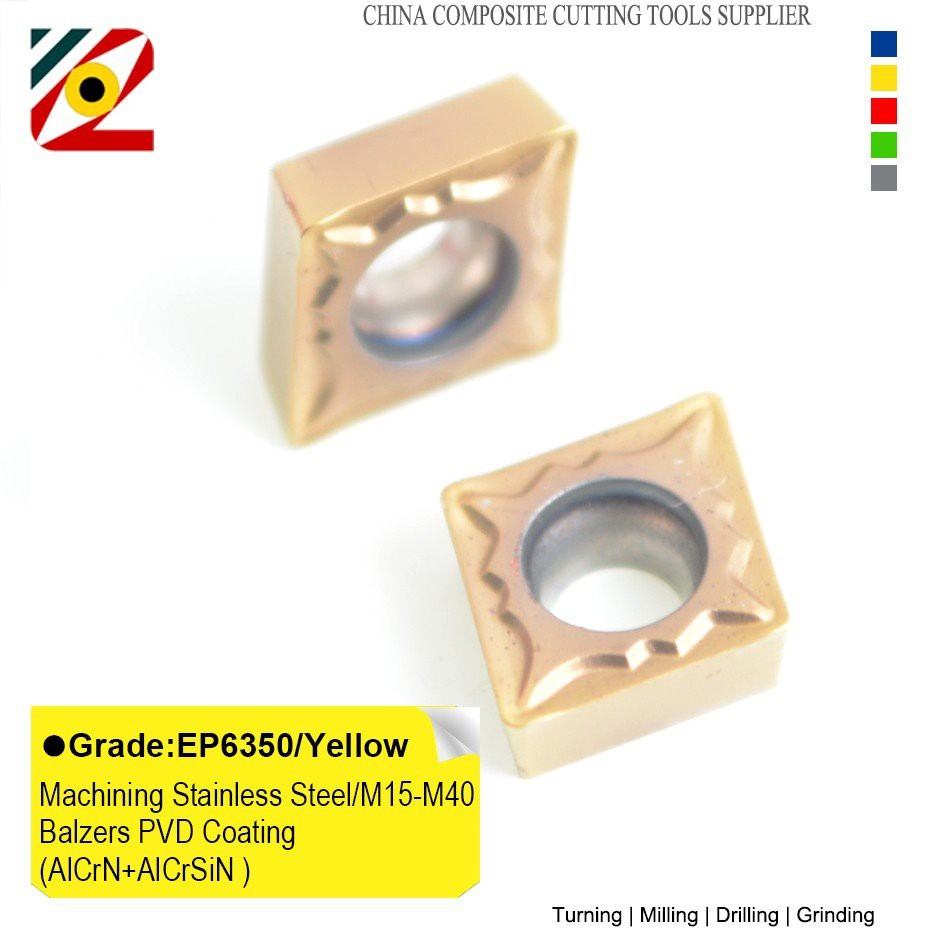

EP6350(Yellow)--For machining Stainless Steel(M15-M40)

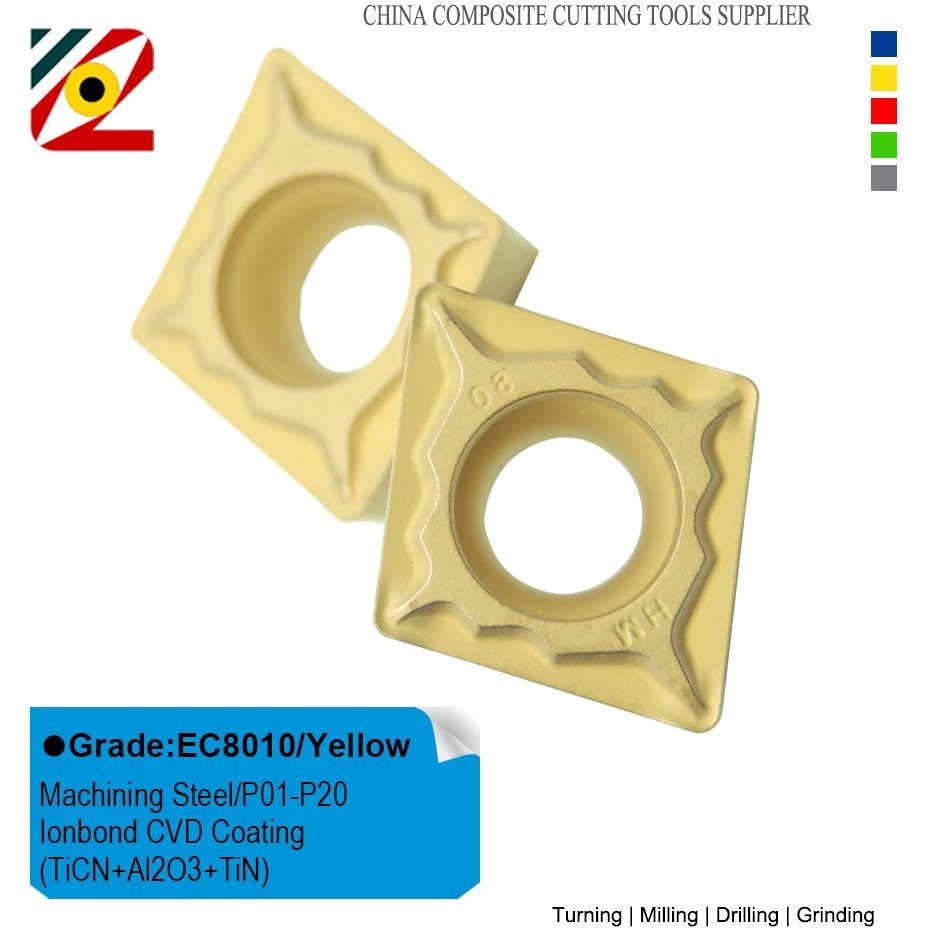

EC8010(Yellow)--For machining Steel(P01-P20)

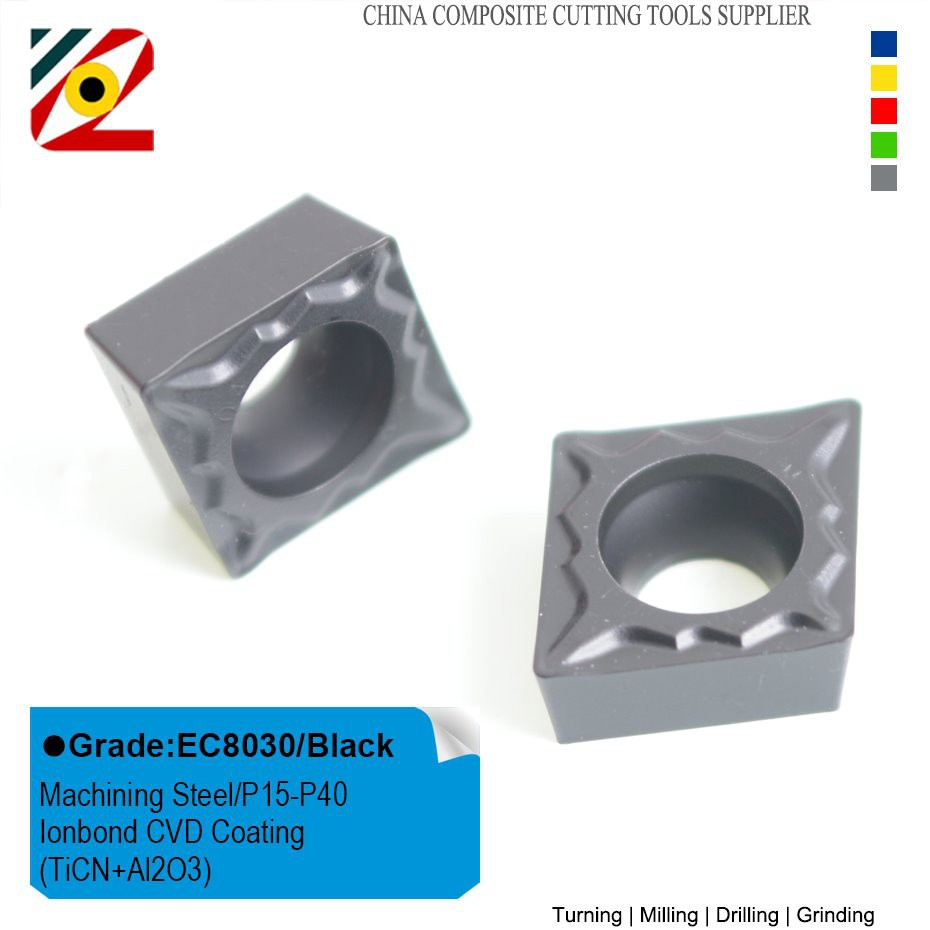

EC8030(Black)--For machining Steel(P15-P40)

09. Features: Improved toughness and excellent wear resistance.

10.Hardness: 95HRA

11. Available Tool Holder: MTLNR/L PTLNR/L DTNR/L

12. Place of Origin: China

13. Unit Type: Lot (10 Pieces/Lot)

14. Net Weight: 30g~90g/Box

15. Gross Weight: 50g~110g/Box (10 Pieces)

16. Packing: 10 Pieces Packed In One Plastic Box /lot

17. Machining Types: Continuous Cutting/Interrupted Cutting

18. Min Order:1box/10pcs

19.Custom Invoice:Yes, you will get an Invoice after you open the parcel.

PVD Coated Carbide Grade Introduction

EDGEV PVD (Physical Vapor Deposition) coatings are manu-factured through using an arc evaporation processing, high evapo-ration on the surface of cemented carbide, and to be combined with the reaction gas in the controllable state, and deposited into a variety of different wear resistance film,

all of coatings are used the composite single layer and multilayer nanostructures. Compared with the CVD film, the film is more uniform, to ensure a long life of cutting tools, stable machining is realized.
