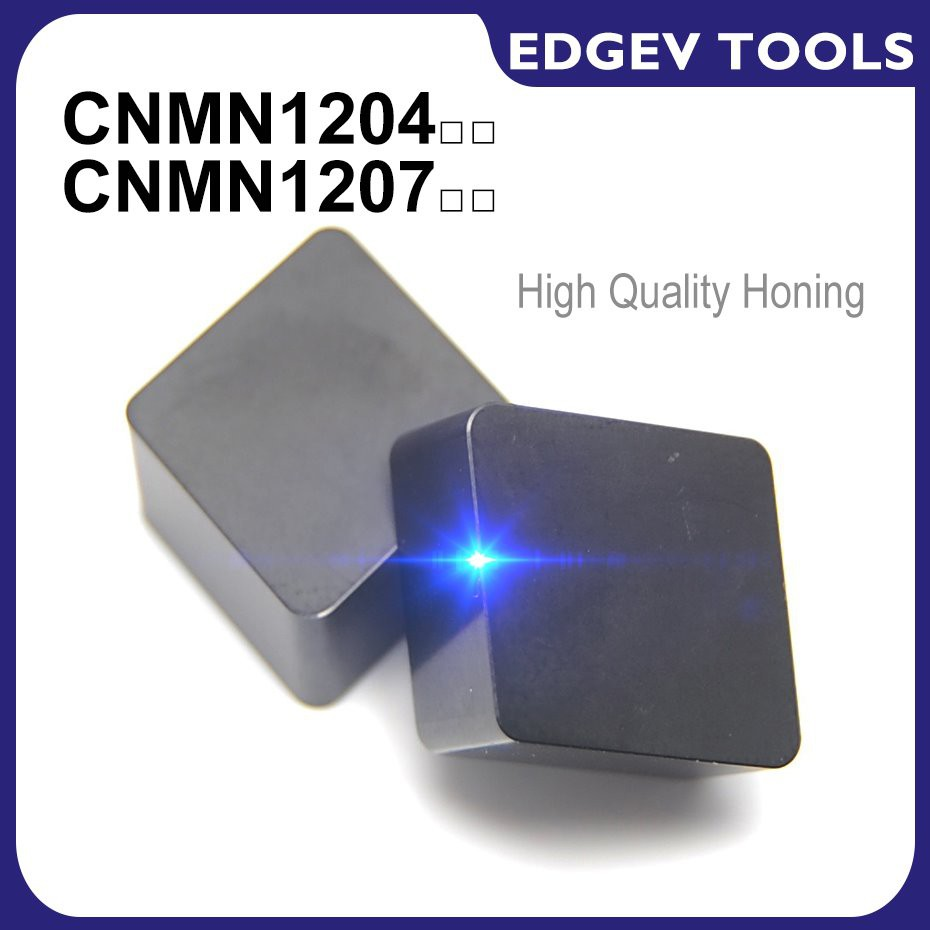

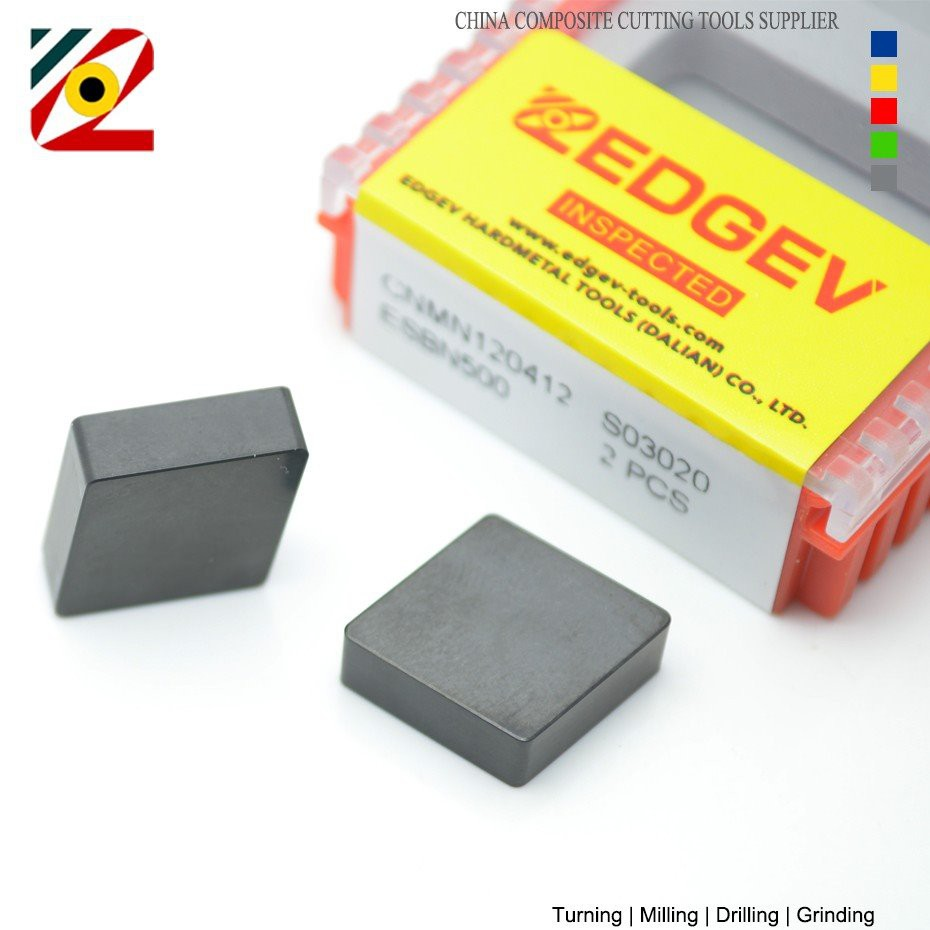

EDGEV Solid CBN Insert CNMN120404 CNMN120704 CNMN120708 CNMN120712 Lathe Pcbn Cutter Turning Tool Hardended Steel Cast Iron Roll
| Quantity: | |
|---|---|
Products Parameters:
01. Brand Name: EDGEV
02. Description: 90 Degree Suqare Negative CNC Solid CBN Insert

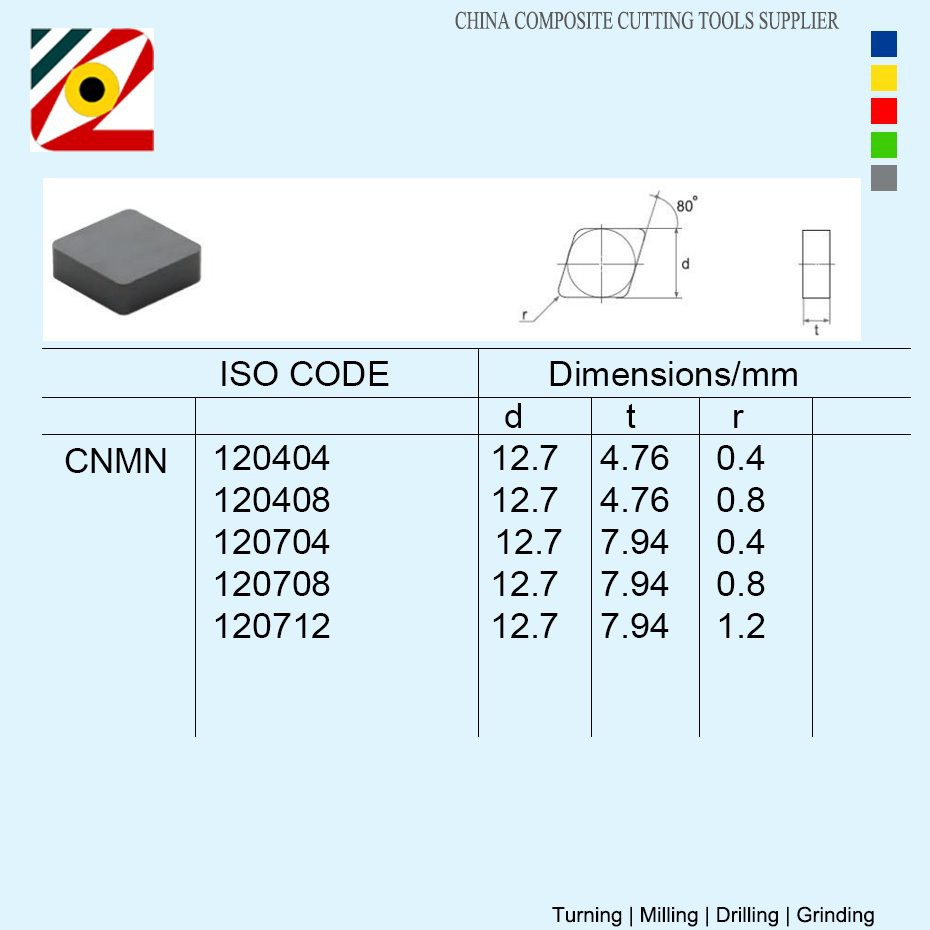

03. ISO Specification:
CNMN120404/08 (Internal Diameter12.70mm*Thickness4.76*Nose Radius 0.4/0.8)
CNMN120708/12 (Internal Diameter12.70mm*Thickness7.94*Nose Radius 0.8/1.2)

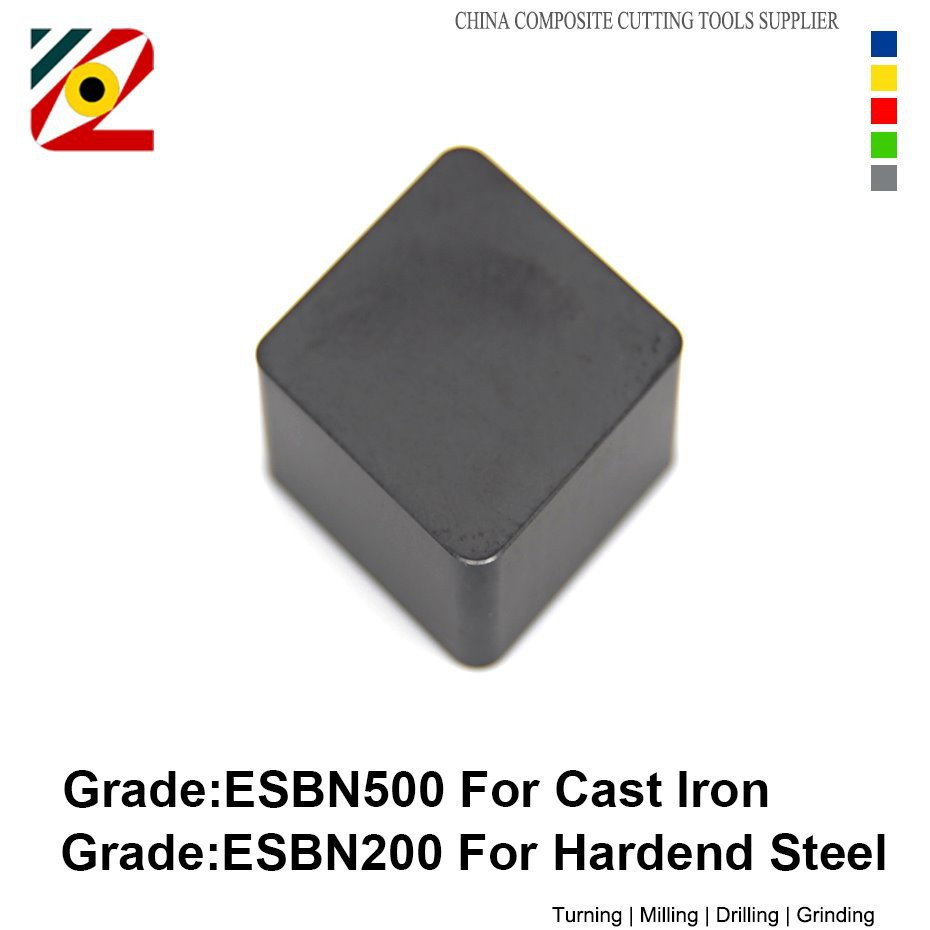

04. Grade:
ESBN200For (H) Hardened Steel
ESBN500For (K) Cast Iron
05. Features: Excellent wear resistance and excellent impact and shock resistance
06. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
07. Work Piece Hardness: HRC45~65
EDGEV Solid CBN is polycrystalline cubic boron nitride; Solid CBN is made from HBN sintered under the process of supper high temperature and supper high press, the hardness approach the PCD cutting tools. these are chemistry and hot stability and high wear resistant than others cutting tool.
Advantages
1. Good wear resistance for high speed cutting of Hardened steel and grey cast iron.
2. Achieves superior economic efficiency in the machining of hardened materials.
Application
1. Roughing and finishing of Cast Iron, Hardened steel(HRC45~ HRC 65),Used be for Mould, Rolls and Auto Industries
2. Longer Tool Life and High Speed Machining

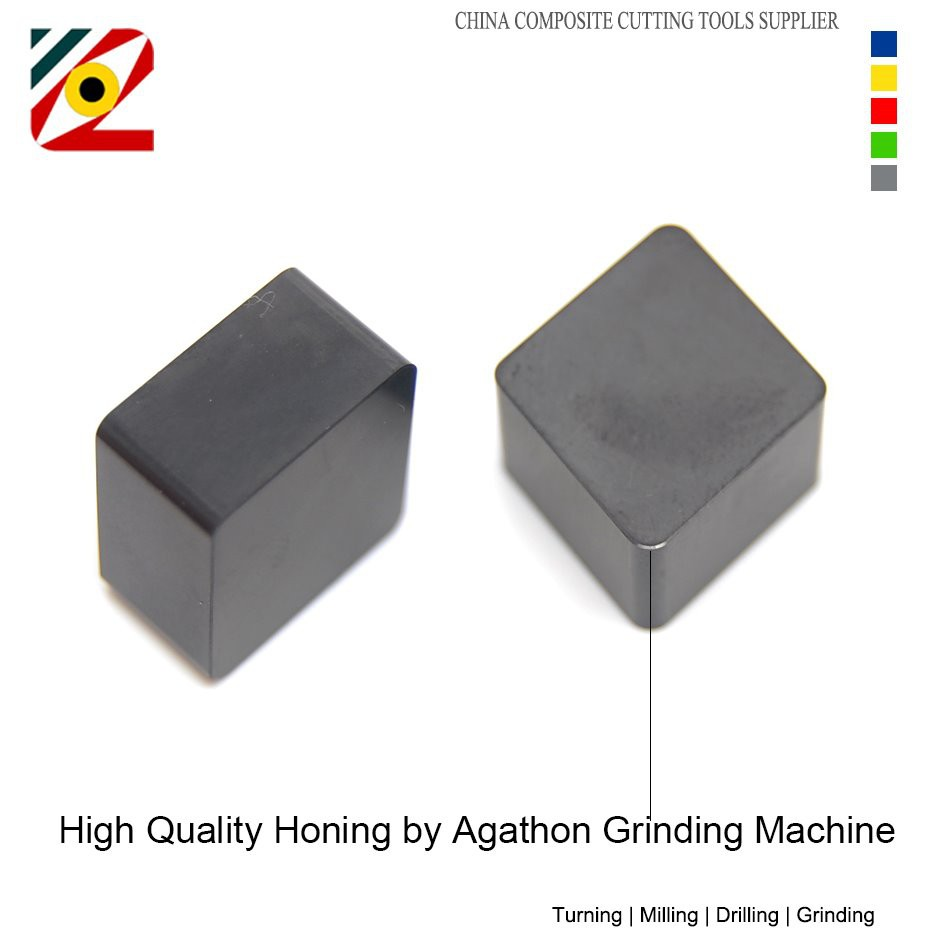

How to Identify Edge Preparation?
Symbol: F, That means is Sharper Edge, applied for Finishing
Symbol: T, That means is Chamfered Edge, applied for finishing to semi-finishing, for example:T00520(0.05mm*20 degree)
Symbol: S, That means is Chamfered and honed Edge, applied for roughing to semi-finishing, for example:S01020(0.1mm*20 degree)
