10 PCS Carbide Insert WNMG080404 WNMG080408 WNMG080412 WNMG 080404 080408 Lathe External Turning Tool CNC Tools Steel
| Quantity: | |
|---|---|
Products Details:

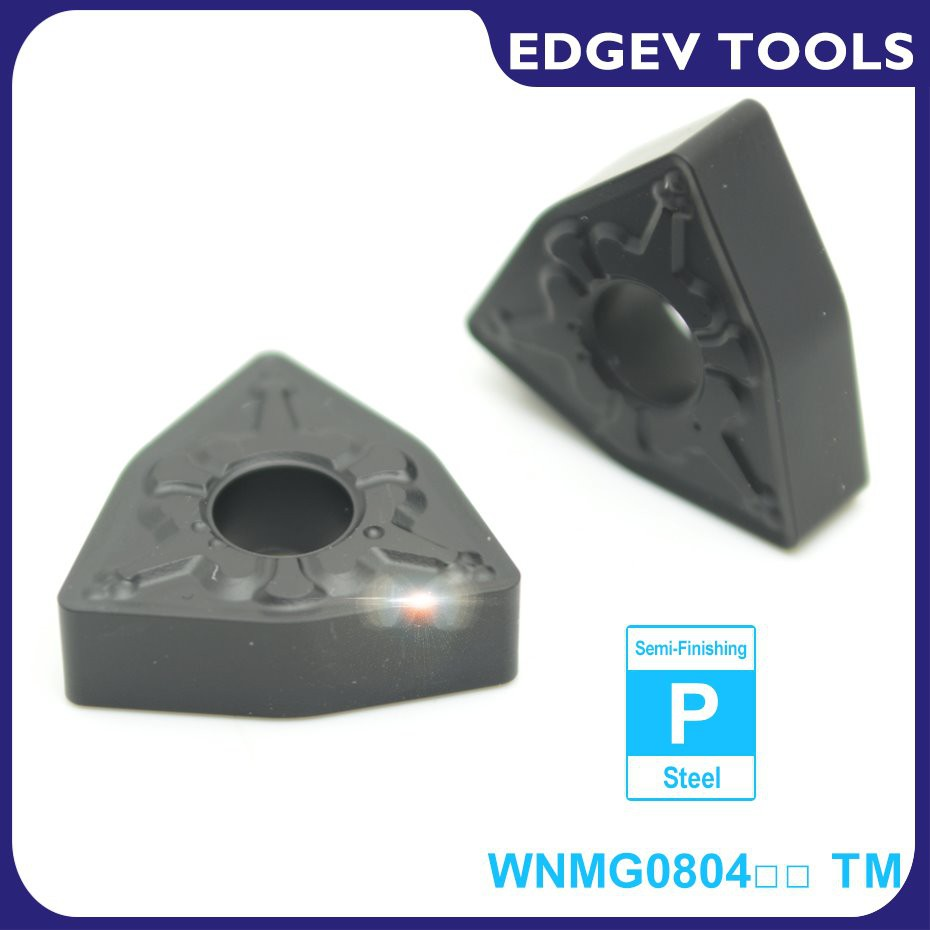

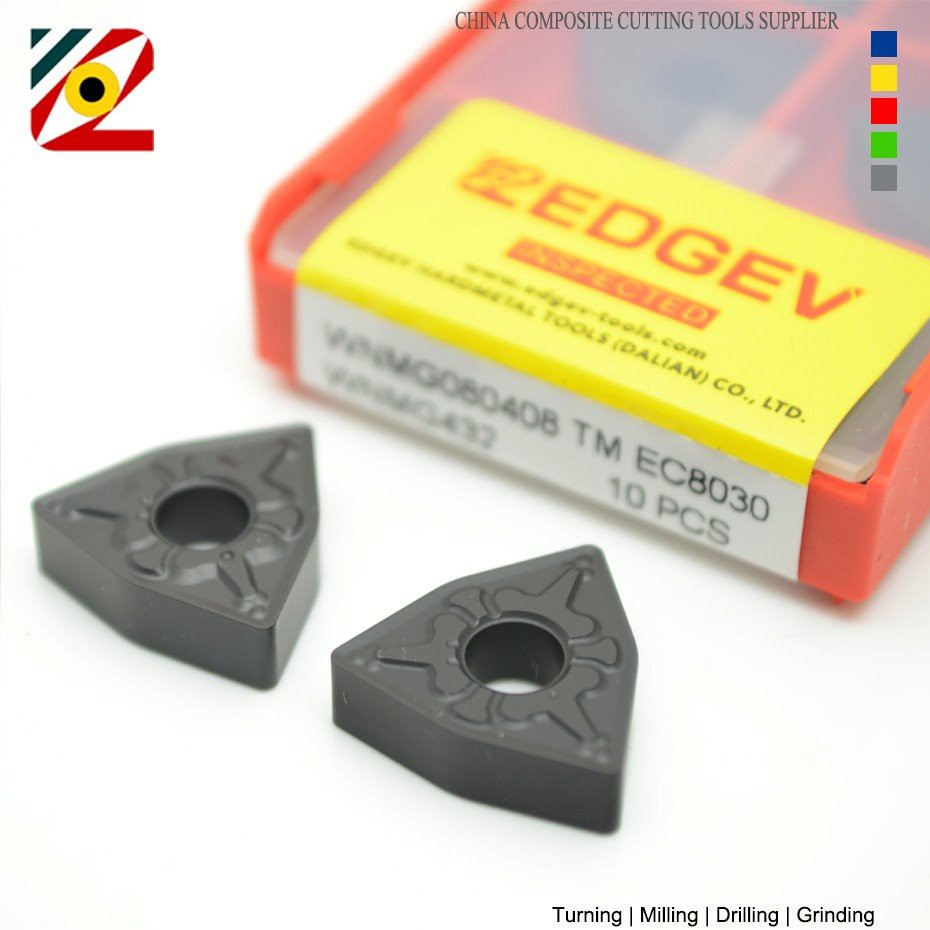

01.ISO Symbol:WNMG080404 WNMG080408 WNMG080412
Iner Circle:12.7mm,Thickness:4.76mm,Radius:R0.4/R0.8/R1.2
02.ANSI Symbol:WNMG431 and WNMG432 WNMG433
03. Coating Type:Switzerland Ionbond CVD Coating
04. Chip Breaker: TM
05. Grade:EC8030（Black/P20~P35)
06. Features: Improved toughness and excellent wear resistance.
07. Application Range: For Semi-finishing/Roughing
08. Work Piece: ForSteel,Alloy Steel
09. Available Tool Holder: MWLNR/L PWLNR/L WWLNR/L DWLNR/L
10. Net Weight: 110g/Box
11. Gross Weight: 130g/ Lot (10 Pieces)

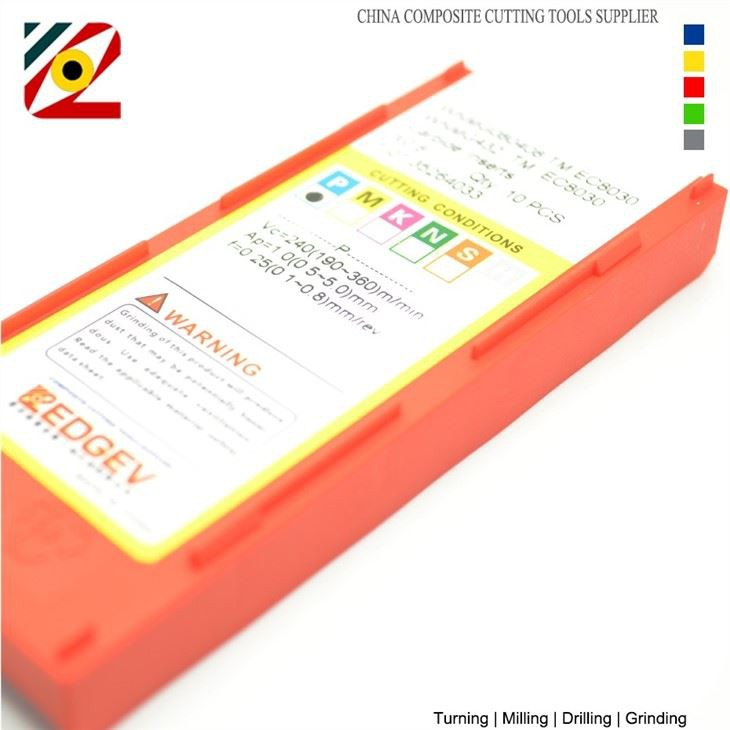

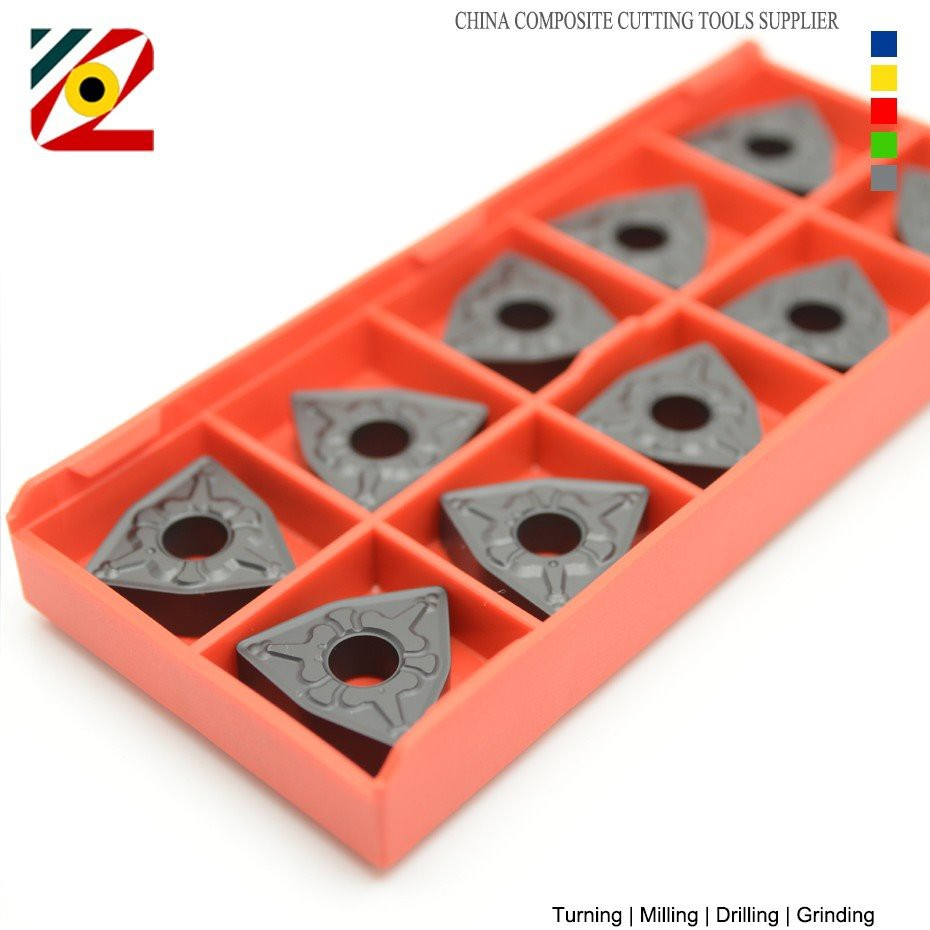

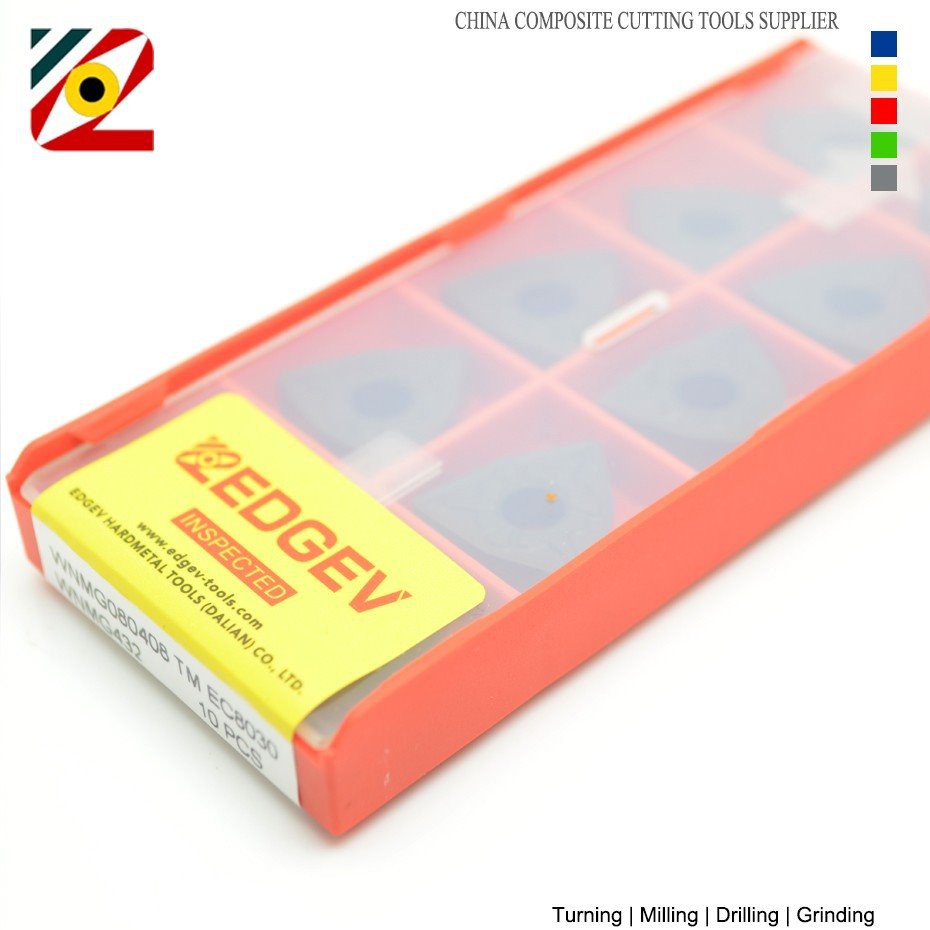

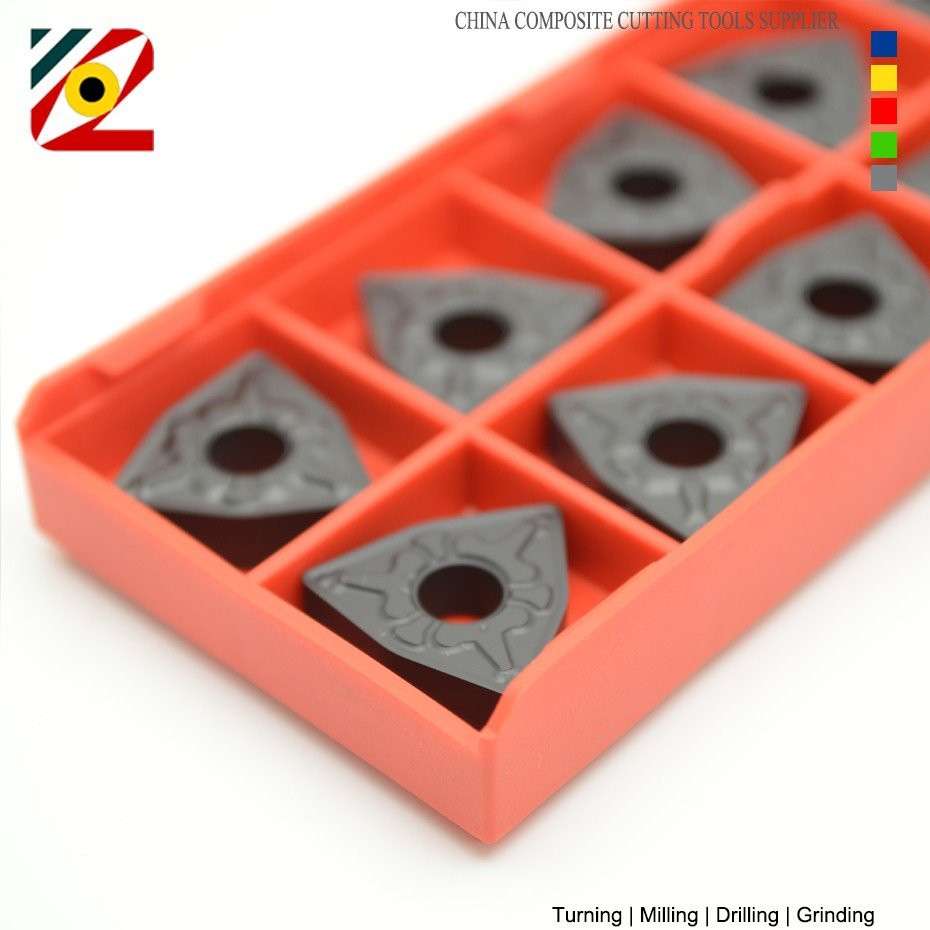

12. Packing: 10 Pieces Packed In One Plastic Box /lot
13.Custom Invoice:Yes
PVD Coated Carbide Grade Introduction
EDGEV PVD (Physical Vapor Deposition) coatings are manu-factured through using an arc evaporation processing, high evapo-ration on the surface of cemented carbide, and to be combined with the reaction gas in the controllable state, and deposited into a variety of different wear resistance film,
all of coatings are used the composite single layer and multilayer nanostructures. Compared with the CVD film, the film is more uniform, to ensure a long life of cutting tools, stable machining is realized.
CVD Coated Carbide Grade Introduction
EDGEV CVD (chemical vapor deposition method) is mixed a vari-ety of gas into a high temperature reaction tank, so that the surface of the based material to be manufactured the super hard particulate matter. From the gaseous state, without passing through liquid, to direct transi-tion VS growth mode as a solid state, to form a film of several microns to several ten microns. Compared with the single-layer PVD coating, its hardness, wear resistance and red hardness even more remarkable be-cause the using of the multi-layer structure.
Products Details:
01.ISO Symbol:WNMG080404 WNMG080408 WNMG080412
Iner Circle:12.7mm,Thickness:4.76mm,Radius:R0.4/R0.8/R1.2
02.ANSI Symbol:WNMG431 and WNMG432 WNMG433
03. Coating Type:Switzerland Ionbond CVD Coating
04. Chip Breaker: TM
05. Grade:EC8030（Black/P20~P35)
06. Features: Improved toughness and excellent wear resistance.
07. Application Range: For Semi-finishing/Roughing
08. Work Piece: ForSteel,Alloy Steel
09. Available Tool Holder: MWLNR/L PWLNR/L WWLNR/L DWLNR/L
10. Net Weight: 110g/Box
11. Gross Weight: 130g/ Lot (10 Pieces)
12. Packing: 10 Pieces Packed In One Plastic Box /lot
13.Custom Invoice:Yes
PVD Coated Carbide Grade Introduction
EDGEV PVD (Physical Vapor Deposition) coatings are manu-factured through using an arc evaporation processing, high evapo-ration on the surface of cemented carbide, and to be combined with the reaction gas in the controllable state, and deposited into a variety of different wear resistance film,
all of coatings are used the composite single layer and multilayer nanostructures. Compared with the CVD film, the film is more uniform, to ensure a long life of cutting tools, stable machining is realized.
CVD Coated Carbide Grade Introduction
EDGEV CVD (chemical vapor deposition method) is mixed a vari-ety of gas into a high temperature reaction tank, so that the surface of the based material to be manufactured the super hard particulate matter. From the gaseous state, without passing through liquid, to direct transi-tion VS growth mode as a solid state, to form a film of several microns to several ten microns. Compared with the single-layer PVD coating, its hardness, wear resistance and red hardness even more remarkable be-cause the using of the multi-layer structure.
