WBGT0601 CNC Lathe Turning Tool

CNC Lathe Turning Tool

Products Details

01.Brand Name: EDGEV

02.Description:Indexable Cermet Insert

03.ISO Specification:

WBGT060102R-S (Right Hand)(To Replace KYOCERA TN60)

WBGT060104R-S (Right Hand)(To Replace KYOCERA TN60)

WBGT060102L-S (Left Hand)(To Replace KYOCERA TN60)

WBGT060104L-S (Left Hand)(To Replace KYOCERA TN60)

04.ANSI Specification:WBGT31.50.5

05.Tools Material: Cermet Insert

06.Chip Breaker:S

07.Grade:MX2020(Replace KYOCARA TN60)

08.Application Range:Finishing

09.Suitable Workpiece:Using for machining bearing steel, carbon steel, alloyed steel, tool steel with hardness up to HRC45,stainless steel.

10.Mini Order: 10 Pieces/Box

11.Net Weight: 30g/Box

12.Package Weight: 50g

***Please Attention: Unit price is 10 pieces of price, Please kindly notice;***

*Cermet Grade Introduction

EDGEV Ti(C,N) cermet is a new and potential material which not only has toughness, high thermal conductivity and good heat stability of materials, but also has high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make if promising in special cutting tools, wear parts and corrosion-resistance parts.

*Advantages Introduction

●High quality surface on the workpiece for finishing and semi-finishing.

●High oxidation resistance, high red hardness and high cutting speed in dry cutting.

●High chemical stability, No built-up edge.

●Low density, low cost, lightweight operation.

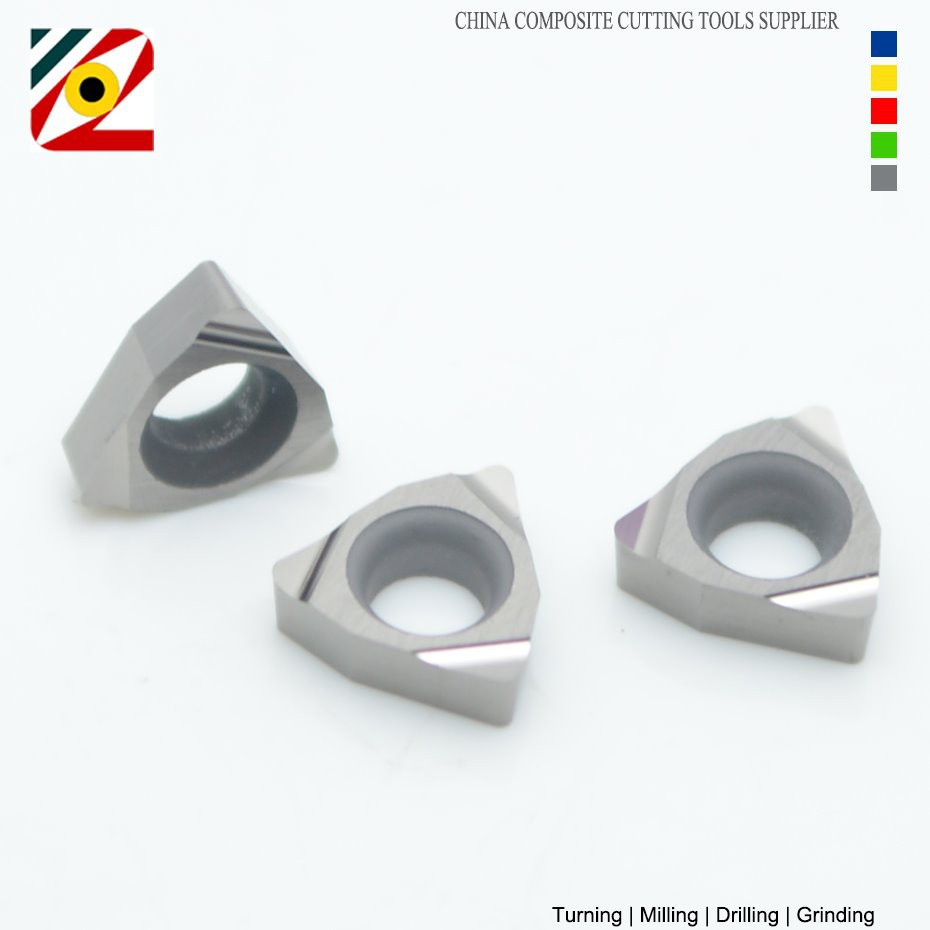

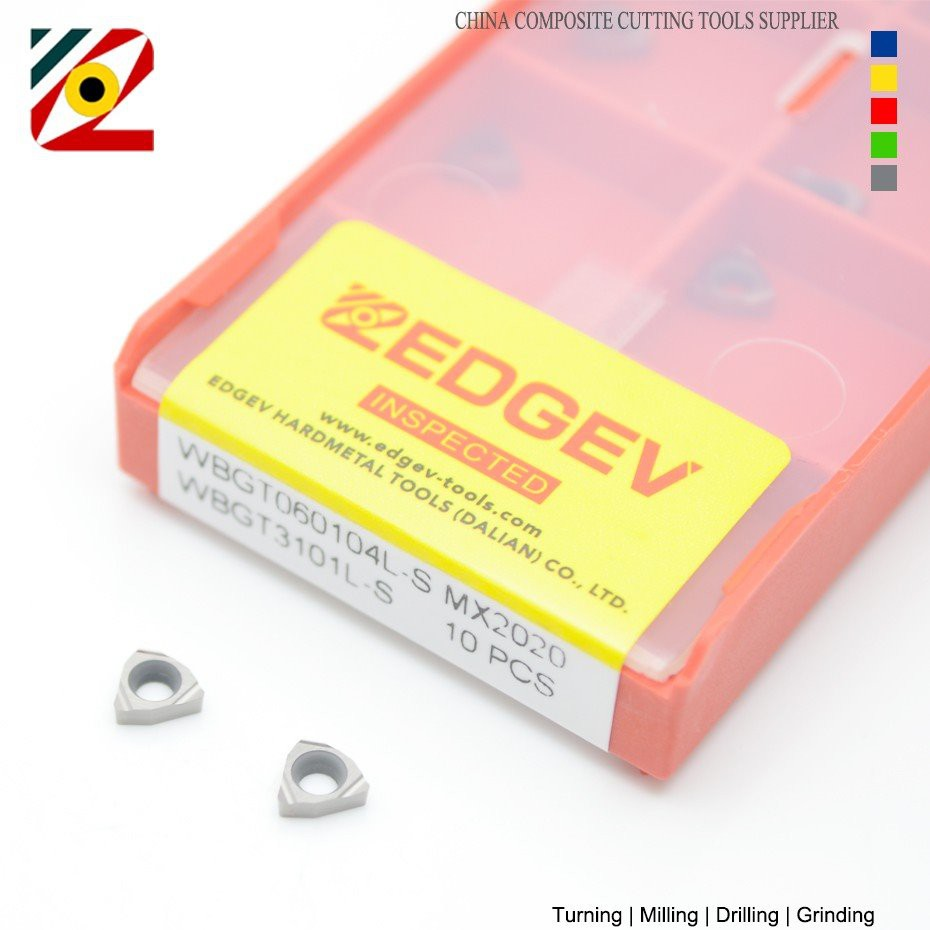

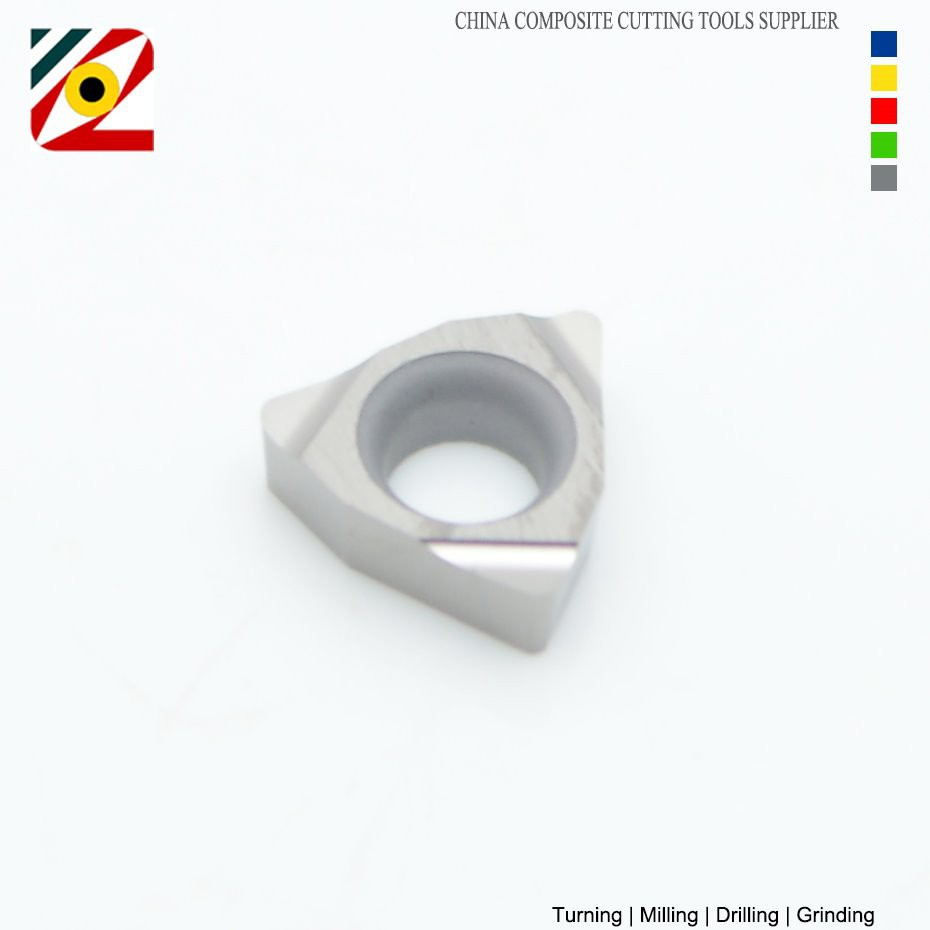

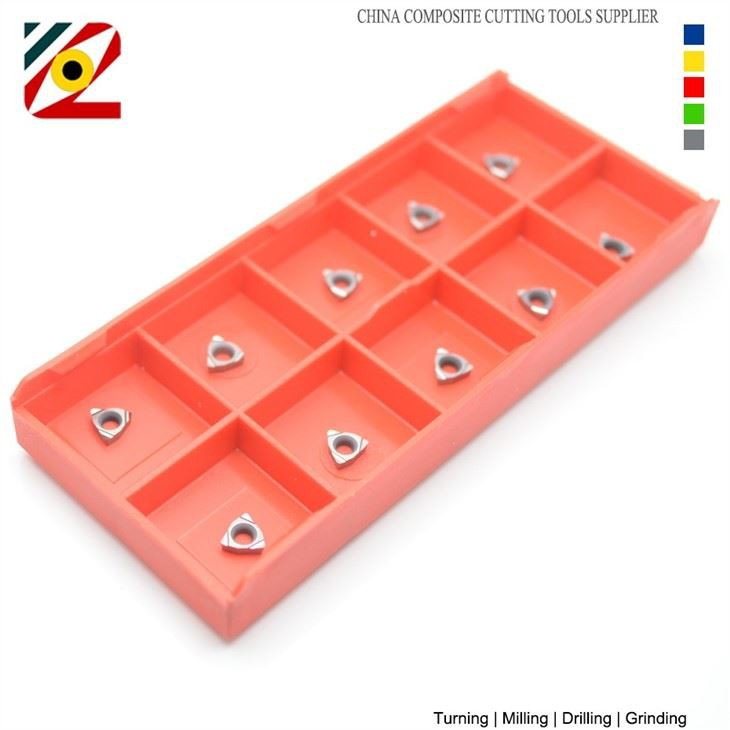

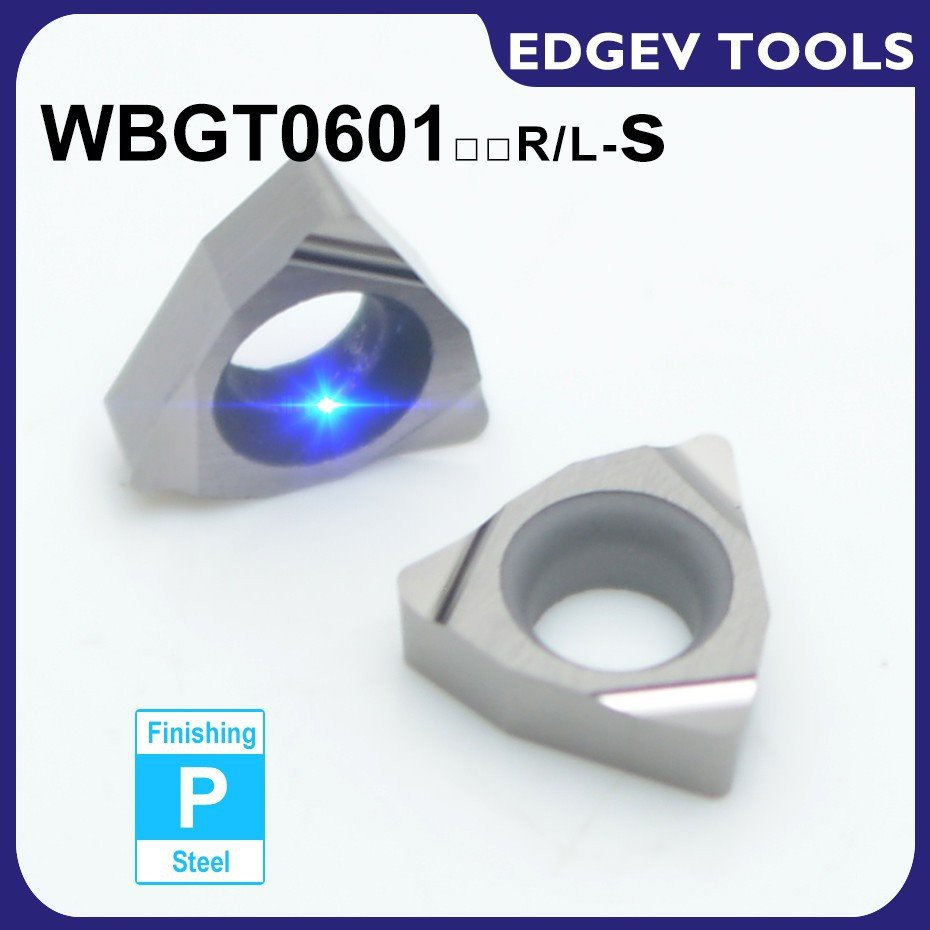

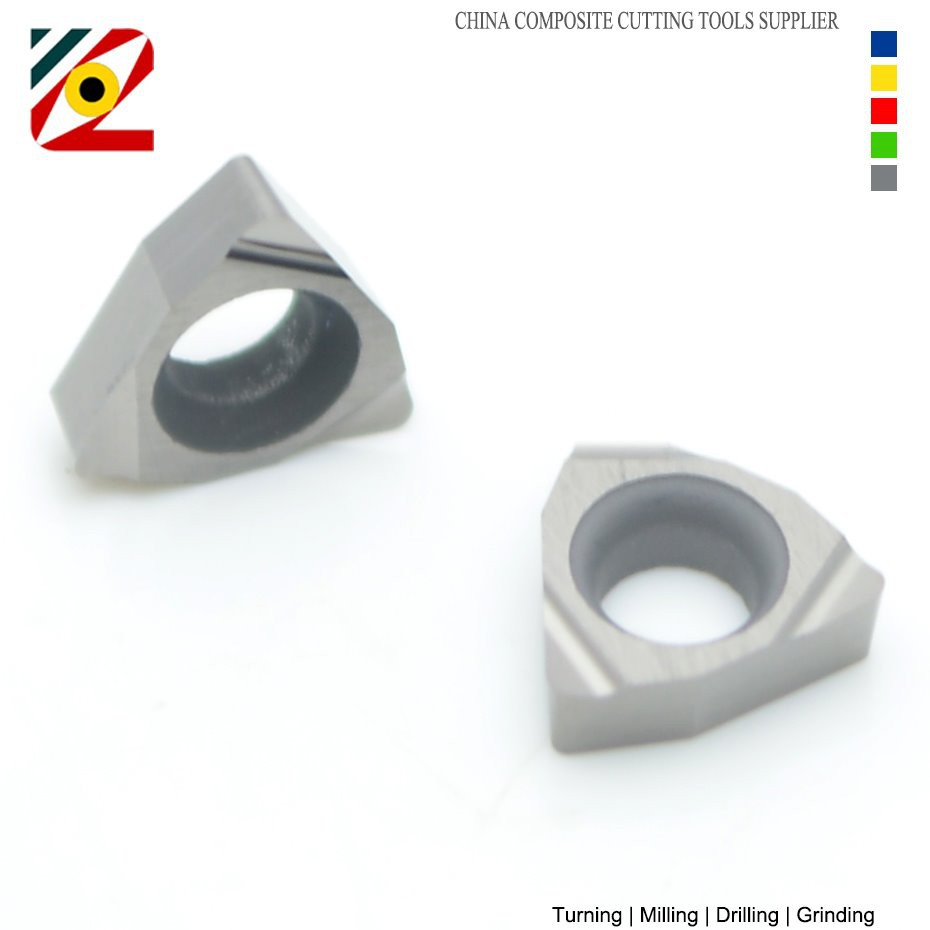

Products Showing of CNC Lathe Turning Tool
