RNGN0603 RNGN0903 RNGN0904 RNGN1203 RNGN1204 RNGN1207 CBN Turning Tool

Round Solid CBN Turning Tool RNGN RNGN0603 RNGN0903 RNGN0904 RNGN1203 RNGN1204 RNGN1207 RNMN Supper Hard Tools Rolls Brake disk

Products Parameters:

01. Brand Name: EDGEV

02. Description: Round Negative CBN Turning Tool

03. ISO Specification:
RNGN060300(Diameter:6.35mm*Thickness:3.18mm)
RNGN060400(Diameter:6.35mm*Thickness:4.76mm)
RNGN090300(Diameter:9.52mm*Thickness:3.18mm)
RNGN090400(Diameter:9.52mm*Thickness:4.76mm)
RNGN120300(Diameter:12.7mm*Thickness:3.18mm)
RNGN120400(Diameter:12.7mm*Thickness:4.76mm)
RNGN120700(Diameter:12.7mm*Thickness:7.94mm)
04. Chamfer land Symbol:
F used for finishing
T:From Finishing to semi-finishing
S:From semi-finishing to roughing
05. Material: Cubic Boron Nitride
06. Grade:

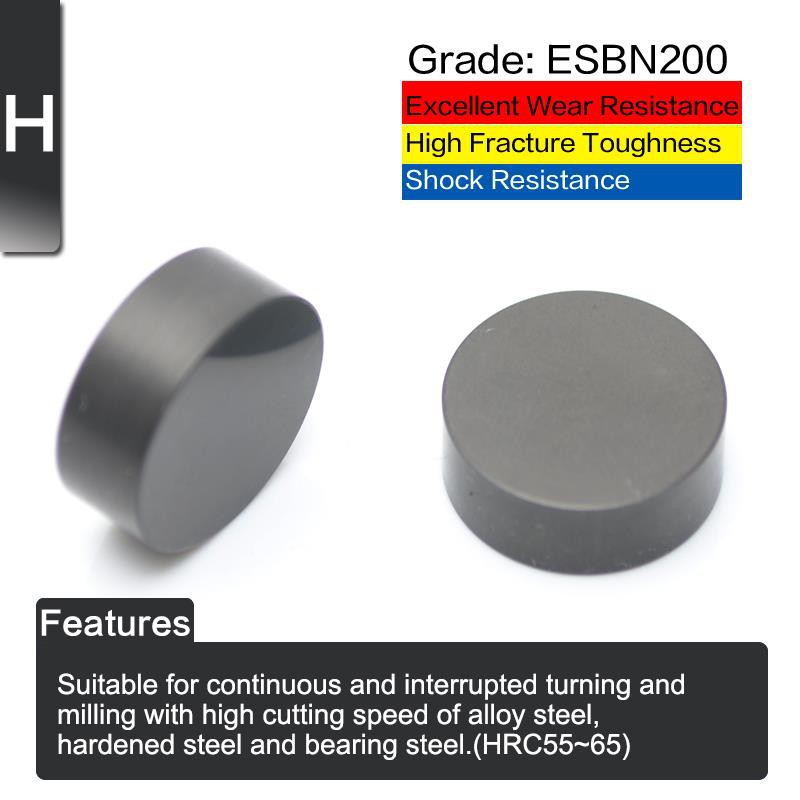

ESBN200 For machining Hardened Steel(H Material)
ESBN350 For machining Grey cast iron, Brake disc, most of Rolls, High Cr Mn Rolls

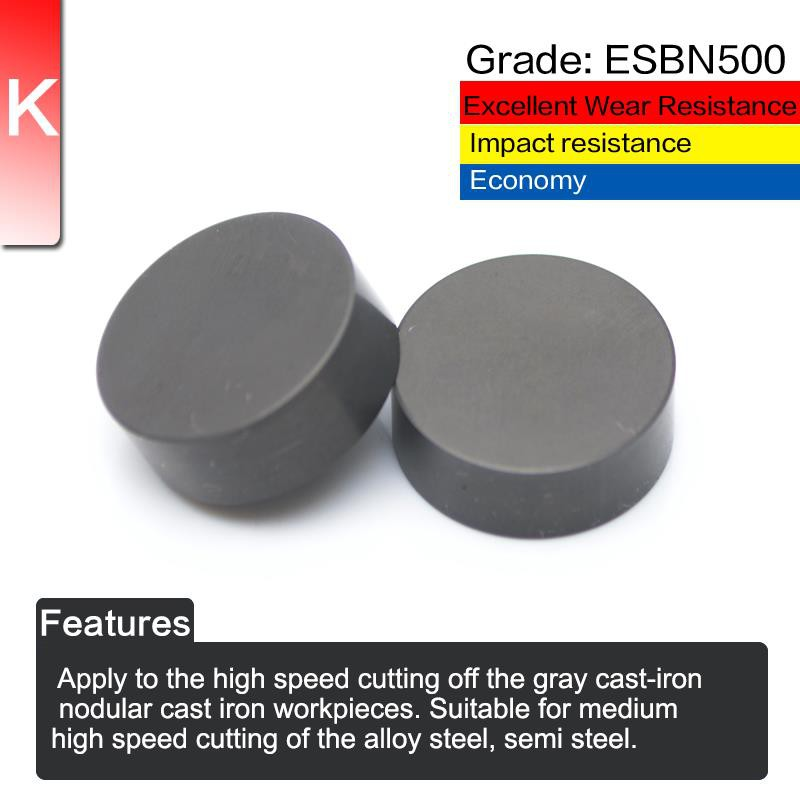

ESBN500 For machining Cast Iron(K Material)
07. Features: Excellent wear resistance and excellent impact and shock resistance
08. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
09. Work Piece Hardness: HRC45~65

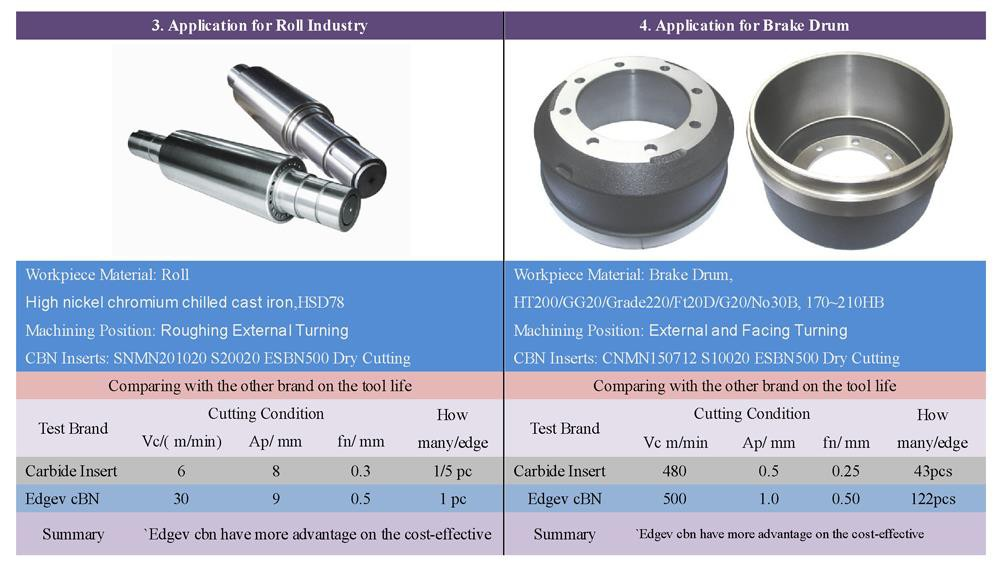

10. Suitable Work Piece: Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry
11. Color: Black
12. Usage: External Turning Tools
13. Application Range: From Finishing to Semi-finishing
14. Suitable Tool Holder:
15. Place of Origin: China

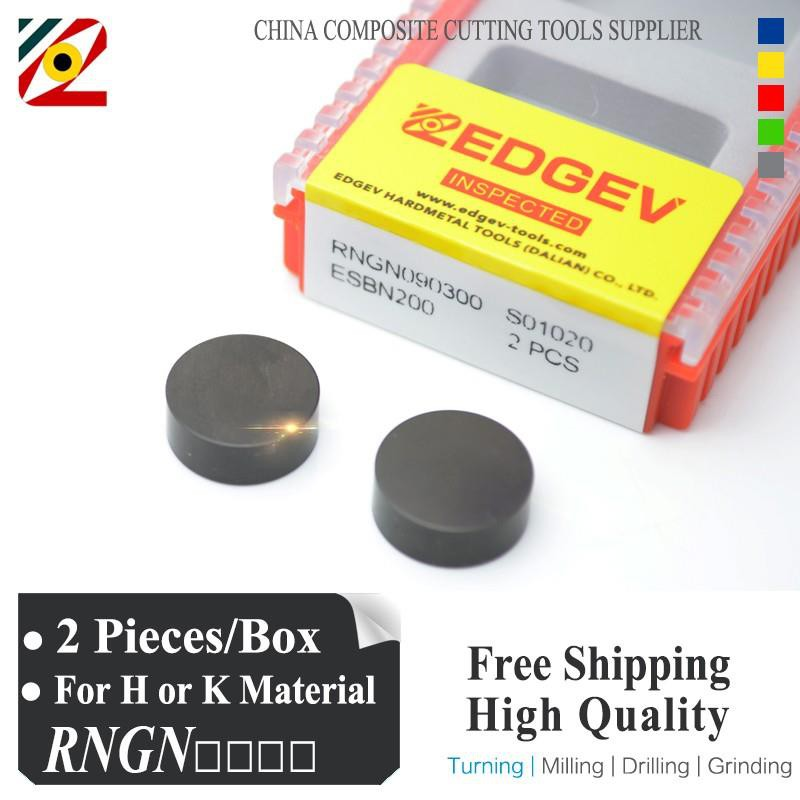

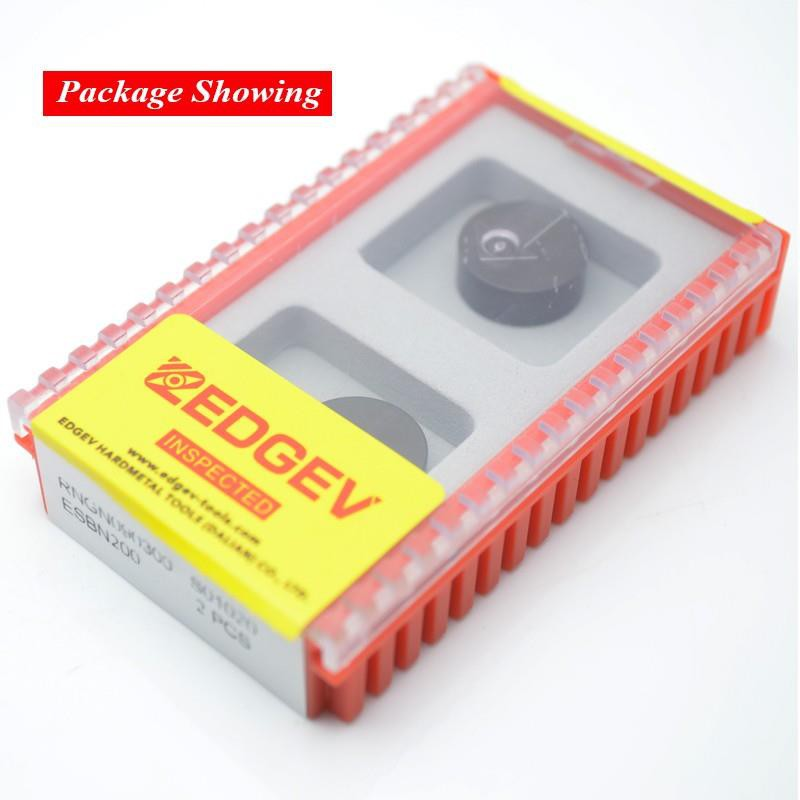

16. Package: 2Pieces packed in 1 Box
17. Net Weight: 8g/Piece

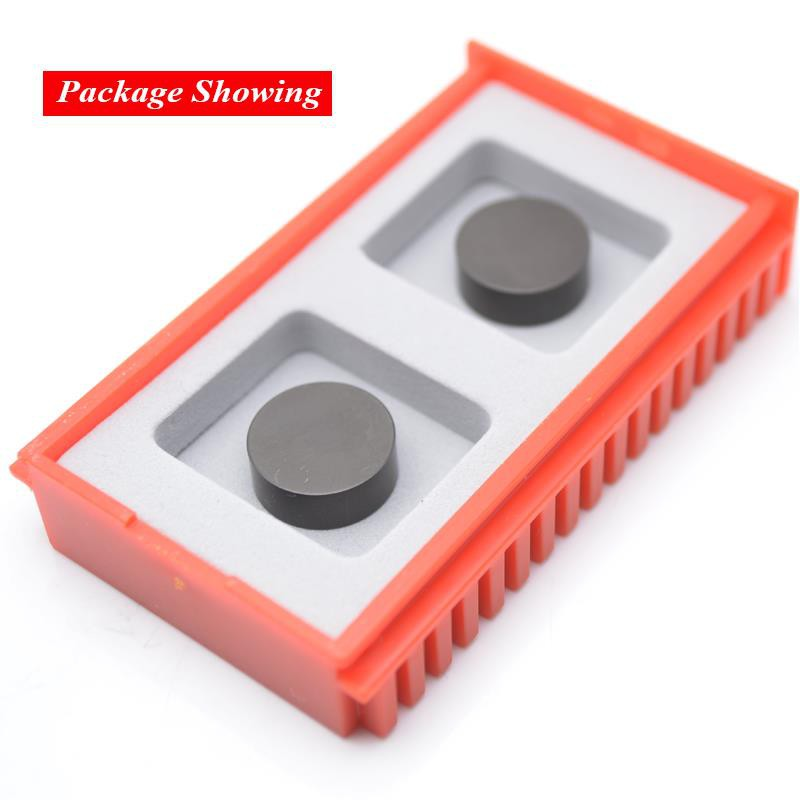

18. Packing: Plastic Box
