Feature of Double Column Vertical Lathe (1) The guideway is done by top imported machine Guideway Grinding Machine from Germany, when customer use machine for many years, machine precision still be nice. (2) Gear through carburization methods, and use gear grinding machine to finishing...
| Quantity: | |
|---|---|
Feature of Big Vertical Lathe
1. Almost all components of Big Vertical Lathe come from Germany, Japan, America.
The spindle of the table adopts a short spindle structure. The spindle is equipped with a double-row radial short cylindrical roller bearing. The inner ring has a tapered hole.
2. The beam is placed in front of the column to allow the beam to move vertically on the column. There are 4 hydraulic clamping points behind the beam. The clamping mechanism is interlocked with the beam lifting motor and lubrication. It is controlled by the beam lifting button to ensure the working stability of the beam.
3. The Large vertical lathes are able to bring turn-key solutions for complex VTL applications across a challenging range of industrial applications.
Products Specification of Big Vertical Lathe
The vertical lathe can be equipped with CNC controller and C axis for milling and boring function.
Parameter | Unit | C5225 | C5235 | C5240 | C5245 | C5250 | C5263 | C5280 | C52100 | C52125 | C52160 | |
Worktable diameter | mm | 2250 | 2850 | 3600 | 3800 | 4200 | 5700 | 6300/7100 | 7100/ 7500 | 7500/8000 | 10000 | |
Max, Turning diameter | mm | 2500 | 3500 | 4000 | 4500 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | |
Max. Workpiece height(H) | mm | 1600 | 2000/2500/3150 | 2000/2500 /3150 | 2000/2500 /3150 | 2500/3150 /4000 | 3150/4000 /4500/5000 | 4000/4500 /5000/5500 | 4500/5000 /6000 | 4500/5000/5500/6500 | 5500/6000 /7000 | |
Max. Workpiece weight(W) | t | 10/16 | 10/16/20/32 | 25/32/20/32 | 25/32/50/63 | 25/32/40/50/63 | 25/40/63/80/150 | 100/125/150 | 100/150/200/250 | 100/150/200/250 | 400 | |
Max. Turning force | Right tool post | N | 35000 | 40000 | 40000 | 40000 | 50000 | 63000 | 80000 | 100000 | 100000 | 100000 |
Left Tool post | N | 30000 | 35000 | 35000 | 35000 | 35000 | 50000 | 63000 | 80000 | 80000 | 80000 | |
Max. Workpiece torque | N·m | 63000 | 80000 | 80000 | 80000 | 80000 | 200000 | 460000 | 640000 | 640000 | 1000000 | |
Workpiece step | step | stepless | step | step | step | step | step | step | step | step | step | |
Workpiece rotation | rpm | 2~63 | 0.63-63 | 0.63-63 | 0.5-50 | 0.5-50 | 0.32-32 | 0.2-20 | 0.2-20 | 0.16~16 | 0.1-10 | |
Feeding step | step | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
Tool post feeding | mm/min | 0.25~90 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | 1-500 | |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 1750/2250/2850/3150 | 3000/3500/3650/4250/4500 | 3750/4250/4500/5000 | 3750/4000/4250/4500/5000 | 4000/5000/5500 | |
Tool post travel | Horizontal | mm | 1400 | 1900 | 2200 | 2450 | 2700 | 3200 | 4400 | 5400 | 5400 | 5400 |
Vertical | mm | 1000 | 1250/1400 | 1000/1250/1400 | 1000/1250/1400 | 1400/1600/2000 | 1600/2000/2500 | 2000/2500/2750 | 2500/2750 | 2500/2750 | 2500/2750 | |
Beam travel speed | mm/min | 350 | 350 | 300 | 300 | 350 | 230 | 230 | 230 | 230 | 230 | |
Tool post rapid speed | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Max. Tool post swing angle | ° | ±30 | -15-+30 | -15-+30 | -15-+30 | -15-+30 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | -15-+30。 | |
Tool section | mm | 40×50 | 50×50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | 50*50 | |
Main motor power | KW | 55 | 55 | 55 | 55 | 75 | 90 | 110 | 132 | 132 | 160 | |
Weight | T | 38 | 45 | 50 | 55 | 70 | ||||||
Details of Big Vertical Lathe
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working

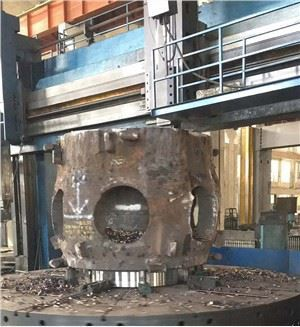

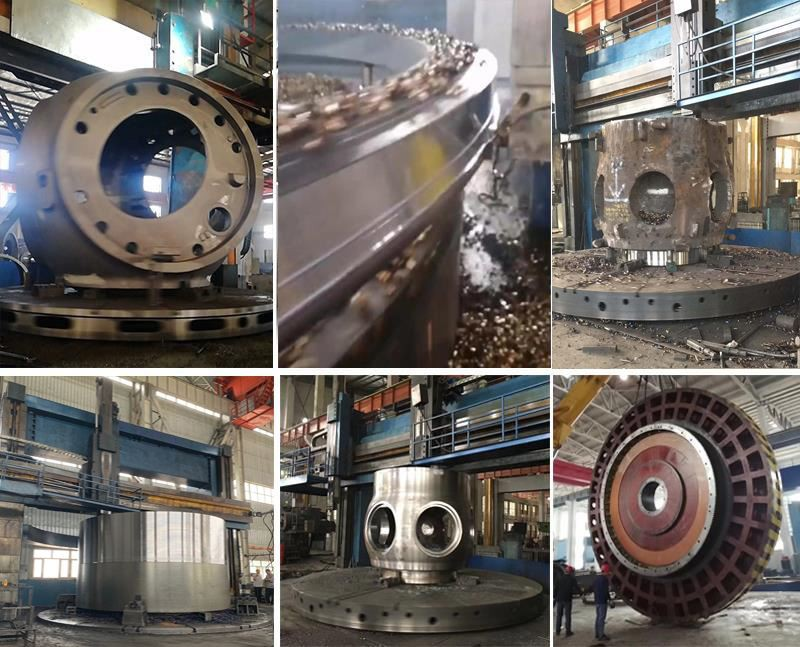

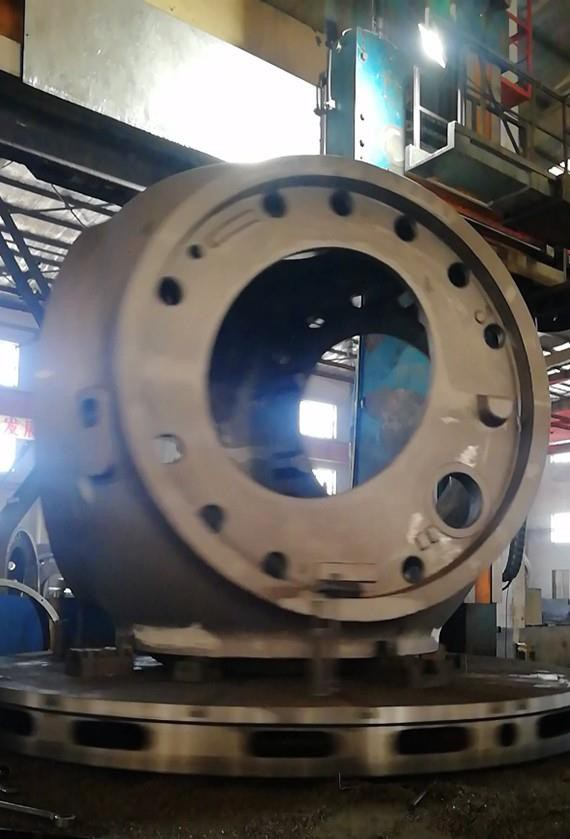

Work piece
The vertical lathe is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Customers
Our customers include ITT, Siemens......
Various size meet your various needs.
Package and Shipping
The machine will be tested N times before packaging to guarantee 100% no problem
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
We will painting anti-rust oil before which will suitable for long time shipment on the sea.
Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
