Max.turning diameter range:3500-12500mm
| Quantity: | |
|---|---|

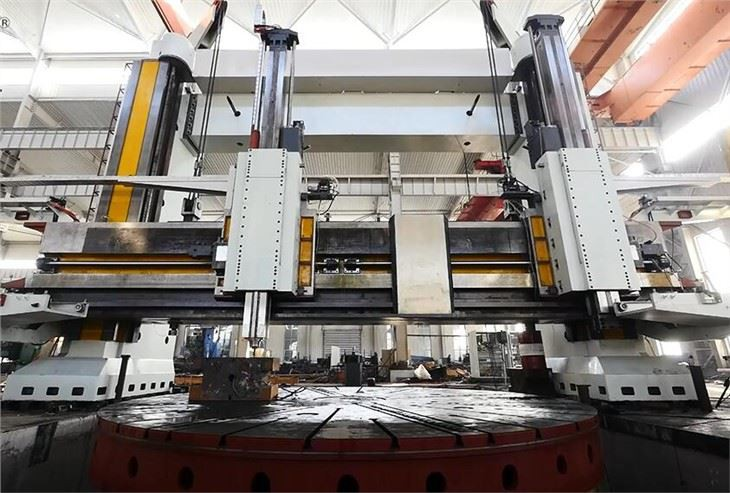

Introduction of Double Column Vertical Turning And Milling Machine
1. This Double Column Vertical Turning And Milling Machine is suitable for high-speed steel, hard alloy cutting tools and ceramic cutting tools. It can rough and finish parts of ferrous metals, non-ferrous metals and some non-metallic materials. It can turn inner and outer cylindrical surfaces, inner and outer conical surfaces, grooves, end faces, and Inch thread and complex revolving surface; it can perform drilling, boring, milling, grinding and other processes on the end face of the part, as well as the milling plane of the outer surface and the boring process with a small boring depth.
2. This Vertical lathe is suitable for high-speed steel, cemented carbide and ceramic tools. It can rough and finish parts made of various ferrous metals, non-ferrous metals and some non-metallic materials. It can complete turning inner and outer cylindrical surfaces, inner and outer conical surfaces, end faces, and cutting Processes such as grooves, metric and inch threads and revolving surfaces.
Adavantage:
1. Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
2. FANUC and Siemens system, it make process workpiece easily and precisely.
3. Much strenghen structure which will guarantee working steadily for a long run.
4. Whole production supervision will guarantee no defects of production.
5. Serious installation service, training, and free consultant in whole work life.
Parameter of Double Column Vertical Turning And Milling Machine
The vertical lathe has C axis for milling, drilling, boring, tapping
Item | UNIT | CXK5235 | CXK5240 | CXK5250 | CXK5263 |
Wortable diameter | mm | 3150 | 3600 | 4500 | 5000 |
Max. Turning diameter | mm | 3500 | 4000 | 5000 | 6300 |
Turning height | mm | 2500 | 2500 | 3150 | 3150 |
Max. Loading weight | t | 32 | 32 | 50 | 50 |
Main motor power | kw | 29.6x2 | 29.6x2 | 55x2 | 55x2 |
Turning worktable rotation speed | rpm | 53 | 50 | 50 | 40 |
Turning worktable rotation speed(C axis) | rpm | 0.4 | 0.3 | 0.3 | 0.2 |
Max. Worktalbe torque | Nm | 63 | 63 | 80 | 80 |
Ram size | mm | 280x280 | 280x280 | 280x280 | 280x280 |
Parameter | Unit | CXK5245 | CXK5280 | CXK52100 | CXK52125 |
Max turning diameter | mm | 4500 | 8000 | 10000 | 12500 |
Max workpiece height | mm | 1600 | 4500 | 5500 | 5500 |
Max load capacity | Tons | 16/32 | 80 | 250 | 250 |
Worktable diameter | mm | 3800 | 7100 | 7100 | 7500 |
Worktable speed steps | stepless | stepless | stepless | stepless |
Feature:
1. It mainly consists of gantry, gearbox, C-axis transmission box, worktable, crossbeam, left and right vertical tool post, etc. The two-axis contour processing is realized by Siemens/FANUC CNC system.
2. The C-axis transmission of the worktable adopts a separate transmission box, driven by Siemens 1FT6 AC servo motor, through two fixed-ratio speed reduction transmissions, the end two gears mesh with the large ring gear, and the double-toothed rod eliminates the backlash to make the worktable obtain the indexing feed to meet the requirements of boring and milling processing.
3. The horizontal and vertical directions of the feed mechanism are driven by Siemens IFT6 AC servo motors. The speed is reduced by gear transmission, and the ESC and the override switch are used to make the tool post in the horizontal and vertical directions stepless speed regulation and corresponding speed change. Range and fast movement,
4. The left and right upright columns and the worktable base adopt a separate structure. The gantry is composed of left and right upright columns connected by connecting beams; the lower part of the left and right upright columns are connected with the foundation to form a closed frame structure with high rigidity.
5. The worktable part is composed of worktable, worktable base, Spindle part and transmission mechanism. The worktable part adopts a separated structure, that is, the left and right columns are separated from the worktable base, and the guide rail part of the worktable base is separated from the Spindle.
6. The beam moves vertically on the column guide rail. The beam adopts a welded double-wall symmetrical structure. The beam has an unloading beam structure for unloading the weight of the left and right vertical tool holders
7. The left and right vertical tool rests are respectively composed of a beam slide, a revolving slide, and a ram.
8. The beam is made of high-strength and low-stress HT300 castings, the rest are made of HT250 castings, and the ram is made of 45 steel castings; The gears are all hard-tooth surface grinding products and the meshing gears with the CNC shaft are 6-level precision, and the rest are 7-level precision.
9. The Spindle part of the worktable has an unloading device, and the center of the worktable is equipped with an E-level unloading bearing with a large load capacity. When the weight of the workpiece is large, the center unloading bearing and the hydrostatic guide rail support the workpiece to rotate at the same time to reduce the deformation of the worktable , And make the worktable in good working condition.
Work flow
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe

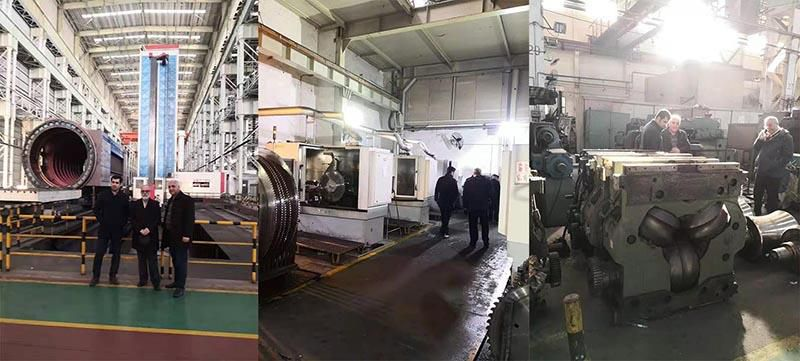

Customers
Various size can be provided to meet various size of workpiece
Troubleshooting
Before delivery :Special QC department check carefully ensure all is qualified with high quality
Through see customer actual photos or video, using discussed group or email or video meeting or phone call give solutions immediately
Dispatch engineer go to customer workshops onsite.
