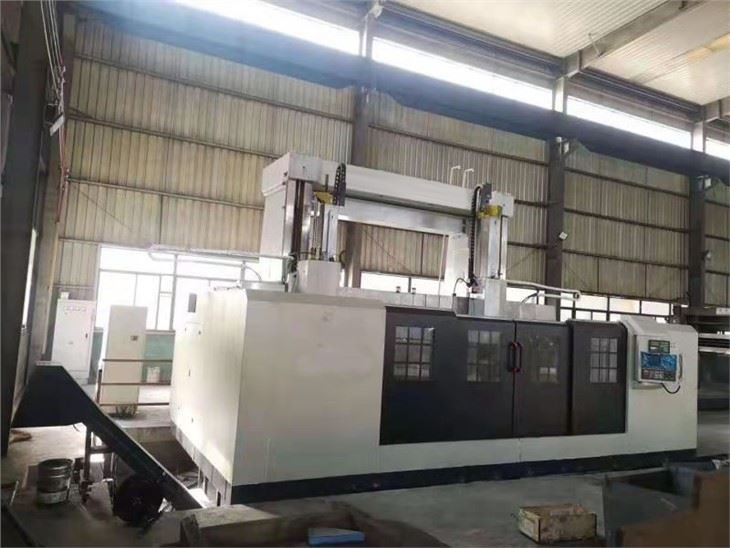

Double Column Vertical Turn Milling lathes

Double Column Vertical Turn Milling lathes

Vertical lathe + C axis

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction of Double Column Vertical Turn Milling lathes

1. Suitable for 380v/50HZ/3PH, or local power supply,
2. Reliable & powerful Siemens SINUMERIK 802D s.l. CNC control,
3. High grade cast iron structure of main bodies for super stability, reliability & longer machine life,
3. Centralized operation button station and pendent operation panel,
4. Table with manual 4-jaw chuck with chucking jaws,
5. CNC controlled left tool head and buttons & switches controlled right tool head,
6. Square toolpost on vertical heads, especially suitable for deep hole machining,
7. Forged shafts used in the table speed change gear box,
8. 2 spindle speed gears, within each gear variable speeds are achievable for the table,
9. Hardened & ground gears in table speed change gearbox for smooth running,
10. High precision bearings used for supporting precision ballscrews (X / Z axes) on tool heads,
11. Automatic compulsory lubrication system for tool heads and cross rail guideways,
12. High power DC 55 kW main motor with DC digital drive unit (Eurotherm / PARKER brand),
13. Air conditioner for independent electric cabinet, especially suitable for tropic climate,
14. Work lamps for sufficient lighting,
15. Independent hydraulic power pack, easier for adjustment & maintenance,
16. Hydrostatic axial bearing table with constant flow power supply (0.2-0.4Mpa),
17. 12 pockets big axial hydrostatic bearing area ensuring big table load capacity,
18. Automatic clamping of cross rail onto the columns for heavy duty cutting,
19. C45 steel rams are induction hardened & ground for improved dynamic performance & longer life,
20. Anti-wear industrial Zinc-Aluminum alloy (ZnAl10-5) lining on sliding guideways and wear-resistant
21. Zinc-Aluminum alloy (ZnAl10-5) lining engraved on table guideways for longer machine life,
22. PLC unit (DELTA / OMRON brand) integrated in electrical system for reliable functioning,
23. Servo feeding motors & ballscrews are used for feeding of both tool heads,

Castings
Main bodies of the machine are made of high rigid resin sand castings with thermal / vibratory stress relief
(VSR) aging treatment. Steel parts are thermal refined.
1. resin sand casting,
2. high grade, high intensity and low stress
3. stress relieved castings to absorb the stresses and dampen the vibration during cutting
Machine structure
4. Thermo-symmetrical gantry frame structure
The machine adopts a stable thermo-symmetrical gantry frame structure and consists mainly of base,
table, R.H. and L.H. columns, cross rail, top beam, tool heads, hydraulic system and electric system.
Columns and cross rail are of box-shaped castings with numerous reinforced ribs. Two columns are
connected through the top beam on the top and bolted to the base at the bottom so to form a superb rigid and stable structure that is qualified for stable and heavy cutting even at severe cutting conditions.
Layout of components of Double Column Vertical Turn Milling lathesOne DC 55 kW main motor and a speed change gearbox are fitted at the back of machine to drive the table. Cross rail moves up and down along front guideways of columns. The two tool heads are seated on the guideways of cross rail. The tool heads are composed of carriage and ram. Rams are induction
hardened and precision ground and jib strips are made of wear-resistant industrial alloy material and
hand scraped for precision matching. Compulsary lubrication systems are used in main drive system and on sliding guideways. Independent hydraulic power pack locates behind the machine for easier adjustment and maintenance. Independent electric cabinet is equipped for easier venting of heat and easier check

Adavantage:

Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

Parameter can be customized

The vertical lathe has C axis for milling, drilling, boring, tapping

Item	UNIT	CXK5225	CXK5232	CXK5235	CXK5240	CXK5250	CXK5263
Wortable diameter	mm	2250	2830	3150	3600	4500	5000
Max. Turning diameter	mm	2500	3200	3500	4000	5000	6300
Turning height	mm	2000	2000	2500	2500	3150	3150
Max. Loading weight	t	20	32	32	32	50	50
Main motor power	kw	28x2	29.6x2	29.6x2	29.6x2	55x2	55x2
Turning worktable rotation speed	rpm	80	63	53	50	50	40
Turning worktable rotation speed(C axis)	rpm	0.5	0.5	0.4	0.3	0.3	0.2
Max. Worktalbe torque	Nm	40	63	63	63	80	80
Ram size	mm	260x260	380x380	380x380	380x380	380x380	380x380
Ram travel（Z axis）	mm	1000	1250	1250	1250	1600	1600
Tool post rapid travel（x、z axis）	mm/min	6000	6000	6000	6000	6000	6000
Tool post feeding speed（x、z axis）	Mm/min	0.1-2000	0.1-2000	0.1-2000	0.1-2000	0.1-2000	0.1-2000
Max turning force	kn	25	50	50	50	50	50
Milling axis rotation speed	rpm	5-2000	5-2000	5-2000	5-2000	5-2000	5-2000
Milling axis torque	Nm	800	1600	1600	1000	1000	1000
Milling axis power	kw	16	28	28	28	28	28
Mill axis taper	iso	BT50	BT50	BT50	BT50	BT50	BT50
Cross beam travel	mm	1400	1400	2100	2100	2700	2700
Cross beam moving speed	Mm/min	350	350	350	350	350	350
Tool quantity in amagazine		20	20	20	20	20	20
Attachment	position	6	6	6	6	6	6
x、z、y axis positioning precision	mm	0.01	0.01	0.01	0.01	0.01	0.01
x、z、yaxis repeat positioning precision	mm	0.005	0.005	0.005	0.005	0.005	0.005
C axis positioning precision	sec	±3″	±3″	±3″	±3″	±3″	±3″
C axis repeat positioning precision	sec	3″	3″	3″	3″	3″	3″

Parameter	Unit	CXK5245	CXK5250	CXK5280	CXK52100	CXK52125
Max turning diameter	mm	4500	5000	8000	10000	12500
Max workpiece height	mm	1600	2500	4500	5500	5500
Max load capacity	Tons	16/32	32/50	80	250	250
Worktable diameter	mm	3800	4500	7100	7100	7500
Worktable speed steps		stepless	stepless	stepless	stepless	stepless
Worktable speed range	rpm	Turning： 0.5-50 Milling： 0.001-1	Turning： 0.5~32 Milling： 0.001-1	Turning： 0.2~20 Milling： 0.001~1	Turning： 0.16-16 Milling： 0.002-0.2	Turning： 0.16-16 Milling： 0.002-0.2
Max torque	Kn.m	63	100	150	640	640
C axis circle feed range		0.001-1	0.001-1	0.001-1	0.001-1	0.001-1
C axis index		Random	Random	Random	Random	Random
Tool post horizontal travel	mm	-20~2975	-150~2765	-50~4250	Left：5230 Right：5650	Left：6430 Right: 6900
Milling tool post vertical travel	mm	1000	1300	2250	2760	2760
Turning tool post vertical travel	mm	-	1300	2250	2760	2760
Tool post feed range	Mm/min	0.1-1000	0.1-1000	0.10-100	Left： 0.1-1000 Right：0.1-500	Left： 0.1-1000 Right：0.1-500
Ram section size	mm	280x280	280x280	320x320	400x400	400x400
Tool bar section size	mm	50x50	50x50	50x50	80x80	100x100
Tool post rapid moving speed	Mm/min	4000	4000	2000	2000	2000
Milling spindle motor power	kw	17	17	17	17	7.5
Milling spindle speed range	Rpm	10-1000	10-1000	10-1000	10-1000	1-1000
Milling spindle taper hole		BT50	BT50	BT50	BT50	BT50
Beam vertical travel	mm	1300	2000	3500	4000	4000
Beam lifting speed	Mm/min	350	310	310	300	300
Beam lifting motor power	kw	11	18.5	30	75	75
Main motor power	Kw	67	75	110	132	132
Machine weight	Ton	70	90	230	570	600
