CNC Vertical Turning and Milling Lathe

Quantity:




Inquire Add to Basket

Product Description

Introduction

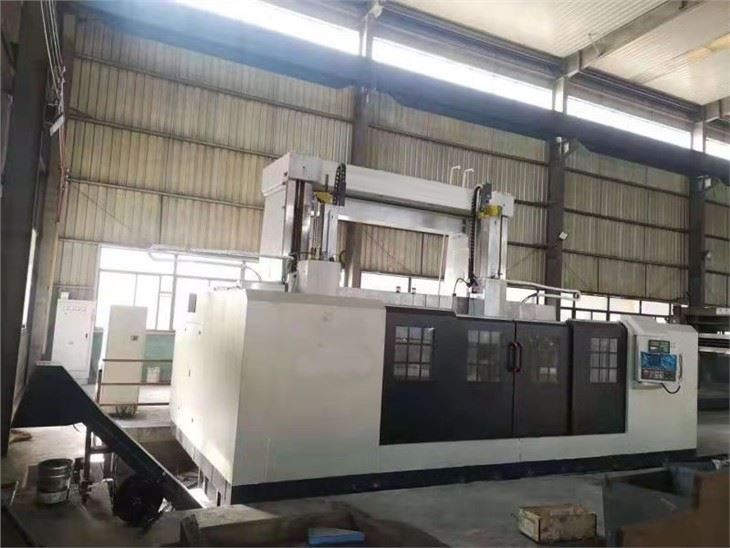

Double Column CNC Vertical Turning and Milling Lathe is designed with hydrostatic bearings for better cutting performance. It is equipped with a variety of modern features and is best suited to the manufacturer's processing requirements. The machine is compatible with automatic tool change system (ATC) and ATC as well as complex machining functions. Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. Users can choose one to match their own processing needs. With those models, factory operators can use advanced tools to assist in better processing. The double column vertical lathes are capable of handling different types of tasks to meet a wide range of machining requirements. The heavy-duty spindle incorporates a high precision hydrostatic bearing designed to withstand high axial and radial loads. In the hydrostatic system, pockets of oil between the base of the machine and the table eliminate contact between mating surfaces and promote friction-free operation. The combination of the high/low motor and 2 speed gearbox provides the benefits of a 3-speed transmission. Power is transmitted through a Class 1 ring and pinion gear that provides a further gear reduction and torque multiplication. The X and Z axes are a box way design that facilitates heavy duty machining and high precision. The Turcite B-coated ways are completely enclosed and feature a forced lubrication system. The rigid twin column design and heavy base are best castings, heavily ribbed to minimize thermal distortion and dampen vibration.

Product Introduction of CNC Vertical Turning and Milling Lathe

1. Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.

2. 8/10/12 station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.

3. Customers can choose FANUC, SIEMENS, or KND, other CNC systems.

4. According to special requirements, the whole machine cover, chip conveyor.

Advantages: The machine is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc. The base and column use one-piece high quality castings. X&Z are using brand linear guideway. Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency. Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving. Machine can equip optical ruler to realize full close loop control. Full cover is your optional together with chip conveyor and coolant system. Siemen or Fanuc system.

Parameter of CNC Vertical Turning and Milling Lathe

The vertical lathe has C axis for milling, drilling, boring, tapping

Parameter	Unit	CXK5245	CXK5250	CXK5263	CXK5280	CXK52100	CXK52125
Max turning diameter	mm	4500	5000	6300	8000	10000	12500
Max workpiece height	mm	1600	2500	3100	4500	5500	5500
Max load capacity	Tons	16/32	32/50	50	80	250	250
Worktable diameter	mm	3800	4500	5700	7100	7100	7500
Worktable speed steps		stepless	stepless	stepless	stepless	stepless	stepless
Worktable speed range	rpm	Turning： 0.5-50 Milling： 0.001-1	Turning： 0.5~32 Milling： 0.001-1	Turning： 0.5~32 Milling：0.001~1	Turning： 0.2~20 Milling： 0.001~1	Turning： 0.16-16 Milling： 0.002-0.2	Turning： 0.16-16 Milling： 0.002-0.2
Max torque	Kn.m	63	100	100	150	640	640
C axis circle feed range		0.001-1	0.001-1	0.001-1	0.001-1	0.001-1	0.001-1
C axis index		Random	Random	Random	Random	Random	Random
Tool post horizontal travel	mm	-20~2975	-150~2765	-150 ~ 3415	-50~4250	Left：5230 Right：5650	Left：6430 Right: 6900
Milling tool post vertical travel	mm	1000	1300	1400	2250	2760	2760
Turning tool post vertical travel	mm	-	1300	1600	2250	2760	2760
Tool post feed range	Mm/min	0.1-1000	0.1-1000	0.1-1000	0.10-100	Left： 0.1-1000 Right：0.1-500	Left： 0.1-1000 Right：0.1-500
Ram section size	mm	280x280	280x280	280x280	320x320	400x400	400x400
Tool bar section size	mm	50x50	50x50	50x50	50x50	80x80	100x100
Tool post rapid moving speed	Mm/min	4000	4000	2000	2000	2000	2000
Milling spindle motor power	kw	17	17	17	17	17	7.5
Milling spindle speed range	Rpm	10-1000	10-1000	10-1000	10-1000	10-1000	1-1000
Milling spindle taper hole		BT50	BT50	BT50	BT50	BT50	BT50
Beam vertical travel	mm	1300	2000	2800	3500	4000	4000
Beam lifting speed	Mm/min	350	310	310	310	300	300

Details

Adavantage:

1. Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

2. FANUC and Siemens system, it make process workpiece easily and precisely.

3. Much strenghen structure which will guarantee working steadily for a long run.

4. Whole production supervision will guarantee no defects of production.

5. Serious installation service, training, and free consultant in whole work life.
