China professional CK52125 CNC Vertical Lalthe with C Axis manufacturer China vertical turning and milling lathe, China vertical milling and turning lathe,China turning milling lathe
| Quantity: | |
|---|---|

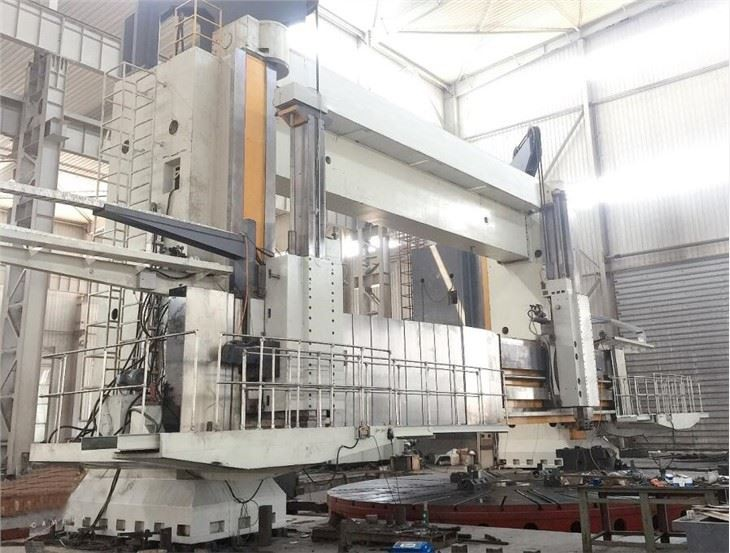

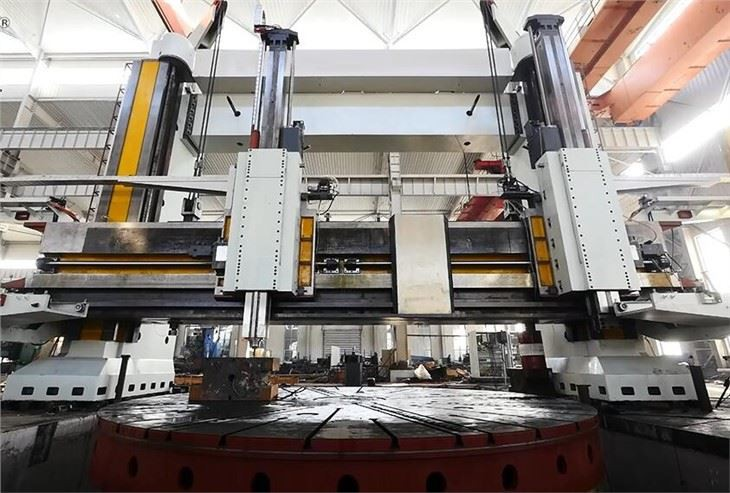

Feature of Double Column Heavy Duty CNC Vertical Lalthe With C Axis
1. Siemens 840dsl/Siemens 808D system with 10'colorful LCD display
2. Max turning diameter: 10000/12500mm, max workpeice height: Can be customized
3. One ram, the tool post with turning and milling function
4. The ram section size is 400x 400mm, the material of ram is forging steel.
5. The worktable With C axis, C axis index accuracy is 0.002 °
6. The worktable adopt constant hydrostatic guideway, the spindle parts with Siemens encoder, achieve C axis closed loop control.
7. The crossbeam guideway adopt telescope stainless steel cover, ensure the guideway long service life
8. Adopt automatic lubrication system
9. With hydraulic system
10. With leveling bolts and pads
Parameter of Heavy Duty CNC Vertical Lalthe With C Axis
The vertical lathe has C axis for milling, drilling, boring, tapping
Parameter | Unit | CXK52100 | CXK52125 |
Max turning diameter | mm | 10000 | 12500 |
Max workpiece height | mm | 5500 | 5500 |
Max load capacity | Tons | 250 | 250 |
Worktable diameter | mm | 7100 | 7500 |
Worktable speed steps | stepless | stepless | |
Worktable speed range | rpm | Turning：0.16-16 Milling：0.002-0.2 | Turning：0.16-16 Milling：0.002-0.2 |
Max torque | Kn.m | 640 | 640 |
C axis circle feed range | 0.001-1 | 0.001-1 | |
C axis index | Random | Random | |
Tool post horizontal travel | mm | Left：5230 Right：5650 | Left：6430 Right: 6900 |
Milling tool post vertical travel | mm | 2760 | 2760 |
Turning tool post vertical travel | mm | 2760 | 2760 |
Tool post feed range | Mm/min | Left： 0.1-1000 Right： 0.1-500 | Left： 0.1-1000 Right： 0.1-500 |
Ram section size | mm | 400x400 | 400x400 |
Tool bar section size | mm | 80x80 | 100x100 |
Tool post rapid moving speed | Mm/min | 2000 | 2000 |

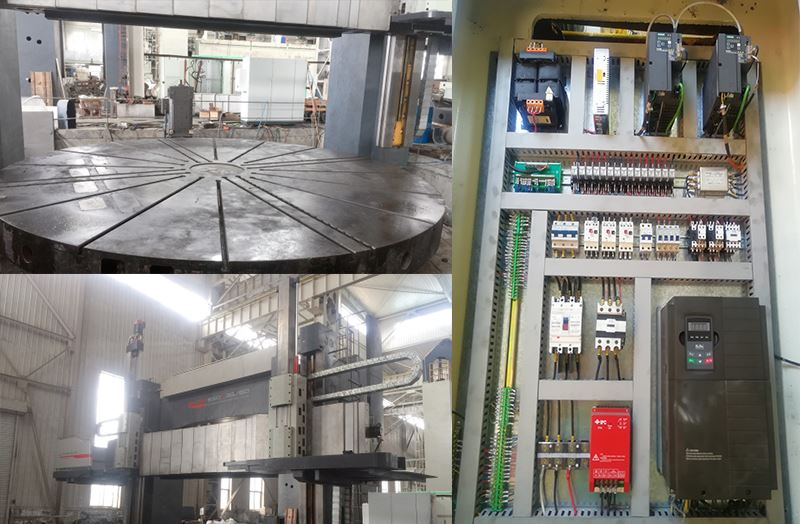

Details

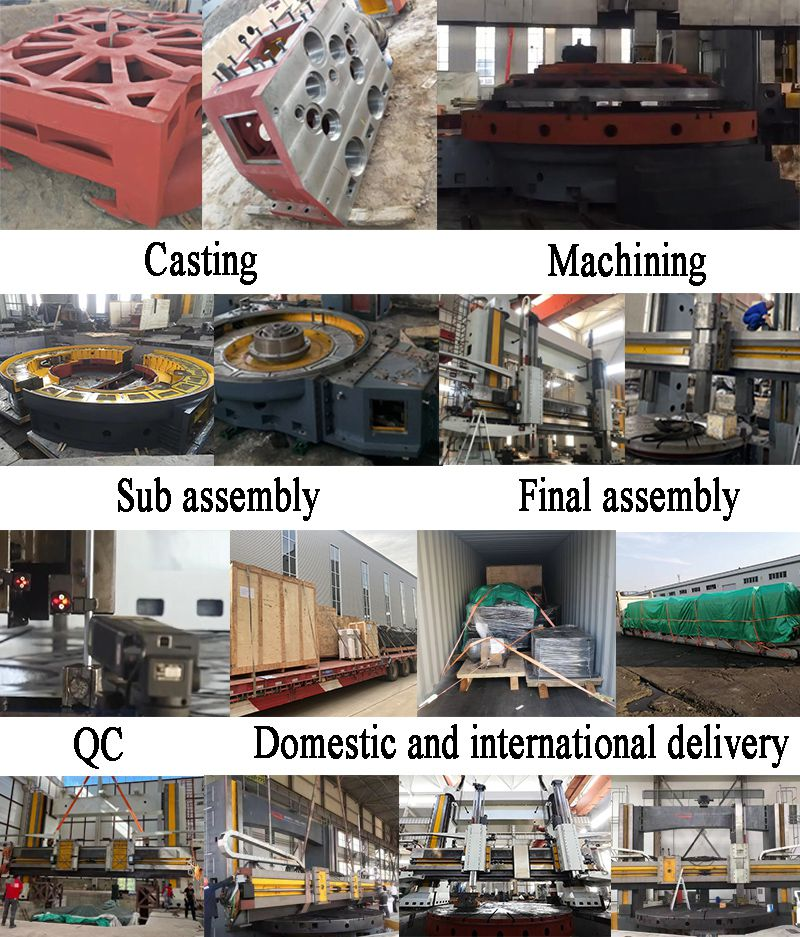

Work flow
Customers
Various size can be provided to meet various size of workpiece
Adavantage:
1. Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
2. FANUC and Siemens system, it make process workpiece easily and precisely.
3. Much strenghen structure which will guarantee working steadily for a long run.
4. Whole production supervision will guarantee no defects of production.
5. Serious installation service, training, and free consultant in whole work life.
