Besides the general function of common CNC vertical turning machine, CKX52 series machine has both function of turning and milling, CKX52 series machine has 3 simultaneously controlled axes. It can finish drilling, milling and turning at single set up.
| Quantity: | |
|---|---|

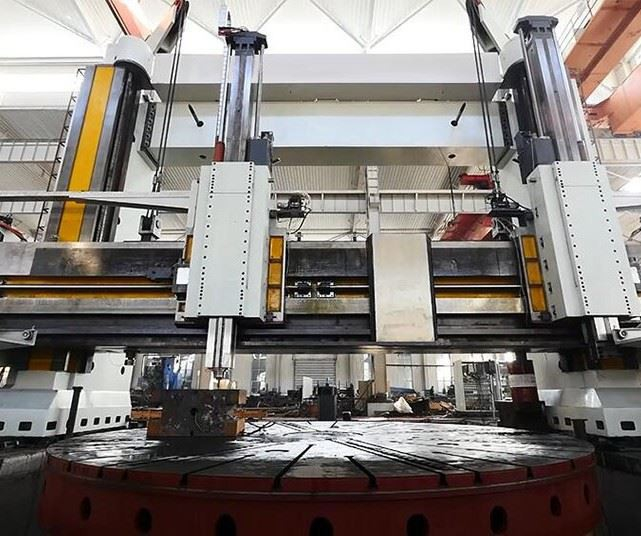

Product Introduction of Double Column Turning Milling Machine with C axis
1. This series of Double Column Turning Milling Machine+C axis are our company's absorption of contemporary advanced design and manufacturing technology, using finite element analysis calculation and optimization design methods, implementing the latest national precision standards, equipped with advanced functional components at home and abroad, and achieving powerful cutting in terms of structural performance. High-tech mechatronics machine tool with high dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency.
2. This lathe is suitable for high-speed steel, cemented carbide and ceramic tools. It can rough and finish parts made of various ferrous metals, non-ferrous metals and some non-metallic materials. It can complete turning inner and outer cylindrical surfaces, inner and outer conical surfaces, end faces, and cutting Processes such as grooves, metric and inch threads and revolving surfaces.
3. Function:
(1) Milling, boring, drilling, tapping functions
(2) It can complete the p, rocess of drilling, tapping, boring, milling plane and outer circular plane, boring holes with small depth, and milling inner and outer cylindrical surfaces and key grooves on the end surface of the part.
(3) Divsion function
4. The worktable has circular milling feed function during milling, and the worktable has indexing function when drilling, tapping and boring at any position.
5 The worktable has circular milling feed function during milling, and the worktable has indexing function when drilling, tapping and boring at any position.
6. The horizontal and vertical movements are driven by AC servo motors, which are driven by gears and lead screws to realize the horizontal and vertical movement of the tool post.
7.When indexing on C-axis, there is a damping structure, and the worktable is automatically clamped after indexing. During the turning movement, the milling index is disconnected, and during the milling index, the turning movement is disconnected.
8. The automatic tool changer is composed of three parts: the tool holder, the tool holder automatic clamping mechanism installed at the lower end of the vertical tool rest ram, and the tool magazine installed at the right end of the beam.
9. This machine is equipped with a floor-standing console, which is equipped with FANUC, Siemens or GSK operation panel and all operation keys of the machine. It can be operated according to the programming of the machining parts, and the required actions can also be manually operated.
In addition, it is equipped with a set of hand-held portable operation box, which contains commonly used operation keys of CNC tool post and hand pulser, so the operation of this machine is convenient and flexible.
10. Beam
The Gantry frame is composed of left column, right column, beams, and worktable. The Gantry frame is connected to the foundation to form a closed symmetry frame; the high -strength and low stress cast iron parts are used. Mainibility and stability.
11. The main axis of the worktable is a short -axis structure, and the spindle is equipped with high -precision dual -column short cylindrical roller bearings to ensure the radial jump of the worktable. The worktable conduction rails adopt a constant current static pressure guide rail.
Adavantage:
1. Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
2. FANUC Siemens, GSK system, it make process workpiece easily and precisely.
3. Much strenghen structure which will guarantee working steadily for a long run.
4. Whole production supervision will guarantee no defects of production.
5. Serious installation service, training, and free consultant in whole work life.
Parameter of Double Column Turning Milling Machine
The vertical lathe has C axis for milling, drilling, boring, tapping
Item | UNIT | CXK5235 | CXK5240 | CXK5250 | CXK5263 |
Wortable diameter | mm | 3150 | 3600 | 4500 | 5000 |
Max. Turning diameter | mm | 3500 | 4000 | 5000 | 6300 |
Turning height | mm | 2500 | 2500 | 3150 | 3150 |
Max. Loading weight | t | 32 | 32 | 50 | 50 |
Main motor power | kw | 29.6x2 | 29.6x2 | 55x2 | 55x2 |
Turning worktable rotation speed | rpm | 53 | 50 | 50 | 40 |
Turning worktable rotation speed(C axis) | rpm | 0.4 | 0.3 | 0.3 | 0.2 |
Max. Worktalbe torque | Nm | 63 | 63 | 80 | 80 |
Ram size | mm | 380x380 | 380x380 | 380x380 | 380x380 |
Ram travel（Z axis） | mm | 1250 | 1250 | 1600 | 1600 |
Tool post rapid travel（x、z axis） | mm/min | 6000 | 6000 | 6000 | 6000 |
Tool post feeding speed（x、z axis） | Mm/min | 0.1-2000 | 0.1-2000 | 0.1-2000 | 0.1-2000 |
Max turning force | kn | 50 | 50 | 50 | 50 |
Milling axis rotation speed | rpm | 5-2000 | 5-2000 | 5-2000 | 5-2000 |
Milling axis torque | Nm | 1600 | 1000 | 1000 | 1000 |
Milling axis power | kw | 28 | 28 | 28 | 28 |
Mill axis taper | iso | BT50 | BT50 | BT50 | BT50 |
Cross beam travel | mm | 2100 | 2100 | 2700 | 2700 |
Cross beam moving speed | Mm/min | 350 | 350 | 350 | 350 |
Tool quantity in amagazine | 20 | 20 | 20 | 20 | |
Attachment | position | 6 | 6 | 6 | 6 |
x、z、y axis positioning precision | mm | 0.01 | 0.01 | 0.01 | 0.01 |
x、z、yaxis repeat positioning precision | mm | 0.005 | 0.005 | 0.005 | 0.005 |
C axis positioning precision | sec | ±3″ | ±3″ | ±3″ | ±3″ |
C axis repeat positioning precision | sec | 3″ | 3″ | 3″ | 3″ |
Parameter | Unit | CXK5245 | CXK5280 | CXK52100 | CXK52125 |
Max turning diameter | mm | 4500 | 8000 | 10000 | 12500 |
Max workpiece height | mm | 1600 | 4500 | 5500 | 5500 |
Max load capacity | Tons | 16/32 | 80 | 250 | 250 |
Worktable diameter | mm | 3800 | 7100 | 7100 | 7500 |
Worktable speed steps | stepless | stepless | stepless | stepless | |
Worktable speed range | rpm | Turning：0.5-50 Milling：0.001-1 | Turning：0.2~20 Milling：0.001~1 | Turning：0.16-16 Milling：0.002-0.2 | Turning：0.16-16 Milling：0.002-0.2 |
Max torque | Kn.m | 63 | 150 | 640 | 640 |
C axis circle feed range | 0.001-1 | 0.001-1 | 0.001-1 | 0.001-1 | |
C axis index | Random | Random | Random | Random | |
Tool post horizontal travel | mm | -20~2975 | -50~4250 | Left：5230 Right：5650 | Left：6430 Right: 6900 |
Milling tool post vertical travel | mm | 1000 | 2250 | 2760 | 2760 |
Turning tool post vertical travel | mm | - | 2250 | 2760 | 2760 |
Tool post feed range | Mm/min | 0.1-1000 | 0.10-100 | Left： 0.1-1000 Right： 0.1-500 | Left： 0.1-1000 Right： 0.1-500 |
Ram section size | mm | 280x280 | 320x320 | 400x400 | 400x400 |
Tool bar section size | mm | 50x50 | 50x50 | 80x80 | 100x100 |
Tool post rapid moving speed | Mm/min | 4000 | 2000 | 2000 | 2000 |
Milling spindle motor power | kw | 17 | 17 | 17 | 7.5 |
Milling spindle speed range | Rpm | 10-1000 | 10-1000 | 10-1000 | 1-1000 |
Milling spindle taper hole | BT50 | BT50 | BT50 | BT50 | |
Beam vertical travel | mm | 1300 | 3500 | 4000 | 4000 |
Beam lifting speed | Mm/min | 350 | 310 | 300 | 300 |
Beam lifting motor power | kw | 11 | 30 | 75 | 75 |
Main motor power | Kw | 67 | 110 | 132 | 132 |
Machine weight | Ton | 70 | 230 | 570 | 600 |

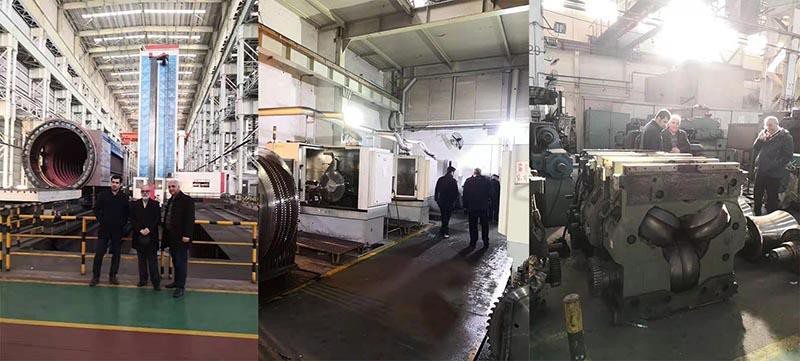

Glance of workshop

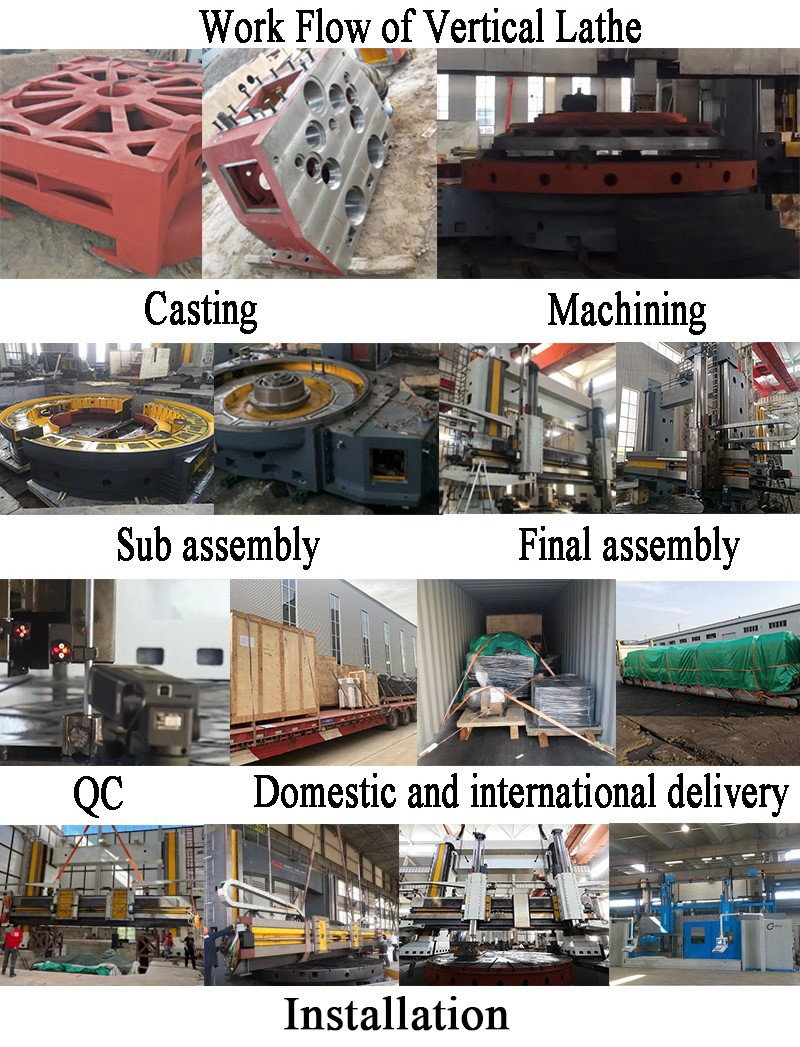

Work flow
Customers
Customers
Various size can be provided to meet various size of workpiece
