Vertical Turning And Milling Machine Turning diameter range: 3500-12500mm
| Quantity: | |
|---|---|

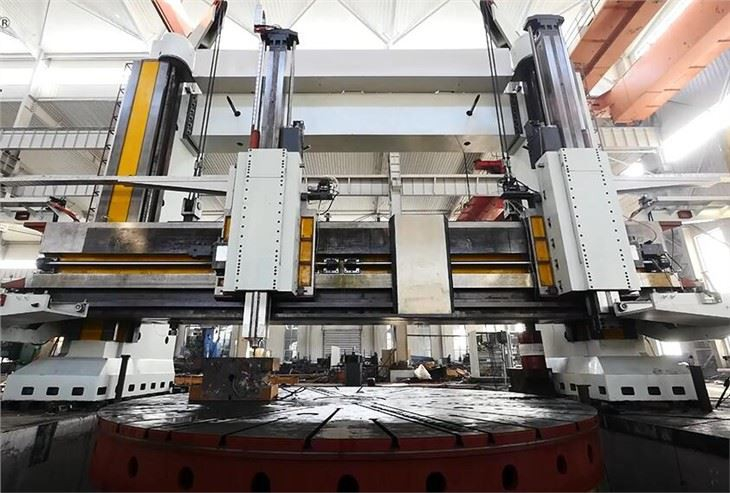

Introduction of Vertical Turning And Milling Machine
This Vertical Turning And Milling Machine has one spindle (milling spindle) and three feed axes, X, Z, and C. It is a multi-functional and high-efficiency CNC double-column vertical turning-milling compound machine tool with three-axis linkage.
The machine tool consists of gantry, worktable, worktable base, main transmission box, C-axis indexing box, beam, vertical tool rest, numerical control system, hydraulic system, protection system, detection system and other main parts.
Feature:
1) Gantry
The gantry frame is composed of left column, right column, connecting beam, worktable, etc. The gantry frame is connected with the foundation to form a closed symmetrical frame
2) Beam
The beam is placed in front of the column, driven by a double-shaft AC motor, and driven by gears, worm gears, and screw pairs to make the beam move vertically on the column.
3) Worktable
The worktable consists of a worktable, a worktable base, a Spindle component and a transmission mechanism.
4) The worktable is equipped with an encoder to realize closed-loop control. Realize feed per revolution, thread and constant speed cutting and table indexing.
5) The worktable is provided with a locking device to facilitate milling; the worktable has the functions of arbitrary indexing and accurate stop.
6) The C-axis of the worktable is used for milling feed and boring indexing. It is driven by an AC servo motor, and the speed range of the C-axis is realized through a fixed-ratio speed reduction transmission pair.
7) Main transmission mechanism
The turning main drive and speed change mechanism are driven by a set of vertical DC main motors, the main motor is directly connected to the main transmission box, and is driven by a two-stage (i=1 and i=4) vertical shaft mechanism to achieve the speed range required for turning. The DC speed control system adopts the American Parker.
Main parameter
The vertical lathe has C axis for milling, drilling, boring, tapping
Items | Unit | CK5235 | CK5240 | CK5245 | CK5250 |
Max turning diameter | mm | 3500 | 4000 | 4500 | 5000 |
Max workpiece height | mm | 2000/2500 | 2000/2500 | 2000/2500/3150 | 2500/3150/4000 |
Max load capacity | Tons | 10/32 | 10/32 | 32/50 | 32/ 50 |
Worktable diameter | mm | 2850 | 3600 | 3800 | 4500 |
Worktable speed steps | Two gear Stepless in shift | Two gear Stepless in shift | Two gear Stepless in shift | Two gear Stepless in shift | |
Worktable speed range | rpm | 0.63-63 | 0.5-50 | 0.5-50 | 0.5-50 |
Tool post vertical travel | mm | 1250/1400 | 1250/1400 | 1250/1400 | 1400/1600/2000 |
Main motor power | Kw | 55 | 55 | 55 | 75 |
Items | Unit | CK5263 | CK5280 | CK52100 | CK52125 |
Max turning diameter | mm | 6300 | 8000 | 10000 | 12500 |
Max workpiece height | mm | 3150/4000/4500 | 4000/5000/5500 | 5500/6000 | 5500/6000 |
Max load capacity | Tons | 63/100 | 100/160/250 | 150/250 | 150/250 |
Worktable diameter | mm | 5700 | 7100 | 7500 | 7500 |
Worktable speed steps | Two gear Stepless in shift | Two gear Stepless in shift | Two gear Stepless in shift | Two gear Stepless in shift | |
Worktable speed range | rpm | 0.32-32 | 0.2-25 | 0.16-16 | 0.16-16 |
Tool post vertical travel | mm | 1600/2000/2500 | 2500/2760 | 2760/3180 | 2760/3180 |
Main motor power | Kw | 90 | 90 | 132 | 132 |
Details
Testing
Customer feedback
Package
