Max. turning diameter of vertical tool post:(98’’)3150mm-(314’’)12500mm Max. height of work-piece: 2000mm-4000mm It is manufactured with rules of ISO and CE principle.
| Quantity: | |
|---|---|

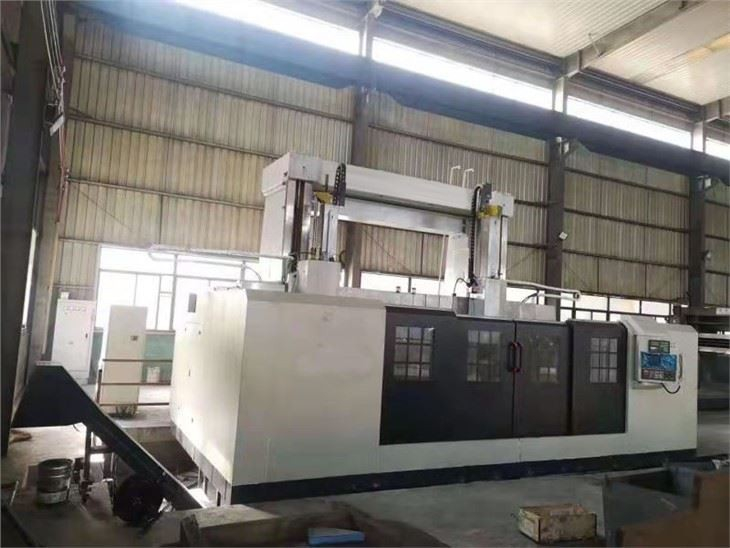

Features of Double Column CNC Turning Milling Machine
1. High quality resin sand cast iron parts, HT300,HT250, ensure the machine rigidity and high accuracy one rams with turning and milling function
2. Ram section size:280x280mm/320x320mm
3. The worktable diameter2850, load capacity:32tons with C axis indexing function, C axis indexing accuracy 0.005° (hydrostatic guideway)
4. The worktable with locking function, with 4 sets clamping jaws.
5. One tool magazine: 8 stations, 4 turning tool station, 4 milling tool stations.
6. With chip conveyor , semi- protection cover.
7. Automatic lubrication system
8. Working light, toolbox,etc
9. Automatic tool change, automatic clamping by hydraulic and disc spring system.
Driven by AC servo motor, speed reduction by gearbox structure.]
Equipped with 8 stations tool magazine, 4 turning tool holder, 4 milling tool holder. The tool selection according to the position, the tool selection and tool change are controlled by SIEMENS 828D
Parameter of CNC Milling Turning Machine
The vertical lathe has C axis for milling, drilling, boring, tapping
Parameter can be customized
Parameter | Unit | CXK5245 | CXK5280 | CXK52100 | CXK52125 |
Max turning diameter | mm | 4500 | 8000 | 10000 | 12500 |
Max workpiece height | mm | 1600 | 4500 | 5500 | 5500 |
Max load capacity | Tons | 16/32 | 80 | 250 | 250 |
Worktable diameter | mm | 3800 | 7100 | 7100 | 7500 |
Worktable speed steps | stepless | stepless | stepless | stepless | |
Worktable speed range | rpm | Turning：0.5-50 Milling：0.001-1 | Turning：0.2~20 Milling：0.001~1 | Turning：0.16-16 Milling：0.002-0.2 | Turning：0.16-16 Milling：0.002-0.2 |
Max torque | Kn.m | 63 | 150 | 640 | 640 |
C axis circle feed range | 0.001-1 | 0.001-1 | 0.001-1 | 0.001-1 | |
C axis index | Random | Random | Random | Random | |
Tool post horizontal travel | mm | -20~2975 | -50~4250 | Left：5230 Right：5650 | Left：6430 Right: 6900 |
Milling tool post vertical travel | mm | 1000 | 2250 | 2760 | 2760 |
Turning tool post vertical travel | mm | - | 2250 | 2760 | 2760 |
Tool post feed range | Mm/min | 0.1-1000 | 0.10-100 | Left： 0.1-1000 Right：0.1-500 | Left： 0.1-1000 Right：0.1-500 |
Ram section size | mm | 280x280 | 320x320 | 400x400 | 400x400 |
Tool bar section size | mm | 50x50 | 50x50 | 80x80 | 100x100 |
Tool post rapid moving speed | Mm/min | 4000 | 2000 | 2000 | 2000 |
Milling spindle motor power | kw | 17 | 17 | 17 | 7.5 |
Milling spindle speed range | Rpm | 10-1000 | 10-1000 | 10-1000 | 1-1000 |
Milling spindle taper hole | BT50 | BT50 | BT50 | BT50 | |
Beam vertical travel | mm | 1300 | 3500 | 4000 | 4000 |
Beam lifting speed | Mm/min | 350 | 310 | 300 | 300 |
Beam lifting motor power | kw | 11 | 30 | 75 | 75 |
Main motor power | Kw | 67 | 110 | 132 | 132 |
Machine weight | Ton | 70 | 230 | 570 | 600 |
Details
Work flow
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
Features of Double Column CNC Turning Milling Machine
1. High quality resin sand cast iron parts, HT300,HT250, ensure the machine rigidity and high accuracy one rams with turning and milling function
2. Ram section size:280x280mm/320x320mm
3. The worktable diameter2850, load capacity:32tons with C axis indexing function, C axis indexing accuracy 0.005° (hydrostatic guideway)
4. The worktable with locking function, with 4 sets clamping jaws.
5. One tool magazine: 8 stations, 4 turning tool station, 4 milling tool stations.
6. With chip conveyor , semi- protection cover.
7. Automatic lubrication system
8. Working light, toolbox,etc
9. Automatic tool change, automatic clamping by hydraulic and disc spring system.
Driven by AC servo motor, speed reduction by gearbox structure.]
Equipped with 8 stations tool magazine, 4 turning tool holder, 4 milling tool holder. The tool selection according to the position, the tool selection and tool change are controlled by SIEMENS 828D
Parameter of CNC Milling Turning Machine
The vertical lathe has C axis for milling, drilling, boring, tapping
Parameter can be customized
Parameter | Unit | CXK5245 | CXK5280 | CXK52100 | CXK52125 |
Max turning diameter | mm | 4500 | 8000 | 10000 | 12500 |
Max workpiece height | mm | 1600 | 4500 | 5500 | 5500 |
Max load capacity | Tons | 16/32 | 80 | 250 | 250 |
Worktable diameter | mm | 3800 | 7100 | 7100 | 7500 |
Worktable speed steps | stepless | stepless | stepless | stepless | |
Worktable speed range | rpm | Turning：0.5-50 Milling：0.001-1 | Turning：0.2~20 Milling：0.001~1 | Turning：0.16-16 Milling：0.002-0.2 | Turning：0.16-16 Milling：0.002-0.2 |
Max torque | Kn.m | 63 | 150 | 640 | 640 |
C axis circle feed range | 0.001-1 | 0.001-1 | 0.001-1 | 0.001-1 | |
C axis index | Random | Random | Random | Random | |
Tool post horizontal travel | mm | -20~2975 | -50~4250 | Left：5230 Right：5650 | Left：6430 Right: 6900 |
Milling tool post vertical travel | mm | 1000 | 2250 | 2760 | 2760 |
Turning tool post vertical travel | mm | - | 2250 | 2760 | 2760 |
Tool post feed range | Mm/min | 0.1-1000 | 0.10-100 | Left： 0.1-1000 Right：0.1-500 | Left： 0.1-1000 Right：0.1-500 |
Ram section size | mm | 280x280 | 320x320 | 400x400 | 400x400 |
Tool bar section size | mm | 50x50 | 50x50 | 80x80 | 100x100 |
Tool post rapid moving speed | Mm/min | 4000 | 2000 | 2000 | 2000 |
Milling spindle motor power | kw | 17 | 17 | 17 | 7.5 |
Milling spindle speed range | Rpm | 10-1000 | 10-1000 | 10-1000 | 1-1000 |
Milling spindle taper hole | BT50 | BT50 | BT50 | BT50 | |
Beam vertical travel | mm | 1300 | 3500 | 4000 | 4000 |
Beam lifting speed | Mm/min | 350 | 310 | 300 | 300 |
Beam lifting motor power | kw | 11 | 30 | 75 | 75 |
Main motor power | Kw | 67 | 110 | 132 | 132 |
Machine weight | Ton | 70 | 230 | 570 | 600 |
Details
Work flow
Work piece
The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
