Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
1. Gearbox
Gear made of 40 Cr through High-frequency Quenching treatment, the Hardness reaches HRC40-45，gear grinder，Precision can reach level 6.
2. Feeding system
Feeding system (X-axis, Z axis) is driven by servo motor.
3. Bed, as an overall structure, is made of high-strength, low-stress iron casting.
4. Cross beam:
Smooth transmission, small friction, low noise and high reliability advantages. Stainless steel telescopic shield was fixed on the horizontal guide rail of beam(X axis).
5. Working table
Table radial centering by high-precision double-line short cylindrical roller bearing, to ensure the accuracy of rotation and improve the carrying capacity of the CNC Single Column Lathe.
6. CNC system/feeding servo motor: SIEMENS, FANUC system
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Parameter of CNC Single Column Lathe Machine
Parameter can be customized
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800 | 800 | 800 | 800 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Low noise while working
Work piece by CNC Single Column Lathe Machine
The vertical lathe is good at machining tougher work and better.
The CNC Vertical Turning Lathe is no problem to machining train wheel, which require high roundness and smoothness.
Customers
Our customers include ITT, Siemens......

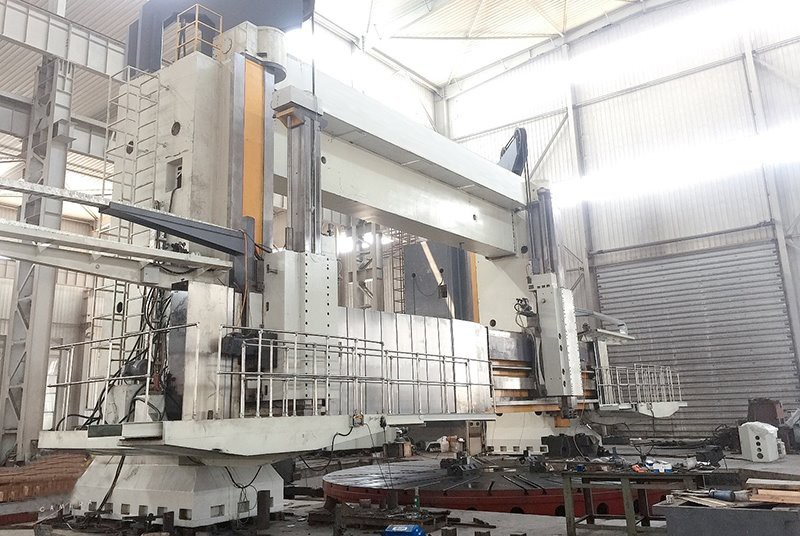

Various size meet your various needs.
Testing
Package and Shipping by CNC Single Column Lathe
