Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Introduction
The basic parts of CNC Vertical Turret Lathe Machine columns, beam, worktable and worktable base, etc.) are made of high-strength cast iron, resin sand technology, braised after casting, and aging treatment (artificial aging or vibration aging) after rough machining to ensure The accuracy of the machine tool. The casting quality is reliable without cracks, pores, shrinkage holes and white mouth structure. The casting has a stable structure after simmering and aging treatment to ensure that the size remains unchanged during use.
It is suitable for high-speed steel, hard alloy cutlery and ceramic cutlery, which can make rough and accurate turning for external cylindrical surface, internal and external conical surface, screw thread, circular arc surface and complex curved surface for black metal, colored metal and some nonmetal part.
PTFE guide rail wear-resistant soft strip with a small friction coefficient was pasted on the contact surface of beam and column, greatly extended the life of the machine. The cross beam can move along the Z axis on the column guide rail. To go up and down through leading screw with a smooth transmission, small friction, low noise and high reliability advantages. Stainless steel telescopic shield was fixed on the horizontal guide rail of beam(X axis). Beam grip adopt the leading screw clamping mechanism, safely and reliably.
Products Specification
Parameter can be customized
The vertical lathe can be equipped with C axis for milling boring function.
| Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
| Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
| Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
| Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
| Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
| Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
| Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
| Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
| Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
| Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
| Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
| Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
| Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

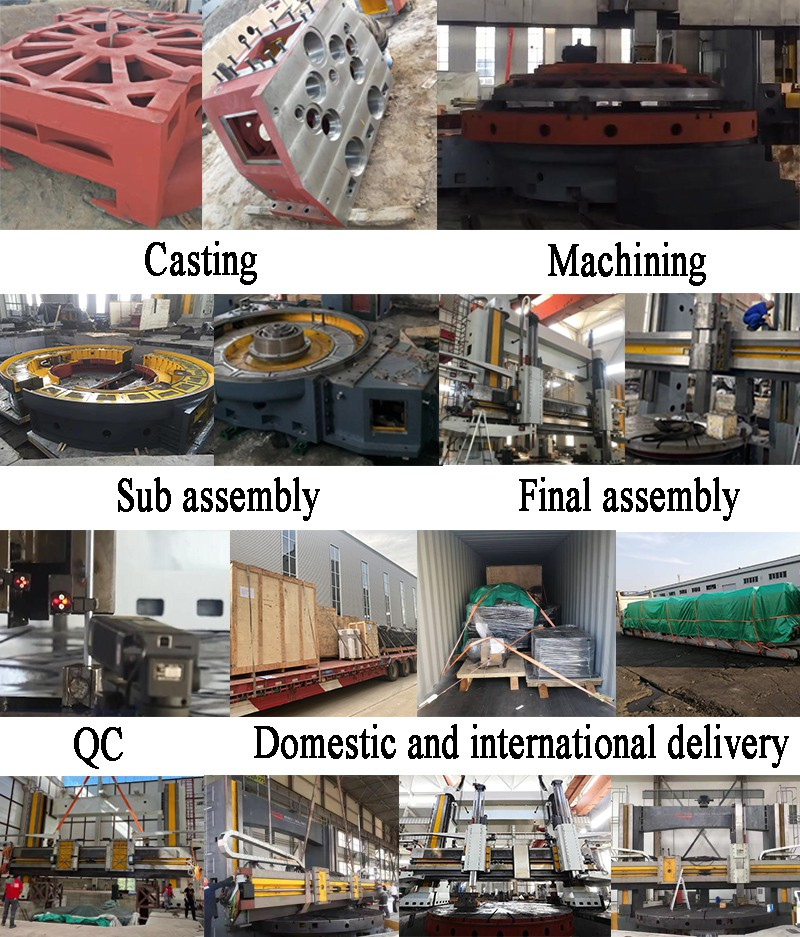

Production details of CNC Vertical Turret Lathe Machine

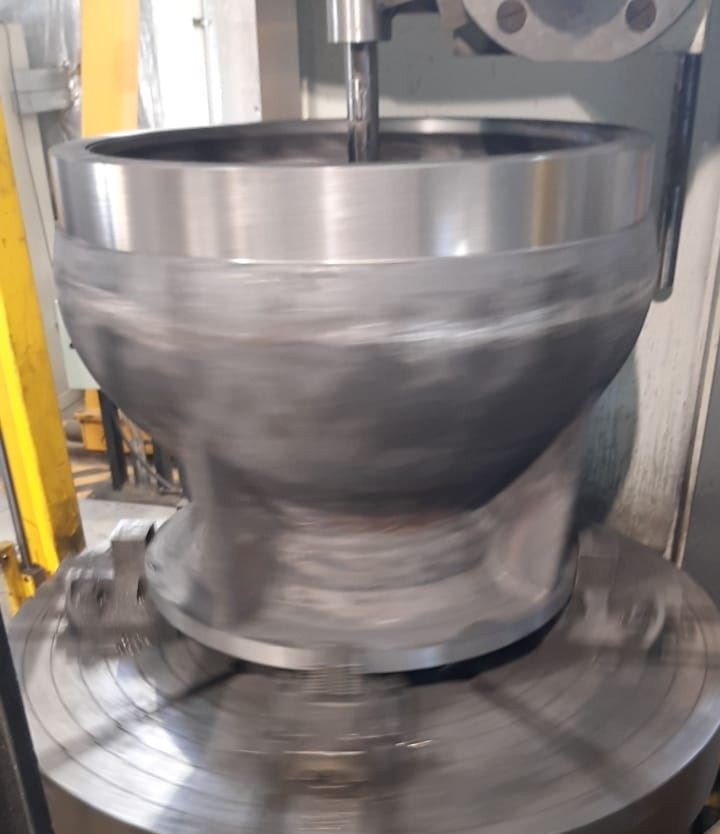

Work piece
Customers: ITT, SIEMENS
Serious and professional Testing
Package and Shipping
Company Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Everything we do follows the moral norms of goodness, responsibility and happiness. Morality, This is our banner. The relationship with customers is based on mutual respect and acknowledge their values and rights. The commitment to our challenges is the guarantee for the benefit of everyone. We believe that fairness and tolerance can promote the development of the entire organization, give full play to the greatest potential of individuals, and establish a happy life we are proud.
