Boring and Milling Machine

Introduction:

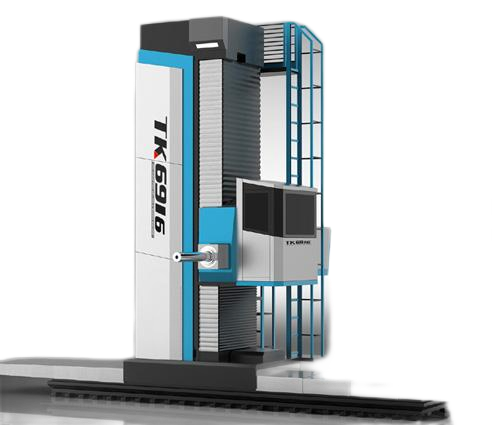

The TK CNC floor drilling and milling machine is a highly cost-effective, high-performance CNC machine tool designed with advanced mechanical, electrical and hydraulic integration technology. It can process a wide range, complete CNC functions, high precision and production efficiency.

The machine tool is equipped with sinumerik840dsl numerical control system and AC digital servo drive system. The system has powerful data packages and a low failure rate, and its performance is very stable. It enables multi-axis linkage, function compensation, data communication and exchange, analog display, a variety of fixed machining cycles, tool management, etc. It can realize the milling of inclined planes, frame planes, large bore end faces and other arbitrary curved surfaces with various functional software instructions developed by the company; use the circumferential milling of the milling cutter to realize the drilling of large holes, etc.; machining of various characteristic holes such as circumference, frame shape and polar coordinate distribution.

The machine tool can perform drilling, reaming, boring and other hole machining, slot milling, face and surface milling in a single operation. It can perform angle milling, rotary drilling and bevel machining on the workpiece installed on the rotating worktable. With the continuous indexing function of the NC rotary table, it can continuously complete the machining of spatially contiguous surfaces (such as impellers), expand the application range of the process, and shorten the auxiliary time;

Select tool libraries with different capacities to realize one-time clamping and automatic compound machining with multiple processes; The closed-loop feedback system with coordinate axis can also process the process content with higher precision. In addition to the above functions, the machine tool can also realize thread processing, rigid tapping and other functions.

Parameter
