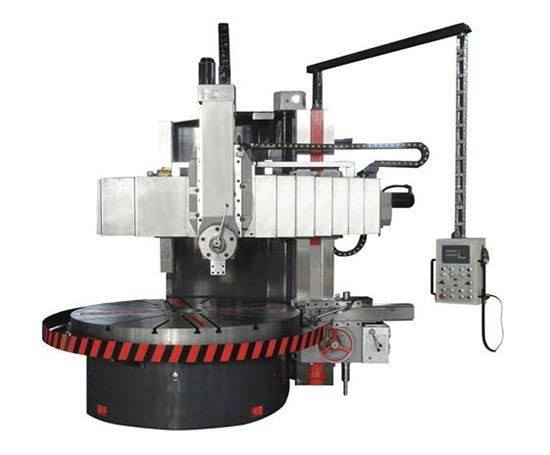

Universal Vertical Turning Lathe

Vertical Metal Lathe Vertical lathes machining diameter range from 1250mm meter to over 3150mm meters(49''-124'').

Quantity:




Inquire Add to Basket

Product Description

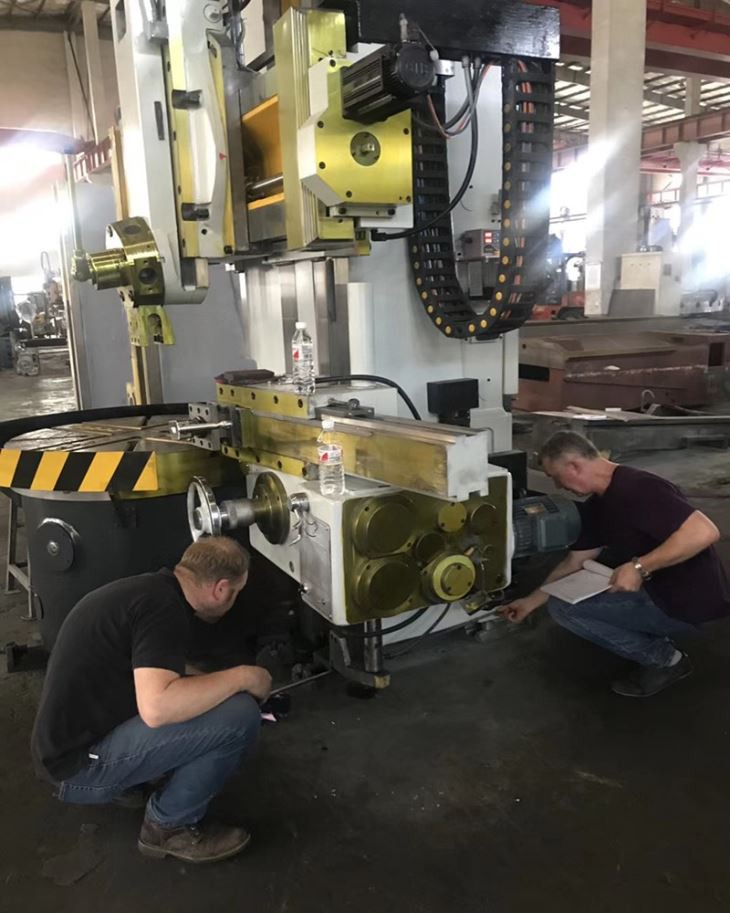

Feature of C series Conventional Vertical Turning Lathe

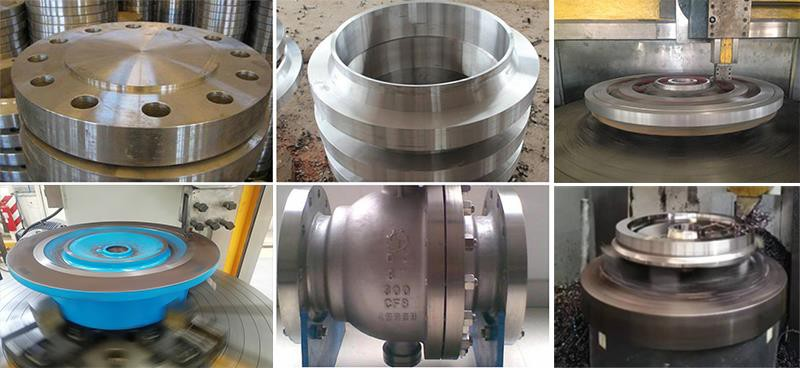

1. This C series Conventional Vertical Turning Lathe is apply to machining. Rough and finish machining of inside&outside cylindrical surface, circular conical surface end face.

2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering. Axial direction adopts CC hydrostatic guideway , worktable have the features of high running accuracy ,big bearing capacity, small thermal deformation

4. The Conventional Vertical Turning Lathe main spindle drive is drive by well known brand AC motor, 16 steps main spindle speed change mechanism to achieve the worktable range of speed

5. Vertical column, cross beam guideway all use high-frequency quenching

Advantage:

Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.

Parameter:

Parameter can be customized

The vertical lathe can be equipped with and side tool post and ATC

The vertical lathe can be equipped CNC Controller with C axis for milling and boring function

Parameter	Unit	C5112	C5116	C5120	C5123
Worktable diameter	mm	1250	1600	2000	2300
Max, Turning diameter	mm	1010	1400	1800	2000
Max. Workpiece height(H)	mm	1000/1250/1400	1000/1400/1600	1250/1600/1800	1250/1600/1800
Max. Workpiece weight(W)	t	5	8	10	10
Max. Turning force of vertical tool post	kn	20	25	25	25
Max. Turning force of vertical side post	kn	20	20	20	20
Max. Worktable torque	kn.m	17.5	25	32	32
Worktable rotary speed	r/min	6.3-200	5-160	2.5-125	2.5-125
Swing angle of tool post		±30。	±30。	±30。	±30。
Tool post feeding speed	mm/min	0.8-86	0.8-86	0.8-86	0.8-86
Beam travel	mm	650/830/1050	650/1050/1250	900/1250/1450	900/1250/1450
Beam travel speed	mm/min	440	440	440	440
Tool post horizontal travel	mm	650	800	1050	1200
Ram travel	mm	650	800/1000	800/1000	800/1000
Ram travel of tool post	mm	500	630	630	630
Vertical trave of side tool post	mm	970	980	1180	1180
Tool post rapid travel	mm/min	1800	1800	1800	1800
Tool section	mm	40	40	40	40
Main motor power	Kw	22	30	37	37
Overall size(LXWXH)	cm	236247358	283287387	321405420	341405420
Weight	t	8.3/8.6/8.9	12.6/13.8/14.1	17.5/18.6/19.5	18/19.1/20.6
