Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Main feature of CNC Vertical Turret Turning Lathe
1. High rigidity gantry frame structure, large cross-section column and crossbeam, box-shaped structure, optimization reinforcement, all large workpieces are analyzed by finite element to ensure rigidity under stress condition.
2. Table uses constant hydraulic-static guideway, which has large carrying capacity and high rotary precision.
3. Main drive uses second or fourth gear to change speed. Users can equip with AC frequency, AC servo or DC servo main motor.
4. Spindle encoder can turn thread.
5. Big diameter ball screw equips with import Xingxing reducer to output torque feed force.
6. Crossbeam is equipped with steel guideway and hydraulic unloading. X axis can choose hydraulic-static guideway. Z axis can choose sliding composite guideway to adopt the requirements of high-position and precision.
7. Independent large-capacity hydraulic station and can be equipped with oil cooler.
8. Crossbeam is equipped with steel telescopic guard and tool RAM is fixed gurad.
9. Siemens or FANUC system.
10. Users can choose to install linear closed loop controlling.
11. Users can equip with one CNC tool RAM, one CNC and one PLC tool RAM or two CNC tool rams.
12. Users can choose to install tool magazine
13. Can choose knife instrument and grinding spindle.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of CNC Vertical Turret Turning Lathe
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product details

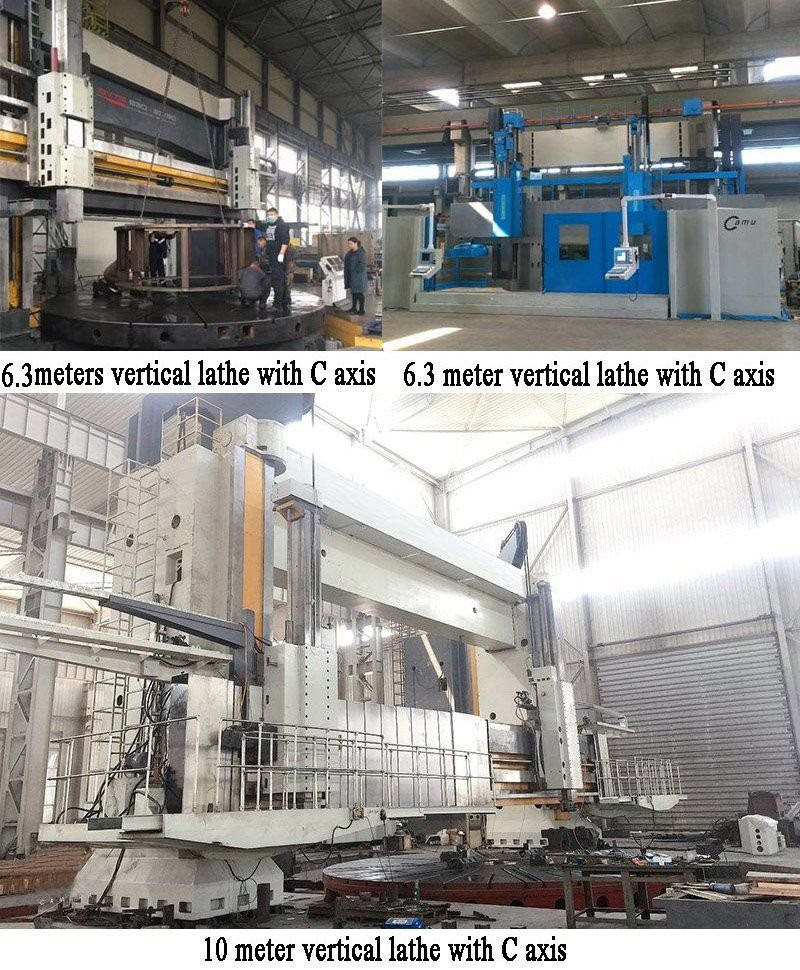

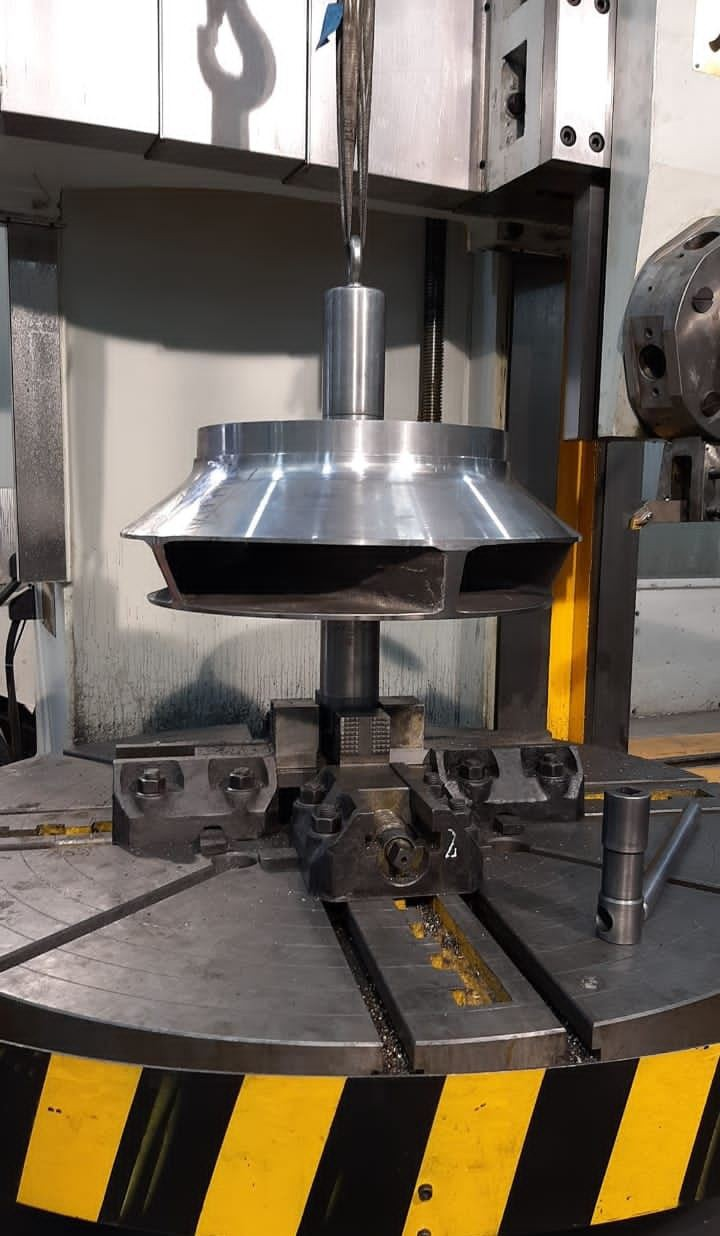

Work piece by CNC Metalworking Vertical Lathe
Customers
Package
Main feature of CNC Vertical Turret Turning Lathe
1. High rigidity gantry frame structure, large cross-section column and crossbeam, box-shaped structure, optimization reinforcement, all large workpieces are analyzed by finite element to ensure rigidity under stress condition.
2. Table uses constant hydraulic-static guideway, which has large carrying capacity and high rotary precision.
3. Main drive uses second or fourth gear to change speed. Users can equip with AC frequency, AC servo or DC servo main motor.
4. Spindle encoder can turn thread.
5. Big diameter ball screw equips with import Xingxing reducer to output torque feed force.
6. Crossbeam is equipped with steel guideway and hydraulic unloading. X axis can choose hydraulic-static guideway. Z axis can choose sliding composite guideway to adopt the requirements of high-position and precision.
7. Independent large-capacity hydraulic station and can be equipped with oil cooler.
8. Crossbeam is equipped with steel telescopic guard and tool RAM is fixed gurad.
9. Siemens or FANUC system.
10. Users can choose to install linear closed loop controlling.
11. Users can equip with one CNC tool RAM, one CNC and one PLC tool RAM or two CNC tool rams.
12. Users can choose to install tool magazine
13. Can choose knife instrument and grinding spindle.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of CNC Vertical Turret Turning Lathe
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product details
Work piece by CNC Metalworking Vertical Lathe
Customers
Package
