Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Structure of CNC Vertical Turret Lathes
1. This Vertical Turret Lathes is suitable for all kinds of industries. I can make rough and accurate turning of external cylindrical surface, circular conical surface, head face, grooving, severance,etc.
2. Working table adopts dydrostatic guideway. The spindle use NN30 (Grade D) bearing and able to turn precisely, with good carrying capacity.
3. Plastic coated guide ways are wearable. Centralized lubricating oil supplying is convenient. Raster dispaly which is produced by famous companies in China is used in standard accessories.
4. Castings of lathe are to use lost foam foundry (short for LFF) technique. Castings are wearable with good quality and dealt by aging.
5. The manual scraping method is adopted to ensure the accuracy of the guide rail surface, the appearance is beautiful, and it is easy to produce an oil film on the guide rail surface, which is beneficial to the lubrication of the guide rail and prevents the surface of the guide rail from being scratched.
6. Closed symmetrical frame; using high-strength low-stress cast iron, with sufficient rigidity and strength, to ensure the accuracy of the machine tool with long-term retention and stability.
Application:
This double column is mainly suitable for high-speed steel, hard alloy cutting tools, for the rough and fine machining of the inner and outer cylindrical, inner and outer conical surfaces, arc surfaces and complex curved surfaces of ferrous metals, non-ferrous metals and some non-metal parts. This product has the characteristics of high precision, high rigidity, long service life, good shock resistance and high reliability.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
Parameter can be customized

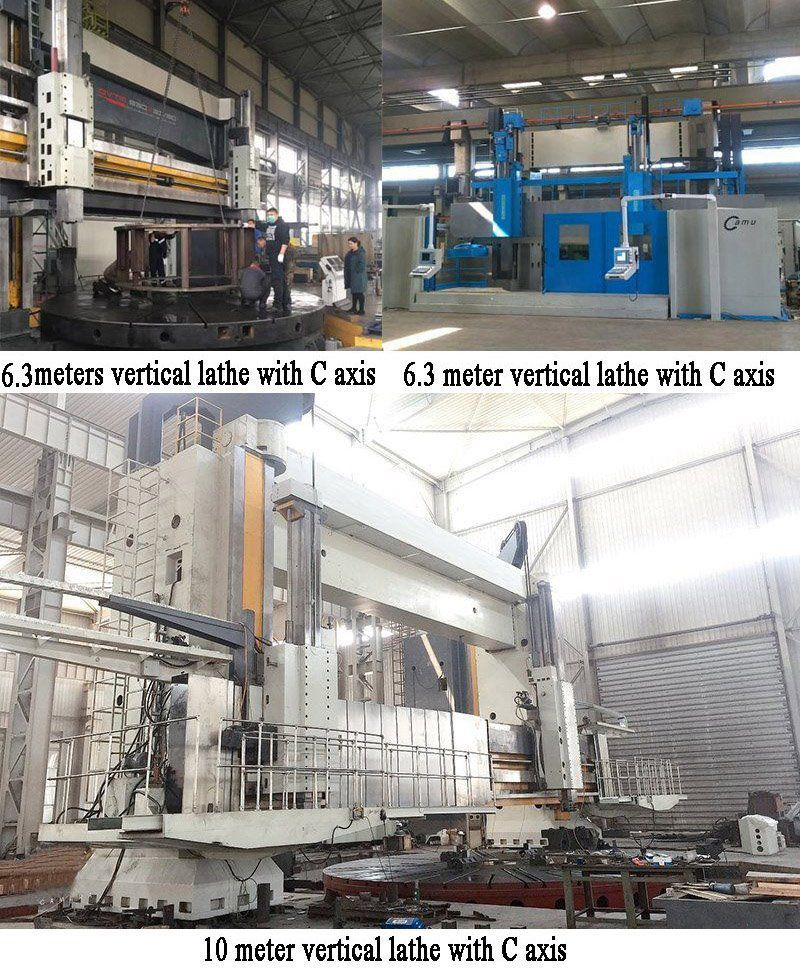

The CNC Vertical Turret Lathes can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

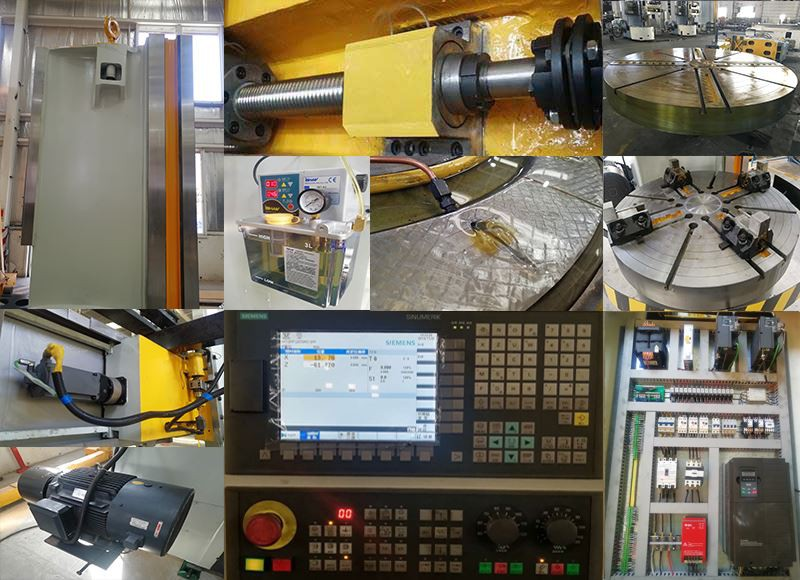

Production details
Customers
Customers
Pre-sale service:
Provide Lathes technical consulting services to customers free of charge. 2. Provide the company with the company profile and credit certificate. 3. Invite customers to visit our company to inspect the manufacturing process. In Producing service Customers can come to our company to know the progress of production at any time.
After-sale service
1. Our company can dispatch technicians to carry out on-site installation and commissioning according to customer requirements.
2. Customers can send employees to our company for acceptance and training.
3. The warranty period of our company's lathe machine is ONE year. During the warranty period, our company provides damaged parts for customers free of charge, and dispatches technicians to solve problems on the spot according to customer requirements.
4. Our company promises to respond to customer questions in a timely manner after receiving feedback of qualit, and provide solutions within 24 hours.
Serious testing
Package and Shipping
